RFID short range reader JT-8300 support ISO18000-6C Gen2,Provides automatic reading card and write cards DEMO software, It is convenient for customer to read and write cards.
Brand:
JTSPEEDWORKItem NO.:
JT-8300A/BProduct Origin:
ChinaLead Time：
Within 3-7 DaysJT-8300

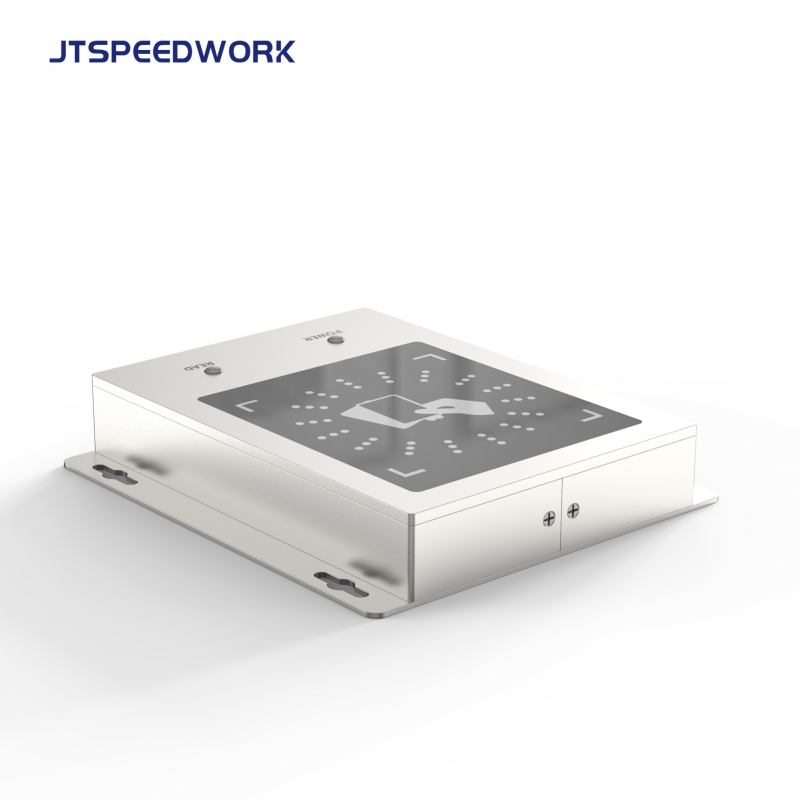

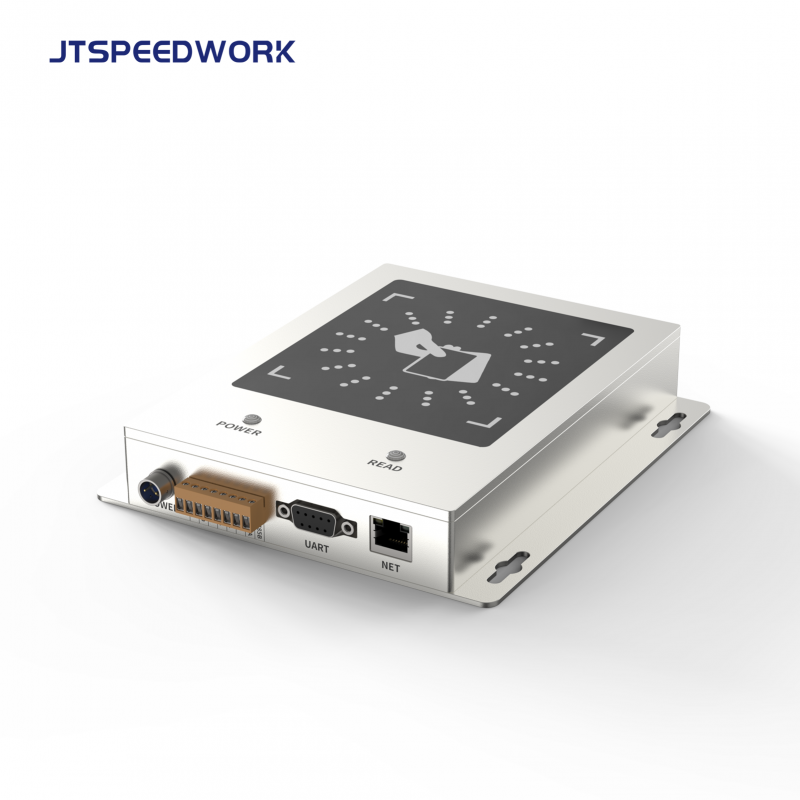

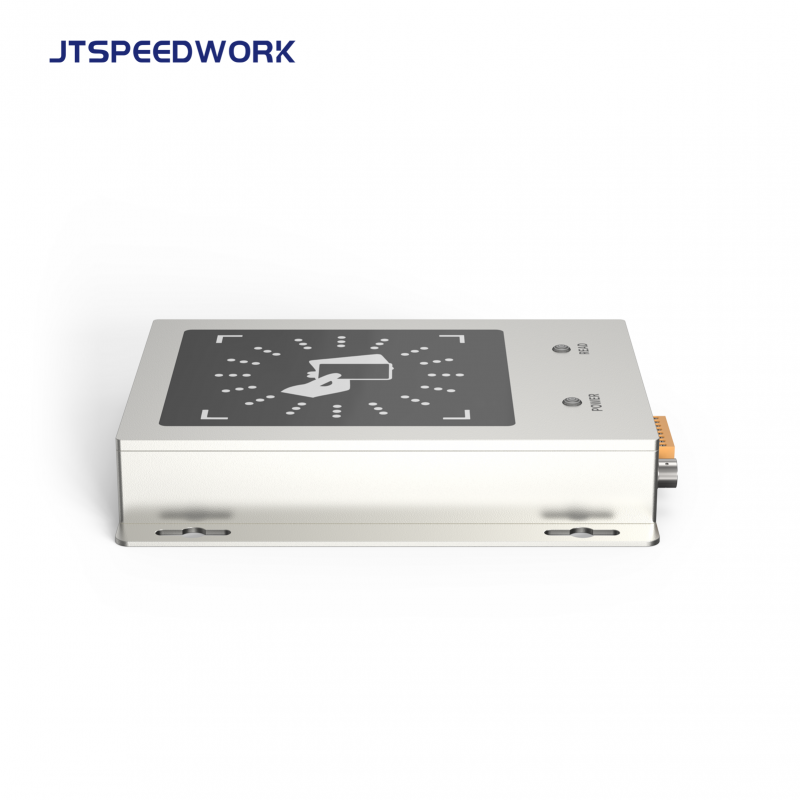

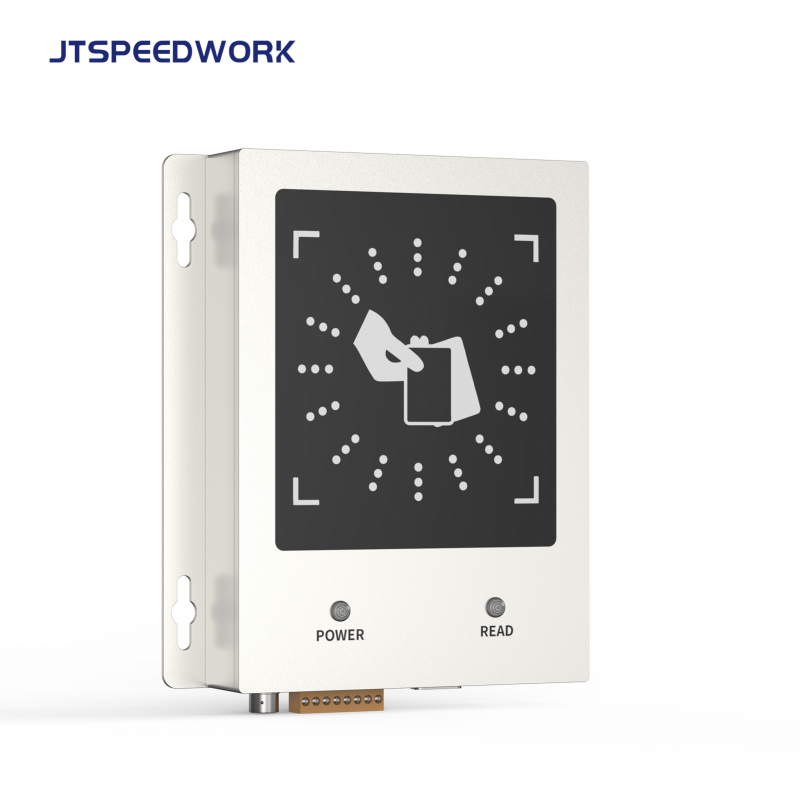

UHF RFID Desktop Reader
Specification:
Item No.
JT-8300
RFID parameters
Model Type
Frequency
JT-8300A
RS232,RS485,Wiegand 26/32/34/66
865-868MHz / 920-925MHz / 902-928MHz
JT-8300B
RS232,TCP/IP,Wiegand 26/32/34/66
Protocol
ISO8000-6C/EPC C1G2
Power Supply
Antenna
Power supply
DC 12~24V/3A
8dBi circularly polarized antenna（built-in）
Peak current
500mA (DC 12V)
RF power
0~30±1dBm
User Environment
Read range
Operating Temp.
-20 ℃ ~ 75 ℃
0~100cm (relate to tag and environment)
Storage Temp.
-40 ℃ ~ 85℃
Write range
Humidity
5-90%non-condensing (+25°C)
0~40cm (relate to tag and environment)
FM mode
Physical parameters
fixed/hopping
Shell material
Aluminum alloy
Work mode

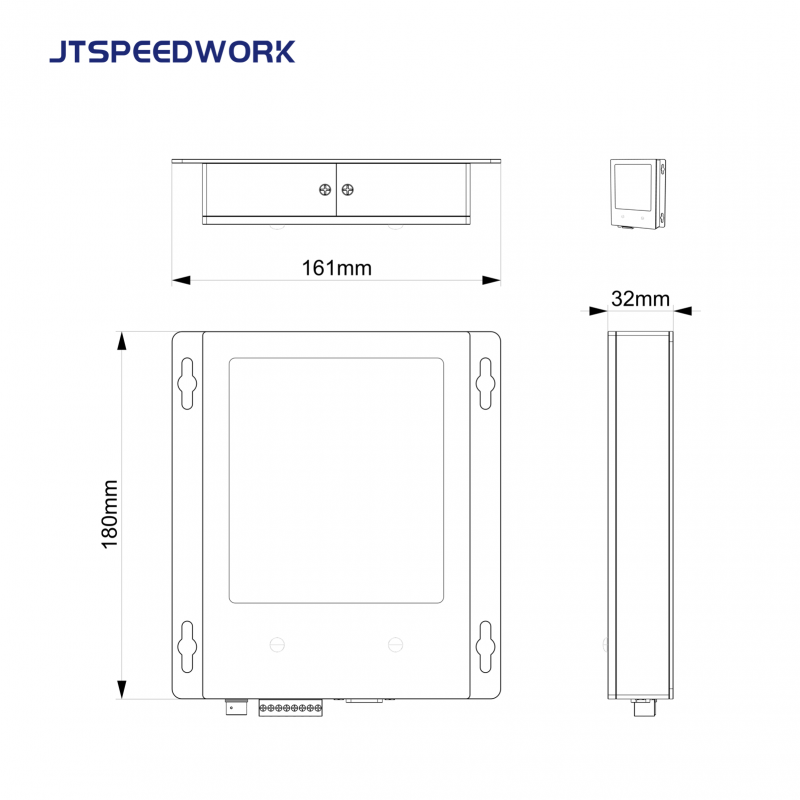

Dimensions
180(L)*163(W)*33(H)mm
Master-slave, timing, trigger mode
Net weight
500g
Baud rate
115200bps
SDK (download link)
Datasheet (download link)
Demo&C++,C#,JAVA,Android SDK
