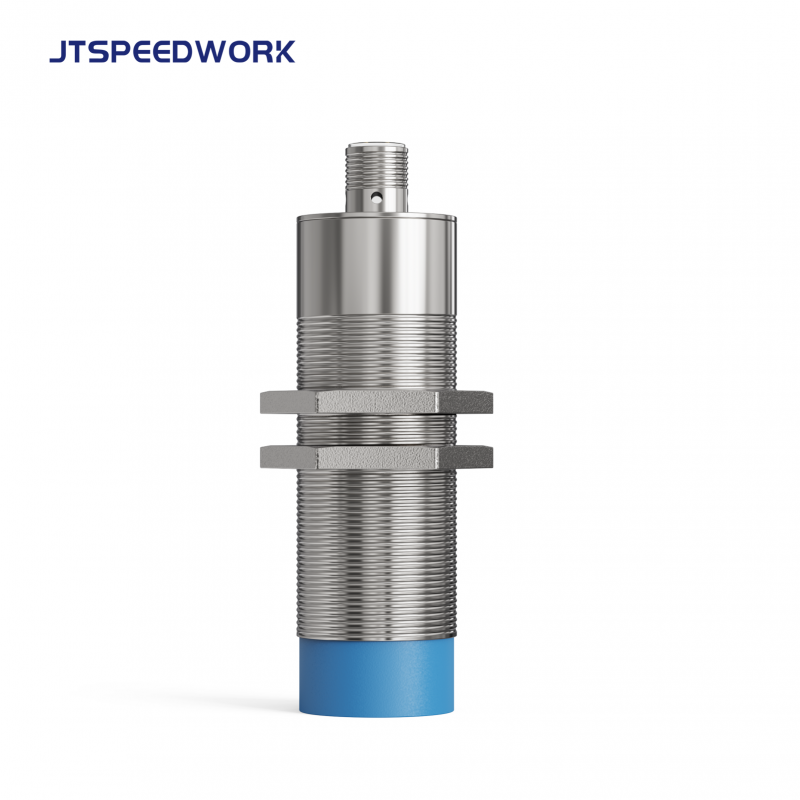

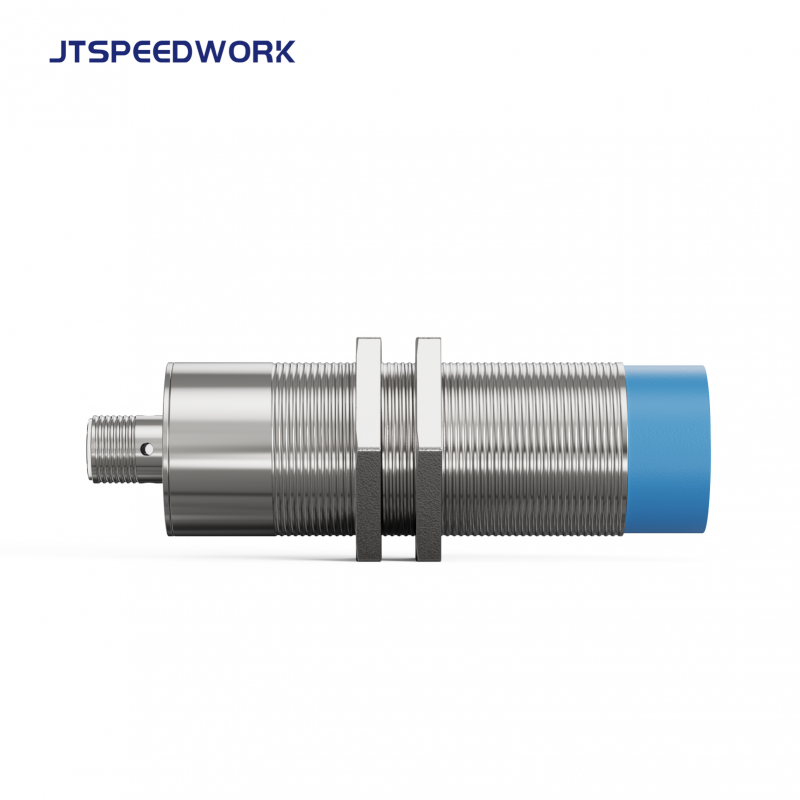

0-5CM Prevent cross reading industrial reader is an antenna-integrated UHF reader with a working frequency of 920MHz～925MHz, in line with EPC Global Class l Gen 2/IS0-18000-6C standard. The head is compatible with RS232, RS485 (Modbus RTU) and other industrial communication interfaces, which is convenient for users to access different control systems.
which is especially suitable for applications where the installation space is limited and the card reading distance is required to be within 0.5m.
Brand:
JTSPEEDWORKItem NO.:
JT-7300Payment:
100% TT in advanceProduct Origin:
ChinaLead Time：
Within 3-7 DaysDescribe
◆ It is convenient for RS485 to build the network and support RS485 and RS232 communication interface.
◆ Industrial design and industrial terminal interface.
Feature
◆ The metal design of enclosed.
◆ It is suitable for complex environment and resist to collision and corrosion.
◆ It is convenient for RS485 to build the network and support the RS485.
|
Item No. |
JT-7300 |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Antenna gain |
1.5dBi circular polarization |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Software & SDK |
DEMO and C#, VC, VB, Java, DELPH, etc., |
|
Communication port |
RS232,RS485 |
|
Reading range |
stable reading range 5cm |
|
Output port |
One-way relay output |
|
Output power |
0~18±1dBm |
|
Physical parameters |
|
|
Power |
DC12V |
|
Working temperature |
-20℃~+75℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Item size |
100x40mm |
|
IP Protect Grade |
IP67 |
|
Net weight |
300g |
|
Shell material |
Aluminum Alloy |
|
Appliation |

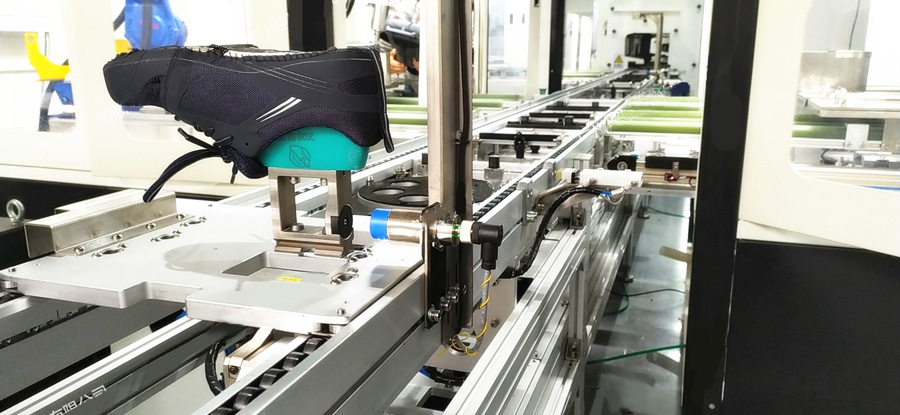

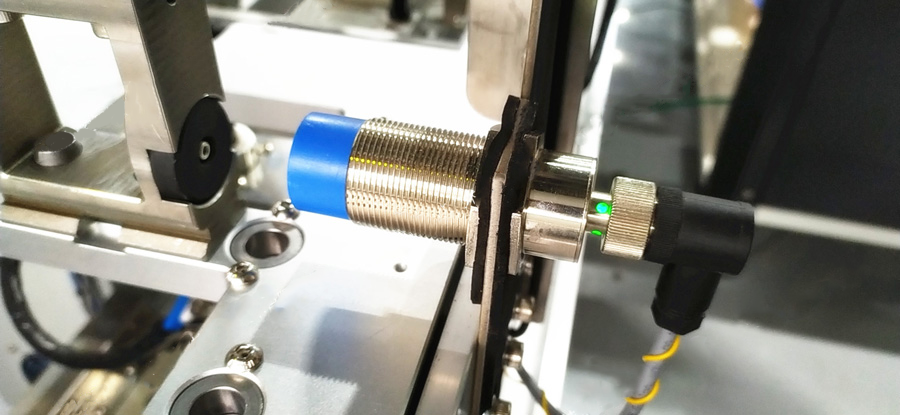

Tool management, robot data collection, intelligent production line, lithium battery power production line, etc. |
