0-30CM Short range RFID reader JT-6230 support protocol EPC C1 G2 /ISO 18000-6C. Communication interface include RS485 and RS232 Mainly used in production line management.
Brand:
JTSPEEDWORKItem NO.:
JT-6230Payment:
100% TT in advanceProduct Origin:
ChinaLead Time：
Within 3-7 DaysJT-6230

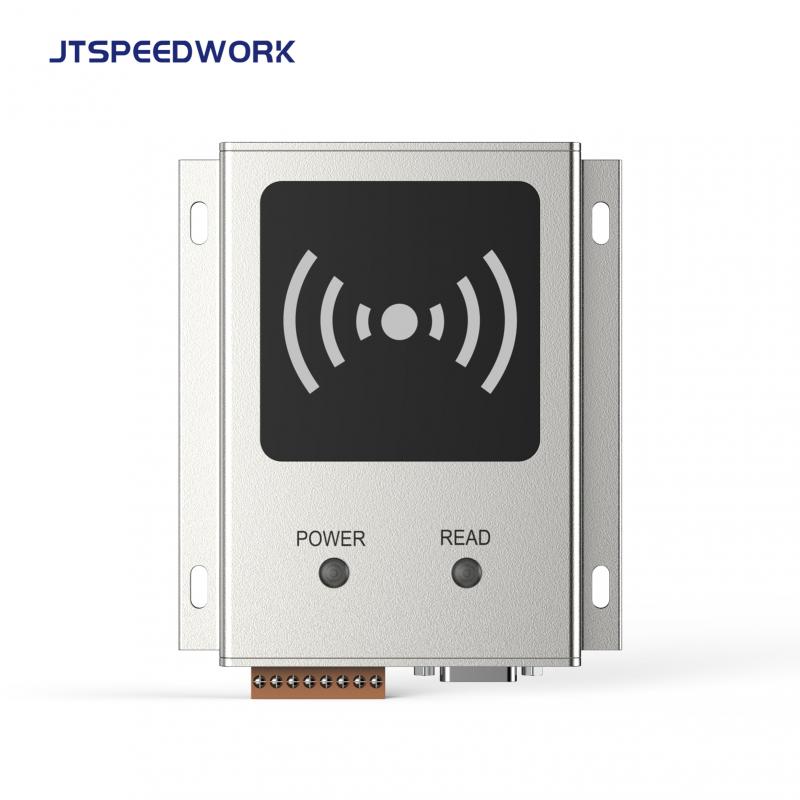

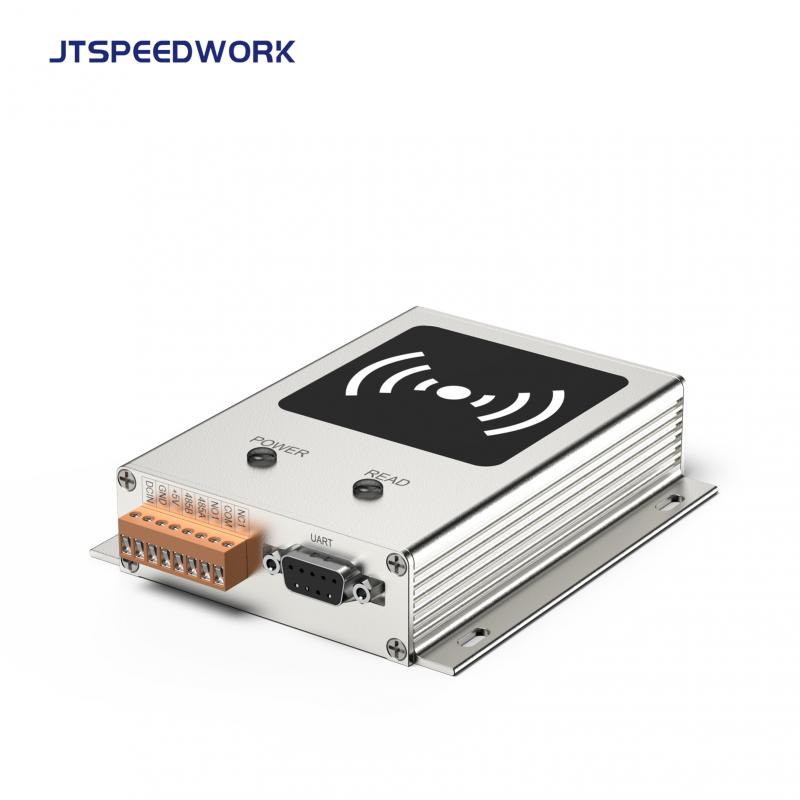

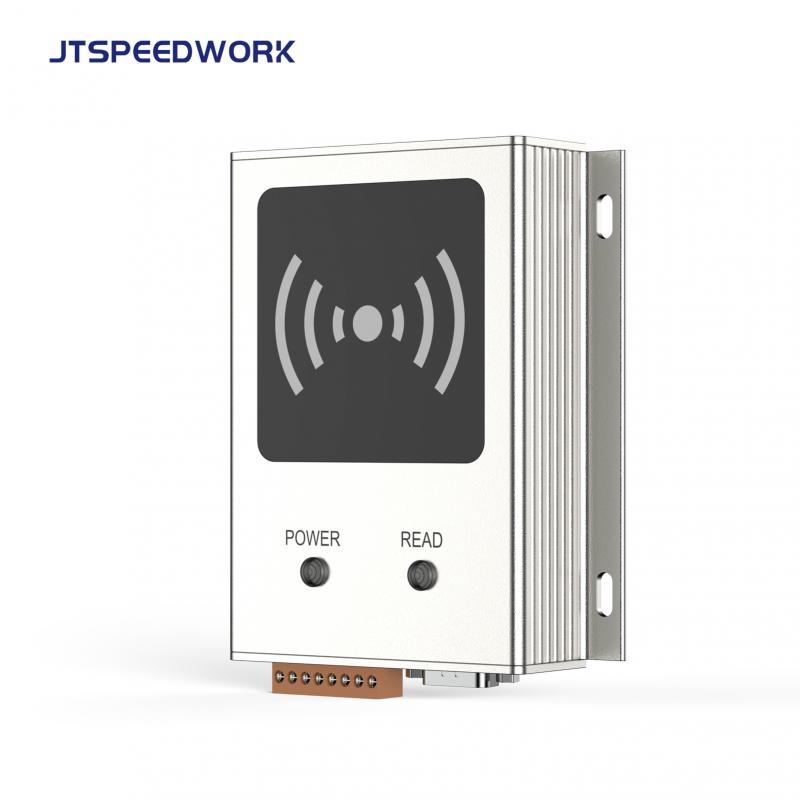

UHF RFID Desktop Reader

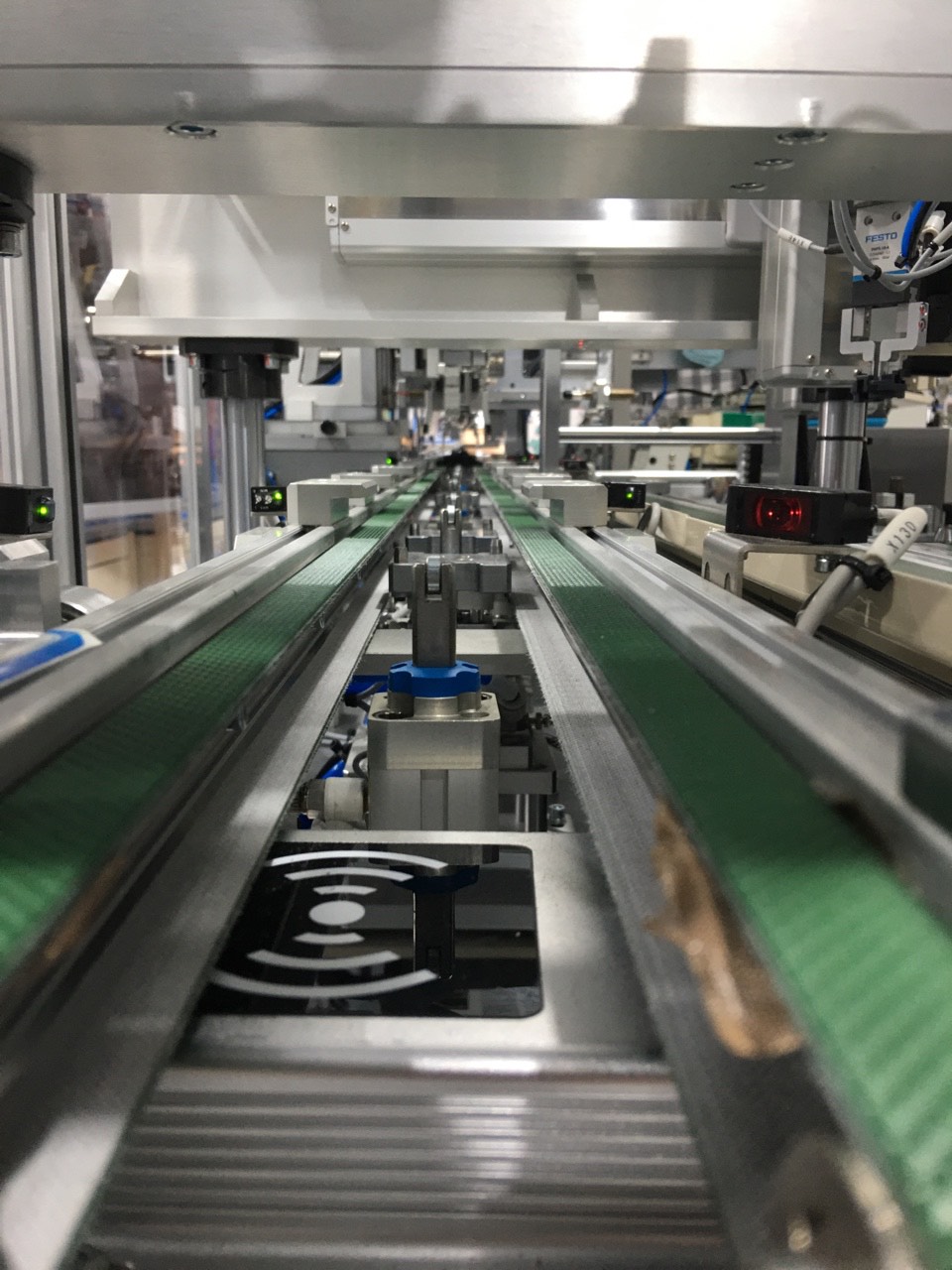

◆ JT-6230 industrial near-field reader base supports EPC C1 G2 /150 18000-6C protocol. Can provide RS485 and RS232 communication interface. Meet the relevant regulations of the US FCC; builtin antenna, compact structure, RS485 bus communication interface, and RS232 serial port communication. The target market is located in industrial field applications where it is necessary to prevent misreading of other tags around and short-distance reading, such as close-distance card reading on assembly lines and production lines.
Item No.
JT-6230
RFID parameters
RFID parameters
Frequency
I/0
865-868MHz / 920-925MHz / 902-928MHz
1 trigger input or 2 relay outputs (customized)
Protocol
Notification
ISO8000-6C/EPC C1G2
LED light and buzzer
Antenna
Communication interface
3dBi circularly polarized antenna (buiit-in)

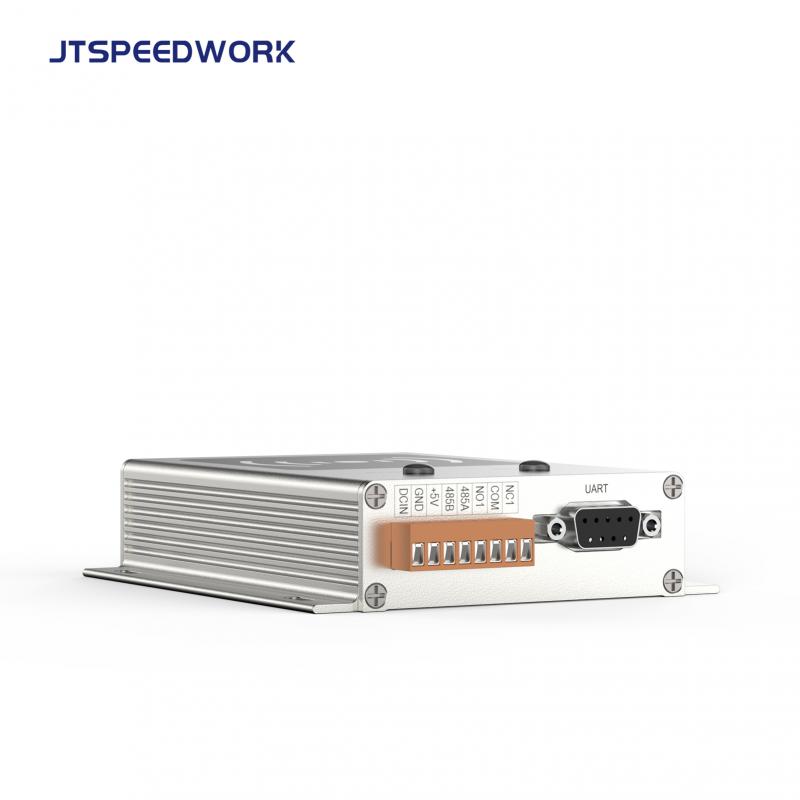

RS232,RS485
RF power
SDK
0~18+1dBm
Demo&C++,C#,JAVA,Android SDK
Read range
0~20cm(relate to tag and environment )
User Environment
FM mode
Operating Temp.
-20°C~+75°C
fixed/hopping
Storage Temp.
-40°C~+85°C
Work mode
Humidity
5-90% non-condensing(+25°C)
Master-slave, timing,trigger mode
Baud rate
Physical parameters
115200bps
Shell material
Aluminum alloy
Power supply
Dimensions

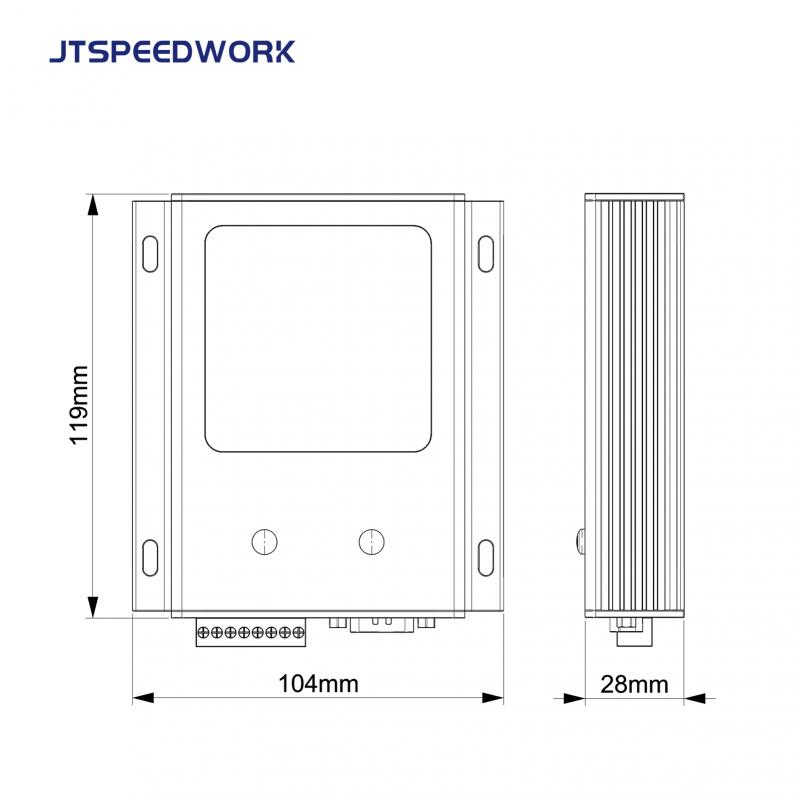

119(L)*104(W)*28(H)mm
DC 12V~24V/3A
Net weight
250g
Peak current
Pack size
26*20*8cm
60mA(DC12V)
Gross weight
0.75kg
Datasheet (download link)
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
