Industry Scenario Application: The main market application is for item-level item identification, such as product inventory of clothing, leather goods and bags, and alcohol.
Brand:

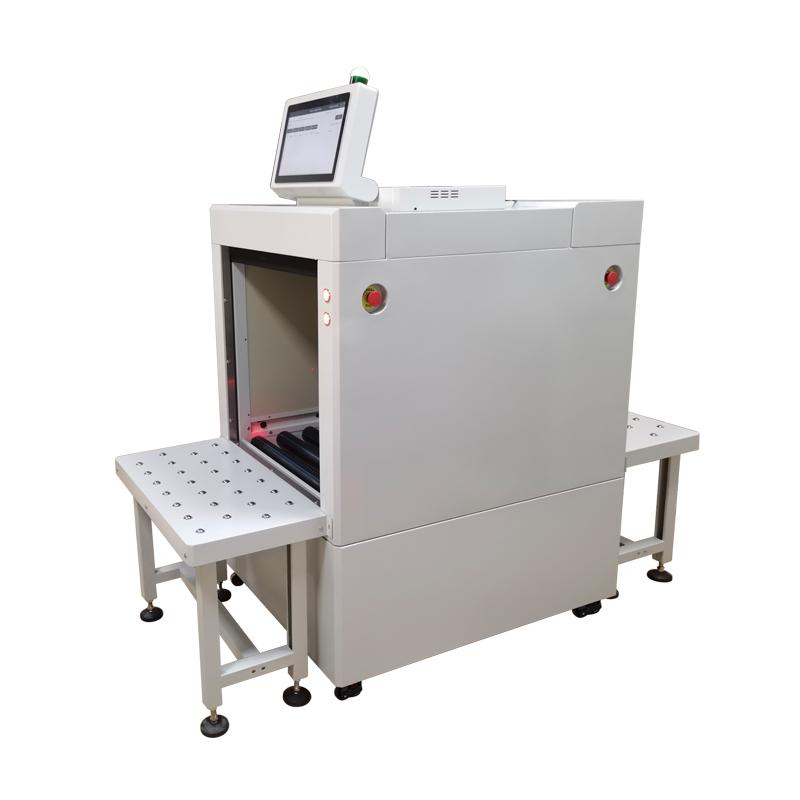

JTSPEEDWORKItem NO.:
JT-R307
| Main Specification | Maximum load | 50kg | ||
| Air Interface Protocol | EPC Global Classl Gen2/ls0 18000-6C | Transmission speed | Up to 17.5m/min | |
| RFID Frequency Characterization | GB:920.625MHz~924.375MHZ, channel spacing 250kHz AFS:902.75MHZ~927.25MHZ, channel spacing 500kHz | Wire body forward and reverse or not | Conveyor can turn forward and reverse | |
| RFID Frequency Modes | Fixed frequency/frequency hopping, 10 frequency hopping points | Door opening speed | 2.5 seconds | |
| Reader Output Power | 5-33+0.5dBm | |||
| Communication Interface | RJ45, USB,RS232 | |||
| Efficiency | 5-6 boxes/minute | Physical Environment | ||
| Number of read/write tags | 200+pcs | Product Model | ROV-R307 | |
| Read and write device | E710 | Dimension(mm) | 1890*880*1720mm(L*W*H) | |
| Read rate | Within 3 seconds | Internal space(mm) | 1000*700*700mm(L*W*H) | |
| Read mode | Stationary/Motion | Size of loading bull's-eye table(mm) | 880*400*600mm(L*W*H) | |
| Working Mode | Interval T Cycle/Continuous Operation/External Trigger | Maximum box size(mm) | 800*650*650mm(L*W*H) | |
| Touch screen specification | 15.6” Resistive Touch (Embedded) | Weight | Approx. 200KG | |
| Industrial control machine specifications | J4125/4G | Working Temperature | -20°C- 60°C | |
| Automatic Conveyor Line | Center | Storage temperature | -10°C~60°C | |
| Conveyor line material | Roller | Working Humidity | 20-95%(non-condensing) | |
| Programmable controller | Domestic PLC | Working Voltage | 220VAC(士10%)50±3HZ | |
| Circuit Control System | Match PLC | Power | 500W | |
| Read/Write Antenna | 4 groups 8dbi antenna | Enclosure Material | Carbon steel spraying | |
| Optical | Domestic 4 groups | Shielding distance | 5-10CM | |
Product Characteristics
♦High detection and identification efficiency, can read 200+ electronic tags in a single box within 3 seconds;
♦Professional motion control and mechanical design technology, fully solve the problem of label miss-reading;
♦Tight electromagnetic shielding design and RF optimization, can eliminate the harm of RF radiation on the human body, at the same time, the label reading accuracy of 100% (depending on the quality of the label, read the environment);
♦ Industrial control computer software can control the whole machine function, monitor all the equipment running status, external at the same time with mechanical keys, convenient for operators to control the equipment working status at any time;
♦ Provide secondary development interface, provide DLL and Demo program, multi-application platform seamless docking;
