JT-1550 Small Mini HF RFID 13.56MHz Module ISO14443A ISO 15693 Protocol

Item NO.:
JT-1550

Communication Interface
RS485
Working frequency:
13.56MHz
Protocol:
ISO15693 ISO14443A

product details

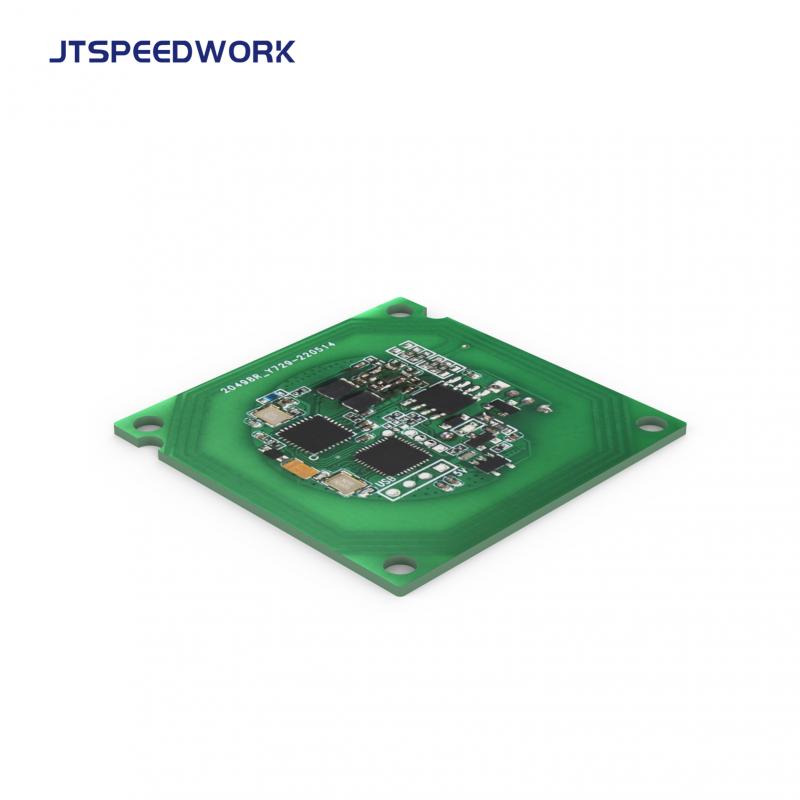

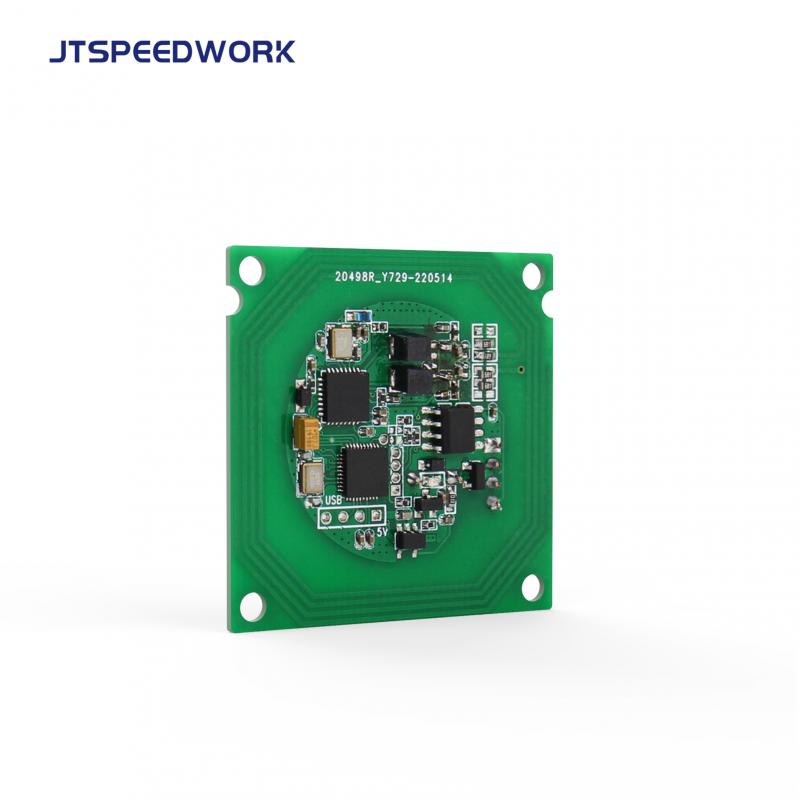

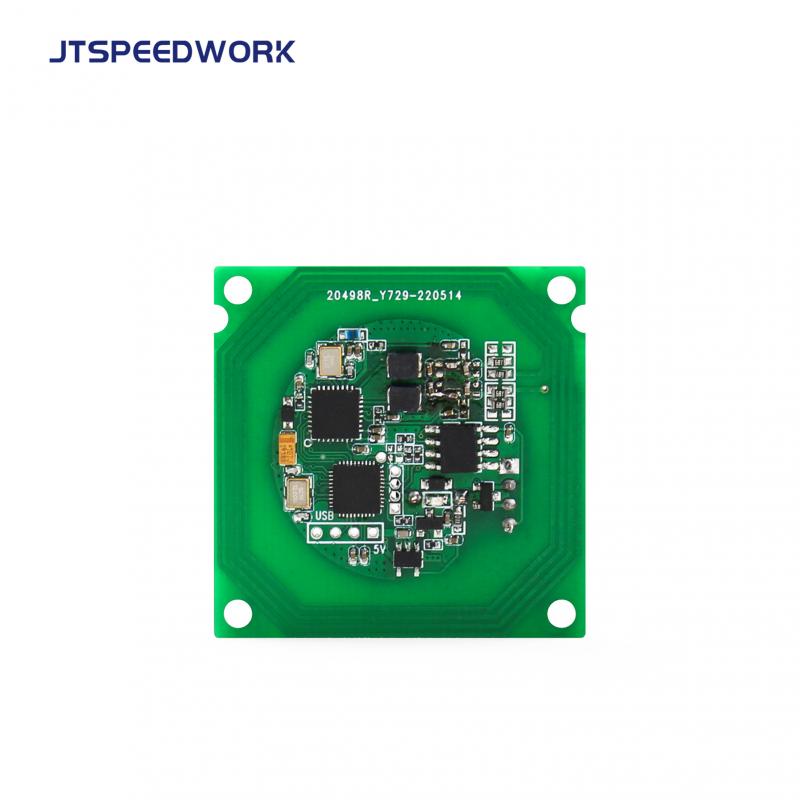

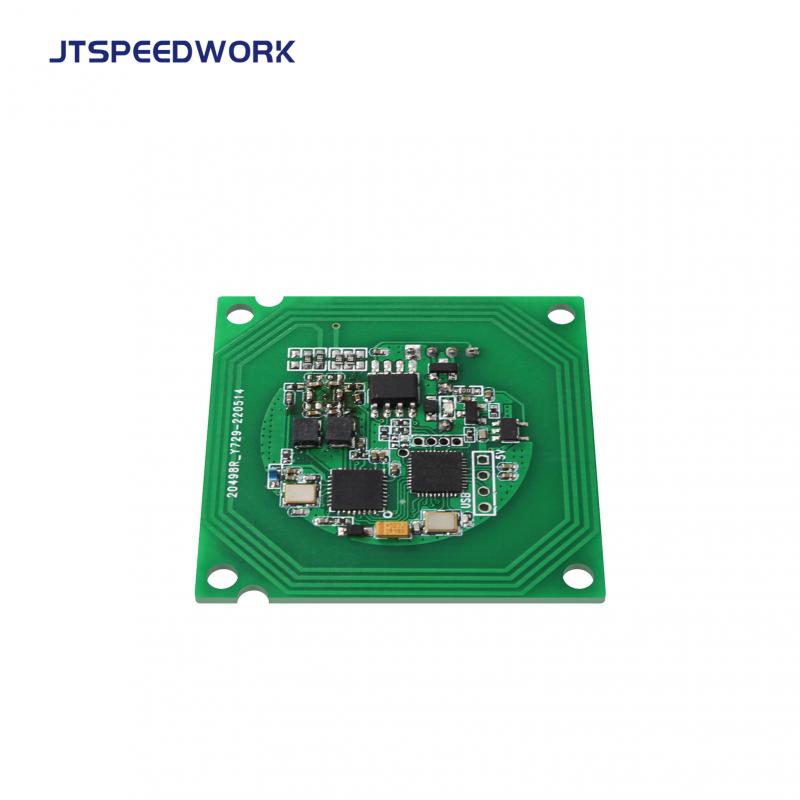

JT-1550 HF RFID high-frequency integrated module is a professional-grade, high-performance high-frequency integrated module. The module is designed and developed based on the ISO 14443A protocol. It adopts the integrated design of module and antenna, which is convenient for users to integrate quickly. The module supports ISO1443A protocol card operation. The module adopts RS-485 signal interface, DC5V power supply

Features

Support RS-485 communication interface;
Support automatic card search;
Support ISO14443A,ISO 15693 protocol rfid tag;
Using an integrated RF chip, the module performance is more stable, and it is more suitable for harsh and demanding application environments;
Excellent anti-interference performance.

Technical Parameters
Working frequency	13.56MHz
Support protocol	ISO14443A;ISO 15693
Reading distance	0-5cm (reading distance is related to tag type, transmit power and application environment)
Communication Parameters
Communication Interface	RS485
Serial port baud rate	115200 bps no parity, 8 data bits, 1 stop bit
Power Parameters
Power	DC 5V
Reading Current	100mA
Stand-by Current	40mA
Environmental Parameters
Working Temp.	-20℃～60℃
Storage Temp.	-30℃～70℃
Storage Humidity	5%～95%RH no condensation
Physical Parameters
Size	40x40mm
Weight	About 10g

Pin Definition

Pin	Name	Dec
1	5V	Module 5V power input
2	TX1	RS-485B
3	RX1	RS-485A
4	GND	Module ground
