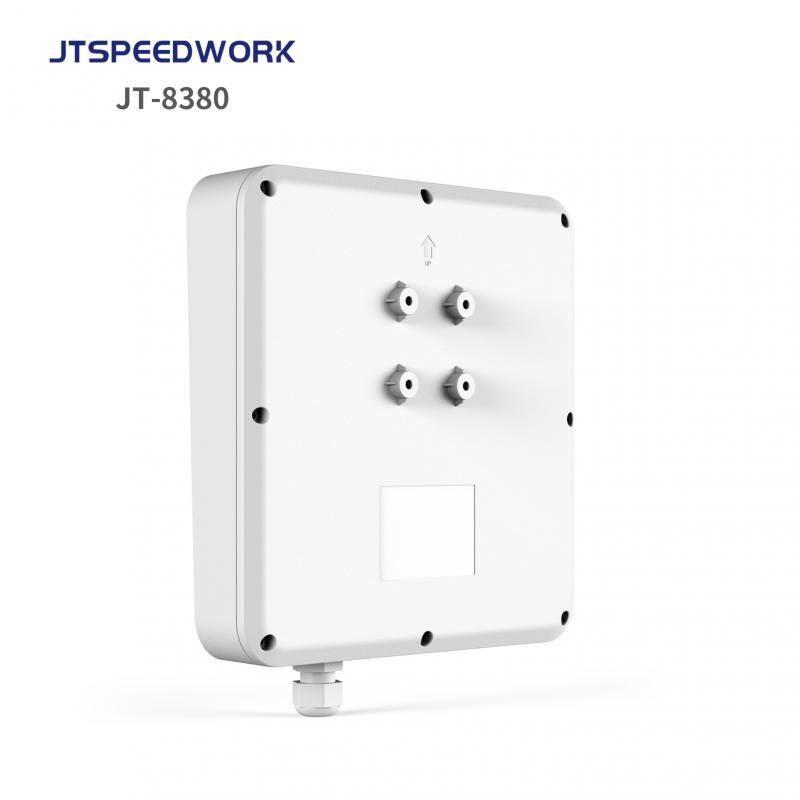

Brand:
JTSPEEDWORKItem NO.:
JT-8380Communication Interface
WG (26/32/34/66) RS485 RS232 TCP/IPWorking frequency:
860-960MHzProtocol:
ISO18000-6CAntenna gain:
8dBi
| Item No. | JT-8380 | |||
| Physical Parameters | Antenna | |||

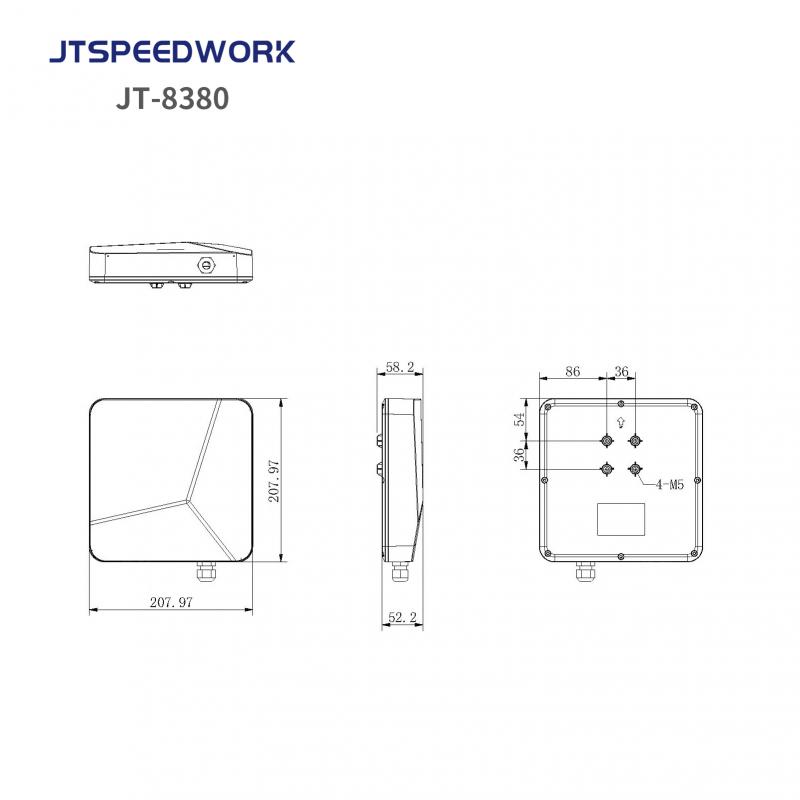

| Dimensions | 208(L) *208(W) * 46(H)mm | 8dBi circularly polarized antenna (built-in) | ||
| Net weight | 660g | |||
| Material | ABS & aluminum alloy | Power Supply | ||
| Input Voltage | DC 12-24V /3A | |||
| RFID Parameters | Peak current | 500mA | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -40 ℃ to 75 ℃ | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Storage Temp. | -40 ℃ to 85 ℃ | ||
| RF power | Humidity | 5-90% non-condensing (+25° C ) | ||
| 0~30 dBm(±1dBm) (adjustable) | ||||
| Work mode | Reading Performance | |||
| Master-slave, timing,trigger mode | Reading distance | |||

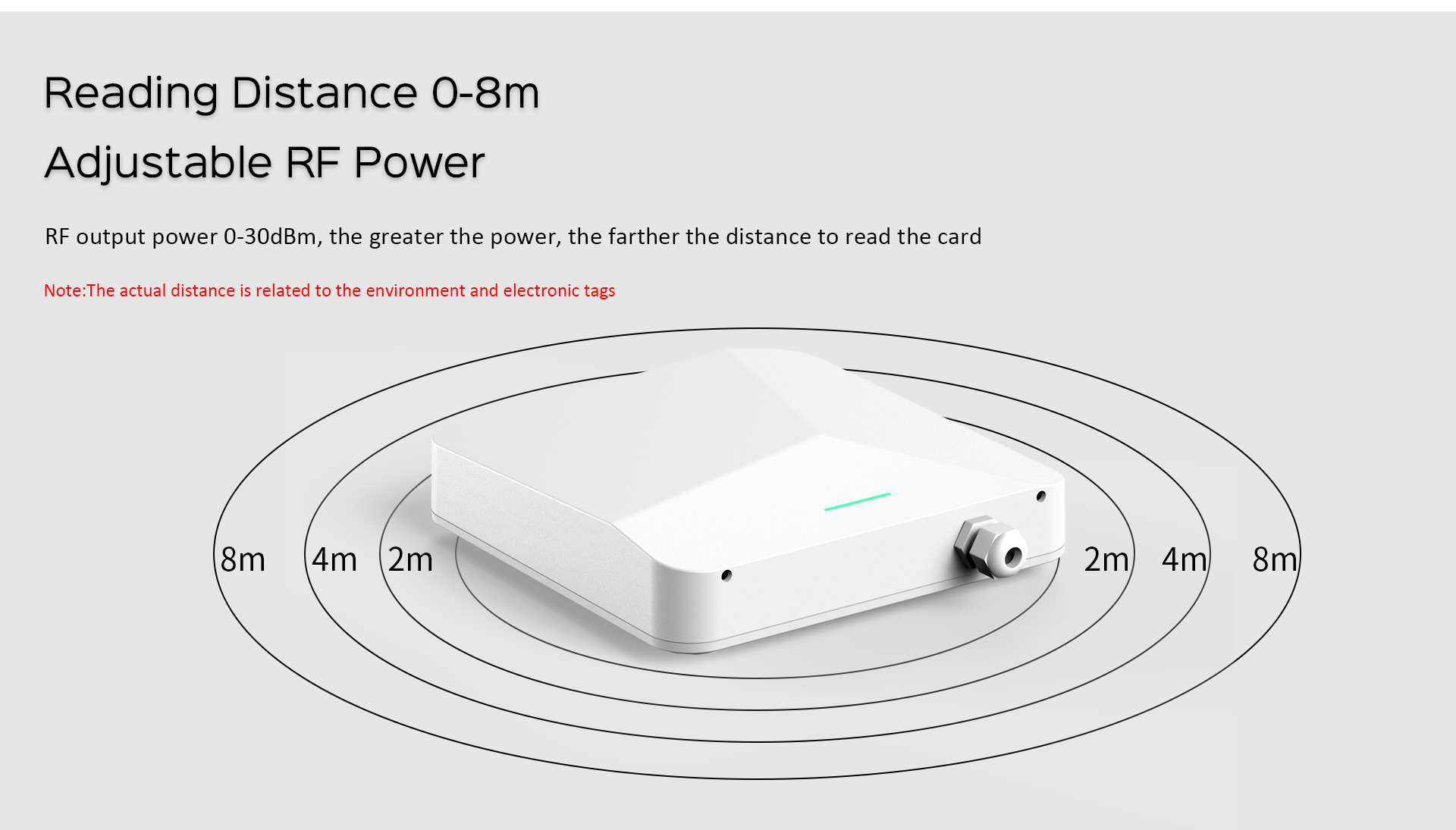

| I/O | Up to 6m(relate to tag and environment) | |||
| 1 trigger input or 2 relay outputs (customized) | Model Type | |||

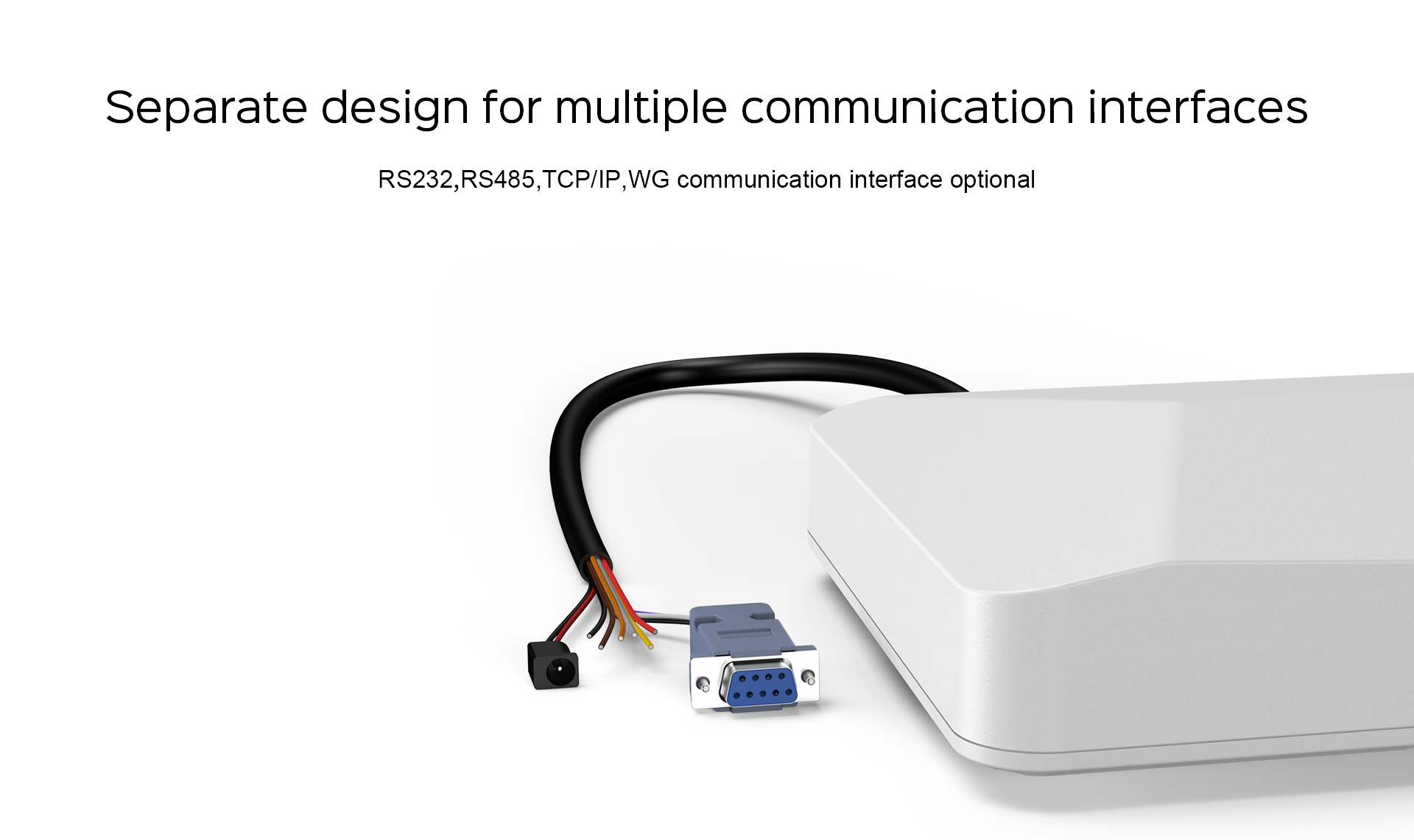

| Notification | JT-8380A | RS232, RS485, WG (26/32/34/66) | ||
| LED indicator,buzzer | JT-8380B | RS232, TCP /IP, WG (26/32/34/66) ,(PoE optional) | ||
| SDK |
|
|||
| C# , Java , C++ | Datasheet | |||
