JT-2302 HF RFID 13.56MHz Module ISO14443A ISO15693 Support Mifare1 IC card

Reading distance : 0-3cm;

Working frequency : 13.56MHz;

Support ISO14443A ISO15693 protocol.

Brand:
JTSPEEDWORK
Item NO.:
JT-2302
Product Origin:
China
Lead Time：
Within 3-7 Days

product details

JT-2302

HF RFID Module

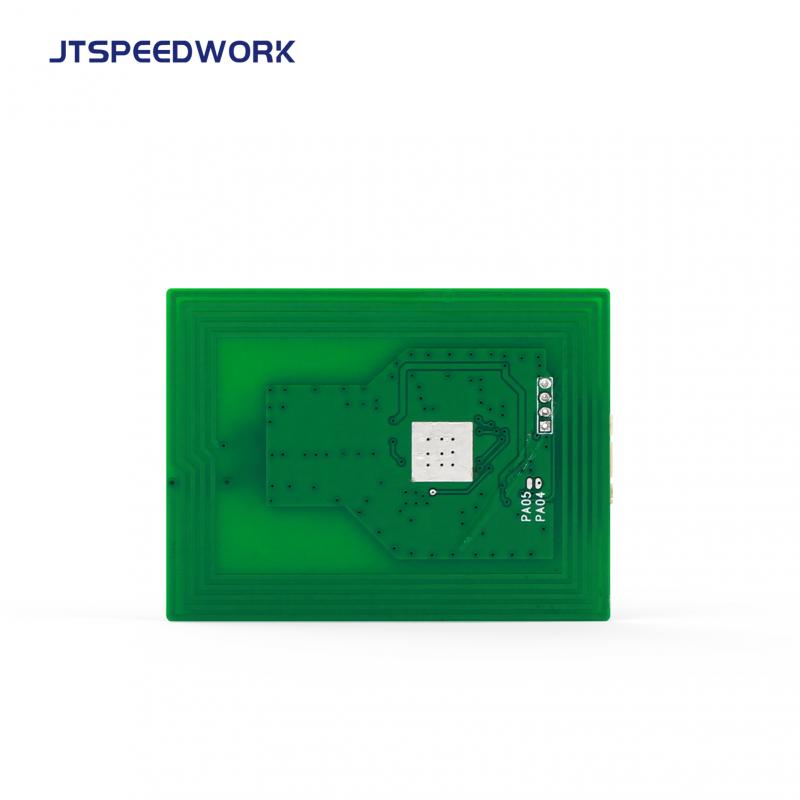

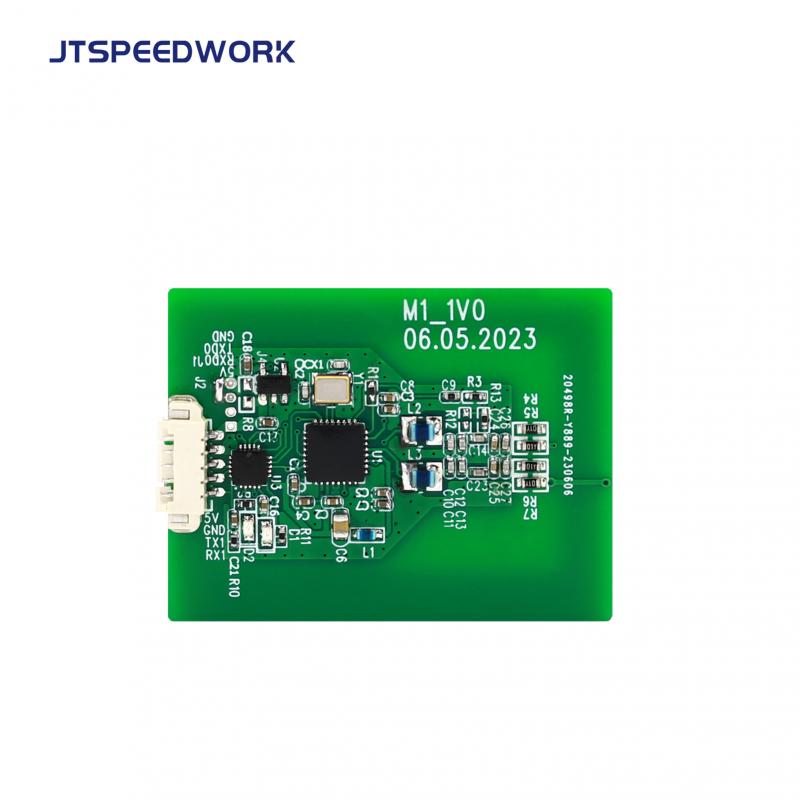

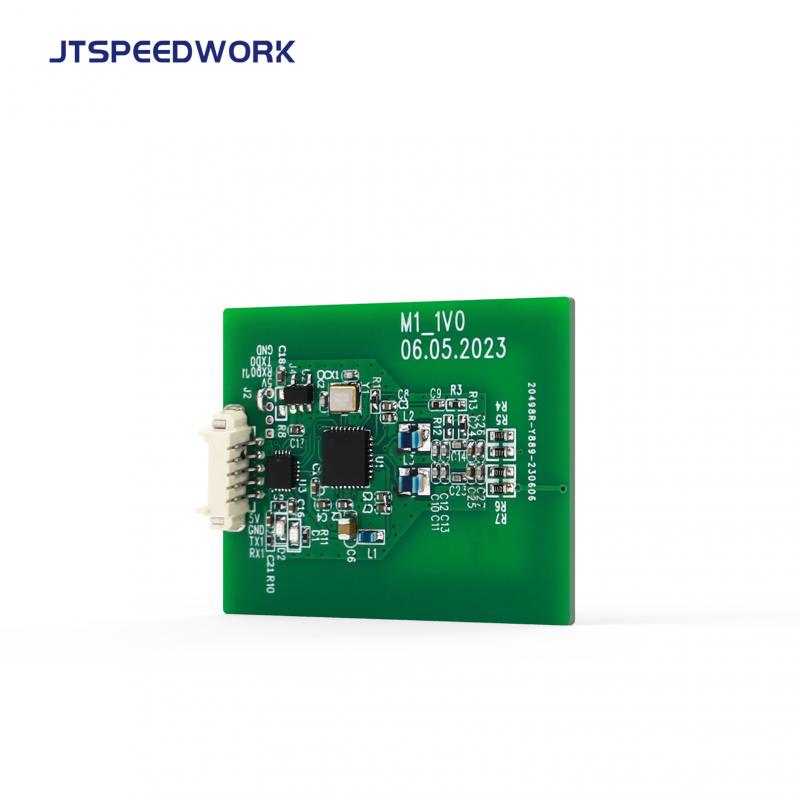

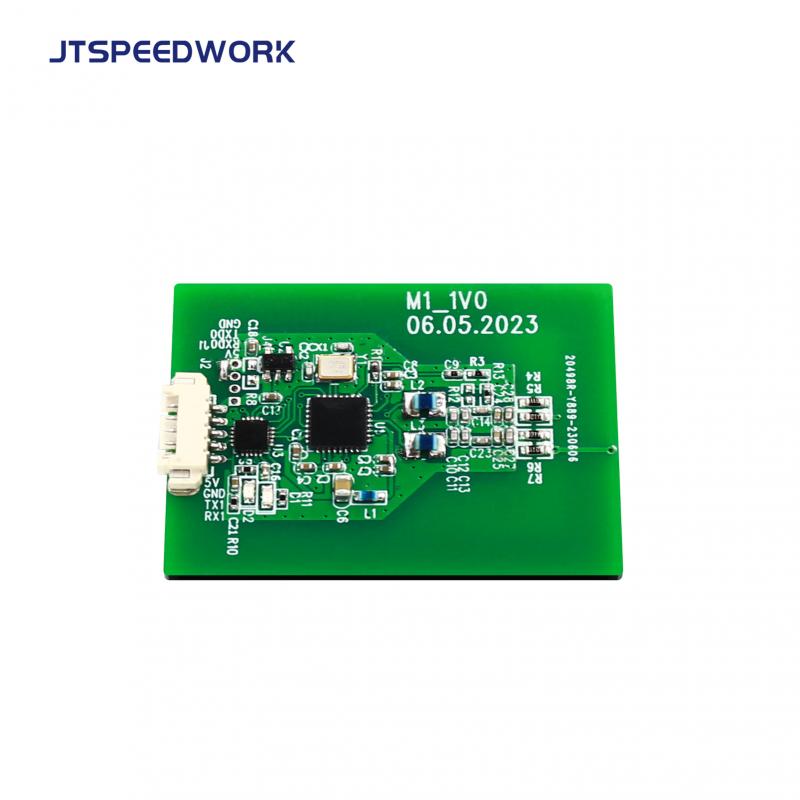

JT-2302 is a professional-grade,high-performance HF integrated module.The module is designed and developed based on the ISO14443A protocol.It adopts the integrated design of the module and antenna,which is convenient for users to integrate quickly. The module supports Mifare 1 IC card and compatible ISO14443A protocol card operation.Identify the IC and read the specified data block. When the lC card is close to the antenna of the module,the module will read the specified data block.The module adopts UART 3.3VTTL signal interface,DCV power supply.

Item No.	JT-2302
Power Supply		User Environment
Operate voltage	DC 5V	Operating Temp.	-20 ℃ to 60 ℃
Working current	100mA	Storage Temp.	-30 ℃ to 70℃
Stand-by current	40mA	Humidity	5-90% non-condensing (+25° C )

RFID parameters		Physical parameters
Frequency		Dimensions	40(L)*30(W)mm
13.56MHz		Net weight	Around 12g
Protocol
ISO 14443A, ISO 15693		Interface
Reading distance		5V	Module 5V power input
0-3cm (relate to tag and enviroment)		TX1	Module serial port TX output (3.3V TTL level)
Communication interface		RX1	Module serial port RX input (3.3V TTL level)
UART 3.3V TTL signal interface		GND	Module GND
RS32 baud rate
115200 bps noparity,8 data bits,1 stop bit		Datasheet (download link)
