Group reading >200 tags/sec; Reading range up to 0-25m;1-4 SMA antenna ports;
Brand:
JTSPEEDWORKItem NO.:
JT-2540Communication Interface
Uart TTLWorking frequency:
860-960MHzProtocol:
ISO18000-6CRF chip:
TM200Feature:
◆Support ISO18000-6C Gen 2 protocol;
◆Stable reading to 7m(with external 8dbi antenna, Alien H3 9662 tag)
◆Excellent ability of reading and writing, better to prevent collision;
◆Support multiple frequency standard
◆Good heat dissipation effect to ensure the stability of equipment
| Item No. | JT-2540 | |||
| Physical Parameters | Antenna | |||

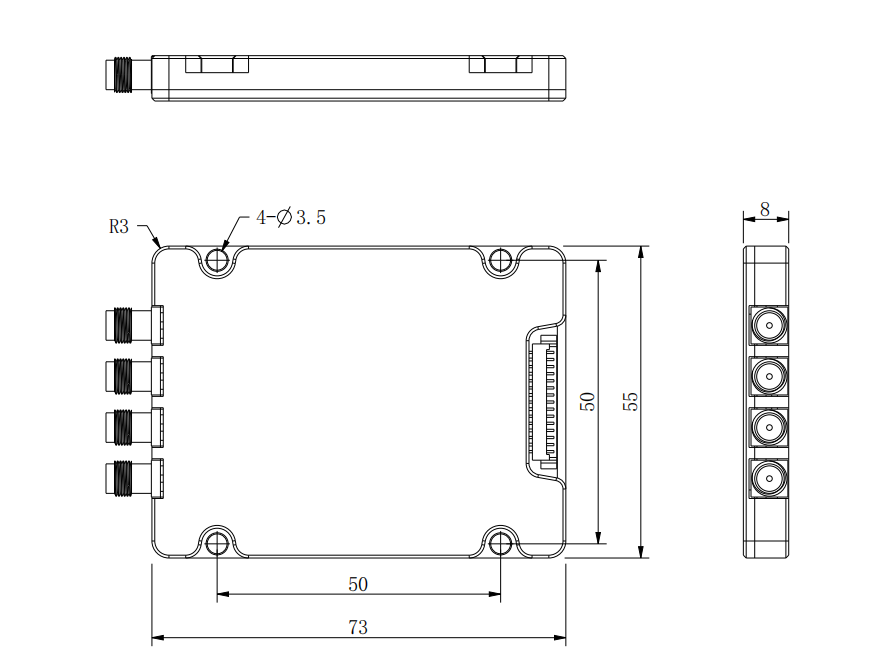

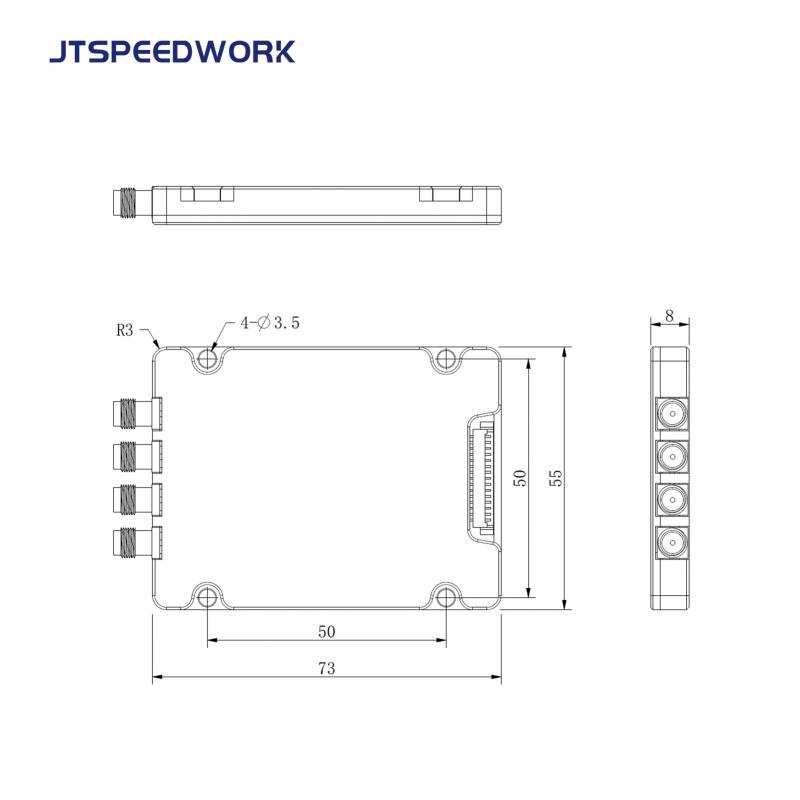

| Module size | 73*55*8mm | Antenna Ports | ||
| Weight | 63g | 4 SMA-K conntectors | ||
| Material | Aluminum shell | Power Supply | ||
| Input Voltage | DC 3.7V~5.0V | |||
| RFID Parameters | Power Consumption | 6.36W(@max RF power 33dBm) | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| RF Chip | Operating Temp. | -20 ℃ to 70 ℃ | ||
| TM200 | Storage Temp. | -30 ℃ to 80 ℃ | ||
| Working frequency | Humidity | 5% - 95% RH | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | ||||
| RF power | Reading Performance | |||
| 0~33 dBm(±1dBm) (adjustable) | Reading rate | |||
| Work mode | >700 times/sec | |||
| Fixed / hop frequency | Reading distance | |||
| Tag RSSI |
Up to 7m（with 8dBi antenna & JT-I9662 tag） |
|||
| Supported | SDK(download link) | |||
| Antenna Detector | C# , Java , C++ | |||
| Supported | ||||
| Specification |
|
|||
| Datasheet |
|
|||
Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
