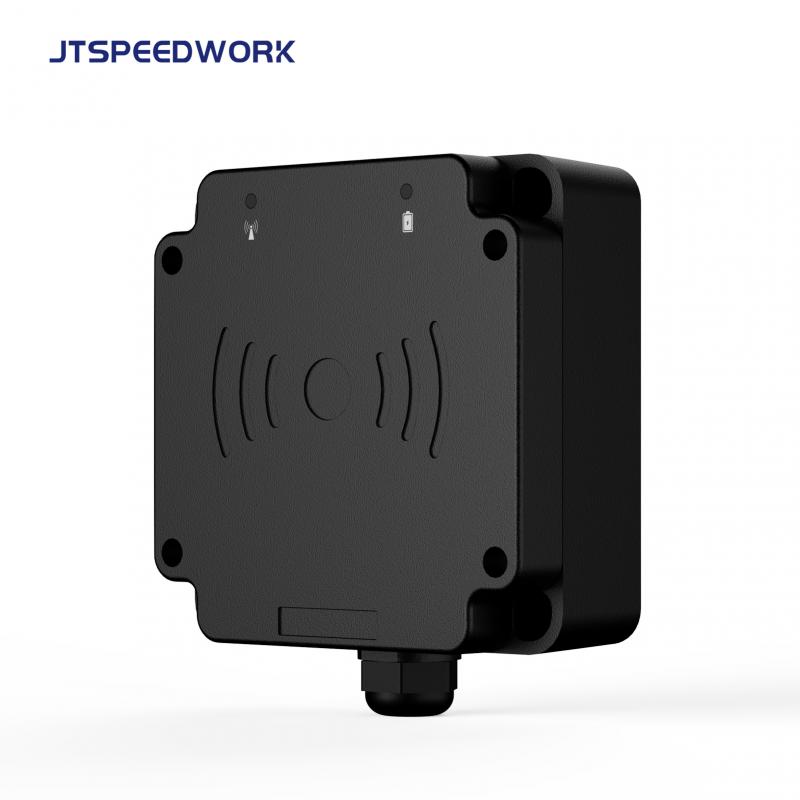

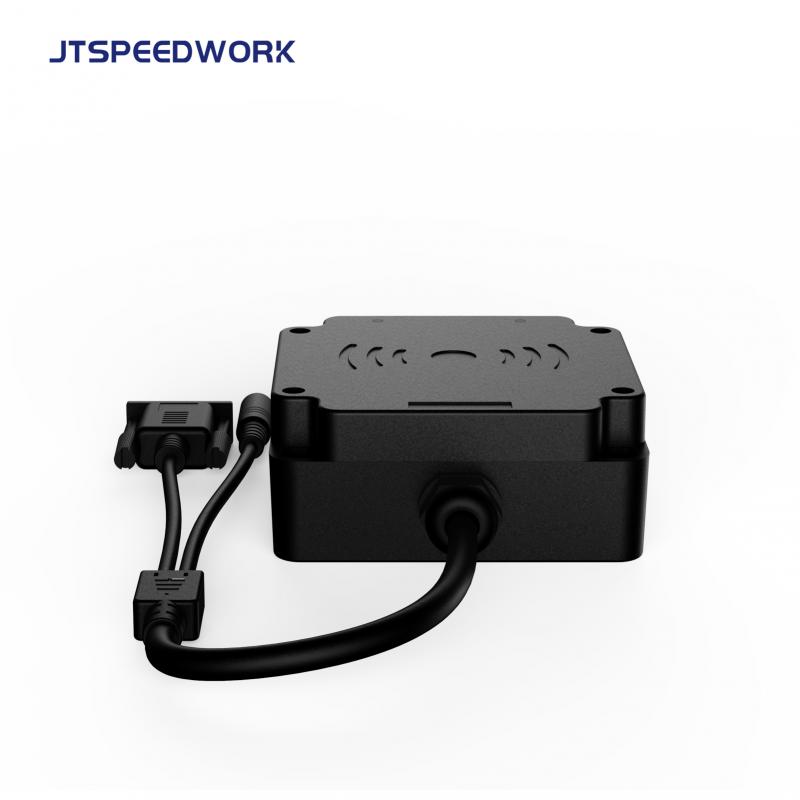

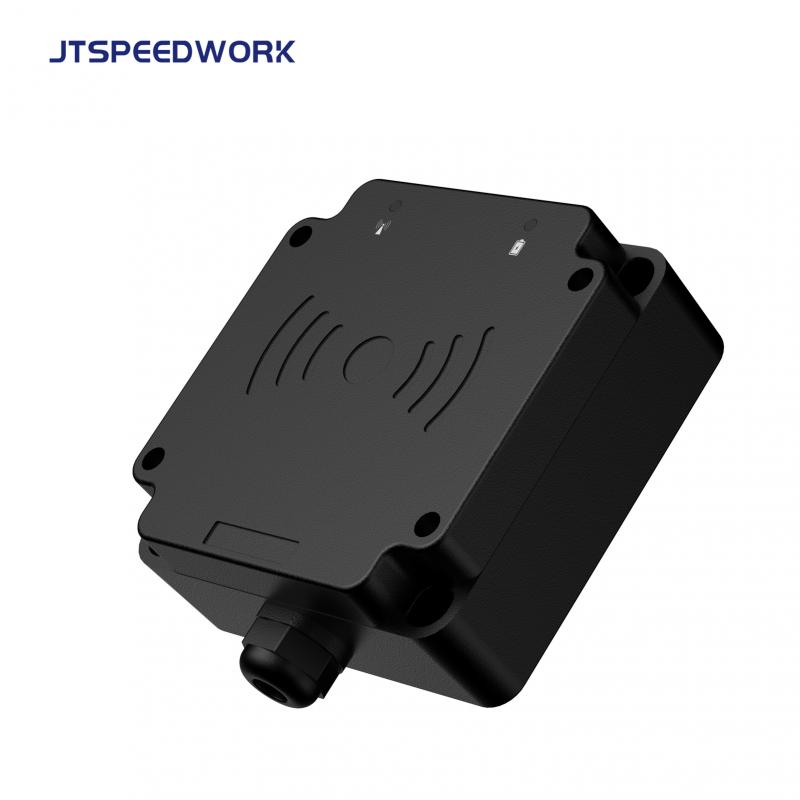

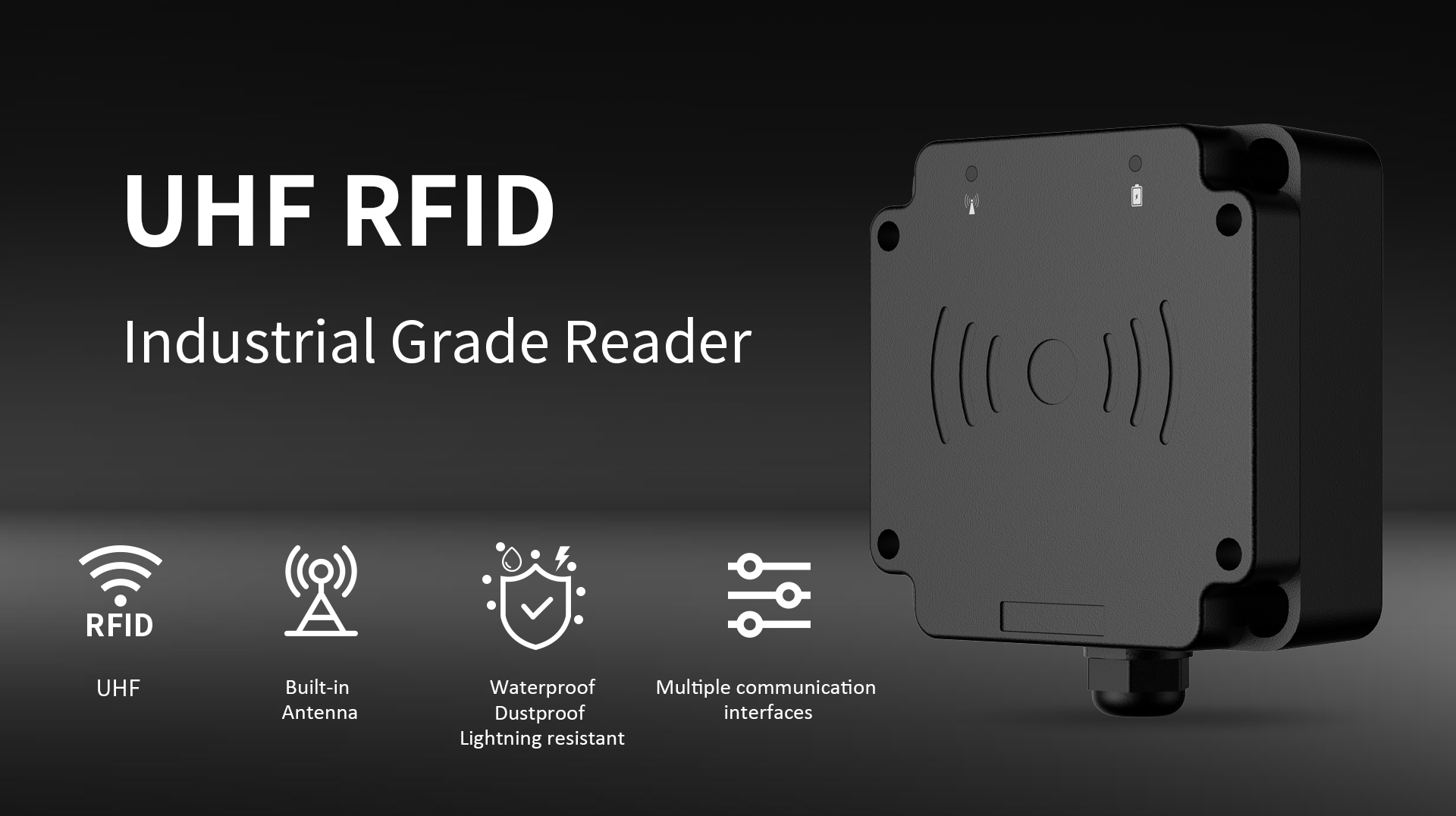

Industrial grade design IP65/IP67,0-3m reading distance,0-20 tags group reading,support Modbus/Profinet protocol.
Brand:
JTSPEEDWORKItem NO.:
JT-7100Communication Interface
RS485 RS232 TCP/IP PoE MODBUS TCP/IP RS485 MODBUS RTU Profinet TCP/IP CAN BUS 2.0Working frequency:
860-960MHzProtocol:
ISO18000-6CRF chip:
TM200Antenna gain:
3dBi
| Item No. | JT-7100 | |||
| Physical parameters | Antenna | |||

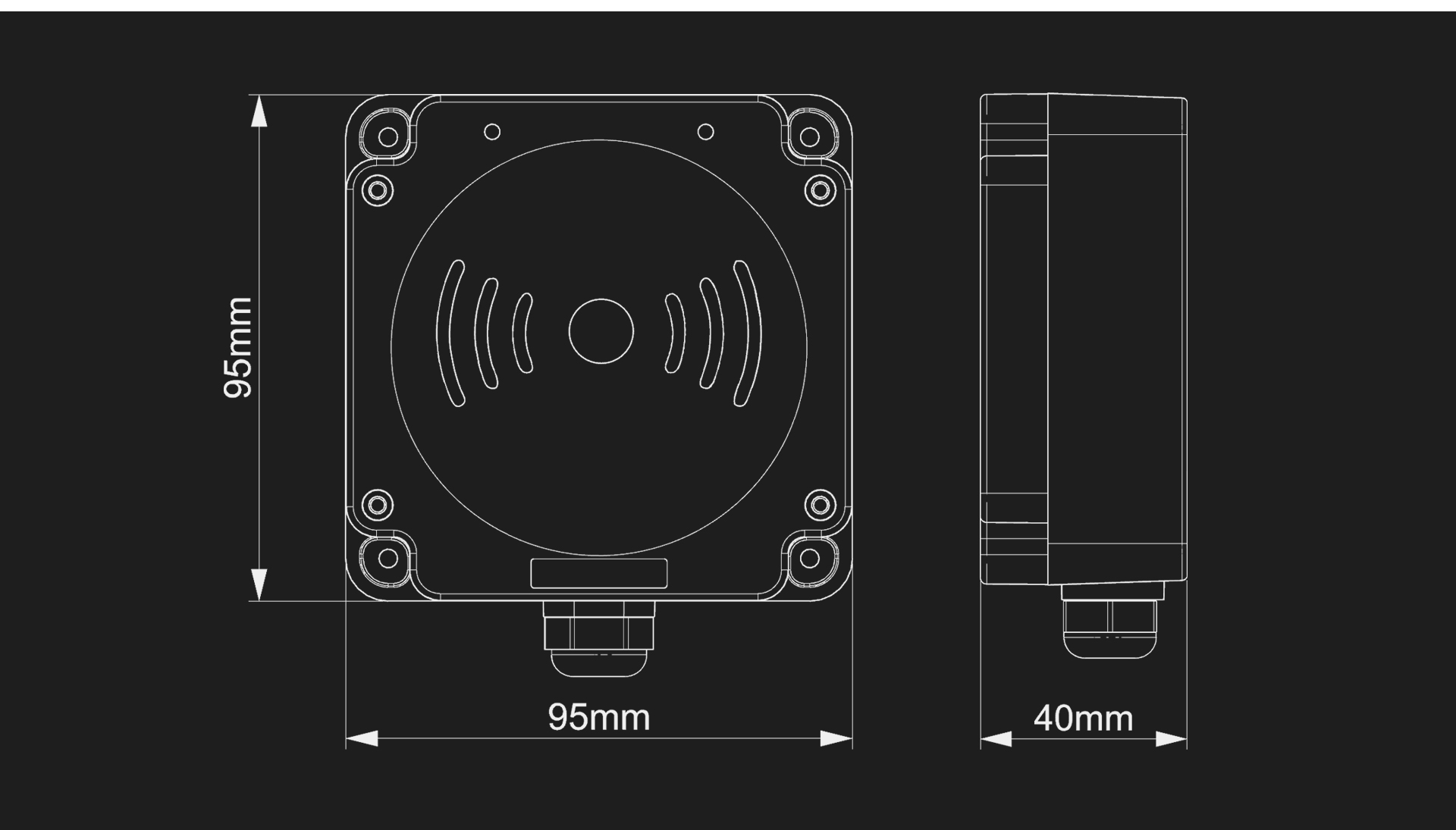

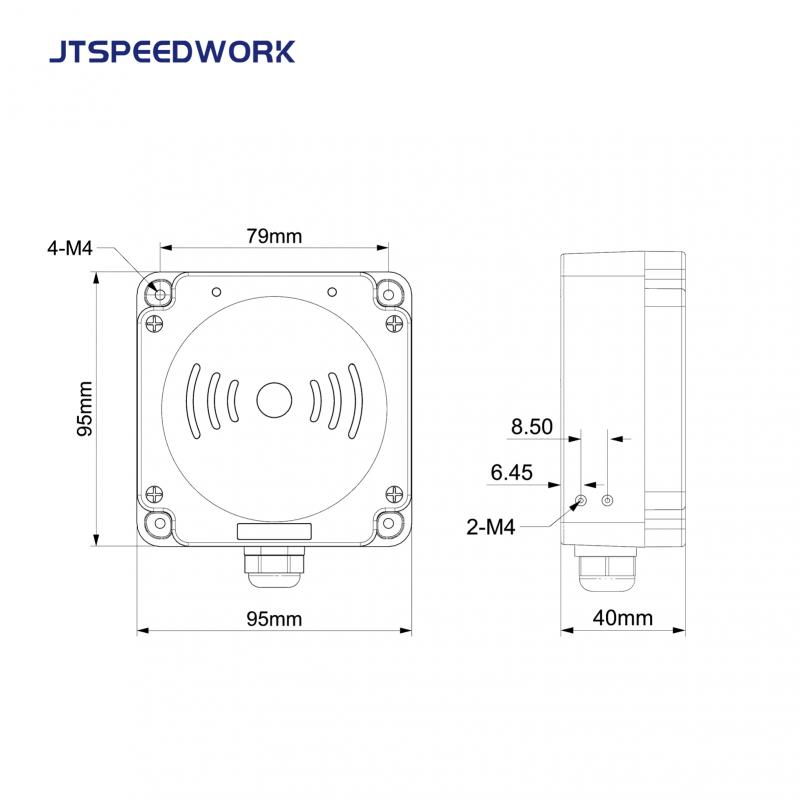

| Dimensions | 95(L)*95 (W)*40(H)mm | 3dBi circularly polarized antenna (built-in) | ||
| Net weight | 320g | |||
| Material | ABS | Power Supply | ||

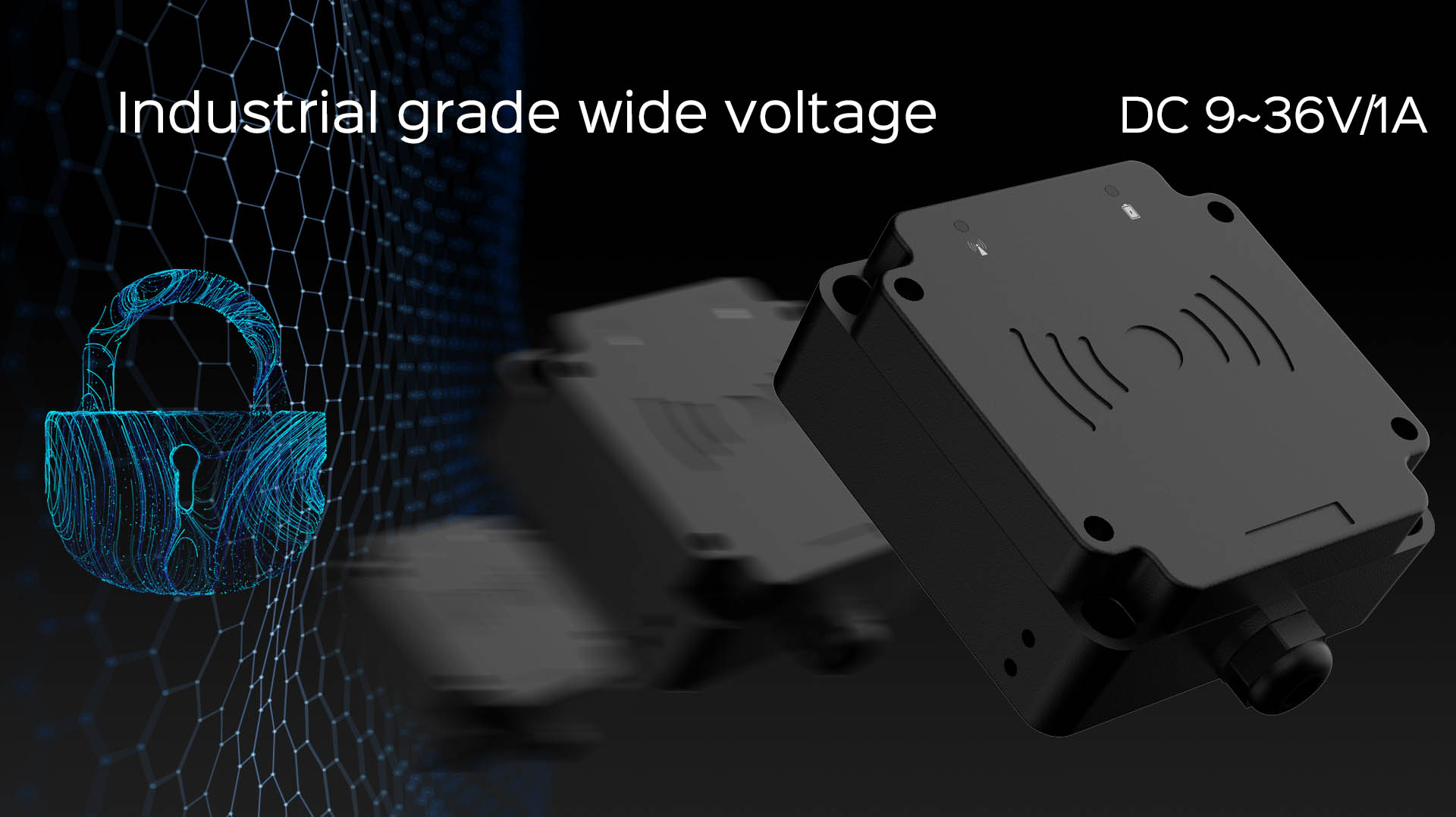

| Power supply | DC 9~36V/1A;Industrial grade wide voltage | |||
| RFID parameters | ||||
| Air Protocol | User Environment | |||
| EPC global Gen2(ISO18000-6C) | Operating Temp. | -30 ℃ to 75 ℃ | ||
| Working frequency | Storage Temp. | -40 ℃ to 80℃ | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Humidity | 5-90% non-condensing (+25° C ) | ||
| RFID chip | ||||
| TM200 | Reading Performance | |||
| RF power | Reading distance | |||
| 13~32dBm(±1dBm) (adjustable) | Up to 3m(relate to tag and environment) | |||
| Reading rate | ||||
| >700 times/sec | Model Type | |||
| Notification | JT-7100A | RS232 | ||
| LED indicator,buzzer | JT-7100B | RS485,TCP/IP(PoE optional) | ||
| Work mode |
JT-M7100B |
MODBUS TCP/IP | ||
| Master-slave,timing,trigger mode | JT-M7100C | RS485 MODBUS RTU | ||

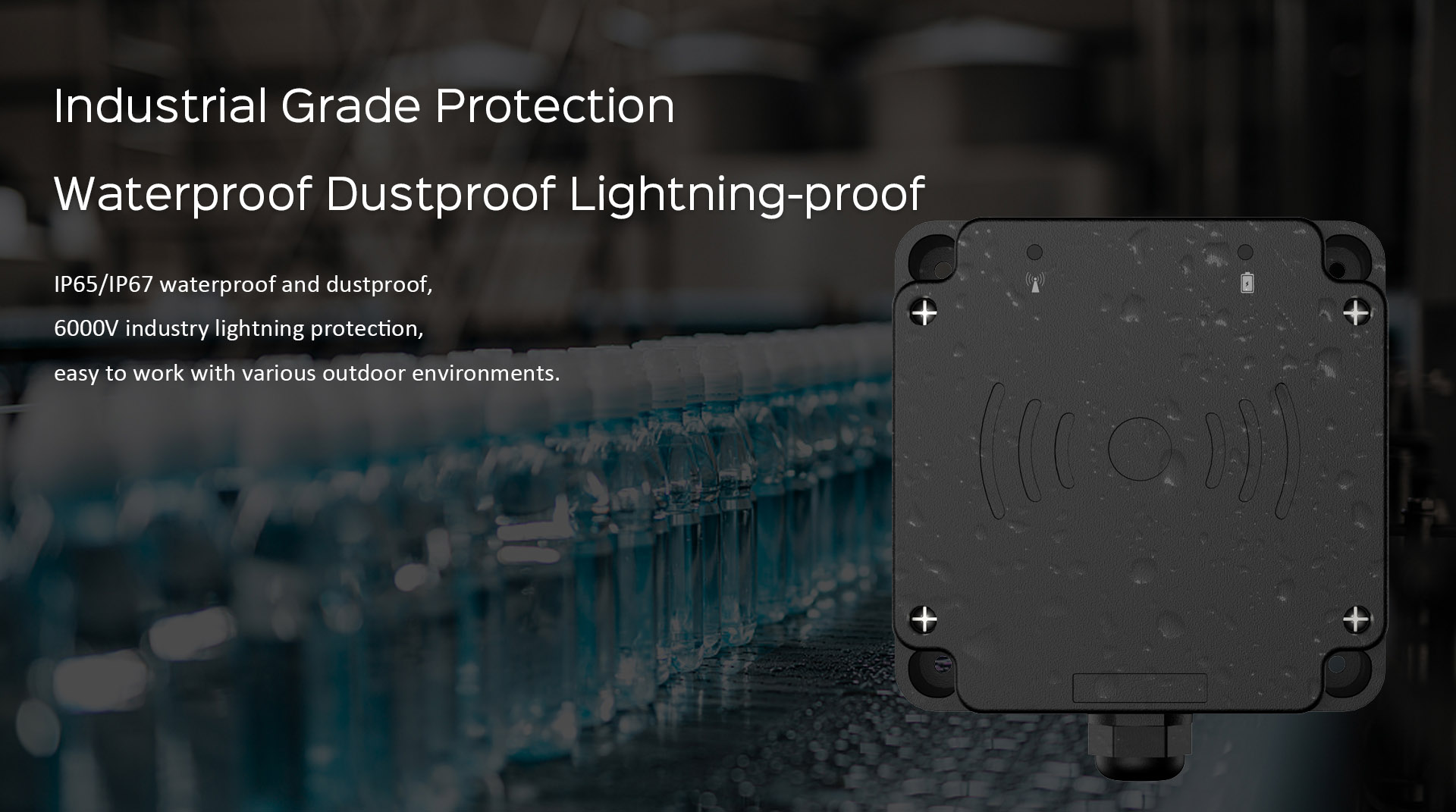

| Industrial lightning protection | JT-P7100B | Profinet TCP/IP | ||
| 6000V high voltage lightning protection | JT-C7100 | CAN BUS 2.0 | ||
| I/O |
|
|
||
| 1 trigger input or 2 relay outputs (customized) | ||||
| SDK | Datasheet | |||
| C# , Java , C++ | ||||
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
