RFID Technology in Smart Parking Systems

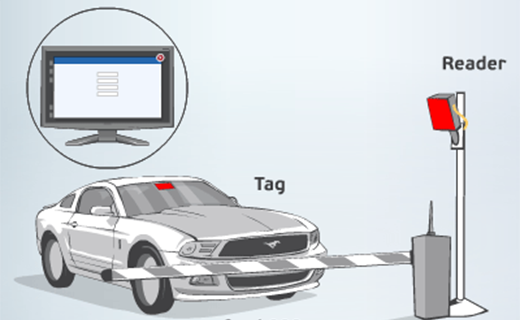

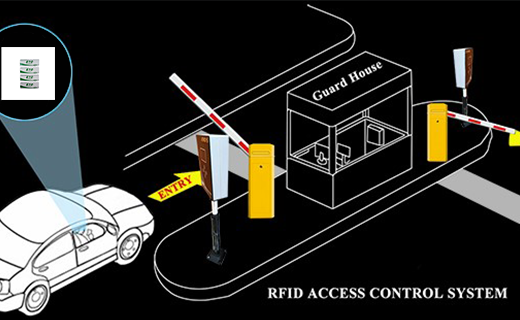

1. Technical Principles


RFID (Radio Frequency Identification) parking systems utilize wireless radio frequency identification to enable non-contact data communication via electromagnetic fields. The core workflow includes:

  1. Tag Identification: Each vehicle is equipped with a passive/active RFID tag containing a unique EPC (Electronic Product Code) code.
  2. RF Interaction: RFID readers at entry/exit points emit electromagnetic waves (e.g., 860–960 MHz UHF band) to power and activate the tags.
  3. Data Transmission: Tags backscatter modulated signals to transmit vehicle ID data, achieving a read range of 3–12 meters.
  4. Dynamic Verification: The backend system validates permissions in real-time against a database and triggers gate control signals.

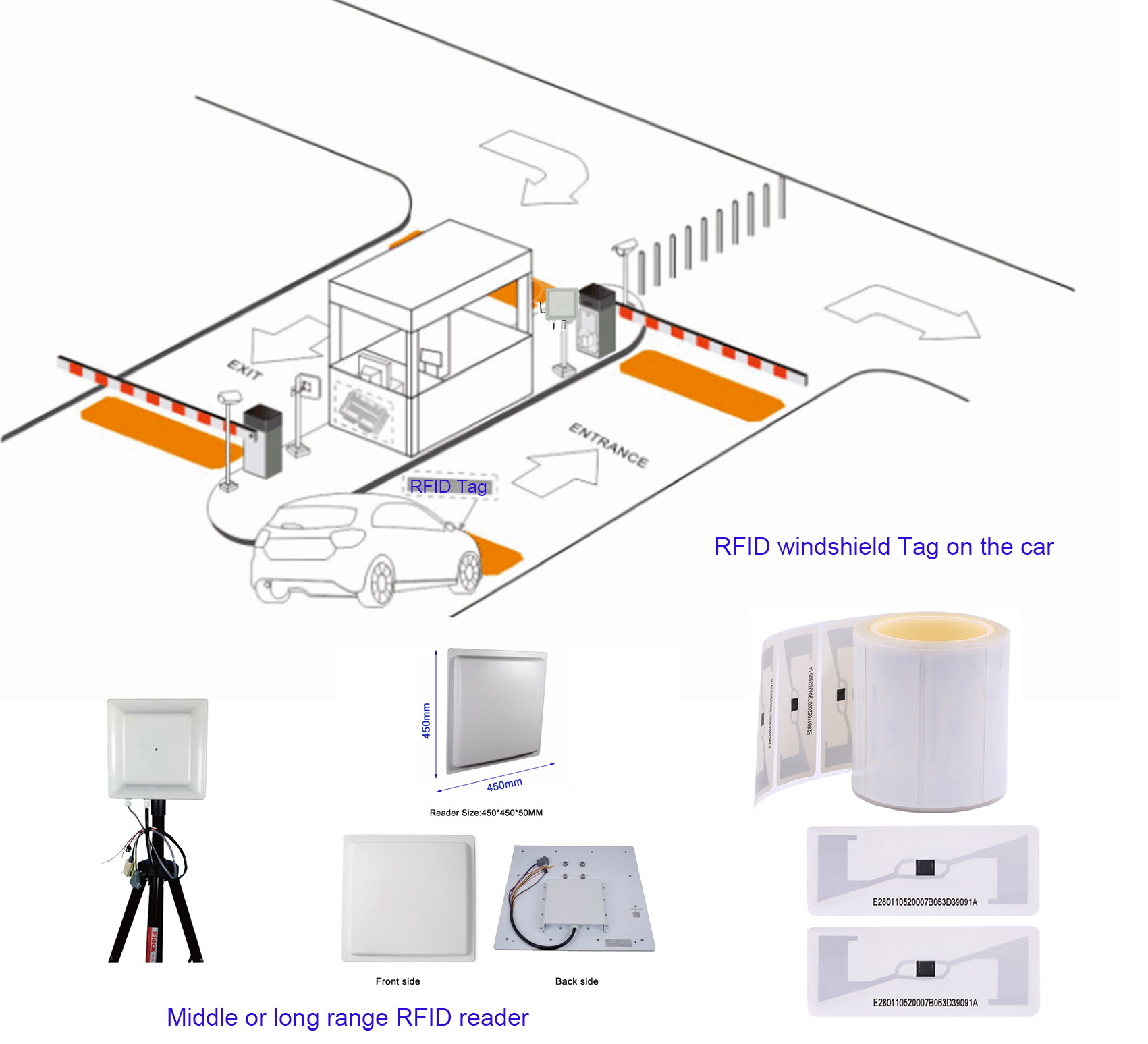

2. Hardware Architecture



    2.1 Core Components

Device
Specifications
Function
UHF RFID Tag
Frequency: 902–928 MHz
Stores encrypted vehicle ID
Multi-channel Reader
EPC Gen2 compliant, 4 antennas
Achieves >99.5% read accuracy
Directional Antenna
8dBi gain, 70° beamwidth
Focused signal coverage
Smart Barrier Gate
Response time ≤1.5 seconds
Integrates with license plate recognition
Induction Loop
Adjustable sensitivity

Triggers reader activation


    2.2 Auxiliary Devices


  • Infrared vehicle separators: Prevent tailgating.
    LED displays: Show parking availability/payment info.
    EMI shielding modules: Mitigate metal interference.


  • 3. Software Framework



     3.1 Middleware Platform

Multi-protocol support: Compatible with ISO 18000-6C, EPCglobal standards.
Data filtering: Sliding window algorithm eliminates duplicate reads.
Event logging: Flags anomalies (e.g., unauthorized access).
  •     3.2 Management System
  • Dynamic billing: Supports time-based, subscription, and pay-per-use models.
    Parking guidance: Real-time slot updates via LoRaWAN/IoT networks.
    Analytics dashboard: Tracks occupancy rates, turnover efficiency, etc.

        3.3 Security Protocols

  • AES-128 encrypted communication.
    Dual authentication (RFID + license plate recognition).
    Real-time blacklist/whitelist updates.

  • 4. Advantages
  1.
    1.     1.Operational Efficiency
    2.         Throughput: ≤3 seconds per vehicle (4x faster than manual systems).
    3.         Supports hands-free access at speeds up to 60 km/h.
    4.     2.Management Enhancements

      • Automated recognition of registered vehicles.
        Granular traffic analytics for peak-hour optimization.
    5.     3.Cost Savings

      • Reduces labor costs by >60%.
        Hardware durability: 10-year lifespan (tags support 100,000 rewrites).



5. Challenges and Limitations

  1.
  2.     Physical Constraints
  • Signal attenuation from metallic surfaces (requires tag placement optimization).
    Multipath interference causing blind zones (improved via phased-array antennas).
  1.     Security Risks

    • Tag cloning vulnerabilities (mitigated by TID locking and dynamic encryption).
      DDoS attacks on readers (requires network traffic monitoring).
    •     Cost Considerations
    •         High initial deployment costs (e.g., 120,000180,000 for a 500-slot system).


6. Use Cases


  1. Commercial complexes: VIP vehicle prioritization and guidance.
    Corporate campuses: Frictionless access for employees.
    Municipal parking: Integration with ETC (Electronic Toll Collection) systems.

  2. 7. Future Trends
  1.

  2.     5G + V2X integration: Enables centimeter-level vehicle positioning.

  3.     Blockchain: Enhances data transparency for parking transactions.

  4.     Energy-harvesting tags: Solar-powered RFID for eco-friendly operations.


This article outlines how RFID technology achieves >98% accuracy in modern parking systems. With emerging hybrid solutions (e.g., RFID + Bluetooth Low Energy), the industry is advancing toward smarter, more resilient urban mobility ecosystems.
