HF RFID Module

Name: JT-1550 Small Mini HF RFID 13.56MHz Module ISO14443A ISO 15693 Protocol
Availability: InStock

Home HF RFID 13.56MHz HF RFID Module

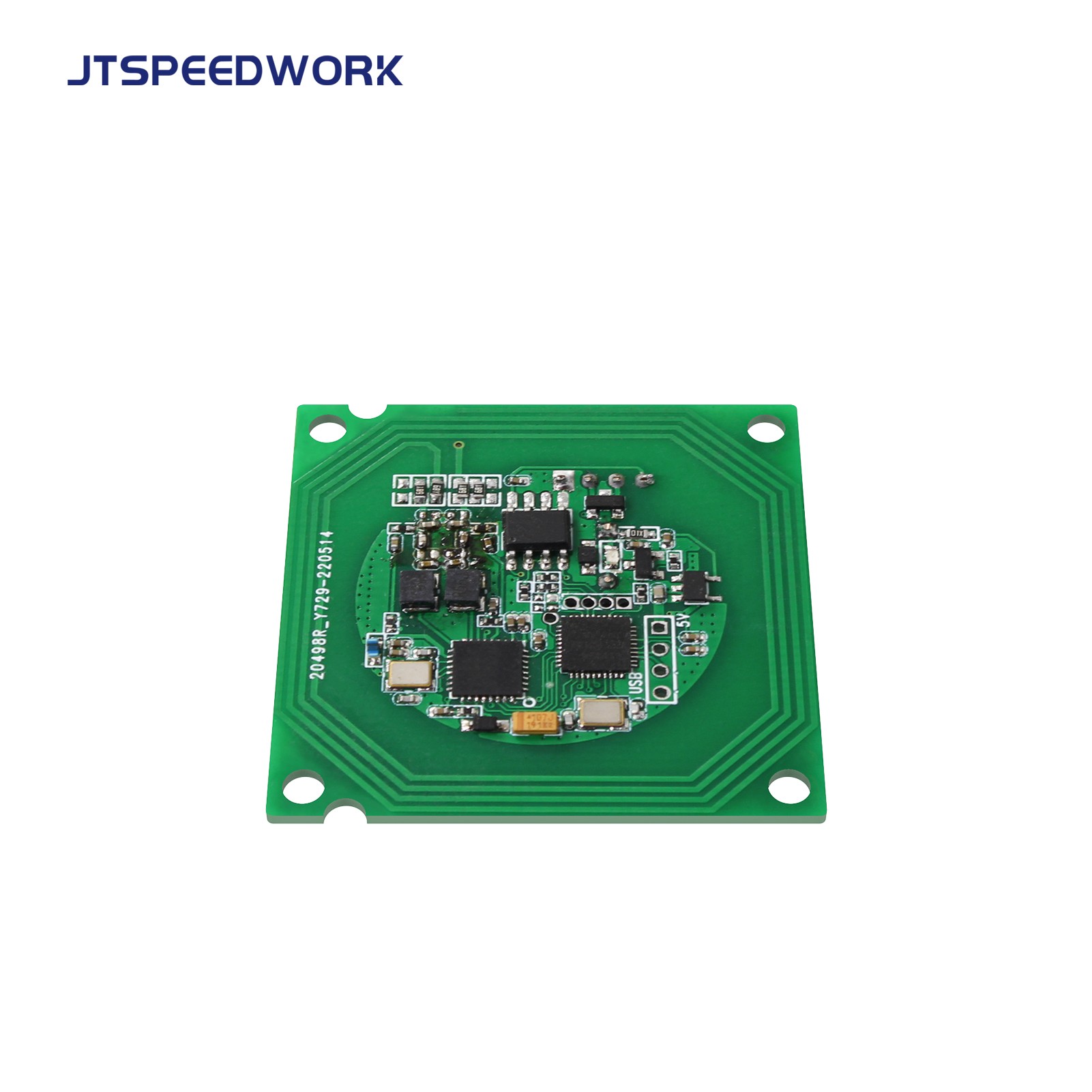

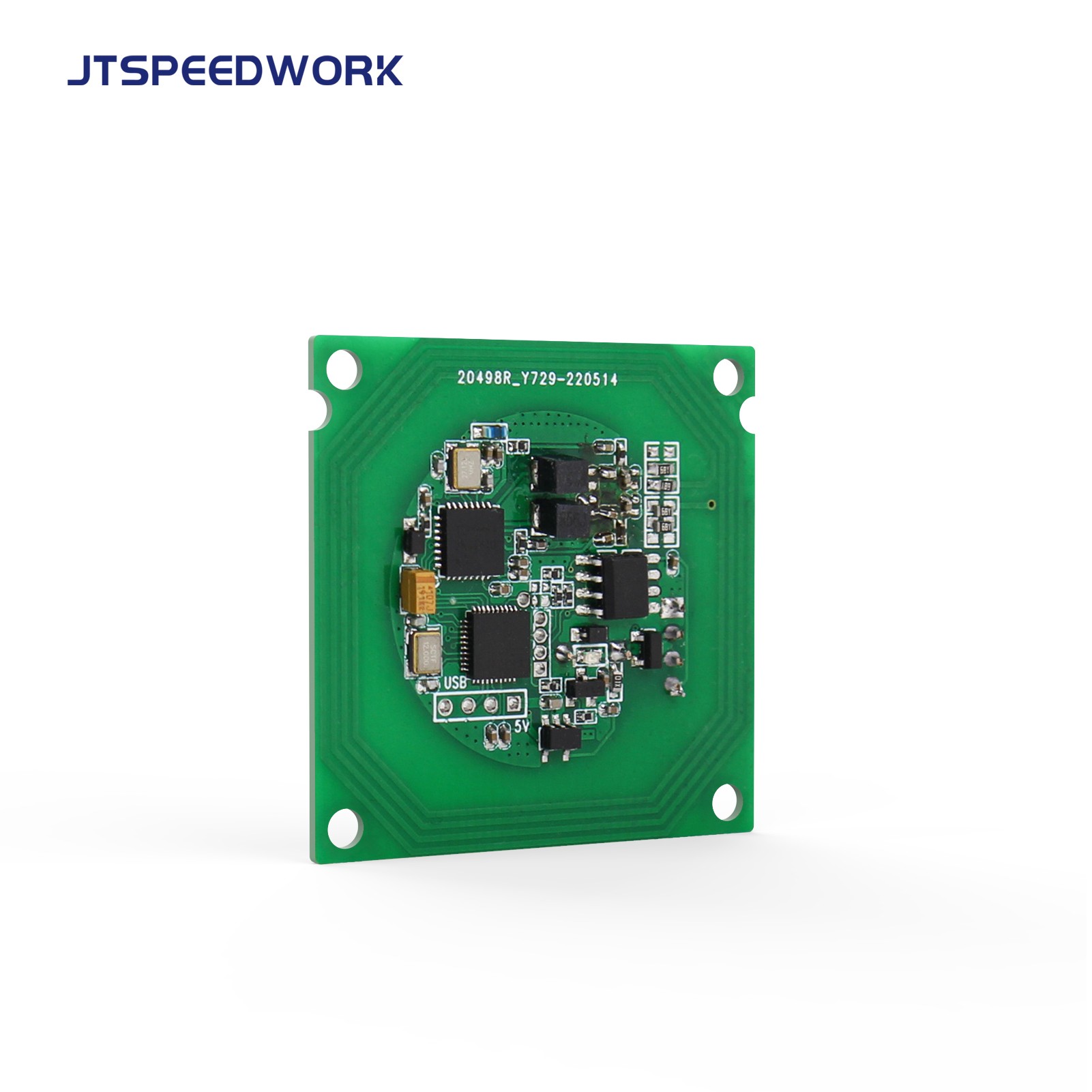

JT-1550 Small Mini HF RFID 13.56MHz Module ISO14443A ISO 15693 Protocol

The JT-1550 HF RFID integrated module is a professional, high-performance HF module compliant with the ISO 14443A protocol.Integrated with onboard antenna, it enables fast and easy system integration and supports ISO 14443A card operations.It features an RS485 interface and operates on DC 5V power supply.

Support RS-485 communication interface;
Support automatic card search;
Support ISO14443A,ISO15693 protocol rfid tag;
Using an integrated RF chip, the module performance is more stable, and it is more suitable for harsh and demanding application environments;
Excellent anti-interference performance.

Item No :
JT-1550
Color :
Green
Communication Interface :
RS485
Protocol :
ISO14443A/ISO15693
Working frequency :
13.56MHz

Inquire Now

Download

Technical Parameters
Working frequency	13.56MHz
Support protocol	ISO14443A;ISO15693
Reading distance	0-5cm (reading distance is related to tag type, transmit power and application environment)
Communication Parameters
Communication Interface	RS485
Serial port baud rate	115200 bps no parity, 8 data bits, 1 stop bit
Power Parameters
Power	DC 5V
Reading Current	100mA
Stand-by Current	40mA
Environmental Parameters
Working Temp.	-20℃～60℃
Storage Temp.	-30℃～70℃
Storage Humidity	5%～95%RH no condensation
Physical Parameters
Size	40x40mm
Weight	About 10g

Pin Definition

Pin	Name	Dec
1	5V	Module 5V power input
2	TX1	RS-485B
3	RX1	RS-485A
4	GND	Module ground
