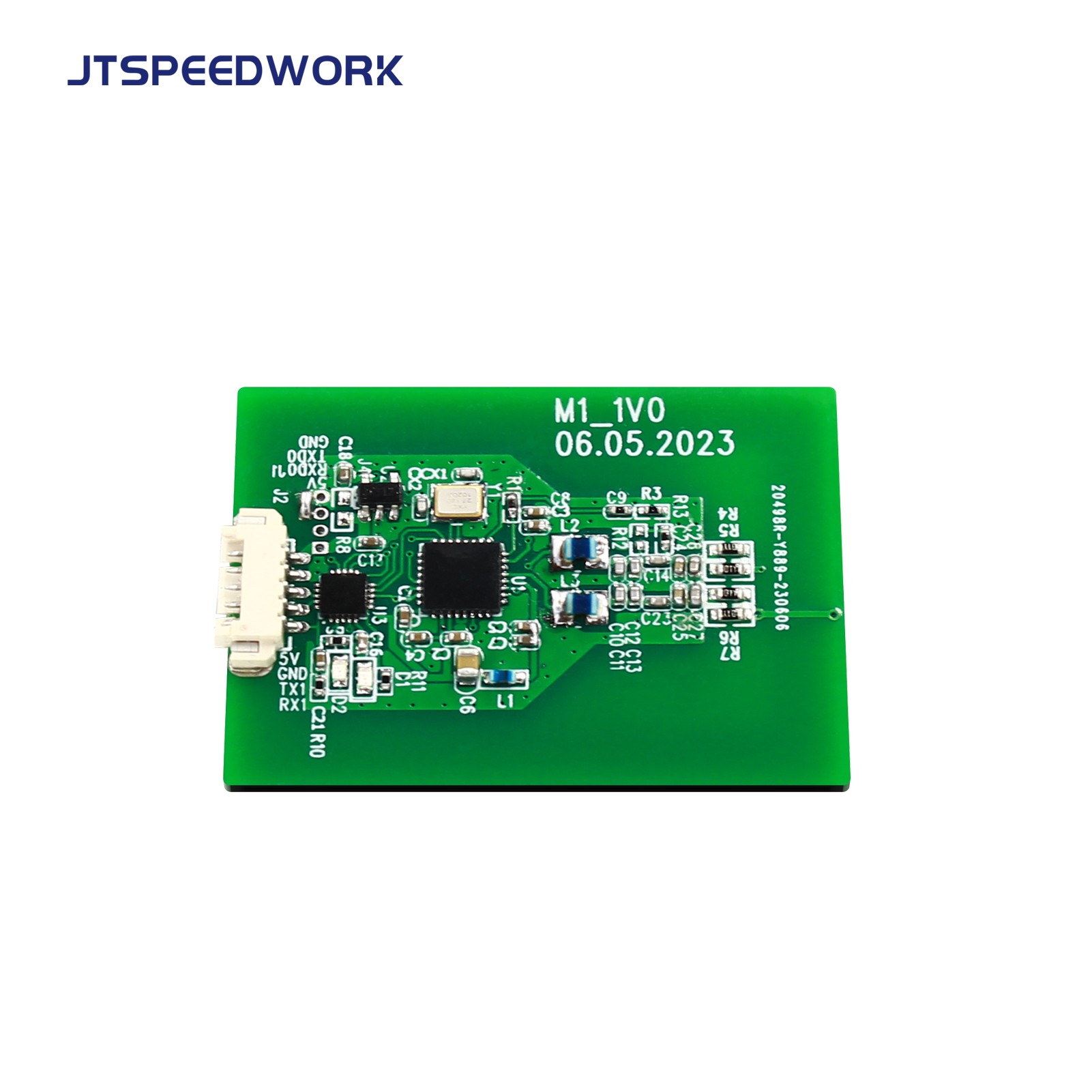

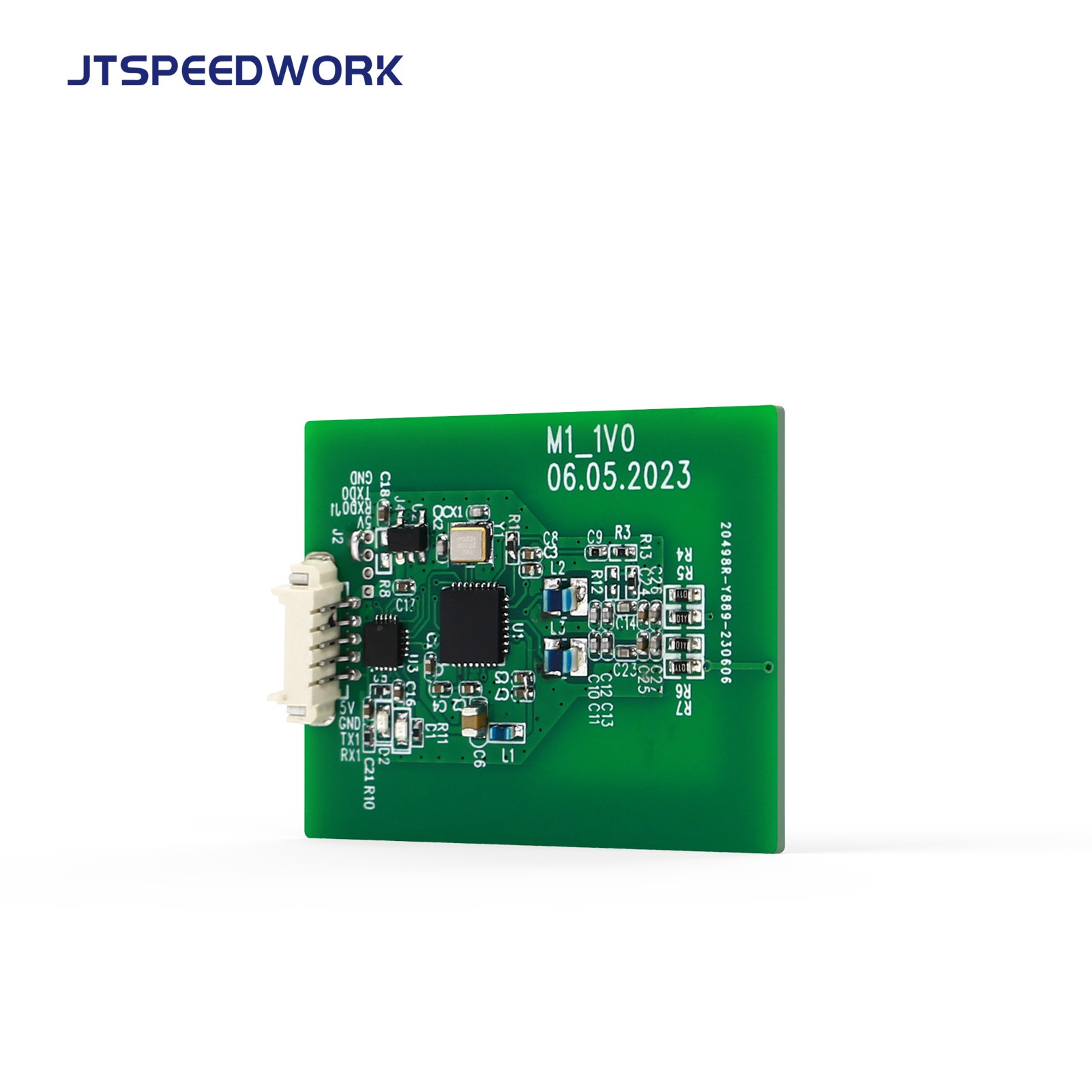

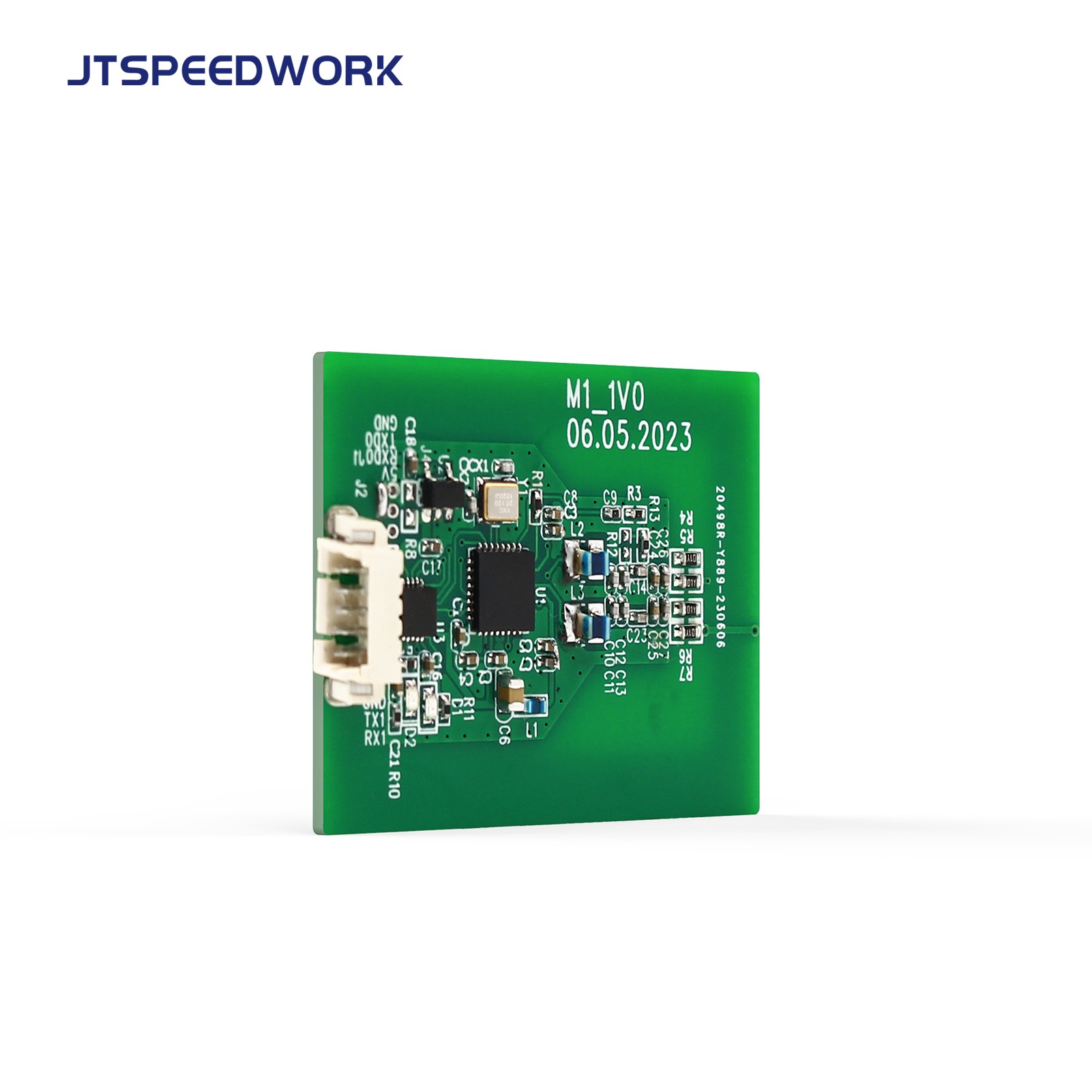

JT-2302 HF RFID 13.56MHz Module ISO14443A ISO15693 Support Mifare1 IC card
JT-2302 is a professional-grade,high-performance HF integrated module.The module is designed and developed based on the ISO14443A protocol.It adopts the integrated design of the module and antenna,which is convenient for users to integrate quickly. The module supports Mifare 1 IC card and compatible ISO14443A protocol card operation.Identify the IC and read the specified data block. When the lC card is close to the antenna of the module,the module will read the specified data block.The module adopts UART 3.3V TTL signal interface,DC 5V power supply.
Item No :
JT-2302Color :
GreenCommunication Interface :
UARTProtocol :
ISO 14443A, ISO 15693Working frequency :
13.56MHz
| Item No. | JT-2302 | |||
| Power Supply | User Environment | |||
| Operate voltage | DC 5V | Operating Temp. | -20 ℃ to 60 ℃ | |
| Working current | 100mA | Storage Temp. | -30 ℃ to 70℃ | |
| Stand-by current | 40mA | Humidity | 5-90% non-condensing (+25° C ) | |
| RFID parameters | Physical parameters | |||
| Frequency | Dimensions | 40(L)*30(W)mm | ||
| 13.56MHz | Net weight | Around 12g | ||
| Protocol | ||||
| ISO 14443A, ISO 15693 | Interface | |||
| Reading distance | 5V | Module 5V power input | ||
| 0-3cm (relate to tag and enviroment) | TX1 | Module serial port TX output (3.3V TTL level) | ||
| Communication interface | RX1 | Module serial port RX input (3.3V TTL level) | ||
| UART 3.3V TTL signal interface | GND | Module GND | ||
| RS32 baud rate | ||||
| 115200 bps noparity,8 data bits,1 stop bit | ||||
