Difference between JT-8290 and JT-9292:
| Model | Main Chip | Reading Performance |
| JT-8290 |
Discrete |
Reading 1-2 rfid tags |
| JT-9292 | TM series chip | Reading multiple tags |
Brand:
JTSPEEDWORKItem NO.:
JT-9292Communication Interface
RS232 TCP/IP Wi-Fi 4-GPRSWorking frequency:
860-960MHzProtocol:
ISO18000-6CRF chip:
TM200Antenna gain:
12dBiDescription:

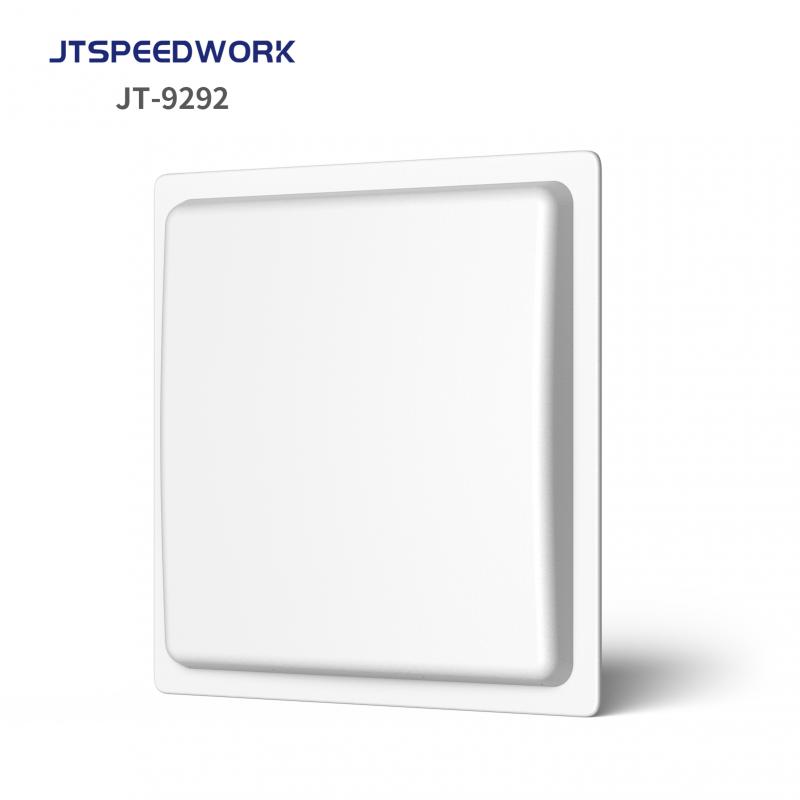

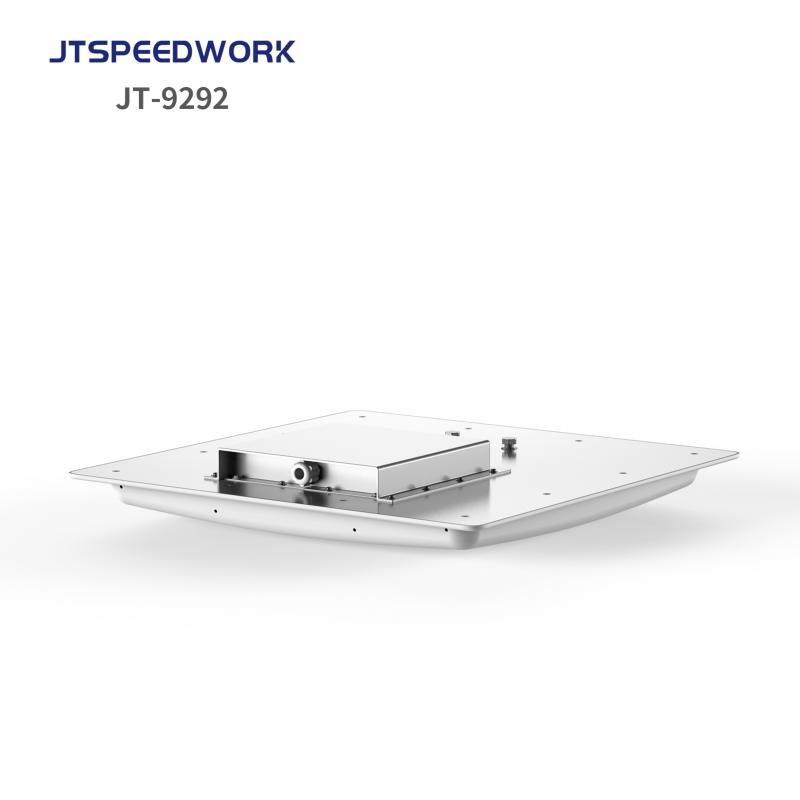

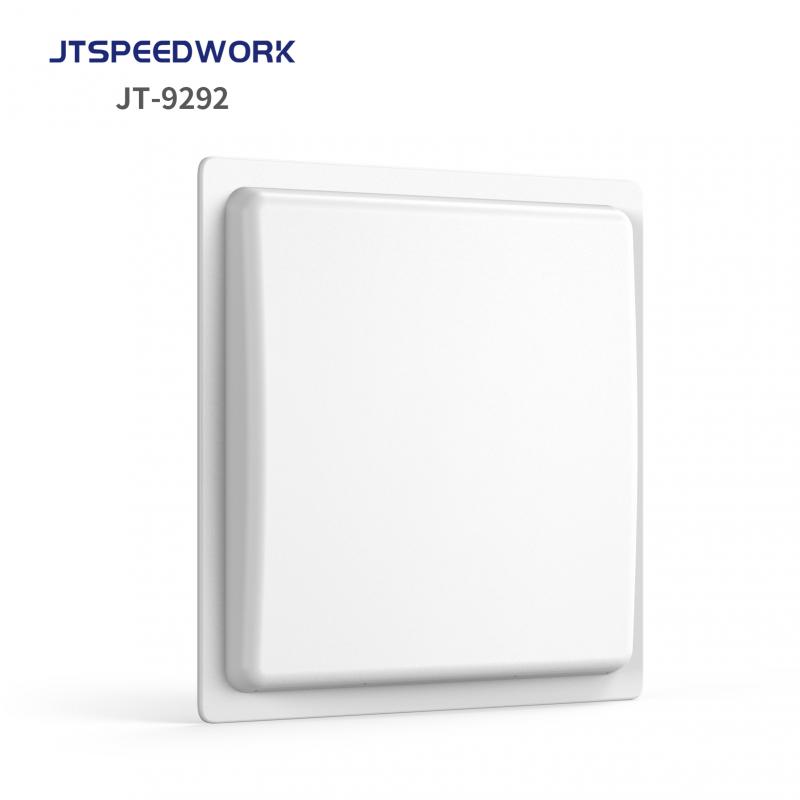

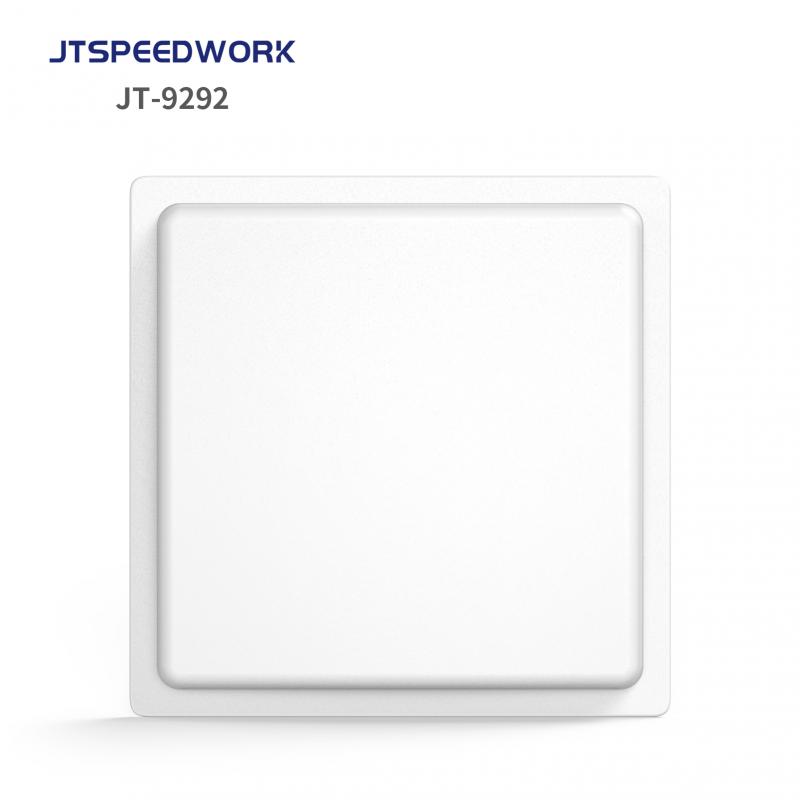

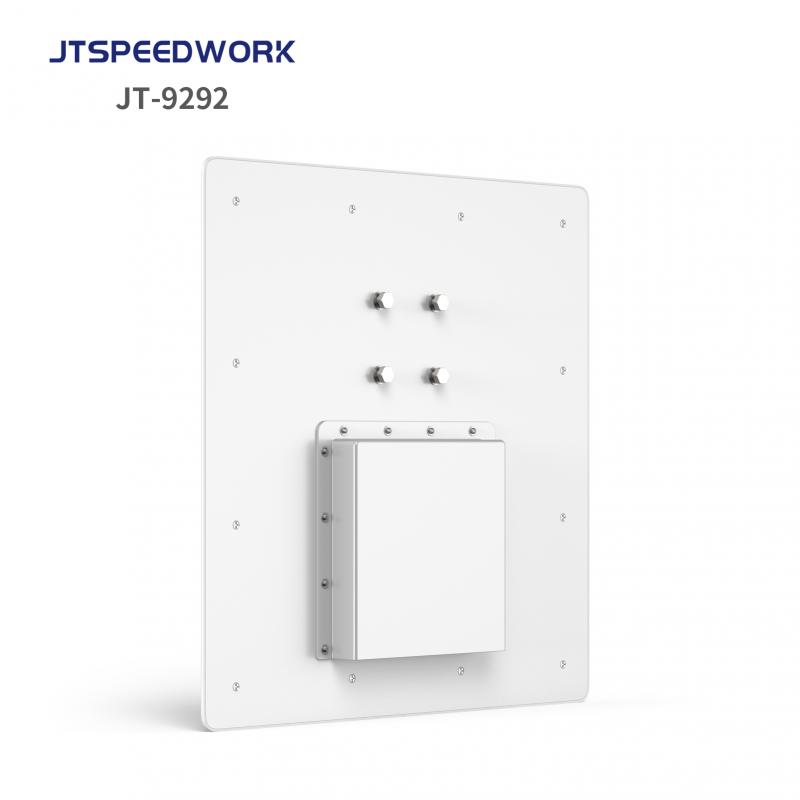

UHF RFID Long Range Reader JT-9292 adopts the clip of TM series chip, which achieve high speed and rapid date processing operations. Full support of ISO-18000-6C protocol, and has high sensitivity to tag.
Feature:
◆Built in the RFID module of TM series chip
◆The stable reading distance could be reach 30M
◆Multiple tagss reading ability
◆High sensitivity to tag
◆Support RSSI indication
◆Waterproof and sunscreen
Application:
JT-9292 could be used in variation area, such as vehicle management, customs management, logistics management and production automatic management, etc.
Specification:
Item No.
JT-9292
Physical parameters
Antenna
Dimensions

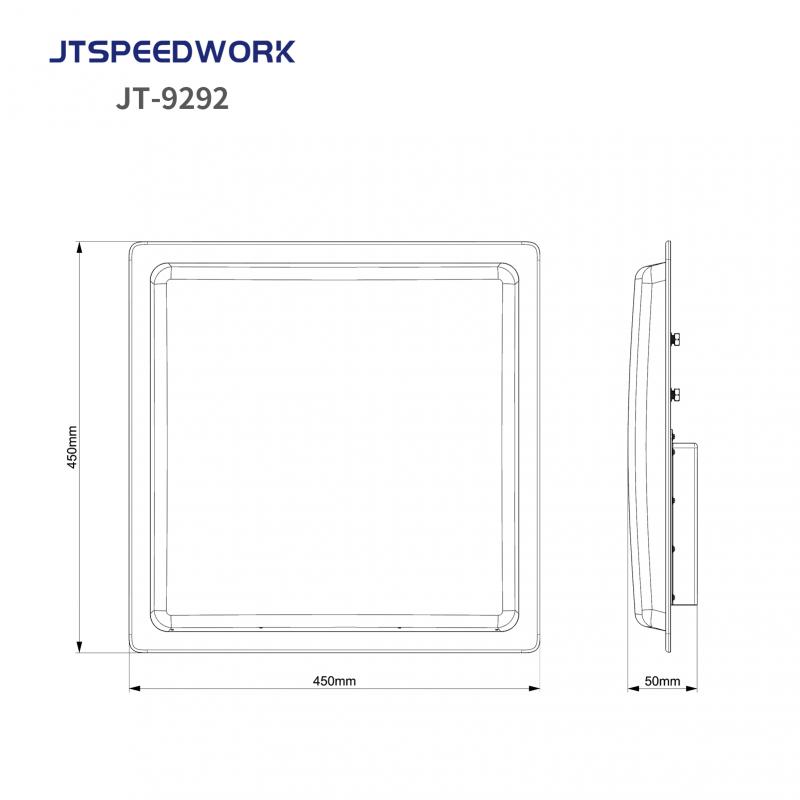

450(L)*450(W)*50(H)mm
12dBi linear polarized antenna (built-in)
Net weight
2.15kg
Material
ABS & aluminum alloy
Power Supply
Operate voltage
10-60V
RFID parameters
Operate current
0.65A@30dBm,25° C
Air Protocol
Power adapter
DC 12V/3A
EPC global Gen2(ISO18000-6C)
Working frequency
User Environment
865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band )
Operating Temp.
-40 ℃ to 75 ℃
RFID chip
Storage Temp.
-45 ℃ to 80℃
JT-2540 module based on TM serial chip
Humidity
5-90% non-condensing (+25° C )
RF power
13~32 dBm(±1dBm) (adjustable)
Reading Performance
Reading rate
Reading distance
>700 times/sec
Stable reading,US band:0-20m; EU band:0-20m.Max up to 30m(relate to tag and environment)
RSSI
Model Type
Support
JT-9292B
RS232,TCP/IP (PoE optional)
Work mode
JT-9292W
RS232,TCP/IP,WiFi
Master-slave, timing,trigger mode
JT-9292G
RS232,TCP/IP,4 GPRS
Consumption
Datasheet
Average power consumption<9W
Notification
SDK
LED indicator,buzzer
C# , Java , C++
