Difference between JT-9288 and JT-8288:
Model
Main Chip
Reading Performance
JT-8288
Discrete
Reading 1-2 rfid tags
JT-9288
TM200 chip
Reading multiple tags
Brand:
JTSPEEDWORKItem NO.:
JT-8288Communication Interface
WG (26/32/34/66) RS485 RS232 TCP/IPWorking frequency:
860-960MHzProtocol:
ISO18000-6CAntenna gain:
10dBiFeature:
Specification:
| Item No. | JT-8288 | |||
| Physical parameters | Antenna | |||

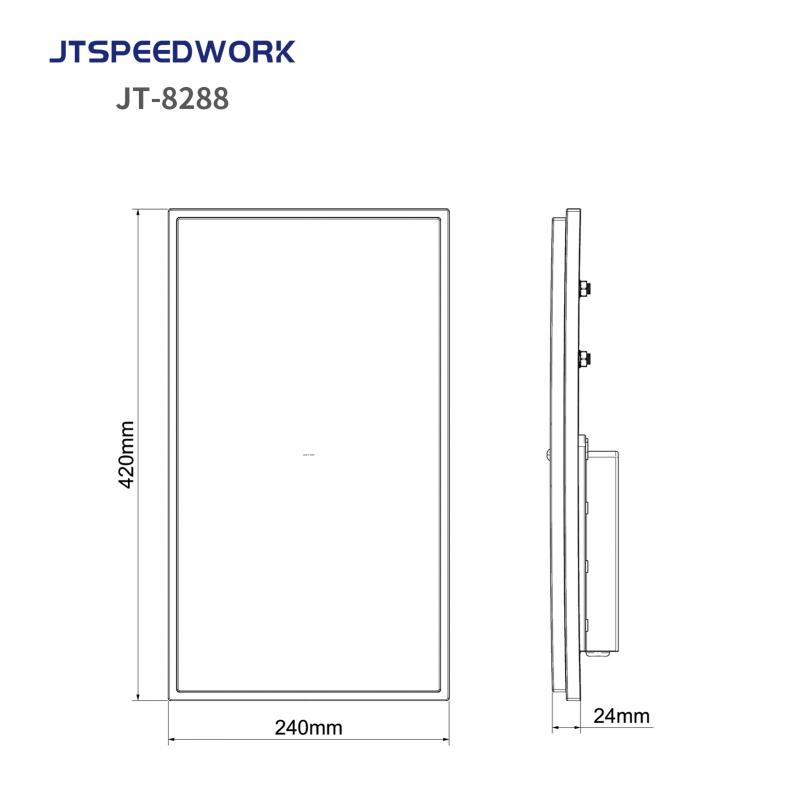

| Dimensions | 420(L)*240(W)*50(H)mm | 10dBi linear polarized antenna (built-in) | ||
| Net weight | 2.8kg | |||
| Material | ABS & aluminum alloy |
|
||
|
|
|
|||
| RFID parameters |
Power Supply |
|||
| Air Protocol | Power adapter |
DC12-24V/3A
|
||
|
ISO18000-6C/EPCC1G2
|
||||
| Working frequency | User Environment | |||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Operating Temp. | -40 ℃ to 75 ℃ | ||
|
Work mode |
Storage Temp. | -45 ℃ to 80℃ | ||
|
Master-slave, timing,trigger mode |
Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
| 0~30 dBm(±1dBm) (adjustable) | Reading Performance | |||
| Baud rate | Reading distance | |||
|
115200 bps (default) |
Up to 15m(relate to tag and environment) | |||
| GPIO | Model Type | |||
|
1 trigger input or 2 relay outputs (customized) |
JT-8288B |
RS232,RS485,WG(26/32/34/66)
|
||
| Special | JT-8288W |
RS232,TCP/IP,WG(26/32/34/66)
|
||
|
Warming function in extremely cold regions |
|
|
||
| Industrial lightning protection | Datasheet | |||
|
6000V high voltage lightning protection |
||||
| Notification | SDK | |||
| LED indicator,buzzer | C# , Java , C++ | |||
