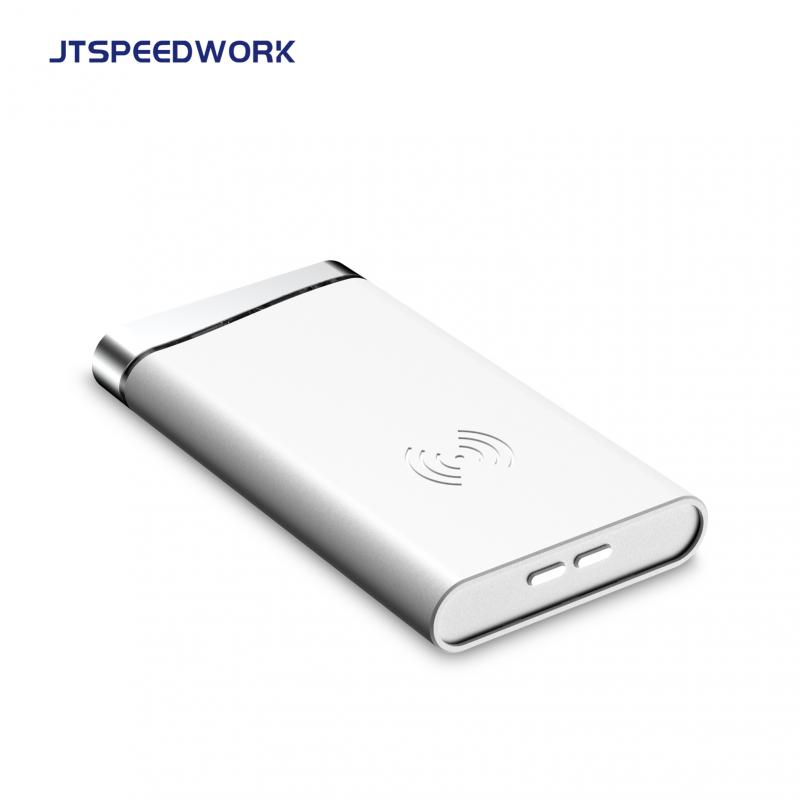

JT-2890 is a UHF Bluetooth portable reader. Small size, long distance, ultra-low power reading and writing module.
Brand:
JTSPEEDWORKItem NO.:
JT-2890Product Origin:
ChinaColor:
WhiteShipping Port:
Shenzhen,ChinaLead Time：
Within 3-7 DaysJT-2890
UHF RFID Handheld Reader with Bluetooth
| Item No. | JT-2890 | |||
| RFID parameters | Power Supply | |||
| Frequency | Standby current | <10mA | ||
| 865-868MHz / 920-925MHz / 902-928MHz | Peak current | 360mA | ||
| Protocol | Battery capacity | 3.7V 1500mAh polymer battery | ||
| ISO8000-6C/EPC C1G2 | Data interface | Bluetooth | ||
| Chip | Charging interface | Type-C US | ||
| JT-M2320 module based on Magic RF M100 chip | ||||
| RF power | Reading Performance | |||
| 12-26±1dBm (adjustable) | Reading range | 0-2m (relate to tag and environment) | ||
| Antenna | Read rate | >300 times/sec | ||
| 3dBi ceramic antenna (built-in) | ||||
| Communication Interface | User Environment | |||
| Bluetooth | Operating Temp. | -20 ℃ ~ 55 ℃ | ||
| Key button | Storage Temp. | -30 ℃ ~ 80℃ | ||
| Power;Read | ||||
| RSSI | Physical parameters | |||
| Support | Shell material | ABS | ||

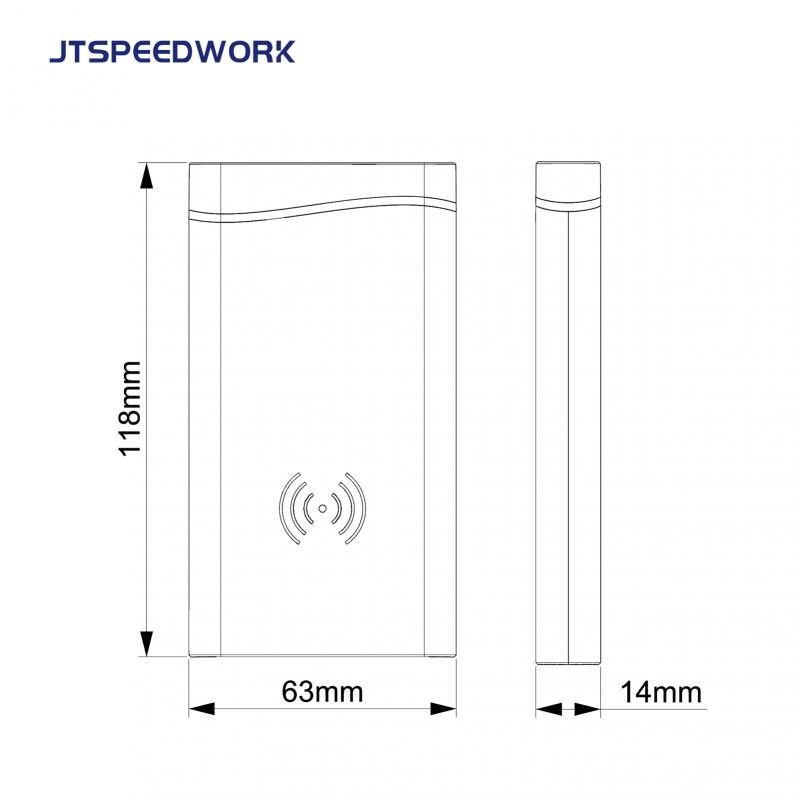

| Notification | Dimensions | 118(L)*63(W)*14(H)mm | ||
| Charging (flashing red light) | Net weight | 150g | ||
| Tag reading (green light flashing) | Datasheet (download link) | |||
