Brand:
JTSPEEDWORKItem NO.:
JT-8280ACommunication Interface
WG (26/32/34/66) RS485 RS232Working frequency:
860-960MHzProtocol:
ISO18000-6CAntenna gain:
8dBiApplication
1.Intelligent traffic such as ETC;
2. Customs border-crossing;
3. Parking lot ;
4. Automatic weighting;
5. Container management,pallet management ;
6. Asset management ;
7. Ticketing& access control;
8. Pharmaceuticals such as medical waste management.
Specification
|
Item No |
|
|
JT-8280A |
RS232,RS485,Wiegand |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Radio frequency power |
0dBm~30dBm(Adjustable) |
|
Software & SDK |
DEMO and C#,VC,Java, etc., |
|
Encryption |
Can be directly encrypted, copy prevention. |
|
Reading range |
stable reading range 5-8M(Depends on tag&environment) |
|
Industrial lightning protection |
6000V industrial lightning protection |
|
Low temperature protection |
Northeast,Northwest extremely cold region,low temperature protection |
|
Frequency modulation way |
Broad spectrum frequency hopping or fixed frequency |
|
Input/output port |
Two-way relay output(customized), one-way trigger input |
|
Antenna gain |
8dBi circular polarization |
|
Working way |
Buzzer |
|
Power |
12V/3A Adaptor |
|
Physical parameters: |
|
|

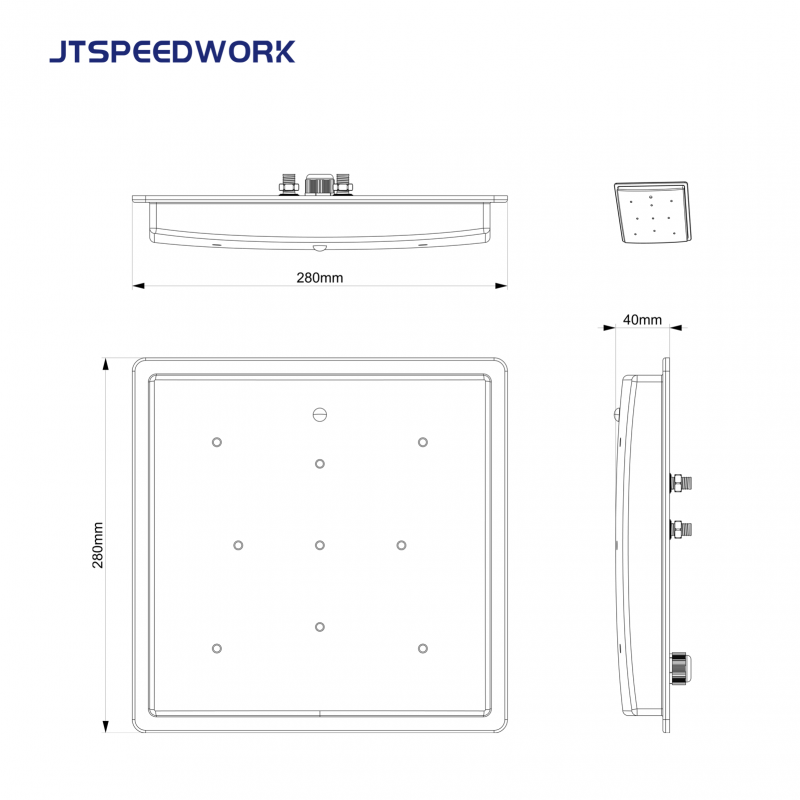

Item size |
280x280x40mm |
|
Package size |
430x330x130mm |
|
Net weight |
3KG |
|
Shell material |
ABS |
|
Working temperature |
-20℃~+65℃ |
|
Storage temperature |
-45℃~+95℃ |
