Reading distance : 0-50cm;
Working frequency ：860-960MHz;
Protocol : ISO 18000-6C.
Brand:
JTSPEEDWORKItem NO.:
JT-6280Product Origin:
ChinaColor:
BlackShipping Port:
Shenzhen,ChinaSpecification

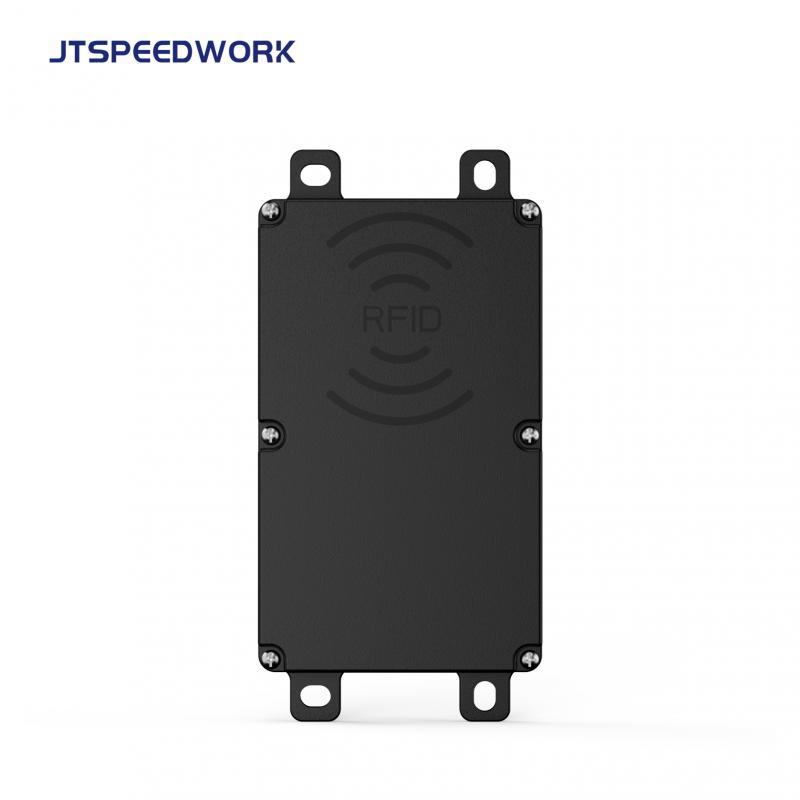

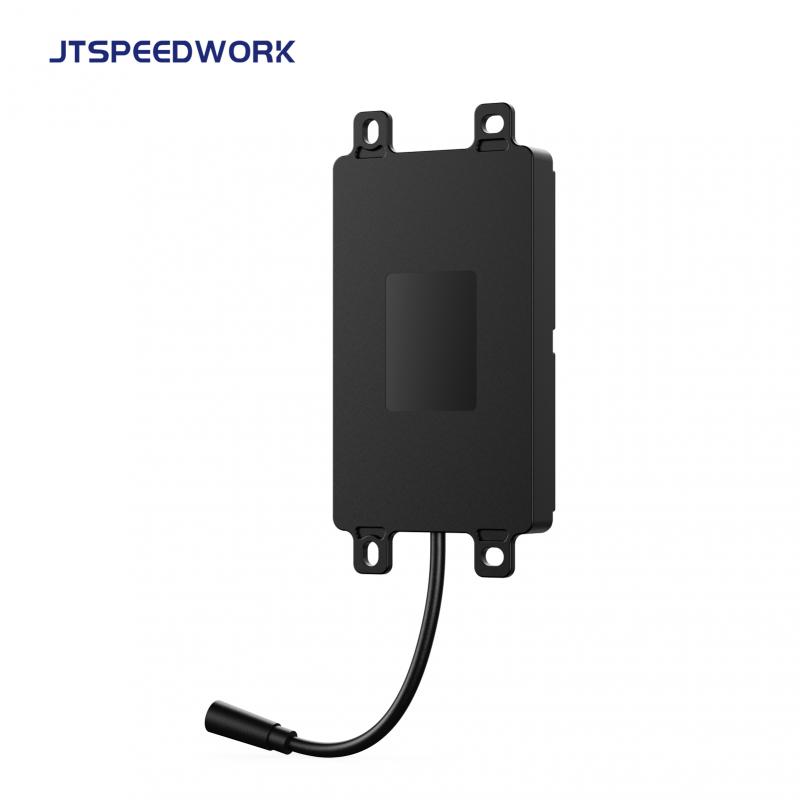

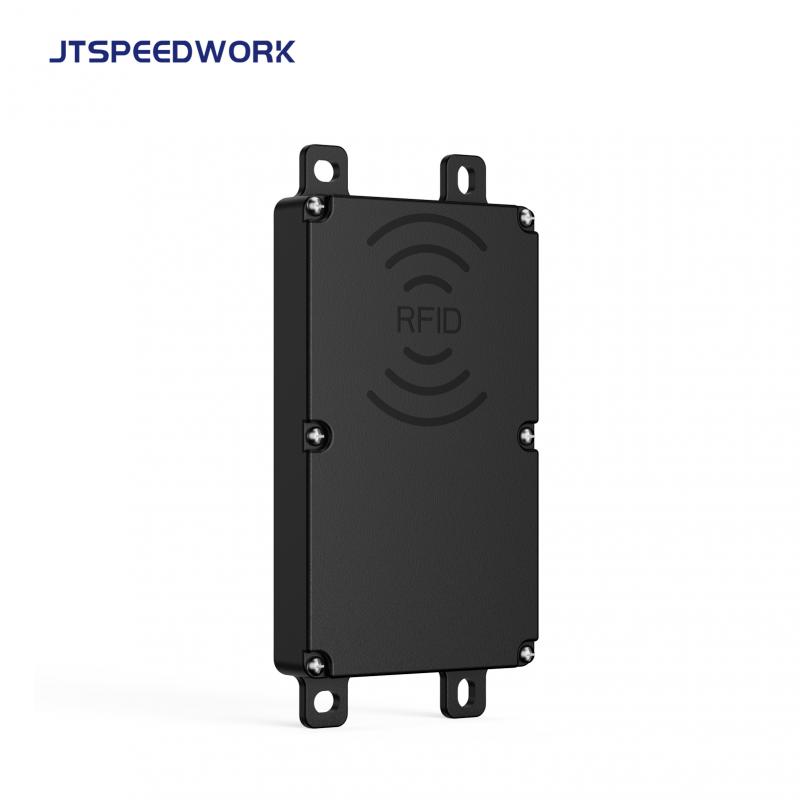

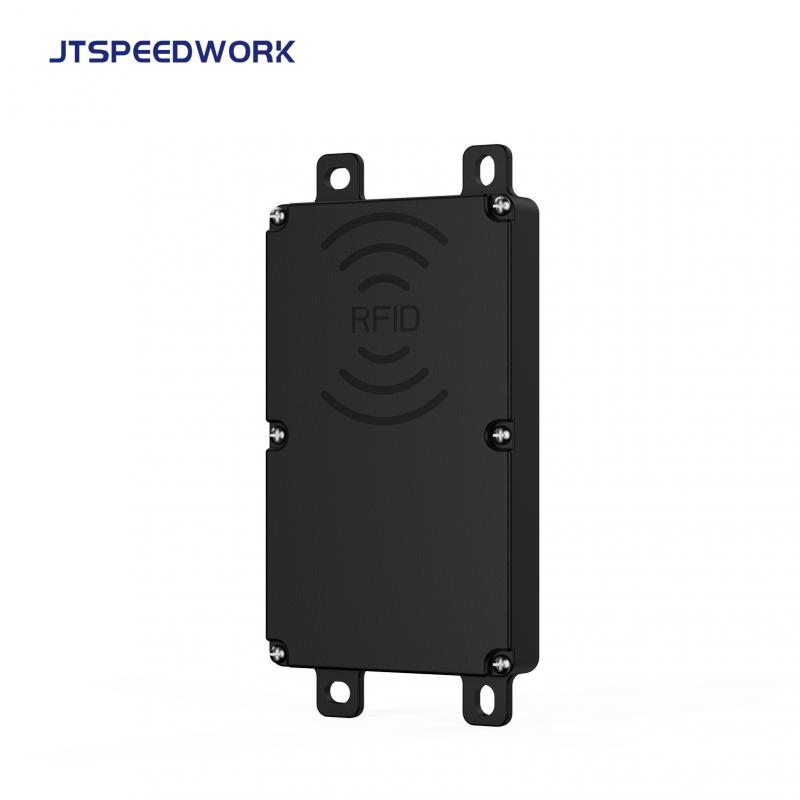

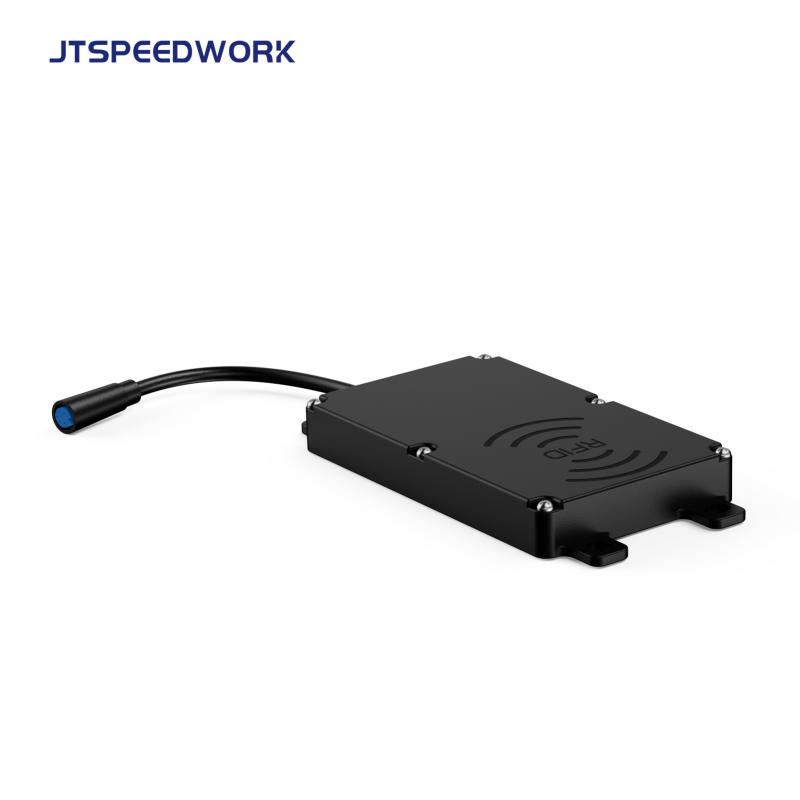

JT-6280 UHF RFID reader is a professional-grade, high-performance reader, specially designed for e-bike parking. With complete independent intellectual property rights, the reader supports ISO18000-6C (EPC C1 GEN2) protocol and adopts RS485 communication mode. It has the characteristics of long tag reading distance, high protection performance and convenient installation and configuration.
Features:
☆ High stability, under 60x24 hours high-temp testing machine, uninterrupted and stable operation
☆Maximum RF power: 19dBm
☆Ultra-low power consumption, maximum working current: 120mA
☆Support RS485
☆Provide SDK and support multiple development languages to facilitate secondary development by users.
|
Working frequency |
902~928MHz;865~868 MHz |
|
Protocol |
EPC C1 Gen2 ISO18000-6C |
|
Reading distance |
Stable 50cm (related to tag,application) |
|
Baud rate |
9600 bps (default) |
|
Power supply |
DC 5V |
|
Peak current |
120mA |
| Communication interface |
M8 4-pin/5-pin connector or RS485 |
|
Working Temp. |
-20℃～60℃ |
|
Storage Temp. |
-30℃～80℃ |
|
Storage humidity |
5%～95%RH non-condensing |
|
Shell material |
ABS |
|

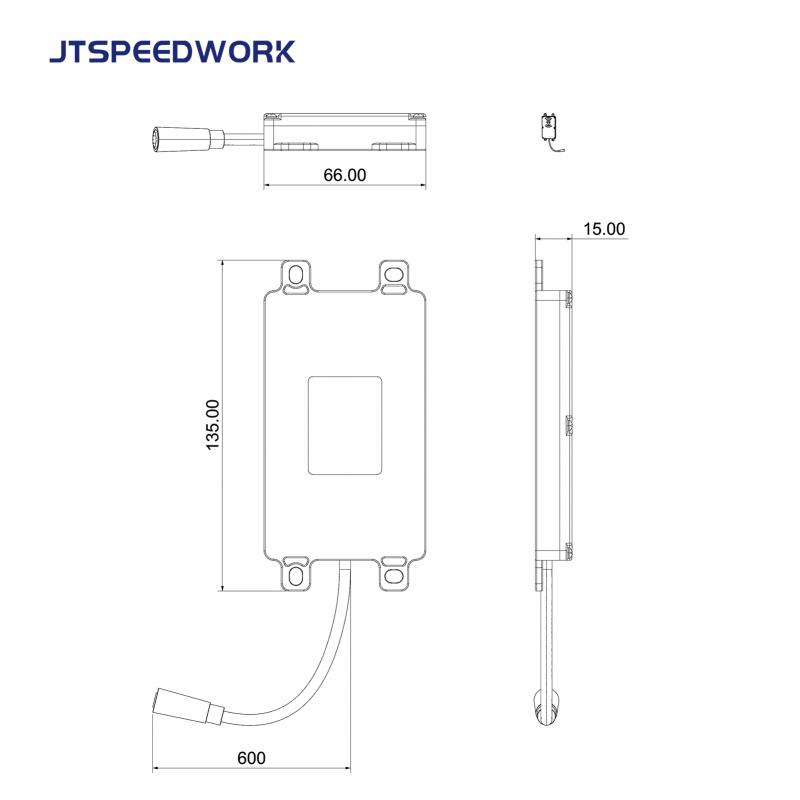

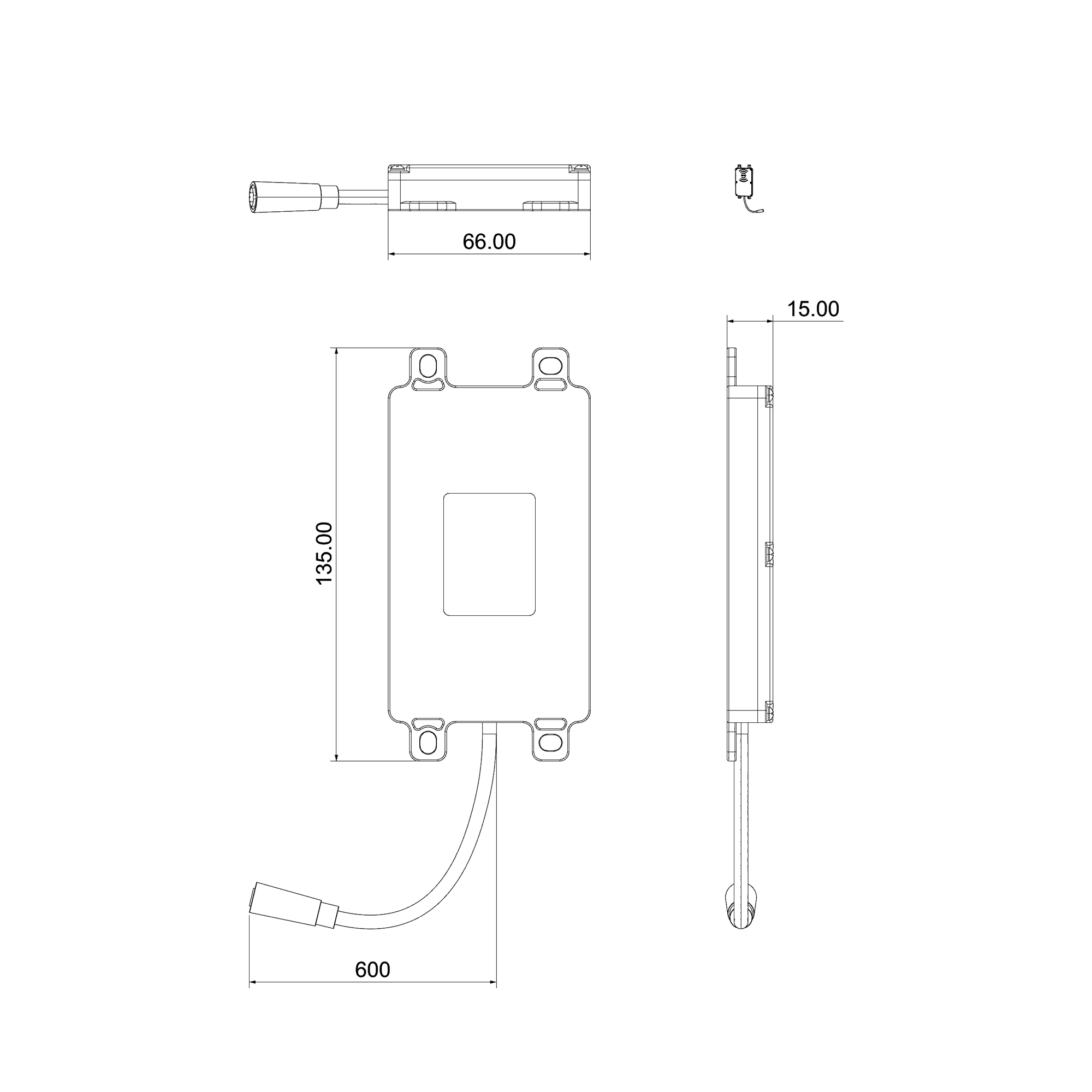

Dimension |
135X66X15mm |
|
Weight |
About 62g |
Previous:
JT-7300 0-5CM UHF RFID Reader In Production line managementNext:
JT-8300 TCP/IP RS232 RS485 Wiegand26\34\66\32 Desktop UHF RFID ReaderIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
