Brand:
JTSPEEDWORKItem NO.:
JT-T60055JWorking frequency:
860-960MHzProtocol:

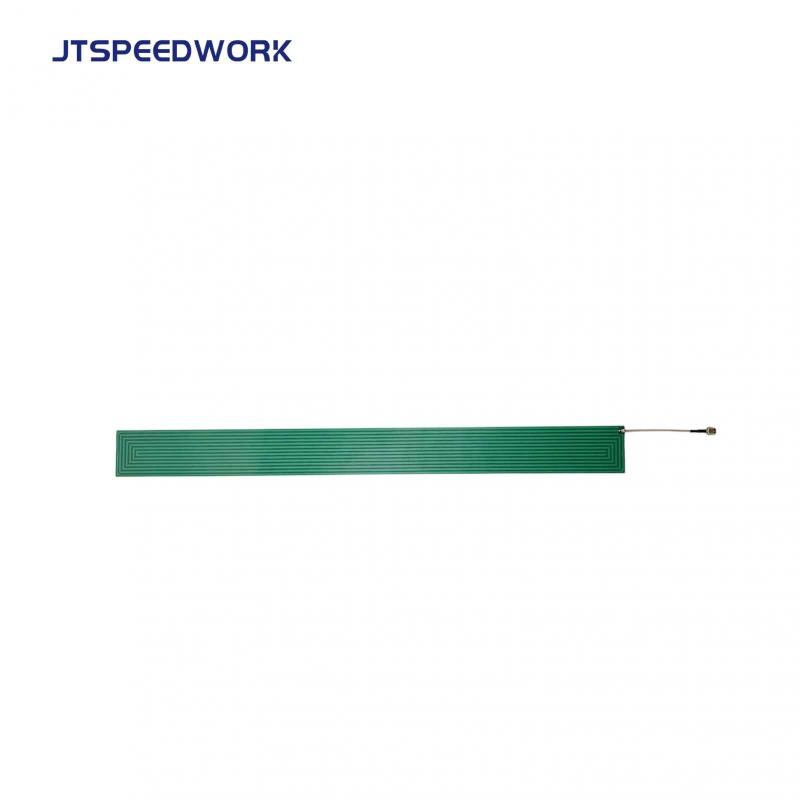

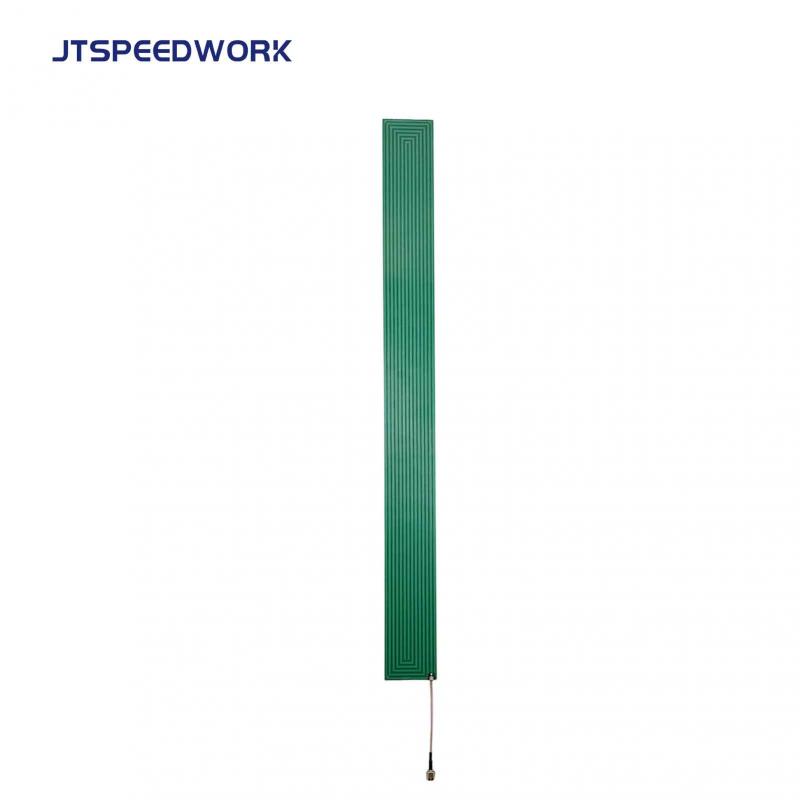

ISO18000-6CJT-T60055J antenna is a UHF band near-field antenna suitable for the RFID industry . The antenna adoptsPCB design and has the characteristics of strong field strength and low loss. It is especially optimized for self-service lending and returning machines and cashier counters. It has the characteristics of low standingwave and wide bandwidth . Due to the use of PCB technology, the antenna looks much thinner than conventional antennas, with exquisite appearance and easy installation . It can be used in combination with different readers at home and abroad . It can be easily used in warehousing, logistics, asset management , and other occasions , and can be customized according to customer needs.
Performance
Working frequency:
860MHz-960MHz
Gains:
-18 dbi
VSWR:
≤2
Humidity:
5%～95%
Input resistance:
50Ω
Polarization:
Near Field
Connector Type:
SMA
Physical indicators
Material:
Copper, FR4
Weight:
0.1kg
Size:
600mmx55mmx1.6mm
Color:
Green
Protection level:
IPX4
Operating temperature:
-40℃~+85℃
Stored temperature:
-40℃~+85℃
