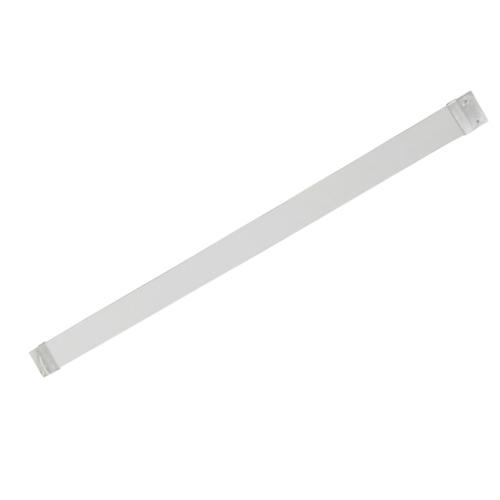

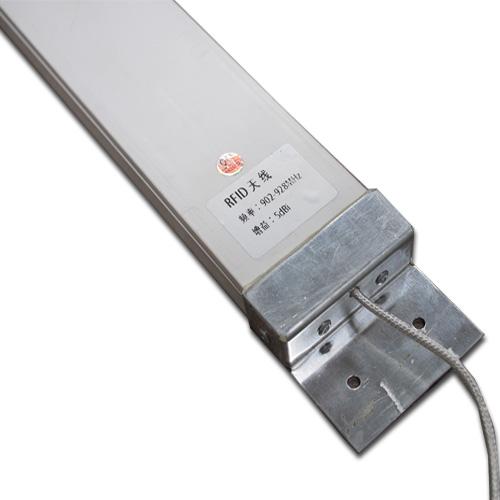

UHF RFID 5dBi Antenna

Middle range atenna RFID JT-613 is pleasing in appearance, environmental adaptability, easy installation

Item NO.:
JT-613
Order(MOQ):
1
Payment:
100% TT in advance
Price:
$49/58
Product Origin:
China
Color:
White
Shipping Port:
Shenzhen
Lead Time：
3 working days

product details

Feature:

5dBi antenna

Application:

Radio-frequency reader antenna, used for terminals, parking lots, shopping malls, toll station.

Specification:

Item No.	JT-613
Performance parameters
Working Frequency	902~928 MHz or 865~868MHz
Antenna gain	5dBi
Polarization	Linear polarization
VSWR	≤1.4
Beam Width H-Plane(°)	80°
Beam Width E-Plane(°)	50°
Impedance(Ω)	50
Connector	SMA internal male screws(accept customized)
Physical parameters:
Item size	1100x100x30mm
Package size	1150x120x50mm
Net weight	1Kg
Radome color	White
Radome material	PVC
Working temperature	-40℃~+85℃
Storage temperature	-45℃~+95℃
Protection class	IP54
