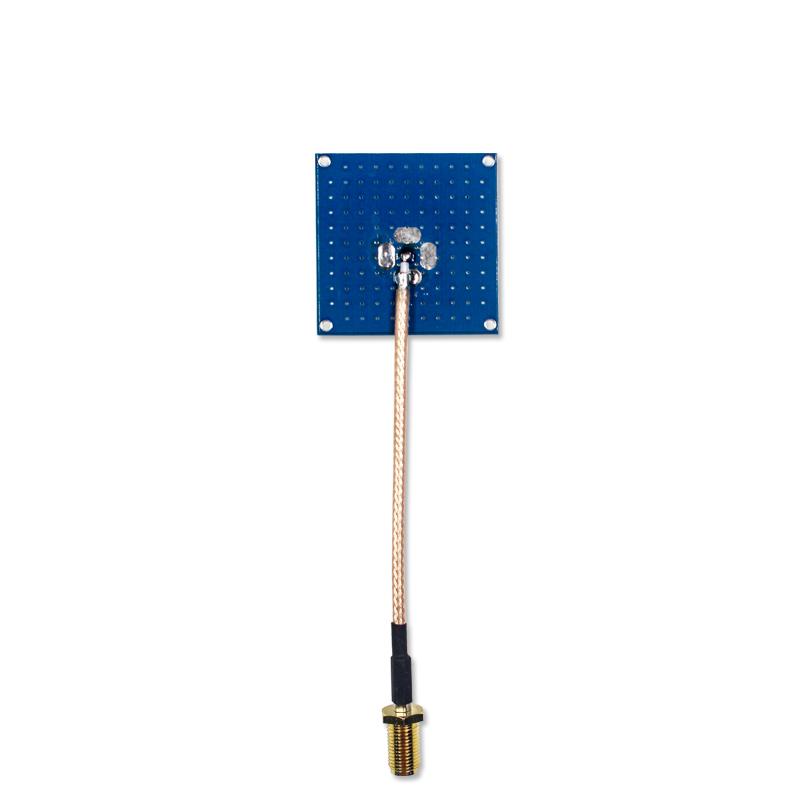

Ceramic antenna JT-T0025 is 1.5dBi ceramic antenna, small size, high sensitivity receive rfid antenna.
Brand:
JTSPEEDWORKItem NO.:
JT-T0025Product Origin:
ChinaLead Time：
3 working days
|
Antenna |
||
|
1 |

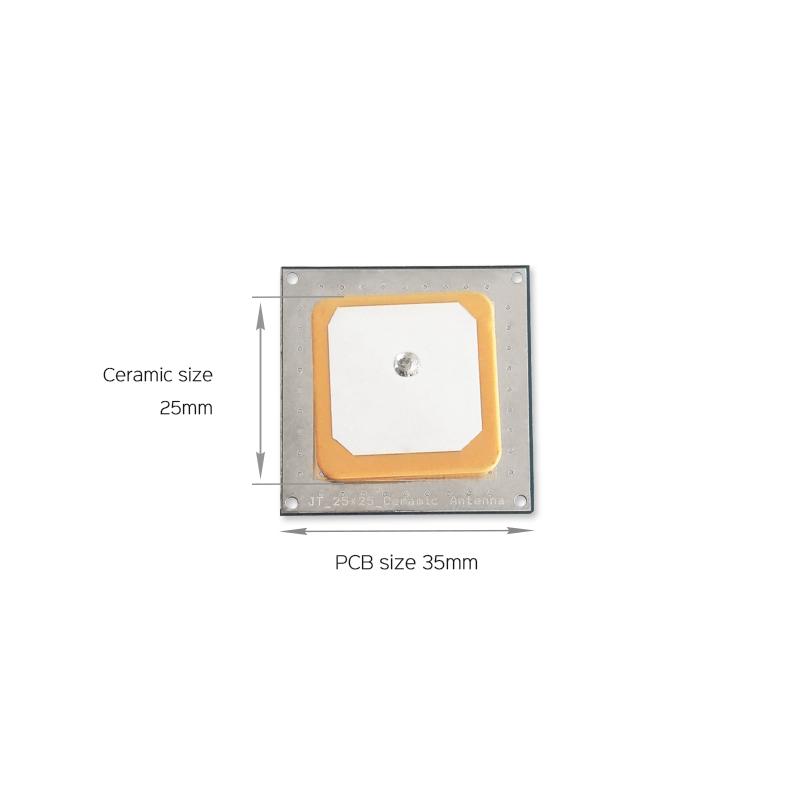

Size |
25mm*25mm*4mm |
|
2 |
Frequency Range |
915MHz±2MHz |
|
3 |
V.S.W.R |
1.5 MAX |
|
4 |
Band With@10dB |
3 MHz MIN |
|
5 |
Gain |
1dB typ @50mm*50mm groundplane |
|
6 |
Impendence |
50Ω |
|
7 |
Polarization |
RHCP |
Material
|
No |
Part Name |
SPEC |
|
1 |
Antenna |
Dielectric Ceramics |
|
2 |
PCB |
FR4 |
|
3 |
RF Cable |
RG316 |
|
L=50mm |
||
|
4 |
RF Connector |
SMA or customzied |
Environment Condition
|
1 |
Working Temp |
-40℃～+85℃, 10%～95% RH |
|
2 |
Storage Temp |
-55℃～+100℃, 10%～95% RH |
|
3 |
Vibration |
Sine sweep @1.5mmAM 10~55Hz each Axis |

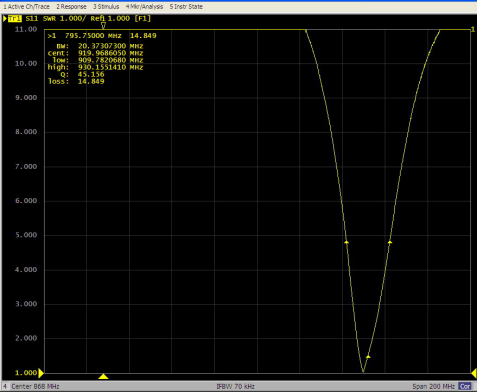

Testing Curve

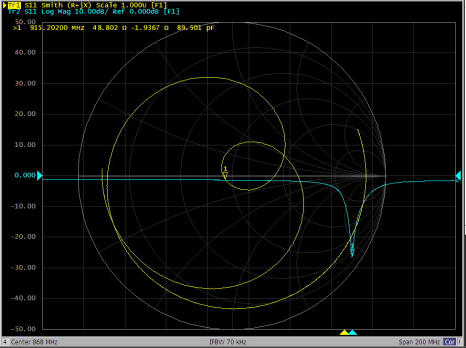

1.Patch Simth& VSWR
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
