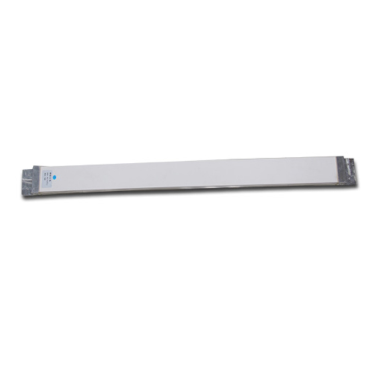

High gain RFID antenna JT-T11710 is a long trip RFID antenna: mainly for smart library,shelf ,warehouse , Door control system ,Logistic & supply chain asset management etc.
Do you need help choosing the right RFID antenna for your project? We are happy to assist! Please contact us.
Brand:
JTSPEEDWORKItem NO.:
JT-T11710Product Origin:
shenzhenLead Time：
Within 3-7 Days|
Item No. |
JT-T11710 |
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Antenna gain |
10dBi |
|
Polarization |
Linear polarization |
|
VSWR |
≤1.5 |
|
Beam Width H-Plane(°) |
80° |
|
Beam Width E-Plane(°) |
50° |
|
Impedance(Ω) |
50 |
|
Connector |
SMA internal male screws(accept customized) |
|
Physical parameters: |
|
|
Item size |
1170x90x35mm |
|
Package size |
1150x120x50mm |
|
Net weight |
1Kg |
|
Radome color |
White |
|
Radome material |
PVC |
|
Working temperature |
-40℃~+85℃ |
|
Storage temperature |
-45℃~+95℃ |
|
Protection class |
IP54 |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
