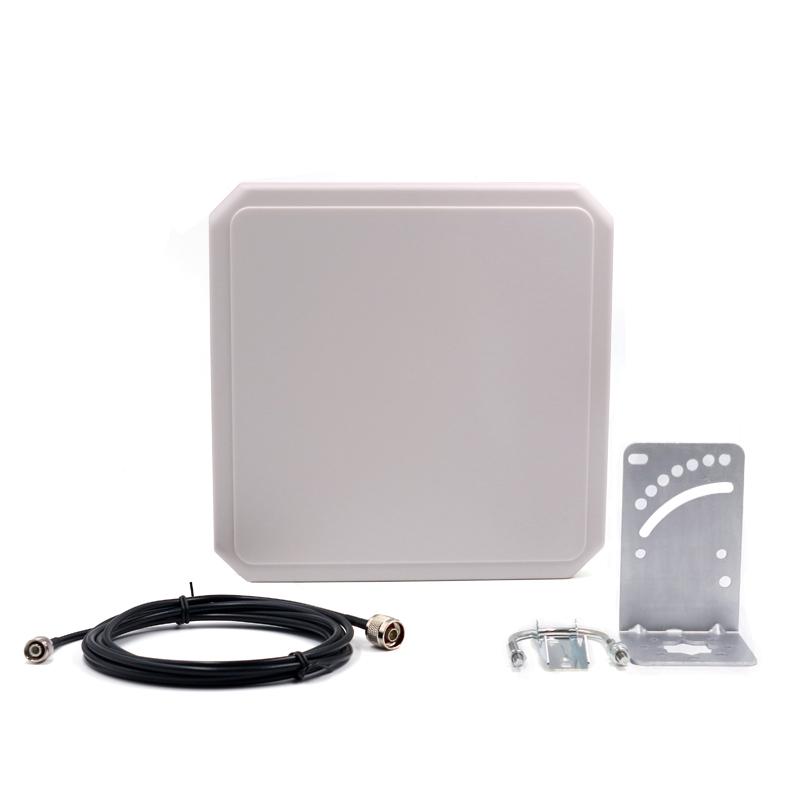

The JT-T0258 is a cross-line polarized directional antenna. When using it, care should be taken to adjust the tilt angle of the antenna to obtain optimal read performance.
JT-T0258 can be used outdoors, but not suitable for use in acid/alkaline environments.
Brand:
JTSPEEDWORKItem NO.:
JT-T0258Product Origin:
shenzhenLead Time：
3-5 daysJT-T0258 is a high-performance, worldwide, circular-polarized antenna for use in demanding application. It can be used with all fixed Gen2 readers on the market. Application environments include warehouses, distribution centers, airports and hospitals, transit terminals, and conveyor belts.
|
Performance parameters |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Antenna gain |
9dBi |
|
Polarization |
Circular polarization |
|
VSWR |
≤1.3 |
|
Beam Width H-Plane(°) |
70° |
|
Beam Width E-Plane(°) |
70° |
|
Impedance(Ω) |
50 |
|
Connector |

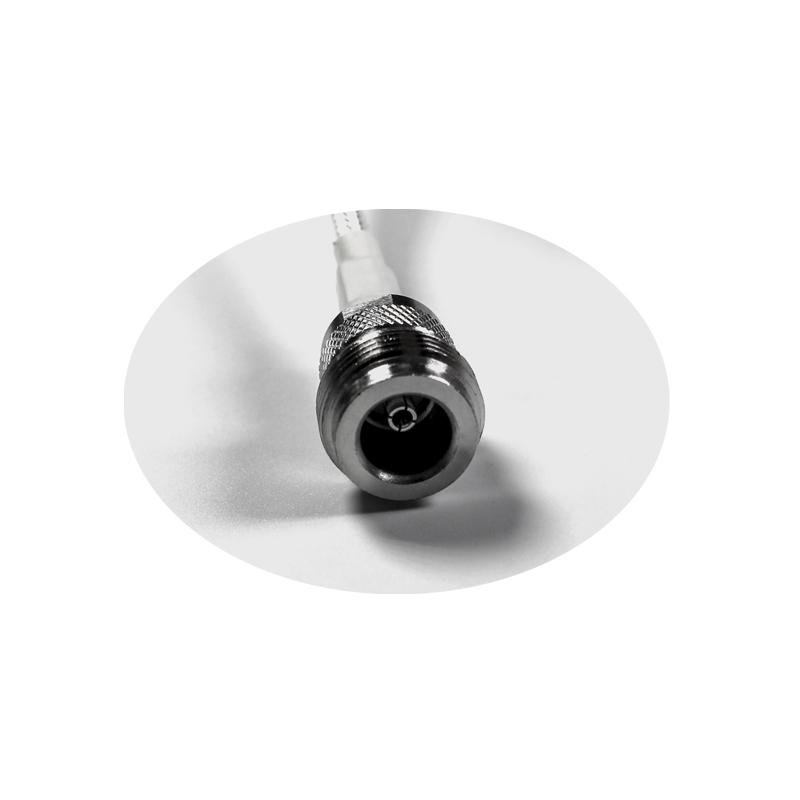

N Outer female connector |
|
Physical parameters: |
|
|

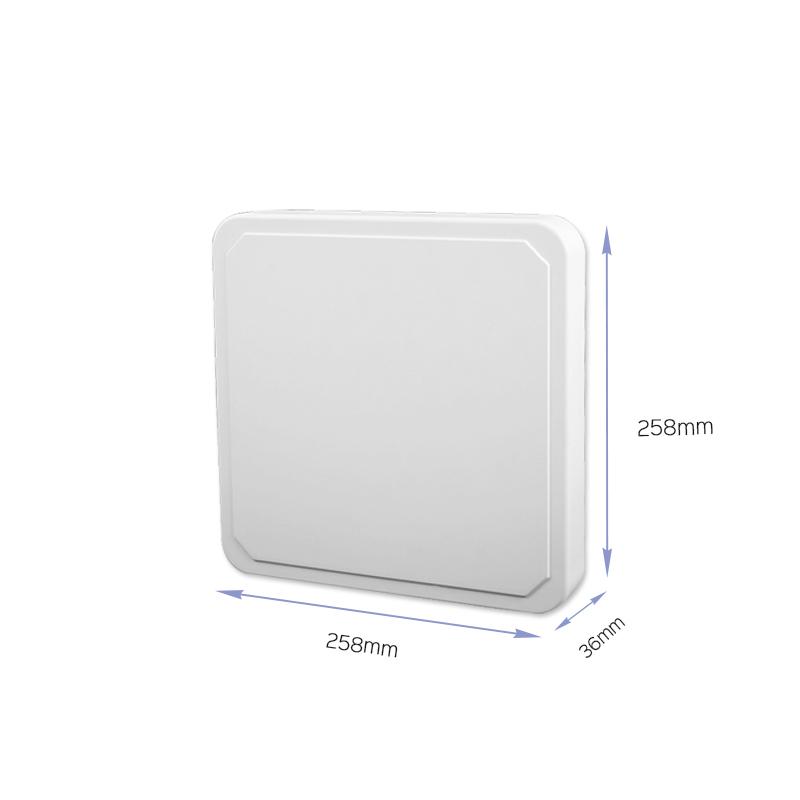

size |
258x258x56mm |
|
Package size |
320x320x100mm |
|
Net weight |
2Kg |
|
Material |
Aluminum |
|
Radome color |
White |
|
Radome material |
ABS |
|
Working temperature |
-40℃~+85℃ |
|
Storage temperature |
-45℃~+95℃ |
|
Protection class |
IP67 |
