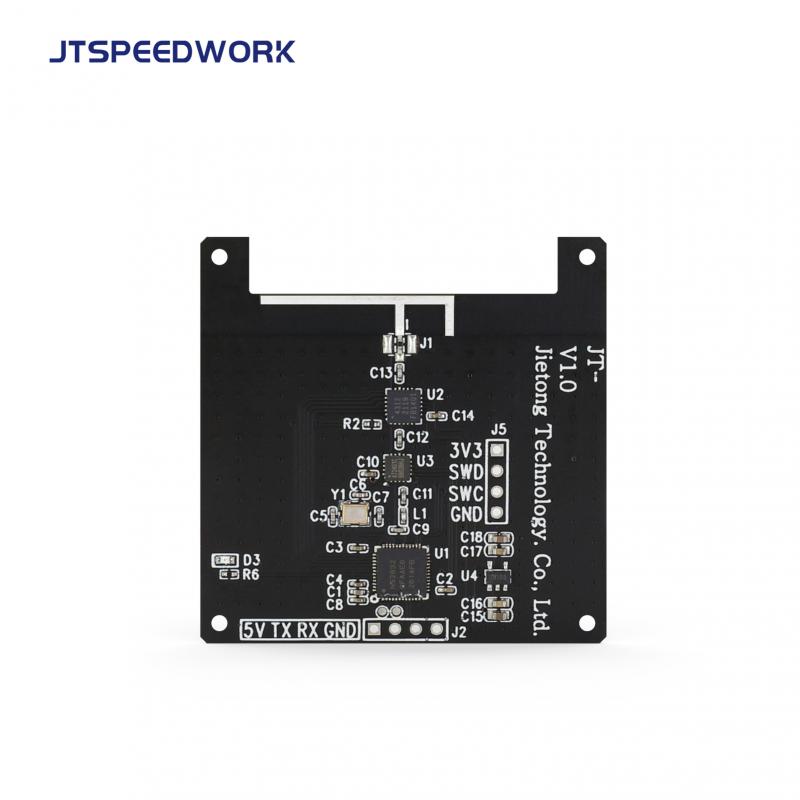

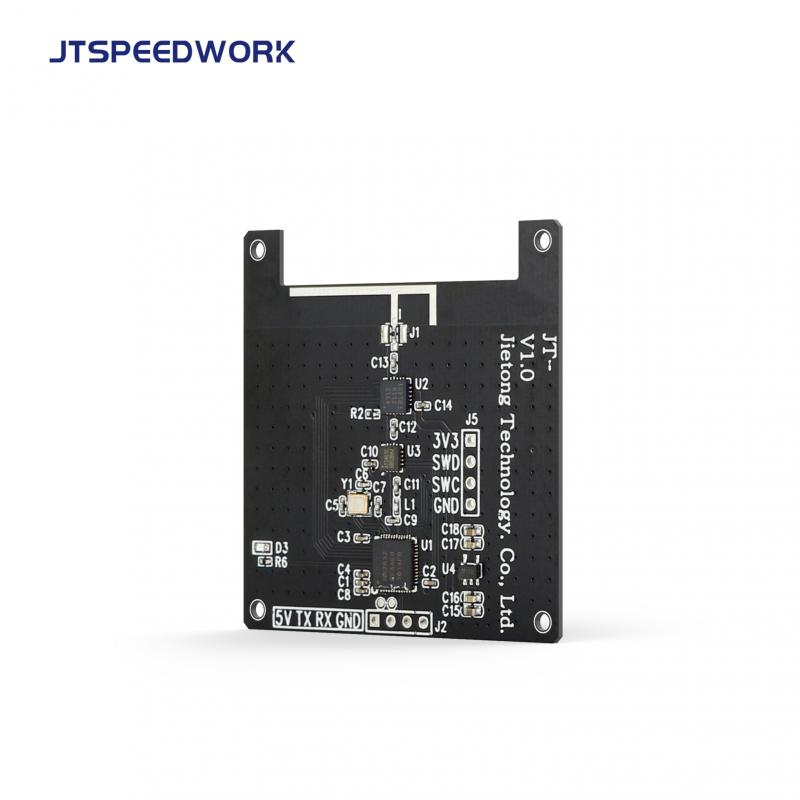

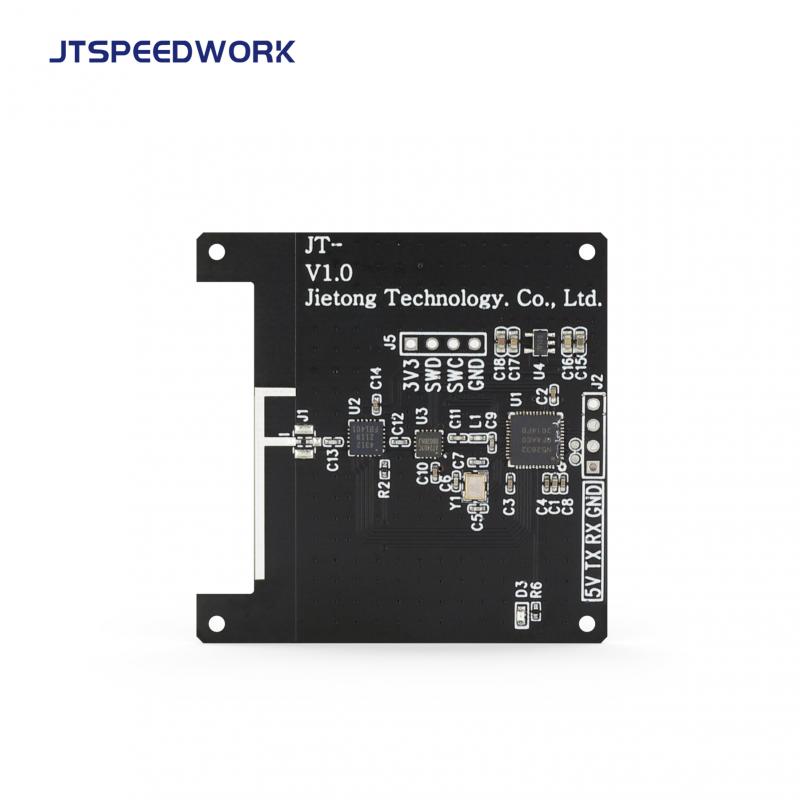

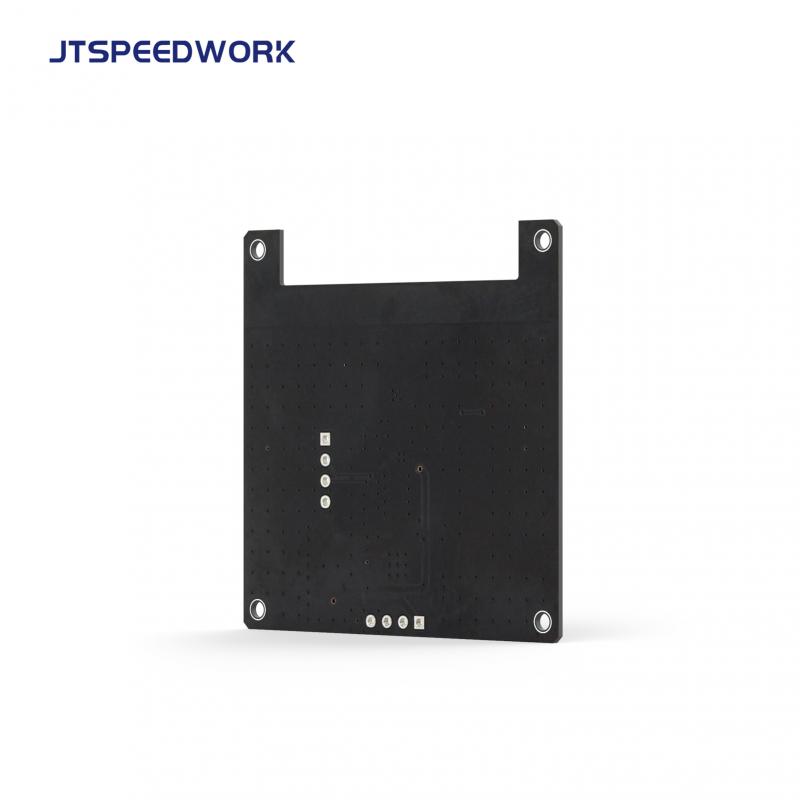

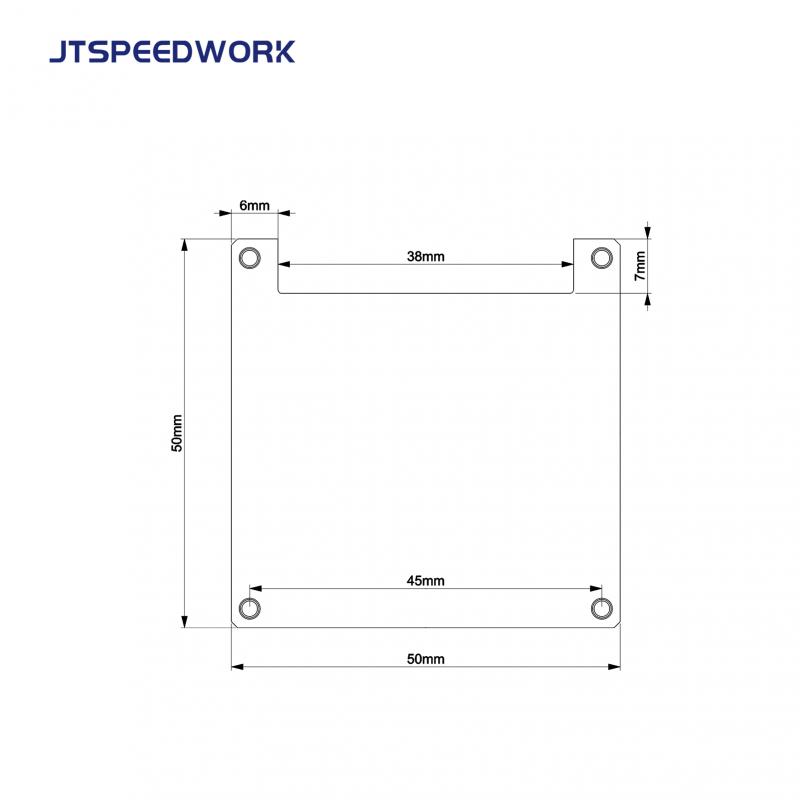

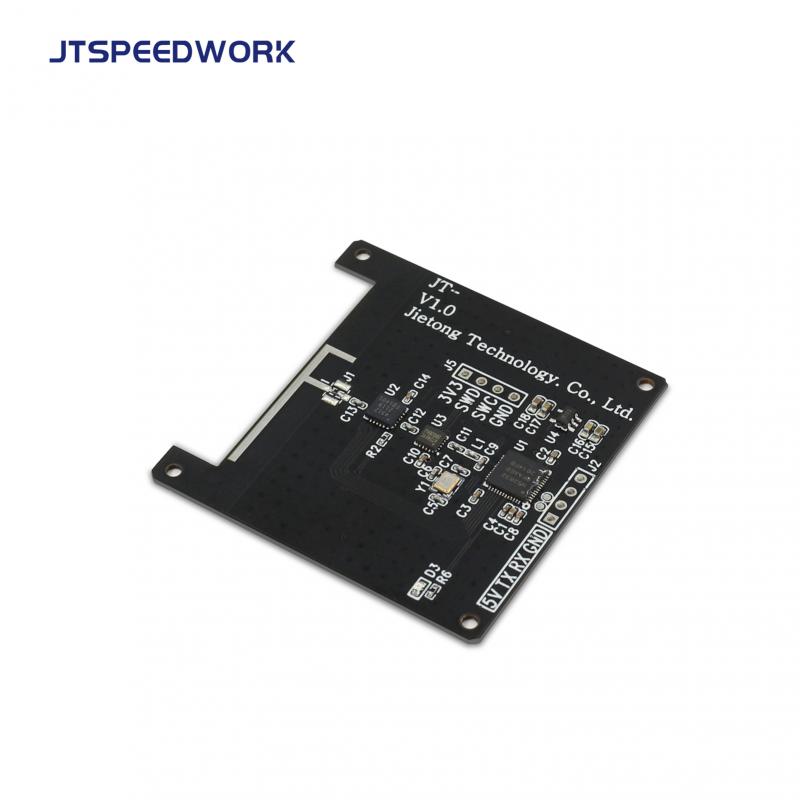

JT-M2420 2.45GHz Active RFID Module For PDA

2.45GHz active rfid module;Reading range 20-150m.

4-port antenna TNC female interface, TM serial chip , group reading

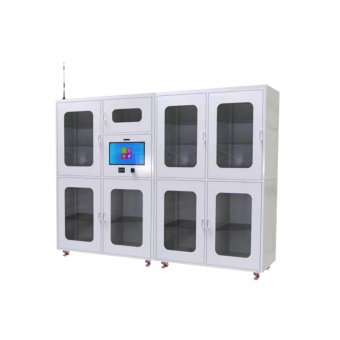

JT-SC16 Hidden RFID Cabinet Tools Locker Smart Receiving Storage Cabinets Takeaway Sunpln Industrial System Luggage Schools Gym

JT-932-8  is a professional-grade, 8 Ports UHF RFID Reader  , high-performance UHF electronic tag fixed reader based on the Impinj R2000 platform. With complete independent intellectual property rights, the reader's default working frequency band is 902MHz ~ 928MHz or 865-868mhz supports ISO18000-6C (EPC C1 GEN2) protocol, has strong multi-tags recognition capability, long card reading distance, high protection performance and convenient installation and configuration. Features.

The carbs tags is mainly based on crabs, lobster, soft-shelled turtles and other shapes designed to ensure that can be bound by the activities of the binding can also be used for similar workplace.

RFID automatic calibration The RFID automatic calibration function can automatically drive the power of the antenna according to tags of different specifications and chips, easily set the reading and writing conditions of RFID tags, and greatly reduce the time of manual debugging of printer parameters. (Press the "Power On" button twice to automatically calibrate the RFID power) Automatic labeling function for waste labels The automatic marking function of discarded labels means that when a defective or damaged label is found during the label reading and writing process, the printer can automatically detect and print the word "obsolete" on the surface of the label, which facilitates customers to sort out defective labels as soon as possible and avoid the mixing of defective labels. Reliable tag data writing The workflow of printing first and then reading and writing the label IC can support the printing, reading and writing of large batches of labels at one time, while ensuring a 100% defective label detection rate and ensuring the accuracy of subsequent business operations. Labels are widely applicable It can support printing and reading and writing verification of ordinary anti-metal labels and flexible anti-metal labels (≦1.25mm) at the same time. The labels are widely applicable. The three-position penetrating sensor structure design can meet the label positioning needs of different positioning methods, meet the use of different labels, and the label has a wider application range. Humanized parameter settings Provides an intelligent assistant setting function that can manually adjust the printer's RFID power and antenna position, providing the most suitable application settings for RFID. Item No. JT-DL218 Print parameters Interface Printing method Thermal/thermal transfer printer Standard USB interface (2.0 full speed) Printing width (loading paper width) 118mm Optional RS-232 serial port (DB25) Effective printing width 108mm Parallel Centronics(IEEE-1284) Printing speed 150mm/s(203dpi) Ethernet port:10M/100M Thermal head Point spacing 0.125mm Wi-Fi interface (802.11b/g/n) Resolution 203DPIx203DPI Bluetooth interface: SPP Barcode RFID 1D code Code 39,UPC-A,UPC-E,Matrix 25, Industrial 2 of 5, Interleaved 2 of 5, Post 2 of 5(China),Code 128, EAN-13, EAN-8, HBIC(Code 39),codabar, UPC2,UPC5, Code93,UCC/EAN Code RFID tag writing method Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc. QR code PDF417,MaxiCode,QR Code,Data Matrix Support RFID standards 920.5-924.5MHz; support ISO18000-6C, EPC Gen2 Supported label types Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip Physical properties Ribbon specifications Dimensions 230(width) ×290(Deep) ×176(high)mm Inner diameter 25.4mm Color Black White Outer diameter 68mm Weight About 3kg Length 300 meters Working environment Temperature: 5~40℃ Width 33~110mm Humidity: 20%~95%RH (no condensation) Storage environment Temperature: -20~60℃ Humidity: ≤95%RH (40℃, no condensation) Control Panel Detection function Button One key (paper feed) Standard sensor Black mark detection, label detection, mechanism detection, ribbon detection Indicator light Three lights (power, fault, status (no paper/ribbon)) Optional sensor Label peel detection Paper handling Character Paper specifications Paper thickness: 0.06~0.18mm Character set Chinese characterGB18030 Chinese character large font library 24*24 lattice；Commonly used single-byte fonts(ZPL):FontAarriveFontV Paper width: 25~118mm Custom fonts can be downloaded to FLASH, SDRAM Paper length: 8.9~400mm Code page PC437; PC850; PC860; PC863; PC865; PC858; PC852; PC866;PC720. Outer diameter: 127mm(MAX) Zoom/Rotate It can be enlarged in steps of 1 to 8 times both horizontally and vertically; rotation printing (0° ,90° ,180° ,270°) Inner diameter: 25.4/38.1mm Comes with paper tearing knife Supports top tear-off and bottom tear-off Safety Function Safety standard GB4943.1-2011 With double dial transmission technology, with thermal head positioning structure technology and with paper tearing structure technology;The above technologies need to provide relevant supporting documents or certificates from national technical appraisal institutions; Radio Interference (EMC) Class B Certification 3C certification Memory Power parameters SDRAM 8MB Input 100~240VAC;Frequency range: 50~60Hz FLASH 8MB Output 24VDC; 2.15A Software Cutter life Driver (Windows32bit/64bit, Linux), Barcode Pass BarEasy,SDK system Options 0.2mm 300,000 times, 0.15mm 500,000 times,0.06mm 1 million times Emulation language Graphics Simulated zebra, simulated EPSON ZPL, EPL, ESC/POS Graphics processing Monochrome PCX, BMP and other image data can be downloaded to FLASH, SDRAM Options The cutter (stripper) and paper are almost empty. Reliability and warranty Lifespan 150KM(Calculated based on the...

RFID Ceramic Antenna JT-T0040 is 3dBi ceramic antenna, small size, highly stabilized performance.
