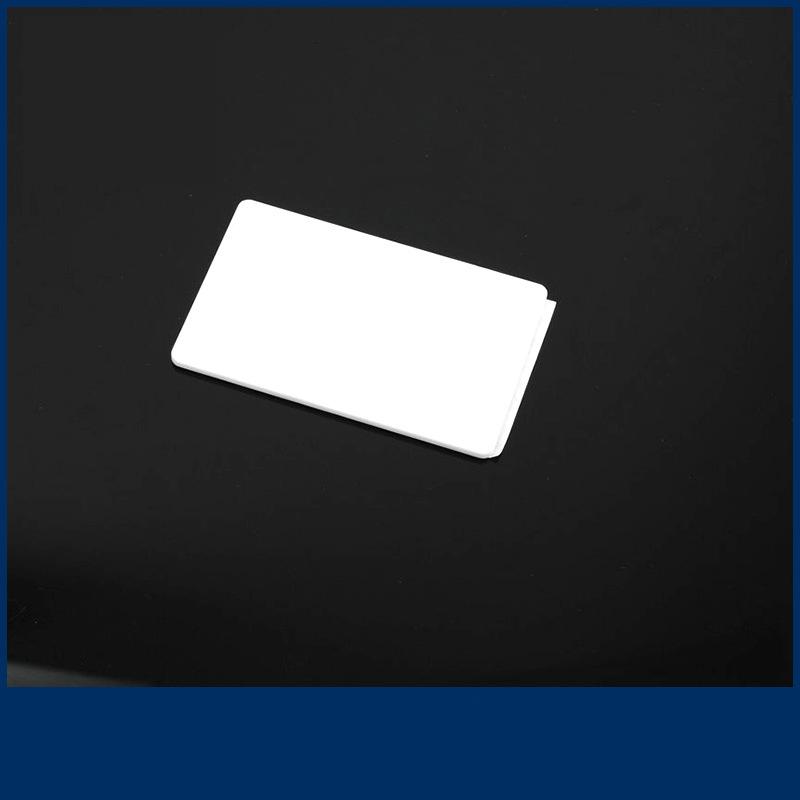

RFID Windshield card JT-316 is designed for vehicle management.
Brand:
JTSPEEDWORKItem NO.:
JT-316Order(MOQ):
1Payment:
100% TT in advancePrice:
$1.79/2Product Origin:
ChinaColor:
WhiteShipping Port:
ShenzhenLead Time：
5 working days
Feature:
◆3M adhesive
◆Protocol ISO 18000-6C(GEN 2)
◆Size:86x54x2mm
Application:
UHF RFID windshield card JT-316 is a high performance radio frequency identification (RFID) tag designed specially for mount on vehicle where the management of public vehicle is required. It can be used in license plate, logistics and so on.
Specification:
| Performance parameters | |
| Operating Frequency | 860 - 960 MHz |
| Read and write sensitivity | -17dB (more than 10 meters reading distance) |
| Chip | Alien H3 |
| Supported Protocol | ISO 18000-6C, EPC global C1Gen2 |
| Functionality | Read/Write |
| Chip Memory | |
| EPC | 96-EPC Bits (can be extended to 496 bits) |
| User Memory | 512 User Bits |
| Unique Tag Identifier | 64 bits |
| Access password | 32 bits |
| Kill password | 32 bits |
| EEPROM data retention | 10 years |
| EEPROM write endurance | 10,000 cycles |
| Physical Characteristics | |
| Dimensions (W x L x H) | 86 mmx 54 mm x 2 mm |
| Case Material | High Density Poly Carbonate Casing, ceramics, Silver, 3M Tape |
| Color | White |
| Weight | 5g |
| Mount Style | 3M adhesive |
| User Environment | |
| Operating temperature | -40ºC to +85ºC (-40ºF to 185ºF) |
| Applications | License plate, Logistics etc. |
