2.45GHz active rfid module;Reading range 20-150m.
Item NO.:
JT-2400Product Origin:
ChinaLead Time：
Within 3-7 DaysThe 2.4G module supports the JTSPEEDWORK 2.4G RFID air interface protocol and canread JTSPEEDWORK 2.4G series active tags. lt has a modular design and provides a TTlserial port for easy embedding into user equipment, providing users with a simple andlow-cost 2.4G active RFID solution.
|
Protocol
|
JTSPEEDWORK 2.4G RFID air communication protocol
|
|
Powersupply
|
DC 5V/100mA
|
|
Reading range
|
20~150m(relate to tag and application scenarios)
|
|
Antenna
|
Built-in PCB antenna or external antenna
|
|
Interface
|
UART TTL 3.3V
|
|
RS232
|
115200 bps,no flow control,8 bits,1 stop bit,no parity bit
|
|

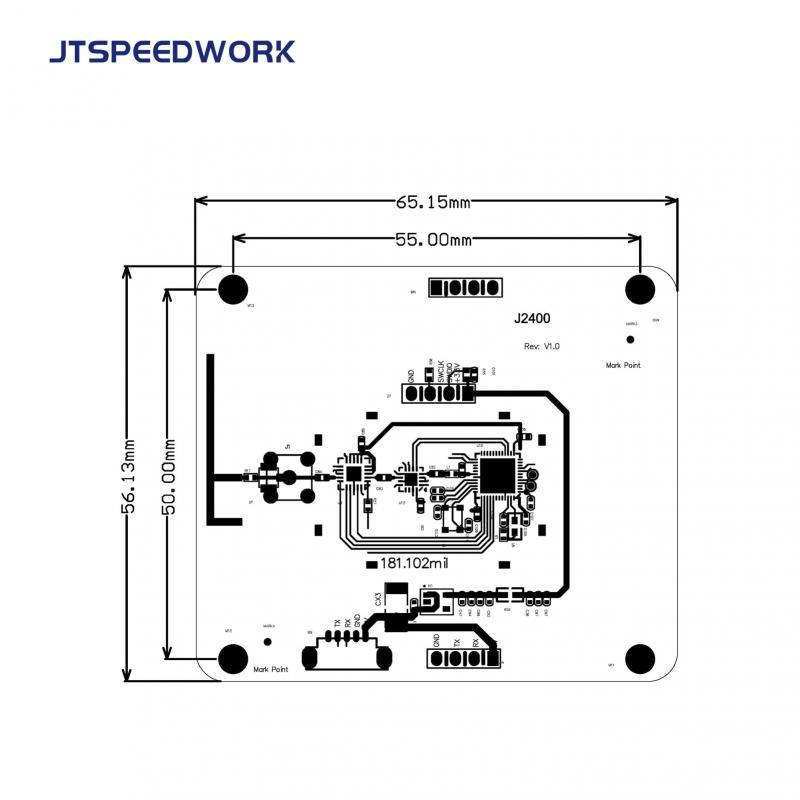

Dimension
|
65*65*1.2mm
|
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
