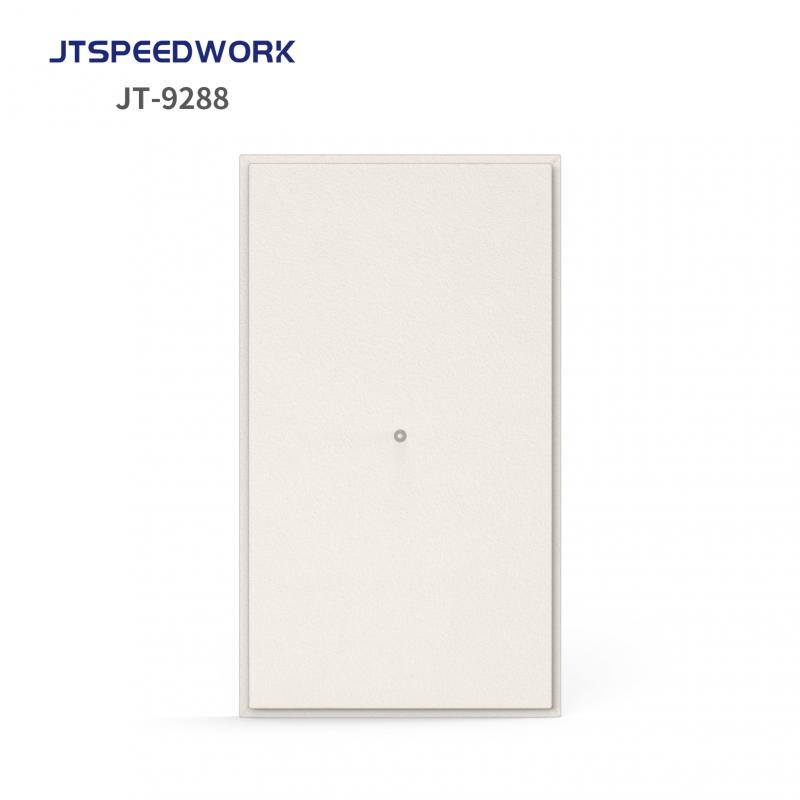

Difference between JT-9288 and JT-8288:
Model
Main Chip
Reading Performance
JT-8288
Discrete
Reading 1-2 rfid tags
JT-9288
TM200 chip
Reading multiple tags
Brand:
JTSPEEDWORKItem NO.:
JT-9288Communication Interface
RS232 TCP/IP Wi-FiWorking frequency:
860-960MHzProtocol:
ISO18000-6CRF chip:
TM200Antenna gain:
10dBiFeature:
Specification:
| Item No. | JT-9288 | |||
| Physical parameters | Antenna | |||

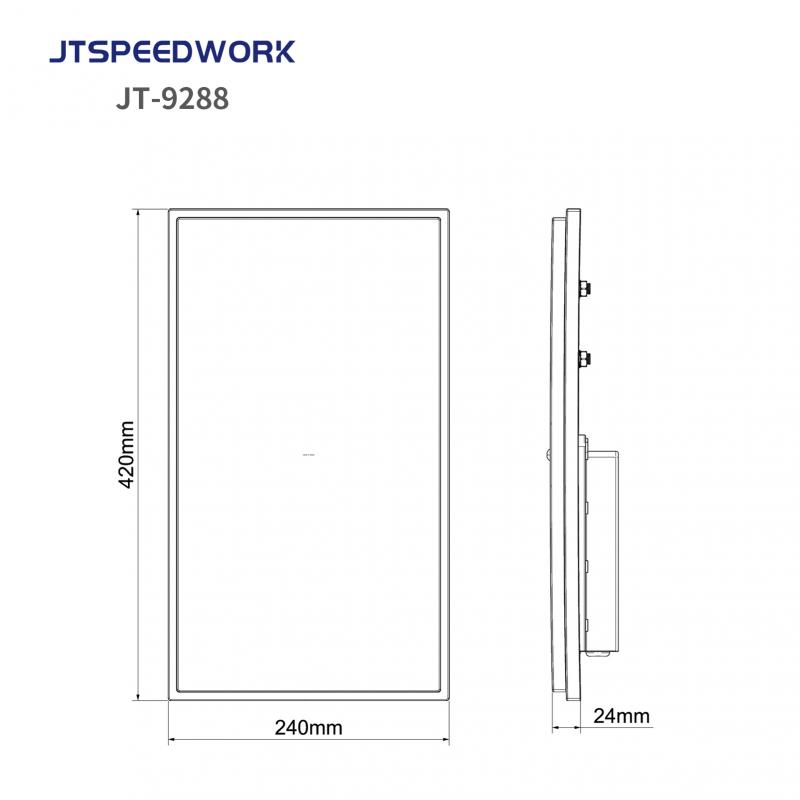

| Dimensions | 420(L)*240(W)*50(H)mm | 10dBi linear polarized antenna (built-in) | ||
| Net weight | 1.3kg | |||
| Material | ABS & aluminum alloy | Power Supply | ||
| Operate voltage | 10-60V | |||
| RFID parameters | Operate current | 0.65A@30dBm,25° C | ||
| Air Protocol | Power adapter | DC 12V/3A | ||
| EPC global Gen2(ISO18000-6C) | ||||
| Working frequency | User Environment | |||
| US:902-928 MHz / EU:865-868 MHz | Operating Temp. | -40 ℃ to 75 ℃ | ||
| RFID chip | Storage Temp. | -45 ℃ to 80℃ | ||
| JT-2540 module based on TM serial chip | Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
| 13~33dBm (adjustable) | Reading Performance | |||
| Reading rate | Reading distance | |||
| >700 times/sec | Up to 15m(relate to tag and environment) | |||
| RSSI | Model Type | |||
| Support | JT-9288B | RS232,TCP/IP (PoE optional) | ||
| Work mode | JT-9288W | RS232,TCP/IP,WiFi | ||
| Master-slave, timing,trigger mode |
|
|
||
| Consumption | Datasheet | |||
| Average power consumption<9W | ||||
| Notification | SDK | |||
| LED indicator,buzzer | Demo&C++,C#,JAVA,Android SDK | |||
