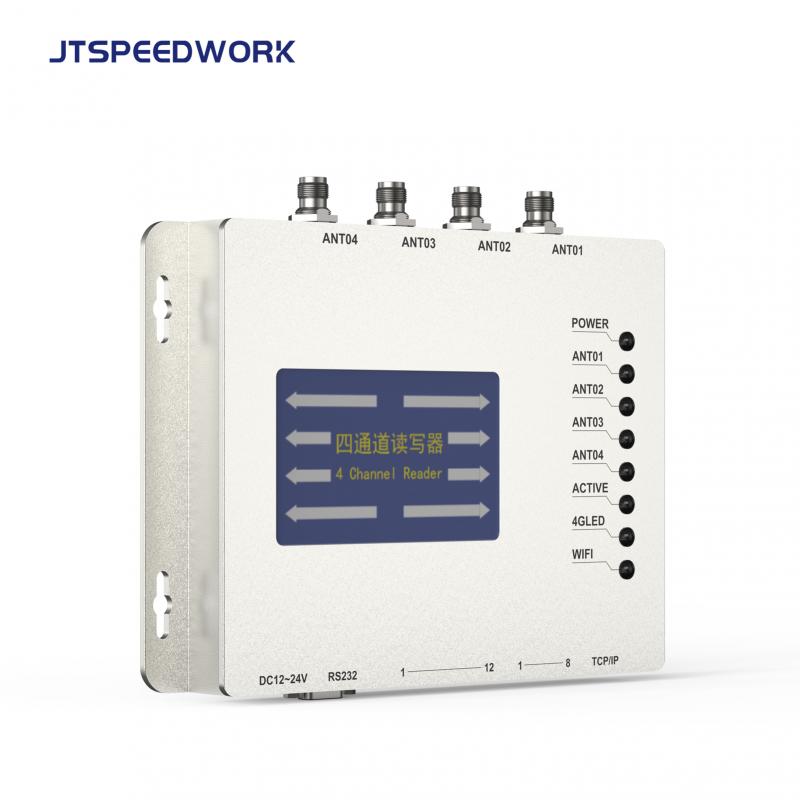

4-port antenna TNC female interface, TM serial chip , group reading
Brand:
JTSPEEDWORKItem NO.:
JT-928Product Origin:
ChinaShipping Port:
Shenzhen,ChinaLead Time：
Within 3-7 Days
Description:
Specification:
| Item No. | JT-928 | |||
| Physical parameters | Antenna | |||

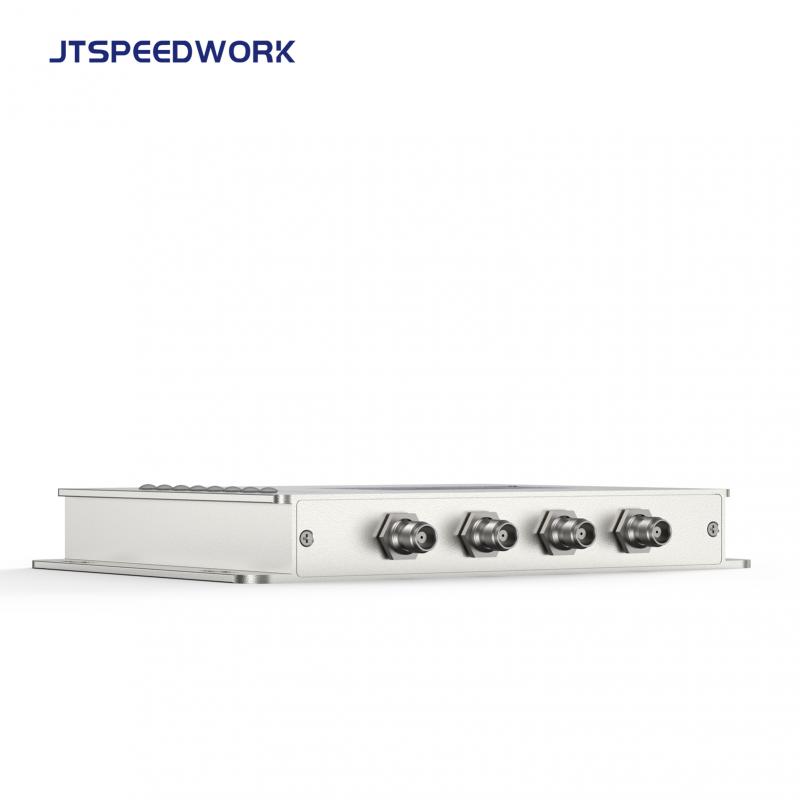

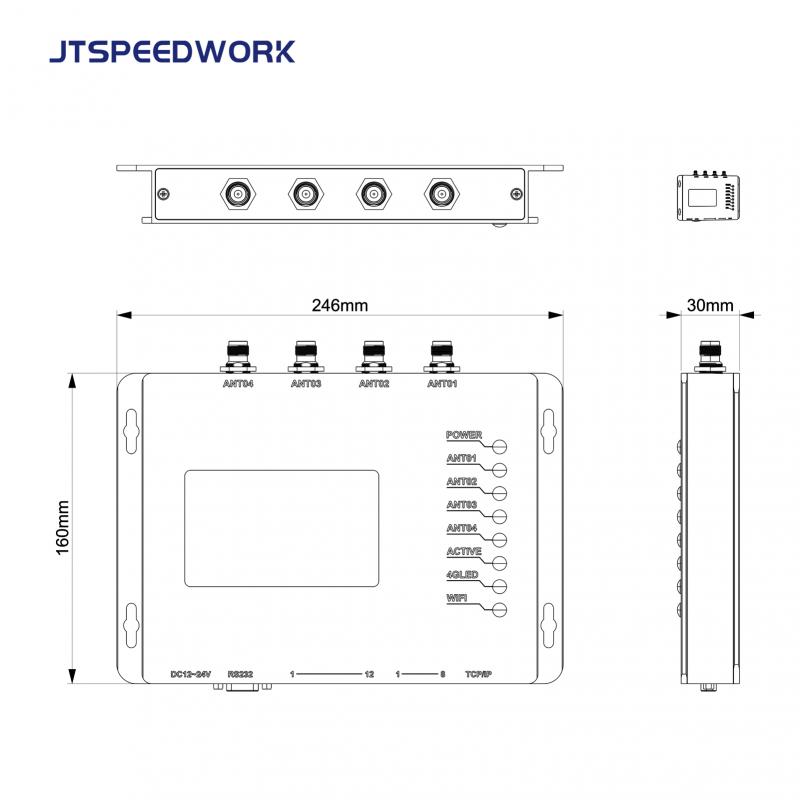

| Dimensions | 246(L)*160(W)*30(H) mm | 4 TNC female antenna connector | ||
| Net weight | 1.3KG | |||
| Material | Aluminum alloy | Power Supply | ||
| Operate voltage | DC 9-24V | |||
| RFID parameters | Consumption |
0.65A(@maximum output power 30dBm) |
||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -20 ℃ to 75 ℃ | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Storage Temp. | -40 ℃ to 80℃ | ||
| RFID chip | Humidity | 5-90% non-condensing (+25° C ) | ||
| JT-2540 module based on TM serial chip | ||||
| RF power | Model Type | |||
| 0~32 dBm(±1dBm) (adjustable) | JT-928 | RS232,TCP/IP (PoE optional) | ||
| Reading rate | JT-928W | RS232,TCP/IP,WiFi | ||
| >700 times/sec | JT-928G | RS232,TCP/IP,4G | ||
| RSSI | ||||
| Support | Datasheet | |||
| RS232 baud rate | ||||
| 115200 bps (default) | SDK(download link) | |||
| I/O | C# , Java , C++ | |||
| 2 trigger inputs; 2 relay outputs | ||||
Application:
