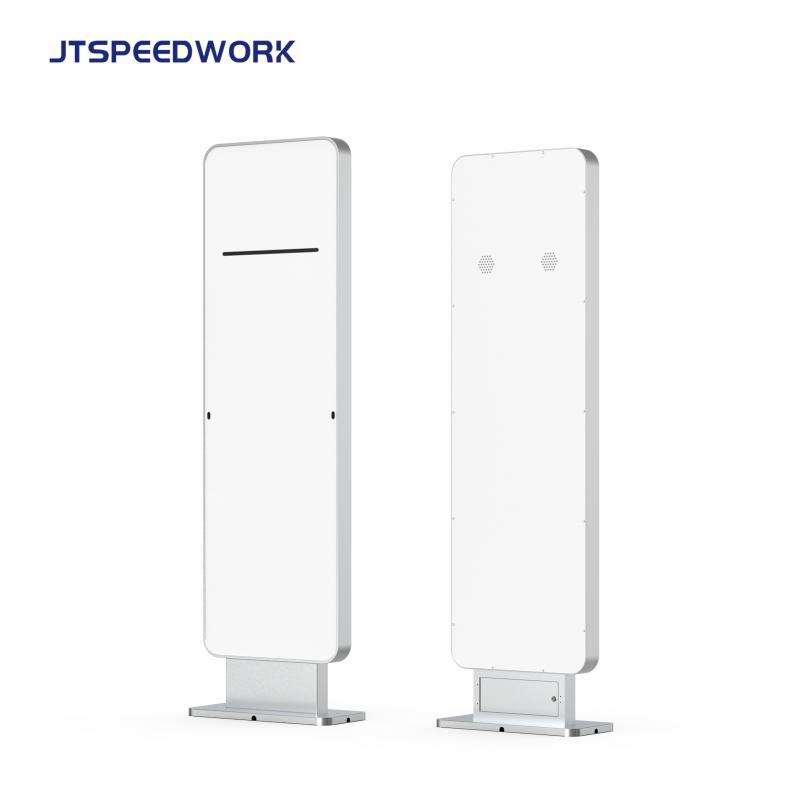

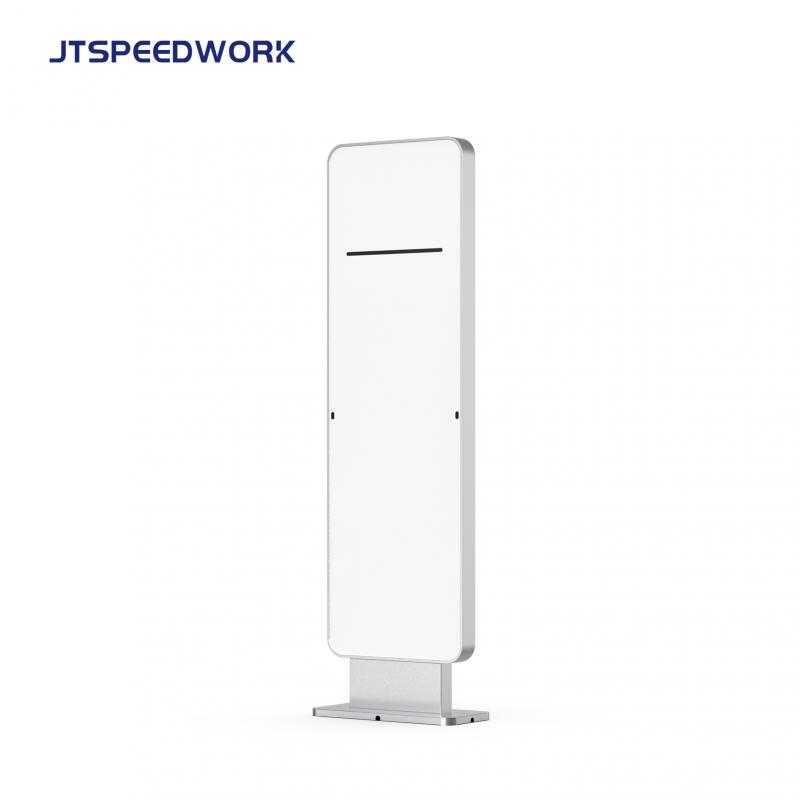

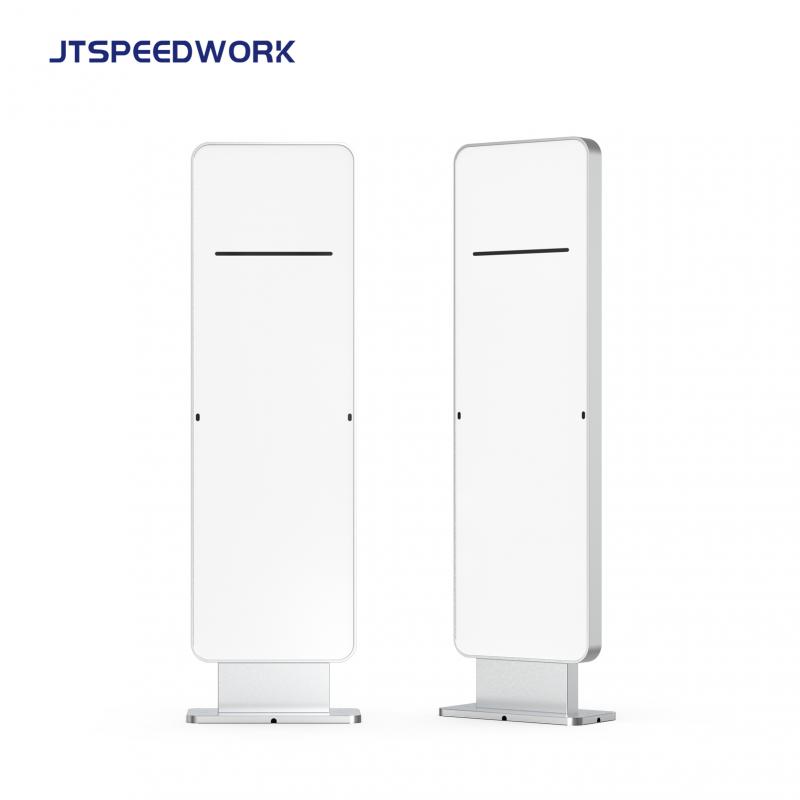

RFID Gate reader JT-924 is high performance UHF gate device, support EPC Gen2 ISO18000-6C protocol, has RS232, TCP/IP communication interface. It is widely used in access control, attendance environment.
Brand:
JTSPEEDWORKItem NO.:
JT-924Product Origin:
ChinaLead Time：
Within 3-7 Days◆Built in RFID module of TM series
◆Multiple tags reading ability
◆High sensitivity to tag
◆Support 2 road infrared traps
◆Provide whistle and flashing light
◆Support SDK dynamic link libraries and secondary development
Specification:
| Item No. | JT-924(without screen) |
|
||
| Physical parameters | Antenna | |||

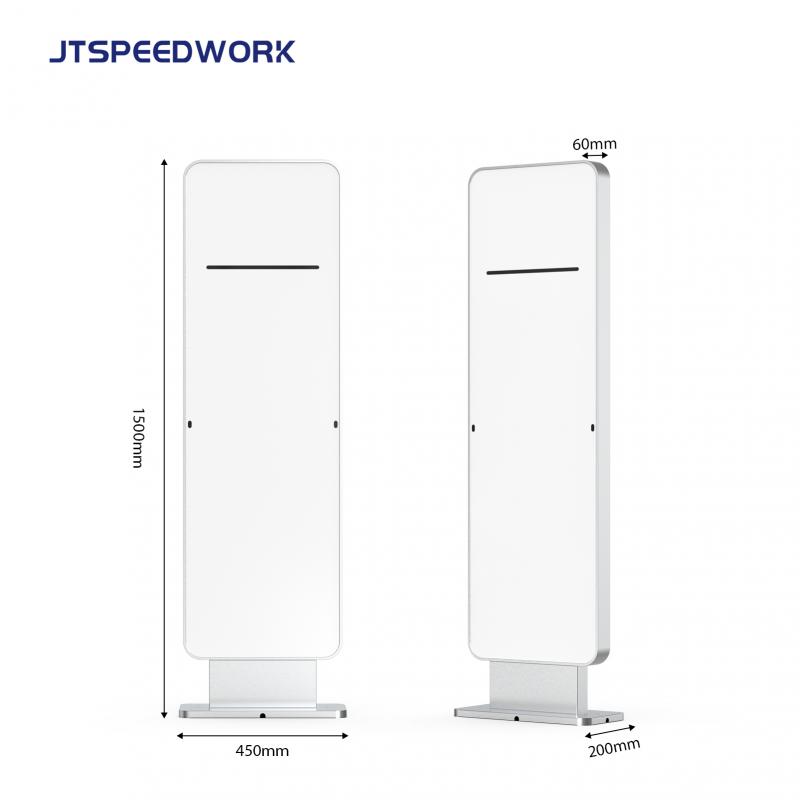

| Dimensions | 1530(H)* 430(L) *60(W) mm;base:450(L) *200(W) mm | 4pcs 8dBi circularly /linear polarized antenna (built-in) | ||
| Net weight | Approx 15kg for a single door | |||
| Material | Acrylic | Power Supply | ||
| Power supply | DC 9-36V /3A | |||
| RFID parameters | Consumption | 9W(@Maximum output power 32dBm) | ||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -20 ℃ to 70 ℃ | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Storage Temp. | -30 ℃ to 80 ℃ | ||
| RF power | Humidity | 5-90% non-condensing (+25° C ) | ||
| 0~32 dBm(±1dBm) (adjustable) | ||||
| RF module | Reading Performance | |||
| JT-2540 module based on TM serial chip | Reading distance | |||
| Reading rate | Up to 5m(relate to tag and environment) | |||
| >700 times/sec | ||||
| RSSI | Communication Interface | |||
| Support | RS232, RJ45 (standard), WiFi, 4G (optional) | |||
| Trigger mode | ||||
| Two infrared trigger inputs | Datasheet | |||
| Notification | ||||
| Buzzer(standard) or flashing light (optional) | SDK(download link) | |||
| C# , Java , C++ | ||||
