Brand:
JTSPEEDWORKItem NO.:
JT-9380RF chip
Impinj E710 TM200Communication Interface
RS232 TCP/IP Wi-FiWorking frequency:
860-960MHzProtocol:
ISO18000-6CAntenna gain:
8dBi
| Item No. | JT-9380 | |||
| Physical parameters | Antenna | |||

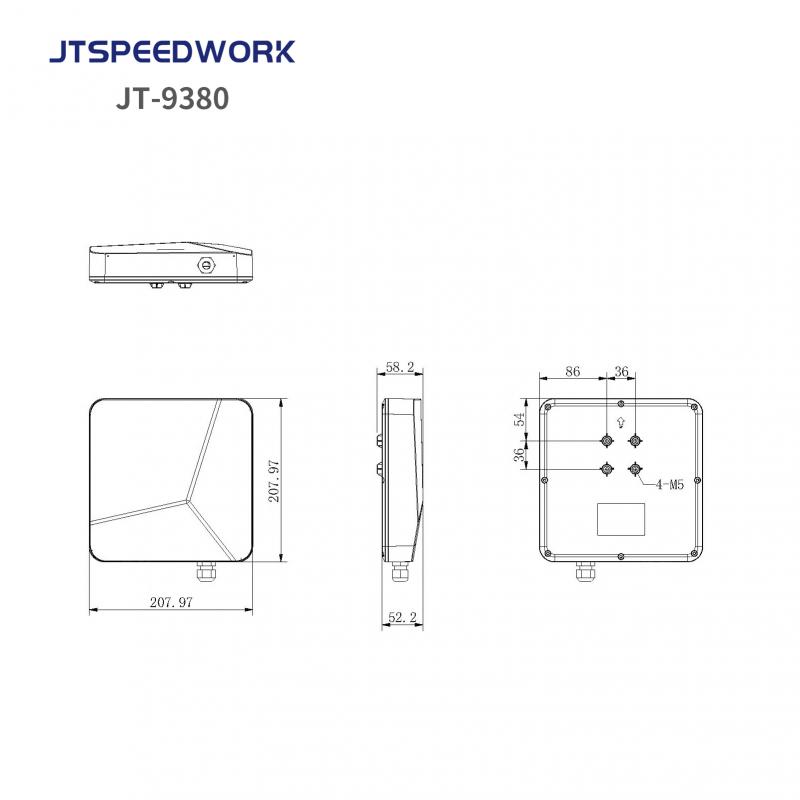

| Dimensions | 208(L) *208(W) * 46(H)mm | 8dBi circularly polarized antenna (built-in) | ||
| Net weight | 660g | |||
| Material | ABS & aluminum alloy | Power supply | ||
| Operate voltage | 10-60V | |||
| RFID parameters | Operate current |
0.65A@30dBm,25° C | 1.3A@30dBm,25° C
|
||
| Air Protocol | Power adapter | DC 12V/3A | ||
| EPC global Gen2(ISO18000-6C) | ||||
| Working frequency | User Environment | |||
| US:902-928 MHz(this model only US version available) | Operating Temp. | -40 ℃ to 75 ℃ | ||
| RFID chip | Storage Temp. | -45 ℃ to 80℃ | ||
|
TM200(standard) | Impinj E710(optional)
|
Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
|
13~33dBm(adjustable) | 0-33dBm(adjustable)
|
Reading Performance | |||
| Reading rate | Reading distance | |||
|
>700 times/sec | >900 times/sec
|
0~8m (relate to tag and environment)
|
|||
| RSSI | Model Type | |||
| Support | JT-9380B | RS232,TCP/IP (PoE optional) | ||
| Work mode | JT-9380W | RS232,TCP/IP,WiFi | ||
| Master-slave, timing,trigger mode |
|
|
||
| Consumption | Datasheet | |||
| Average power consumption<9W | ||||
| Notification | SDK | |||
| LED indicator,buzzer | Demo&C++,C#,JAVA,Android SDK | |||
