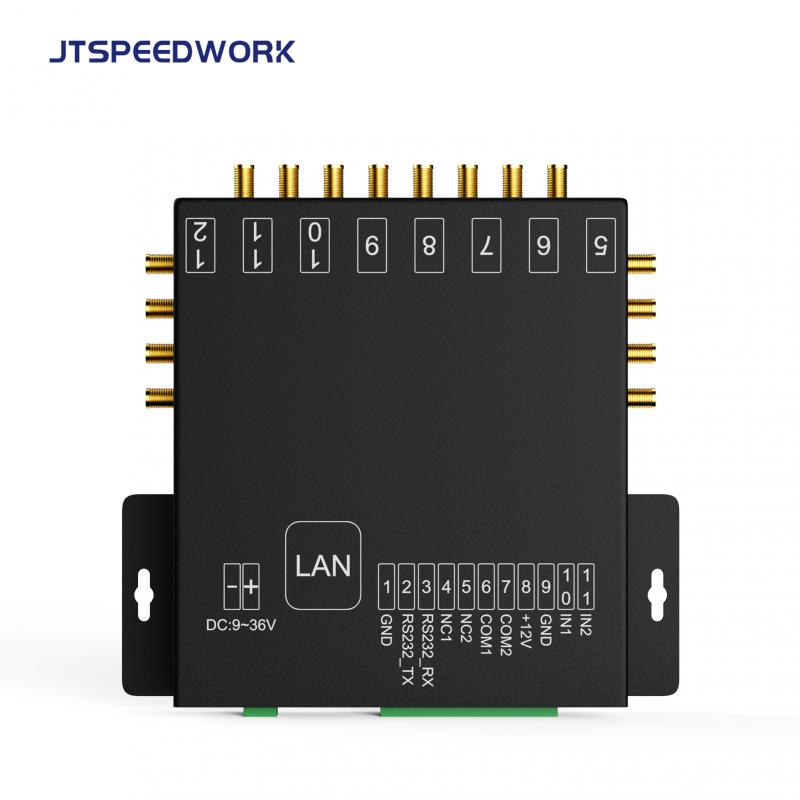

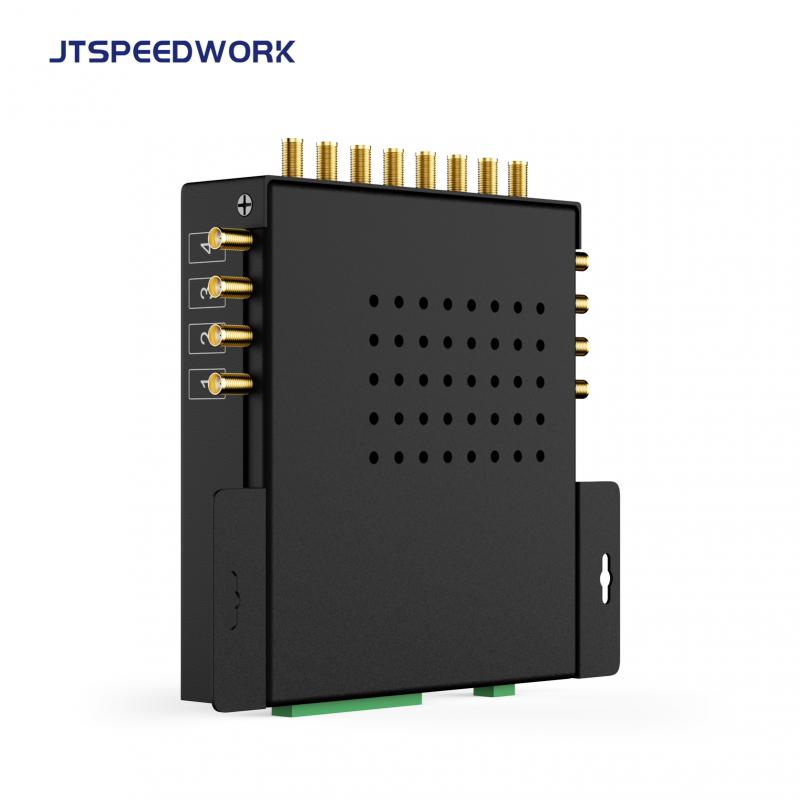

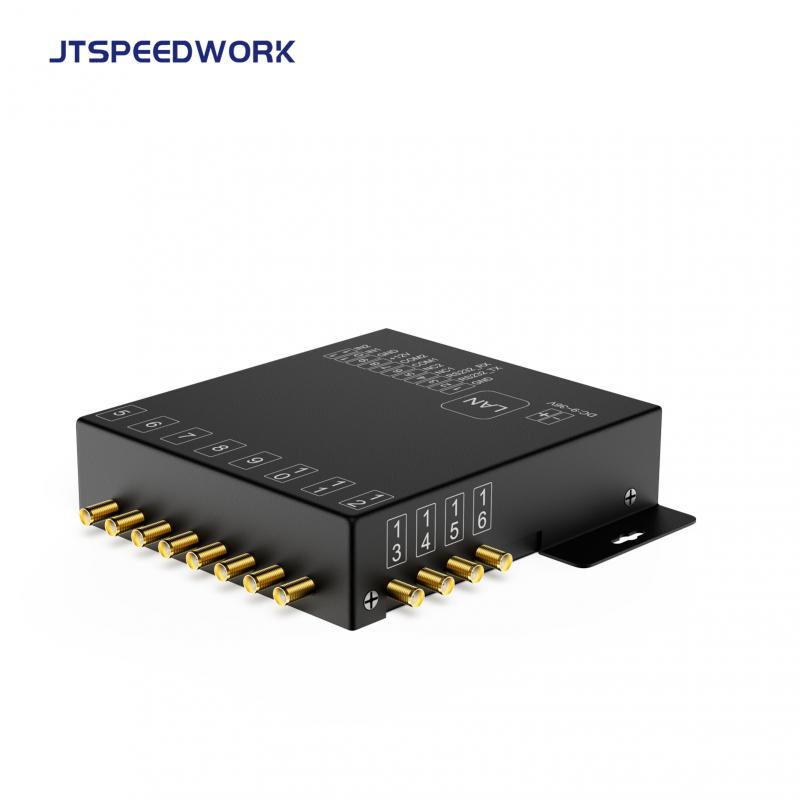

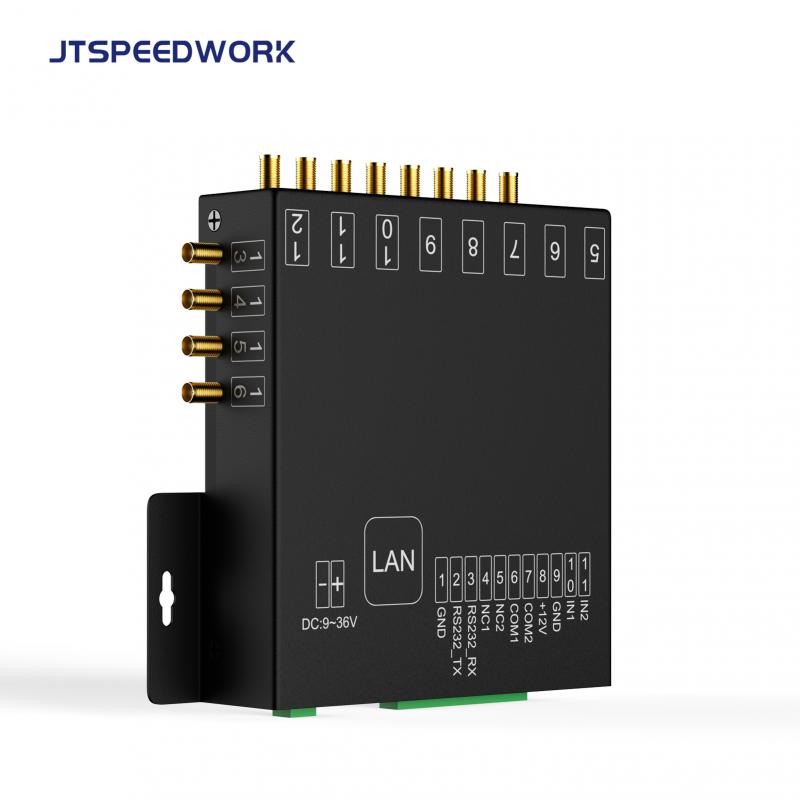

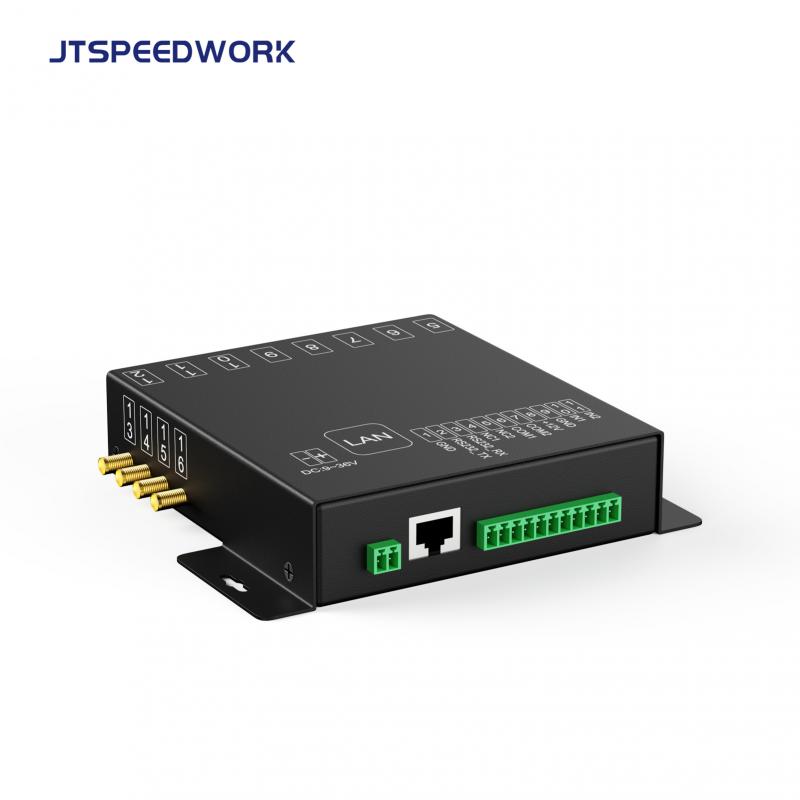

The JT-916 UHF RFID Reader is designed to increase inventory visibility, efficiency and business profitability. Supporting a global frequency range of 860MHz - 960MHz, the JT- 916 is capable of reading and writing all tags that conform to the EPC Global Gen2 and ISO 18000-6C standards.Based on Impinj R2000 platform development.
Brand:
JTSPEEDWORKItem NO.:
JT-916Order(MOQ):
1Payment:
100% TT in advanceProduct Origin:
ChinaColor:
BlackShipping Port:
Shenzhen,ChinaChannel reader JT-916 is our new generation of UHF RFID Reader. It applies FCC ISM (902-928MHz) protocol and ETSI (865.6-867.6MHz) (need to specify when the order is placed).
This device is designed to read ISO18000-6C(EPC C1 GEN2)Tags. Light weight, high receive sensitivity, easy to operation,reliable, stable performance. JT-916 provides API function for further development. Meanwhile, it is integrated with LAN interface, management software and database. The process of building a success system can meet all the needs of storage management, logistic, industrial production management, identification, access management, aero tunnels management,etc.,
Features
Specification
| Item No. | JT-916 | |||
| Physical parameters | Antenna | |||

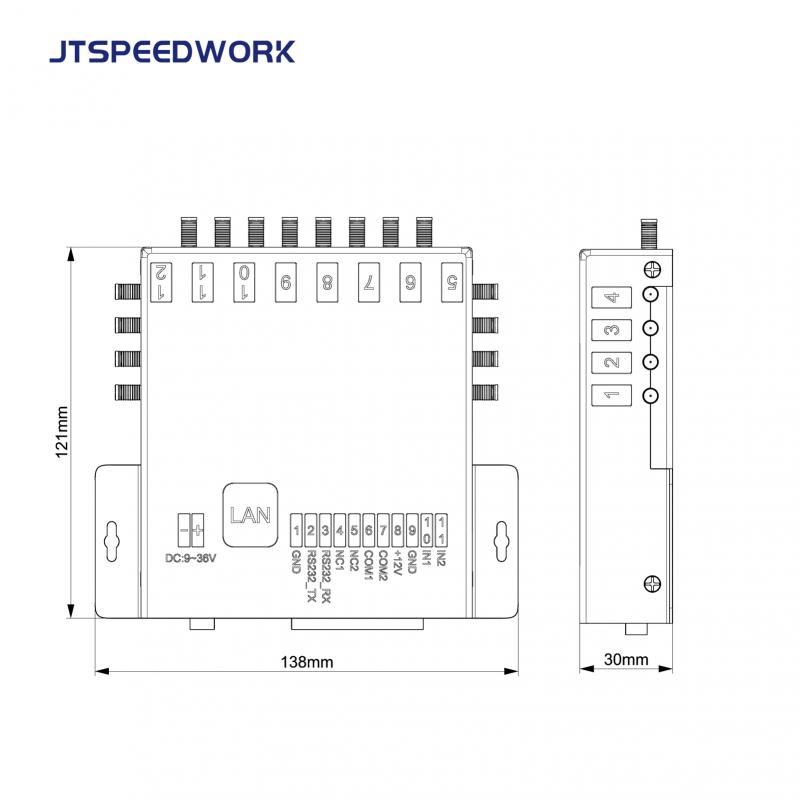

| Dimensions | 122(L)*136(W)*30(H)mm | 16 SMA female antenna connector | ||
| Net weight | 0.5KG | |||
| Material | Aluminum alloy | Power Supply | ||
| Operate voltage | DC 9-36V/2A | |||
| RFID parameters | Consumption |
9W(@Maximum output power 32dBm) |
||
| Air Protocol | ||||
| EPC global Gen2(ISO18000-6C) | User Environment | |||
| Working frequency | Operating Temp. | -20 ℃ to 75 ℃ | ||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Storage Temp. | -30 ℃ to 80℃ | ||
| RFID chip | Humidity | 5-90% non-condensing (+25° C ) | ||
| TM600 | ||||
| RF power | Model Type | |||
| 0~32 dBm(±1dBm) (adjustable) | JT-916 | RS232,TCP/IP (PoE optional) | ||
| Reading rate | ||||
| >700 times/sec | Datasheet | |||
| RSSI | ||||
| Support | SDK(download link) | |||
| RS232 baud rate | C# , Java , C++ | |||
| 115200 bps (default) | ||||
| RJ45 baud rate | ||||
| 230400 bps (default) | ||||
I/O Interface definition
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
