Brand:
SPEEDWORKItem NO.:
JT-9380B/W/GProduct Origin:
ChinaShipping Port:
Shenzhen,ChinaLead Time：
Within 3-7 Days

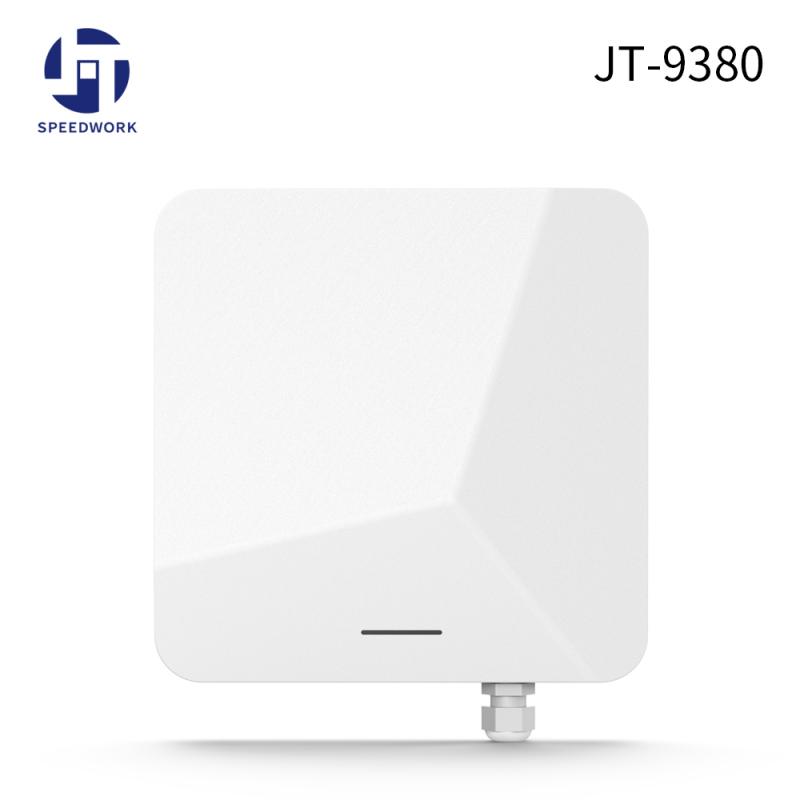

| Item No. | JT-9380 | |||
| Physical parameters | Antenna | |||

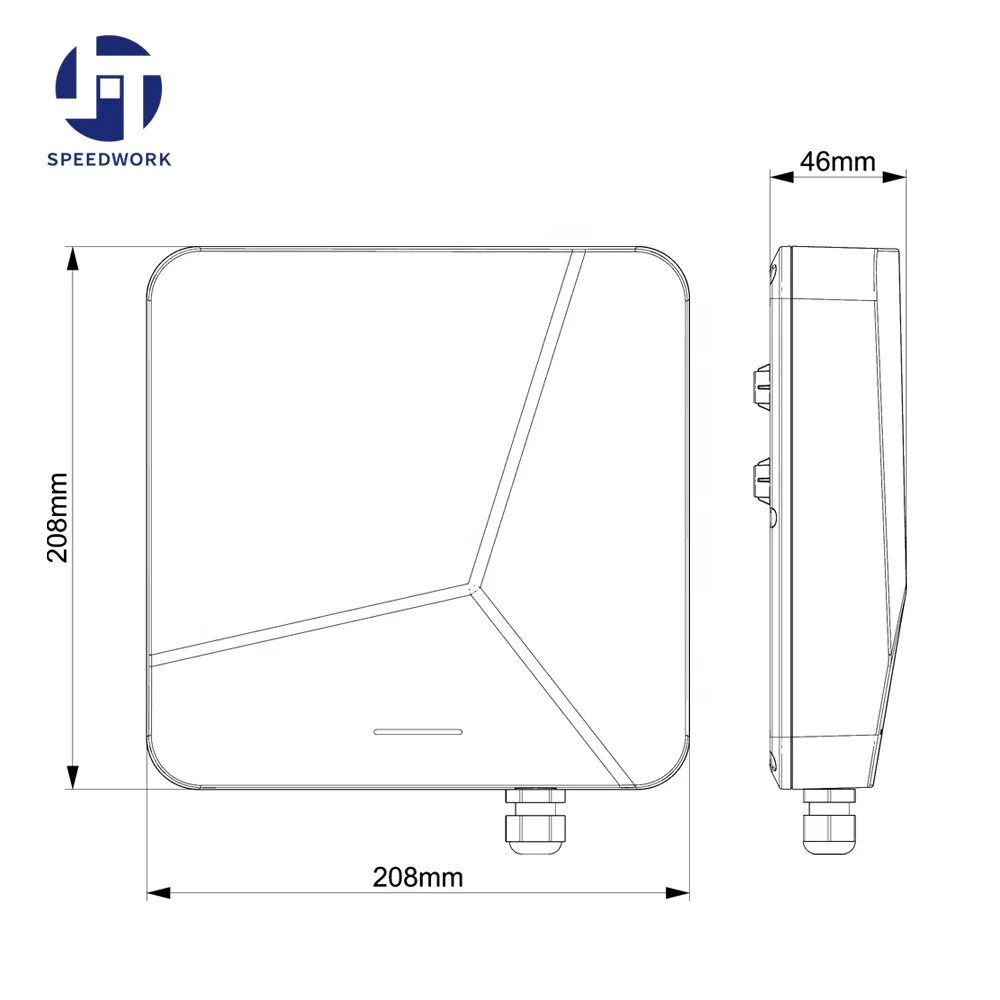

| Dimensions | 208(L) *208(W) * 46(H)mm | 8dBi circularly polarized antenna (built-in) | ||
| Net weight | 660g | |||
| Material | ABS & aluminum alloy | Power supply | ||
| Operate voltage | 10-60V | |||
| RFID parameters | Operate current |
0.65A@30dBm,25°C |
||
| Air Protocol | Power adapter | DC 12V/3A | ||
| EPC global Gen2(ISO18000-6C) | ||||
| Working frequency | User Environment | |||
| 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band ) | Operating Temp. | -40 ℃ to 75 ℃ | ||
| RFID chip | Storage Temp. | -45 ℃ to 80℃ | ||
| JT-2540 module based on TM serial chip | Humidity | 5-90% non-condensing (+25° C ) | ||
| RF power | ||||
| 0~32 dBm(±1dBm) (adjustable) | Reading Performance | |||
| Reading rate | Reading distance | |||
| >700 times/sec | Up to 9m(relate to tag and environment) | |||
| RSSI | Model Type | |||
| Support | JT-9380B | RS232,TCP/IP (PoE optional) | ||
| Work mode | JT-9380W | RS232,TCP/IP,WiFi | ||
| Master-slave, timing,trigger mode | JT-9380G | RS232,TCP/IP,4 GPRS | ||
| Consumption | Datasheet | |||
| Average power consumption<9W | ||||
| Notification | SDK(download link) | |||
| LED indicator,buzzer | C# , Java , C++ | |||

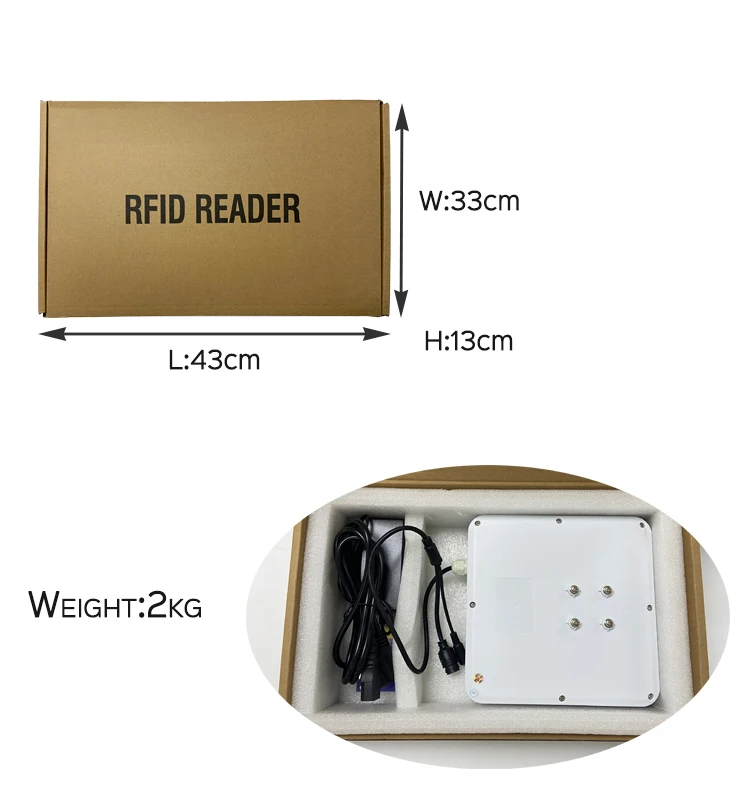

Package
