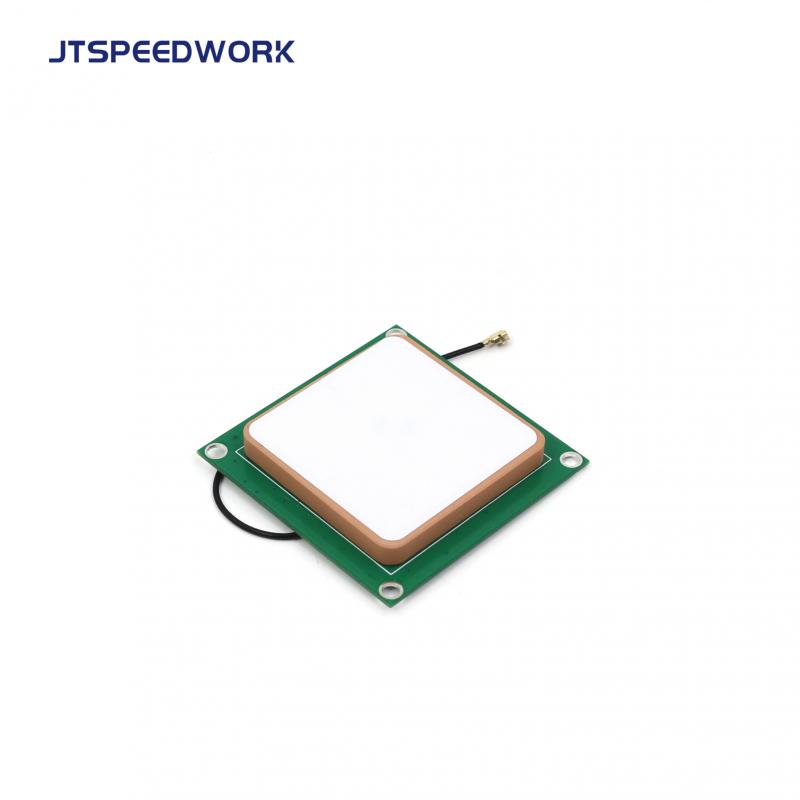

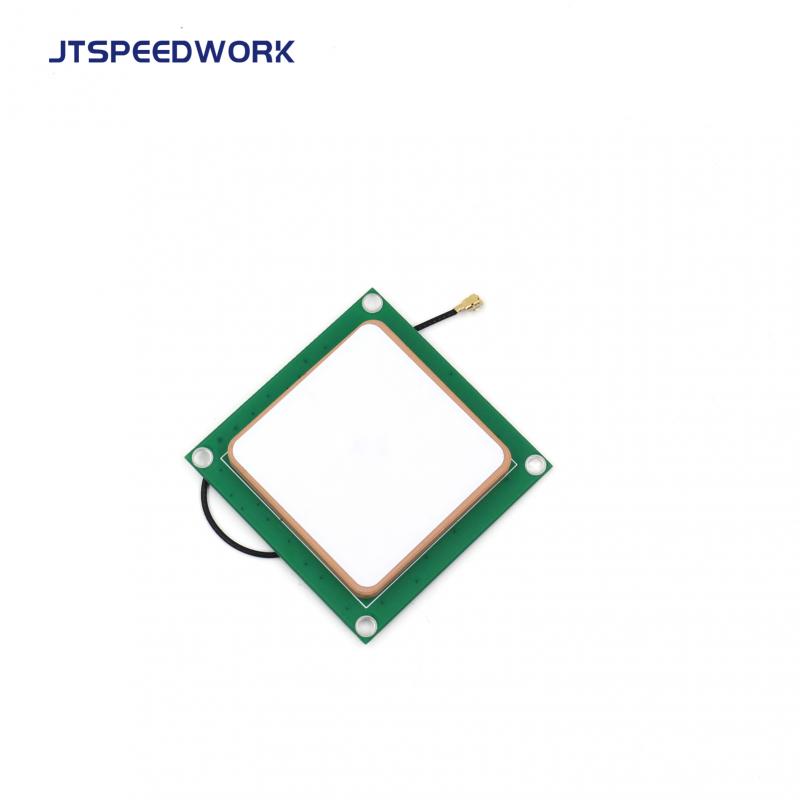

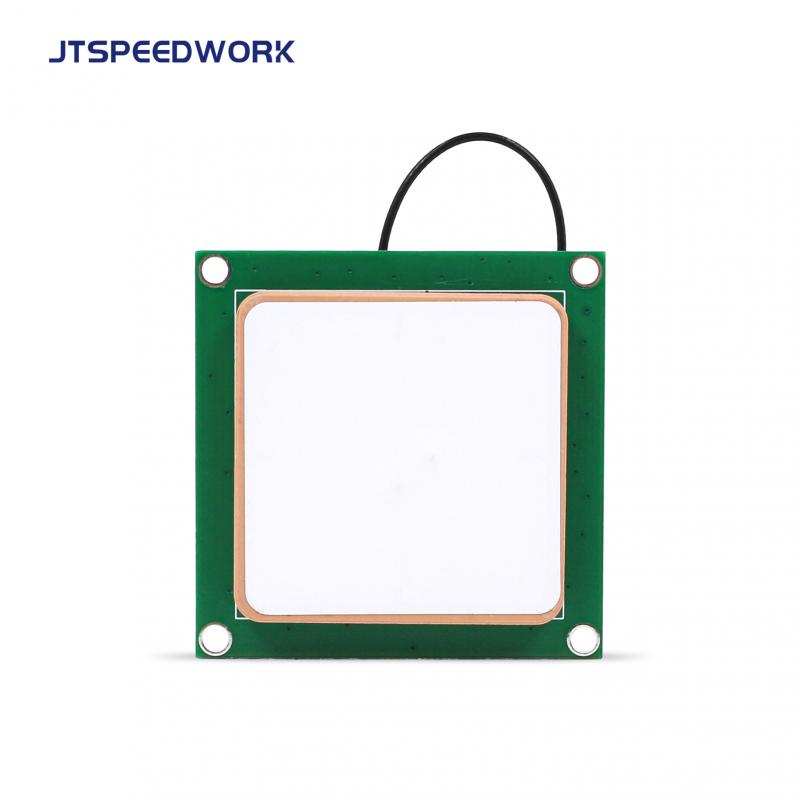

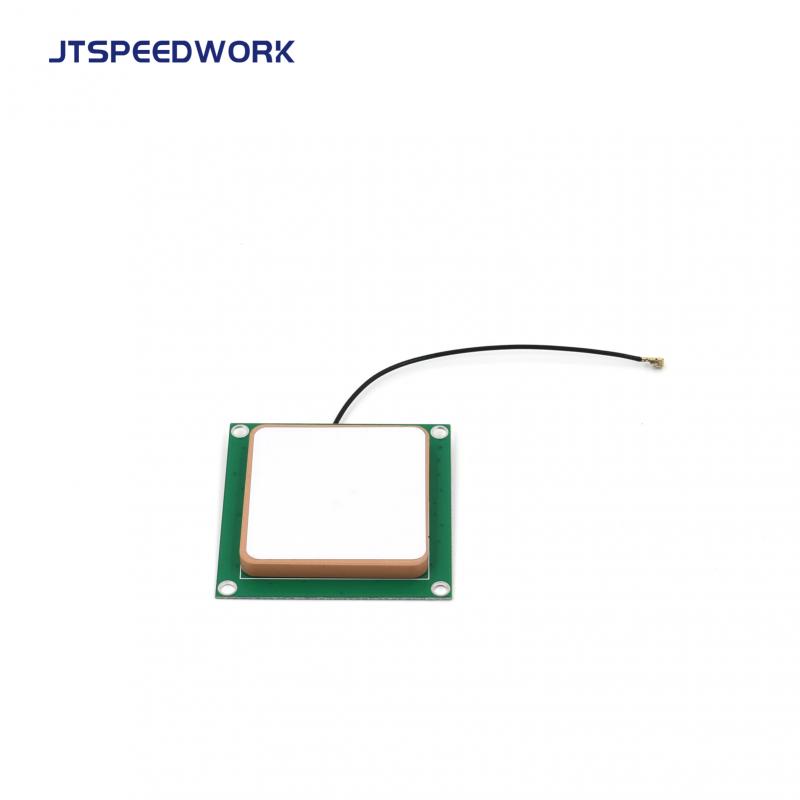

JT-T0036 is ceramic antenna, small size, high sensitivity receive rfid antenna.
Brand:
JTSPEEDWORKItem NO.:
JT-T0036Product Origin:
ChinaLead Time：
3 working daysFeature:
Working frequency 902~928Mhz
RFID ceramic antenna
3dBi RHCP circular polarization

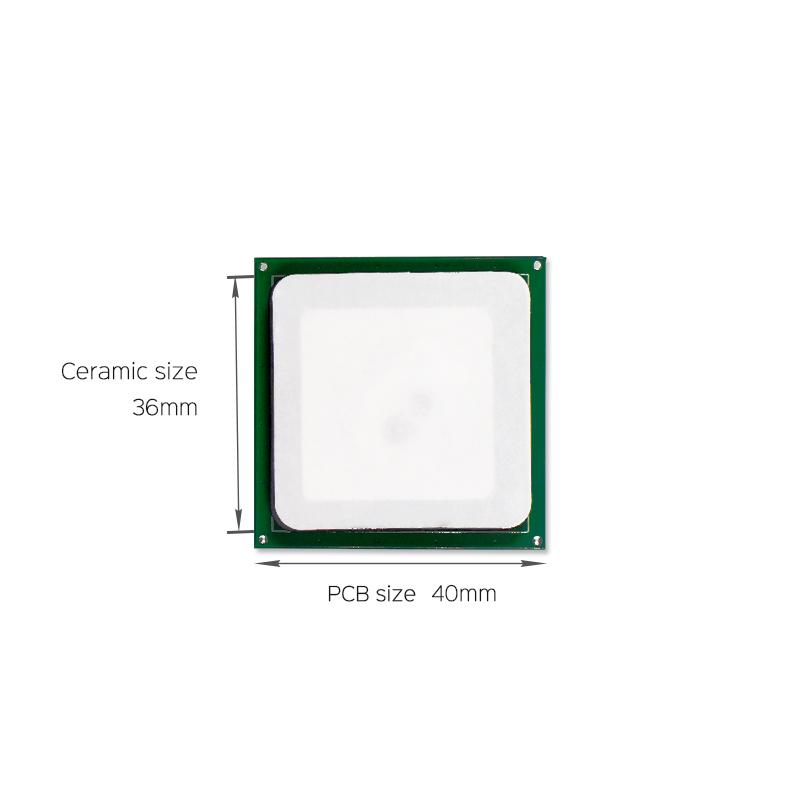

Size 40*40mm
It is widely embedded in PDA
| PERFORMANCE PARAMETERS: | |
| Working Frequency | 920~925MHz |

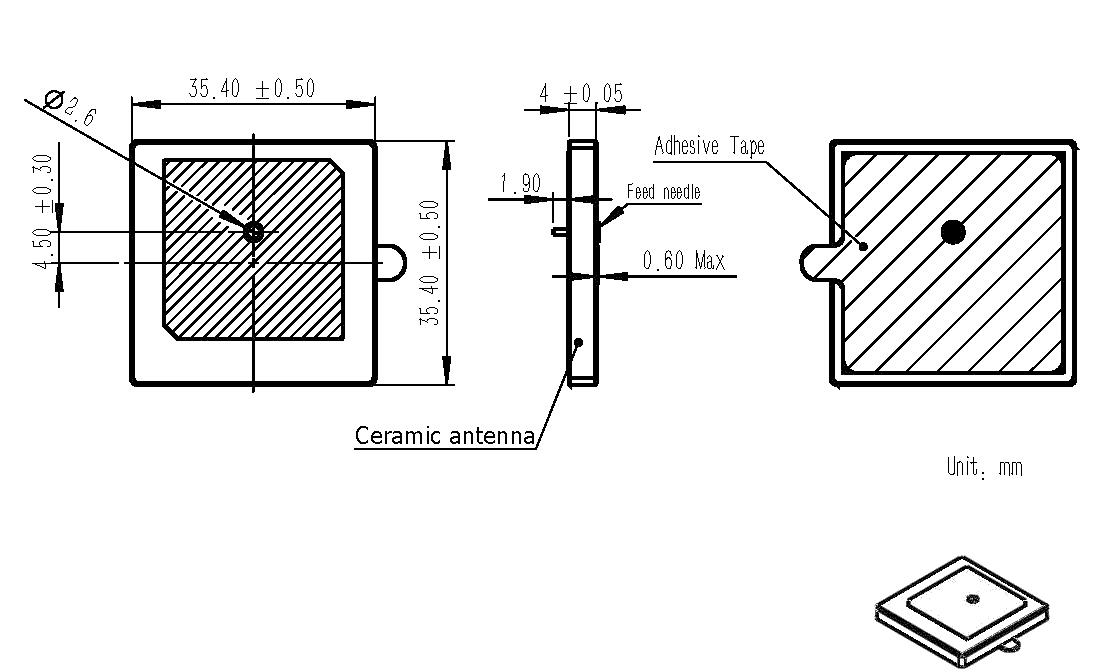

| Dimension | 36x36x4mm |
| Reflecting plate size | 40x40x1mm |
| Net weight | 50g |
| Antenna gain | 3dBi |
| Polarization | RHCP Circular polarization |
| V.S.W.R | 1.5 |
| Impedance(Ω) | 50 |
| working temperature | -30℃~+ 70℃ |
| Connector | SMA internal male screws(accept customized) |
Previous:
UHF RFID 1.5 dBi Ceramic Antenna 865-868MHz 902-928MHz JT-T0025Next:
3dBi UHF RFID Ceramic Antenna JT-T0040 40*40mmIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
