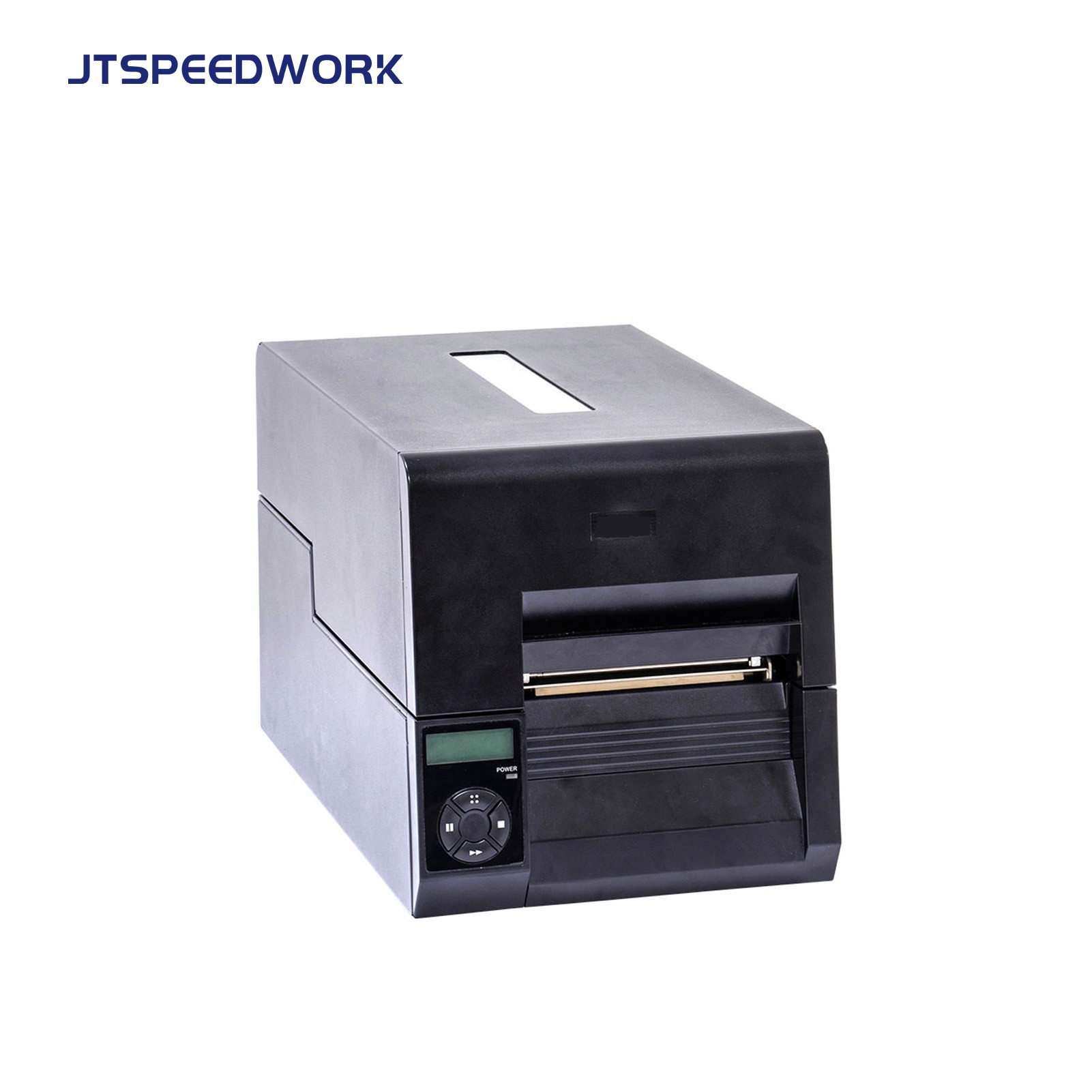

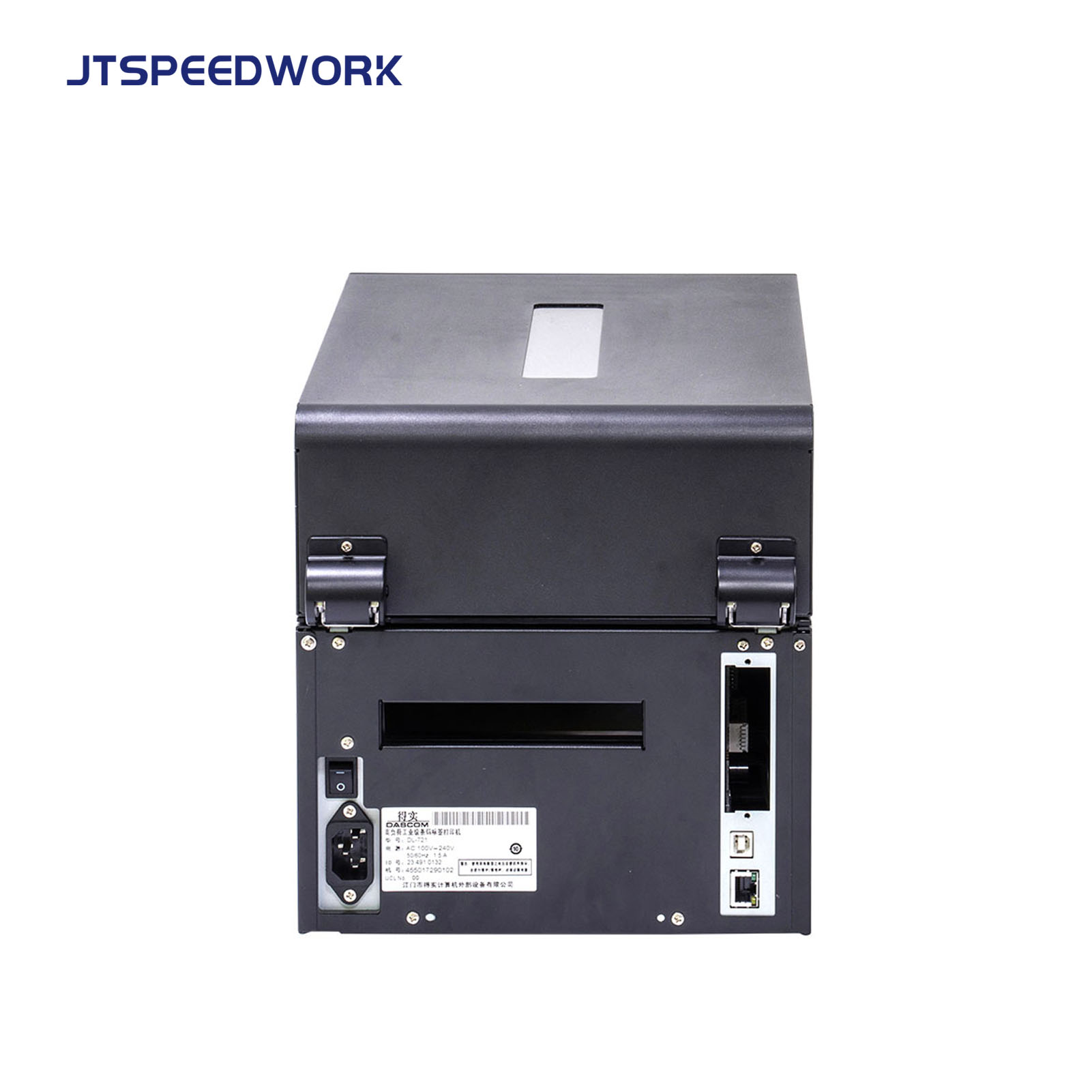

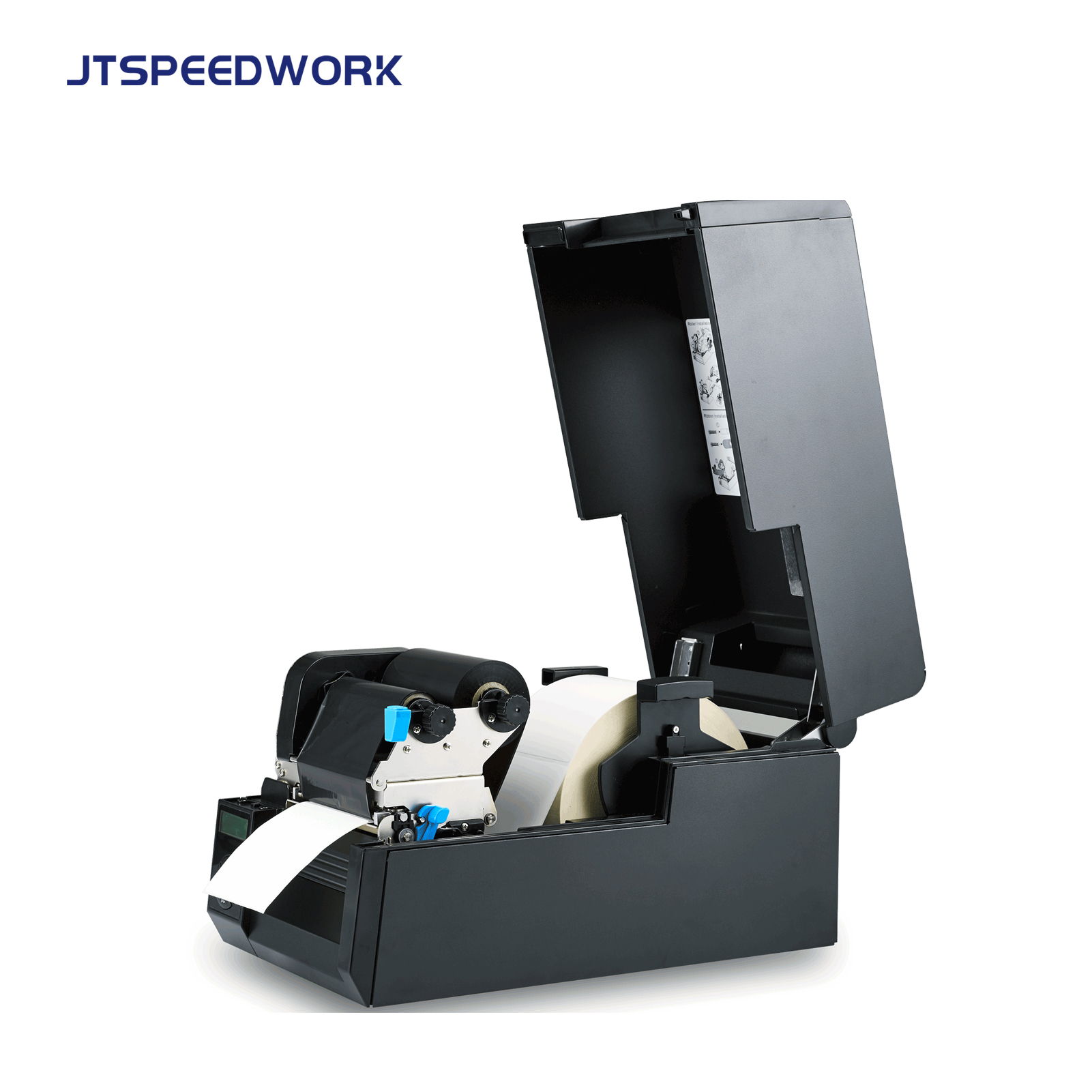

The JT-P721 is an industrial barcode printer supporting direct thermal/thermal transfer, designed for heavy-duty use with minimal downtime and stable performance.Rugged for harsh industrial environments, it has a bidirectional paper tearing bar for operator convenience.Built-in mainstream emulations ensure compatibility with major brands, simplifying deployment.
Core Product Advantages:
Item No :
JT-P721Color :
BlackPrint method :
Direct thermal or thermal transferResolution :
300 dpiPrint width :
4.15 inchInterfaces :
USB 2.0, Ethernet 10/100Ribbon :
Width: 25,4 - 114 mm / 1“ - 4,5“; Length: 360 m Core diameter: 1“ (25,47 mm); Outside diameter: 70 mm / 2,75“| Item No. | JT-P721 | |||
| Print Parameter | Physical Spec. | |||
| Print method | Direct thermal/Thermal transfer printing | Dimensions | 240(W)×440(D)×255(H) mm | |
| Print width | Max. 108mm | Casing Color | Black | |
| Print speed | Max. 8 ips(300dpi) | Weight | 9.8kg | |
| Print head | Dot pitch:0.125mm | Operating condition | 0~45℃ 20%~95%RH (non-condensing) | |
| Resolution | 300DPIx300DPI | Storage condition | -20~60℃/≤95%RH(non-condensing) | |
| Barcodes | UHF RFID | |||
| 1D |
ZPL:Code11;Interleaved 2 of 5;Code 39;Code 49;Planet Code;EAN-8;EAN-13;UPC-E;UPC-A;Code 93;Code 128;Industrial 2 of 5;Standard 2 of 5;Codabar;MSI;Plessey EPL:EAN-8;EAN-13;UPC-E;UPC-A;Code 39;Code 93;Code 128;Interleaved 2 of 5 |
RFID tag writing method | Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc. | |
| 2D | ZPL:PDF417;CODABLOCK;Maxicode;Aztec;QR Code;Data Matrix;EPL:PDF417;Maxicode;QR Code; Data Matrix; | Support RFID standards | 920.5-924.5MHz; support ISO18000-6C, EPC Gen2 | |
| Supported label types | Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm *Special tags depend on the specific chip | |||
| Control Panel | Interface | |||
| Key | Four keys: Feed, Return, Pause, Cancel | Standard | USB(2.0 Full-Speed) | |
| LED indicator | One LED: Power | Ethernet: 10M/100M | ||
| Screen | LCD | Optional | Parallel Centronics (IEEE-1284) | |
| Detect Function | Memory | |||
| Standard sensors | Black mark sensor, Media sensor, Ribbon sensor,Machinery sensor | SDRAM | 32MB | |
| Optional kit sensor | Label peel-off sensor | FLASH | 8 MB | |
| Emulation | Software | |||
| Zebra | ZPL,EPL,TSPL | Driver(Windows 32bit/64bit), Bartender,SDK system | ||
| Reliability | Graphics | |||
| TPH life time | 150km(Condition: use specific thermal roll paper and the print rateis 12%) | Graphics processing | Graphics (Monochrome PCX, BMP) can be downloadedinto SDRAM. | |
| Fonts | Media Handling | |||
| Code Pages |
EPL:PC437;PC850;PC852;PC860;PC863;PC865;PC857;PC861;PC862;PC855;PC866;PC737;PC851; PC869;Windows1252;Windows1250;Windows1251;Windows1253;Windows1254;Windows1255 ZPL:PC850,windows 1250, windows 1252, windows 1251,windows 1253, windows 1254, windows 1256 |
Media Spec. |
Thickness 0.06~0.25mm Width 19.6mm~120mm Length 8.9~400mm Max. OD φ203mm(8 in) ID φ25.4mm~76.2mm(1 inch~3 inch) |
|
| Alphanumeric |
Resident single byte(ZPL): Font A, Font B, Font D, Font E,Fon t F, Font G, Font H, Fon t V0, Font GS, Font P,Font Q,Font R, Font S, Font T, Font U, Font V |
Media cut | Tear bar, auto-cutter, peeler | |
| User-defined | User-defined fonts can be downloaded into FLASH,SDRAM. | Media type | Roll paper, fanfold paper (continuous, non-continuous, continuous tag, wrist-band,normal media and all sorts of receipts) |
|
| Chinese | GB18030 24×24(Simplified/Traditional Chinese) | |||
| Scalable/Rotation | Zoom in 1~8 times in vertical or horizontal, rotate by 0°,90°,180°,270°. | |||
| Certification | Optional kit | |||
| CE,FCC | Cutter, Peeler | |||
| Power Supply | Ribbon | |||
| External power adapter | OD | Max.φ70mm(2.7 in) | ||
| Input | AC 100V-240V,50-60Hz | ID | φ25mm(1 in) | |
| Output | DC 24V: 1.5A | Length | Max. 360m | |
| Width | 25.4~114mm | |||
