RFID Printer

Name: JT-DL218/630 Barcode UHF RFID Thermal Printer 203/300DPI
Availability: InStock

Home RFID Machine RFID Printer

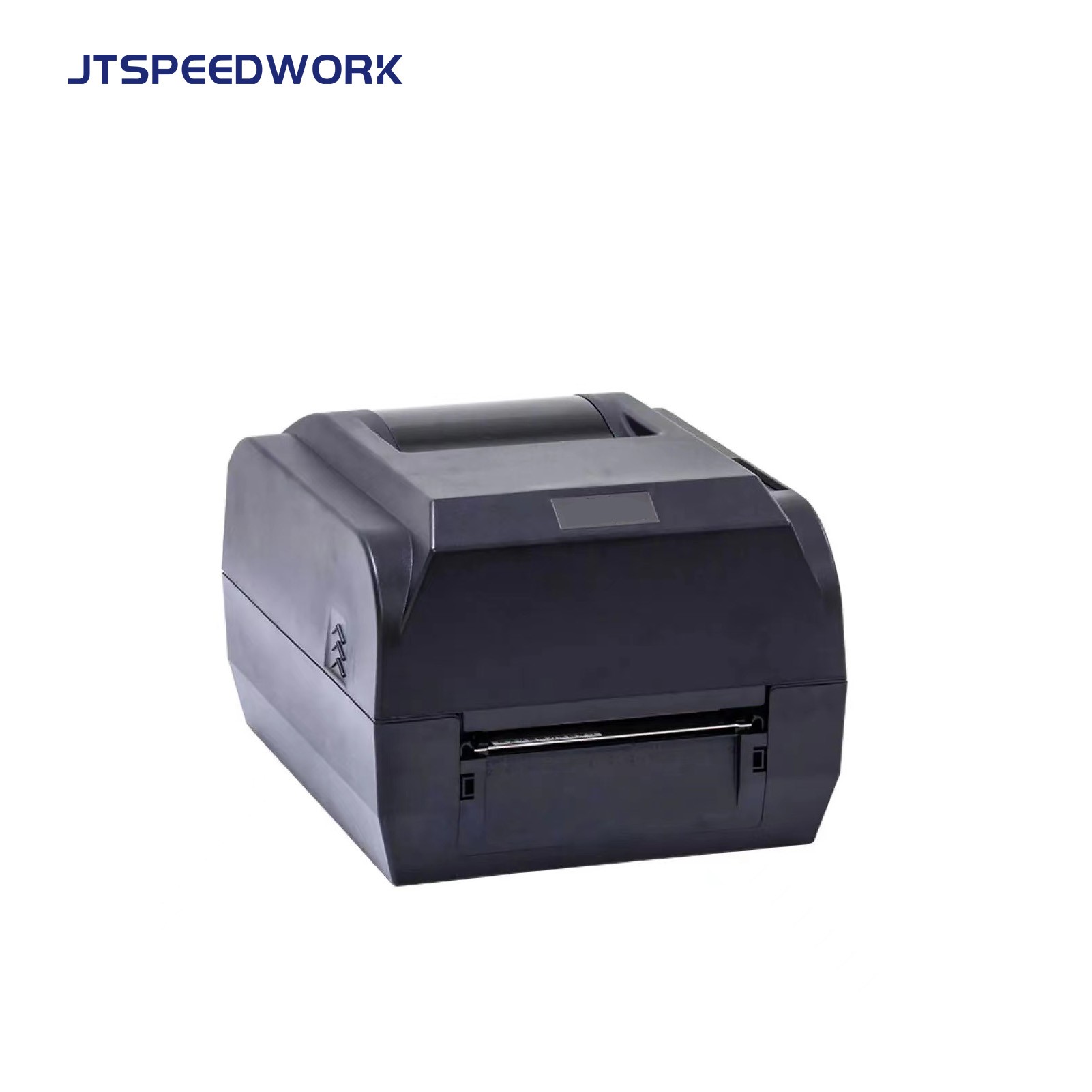

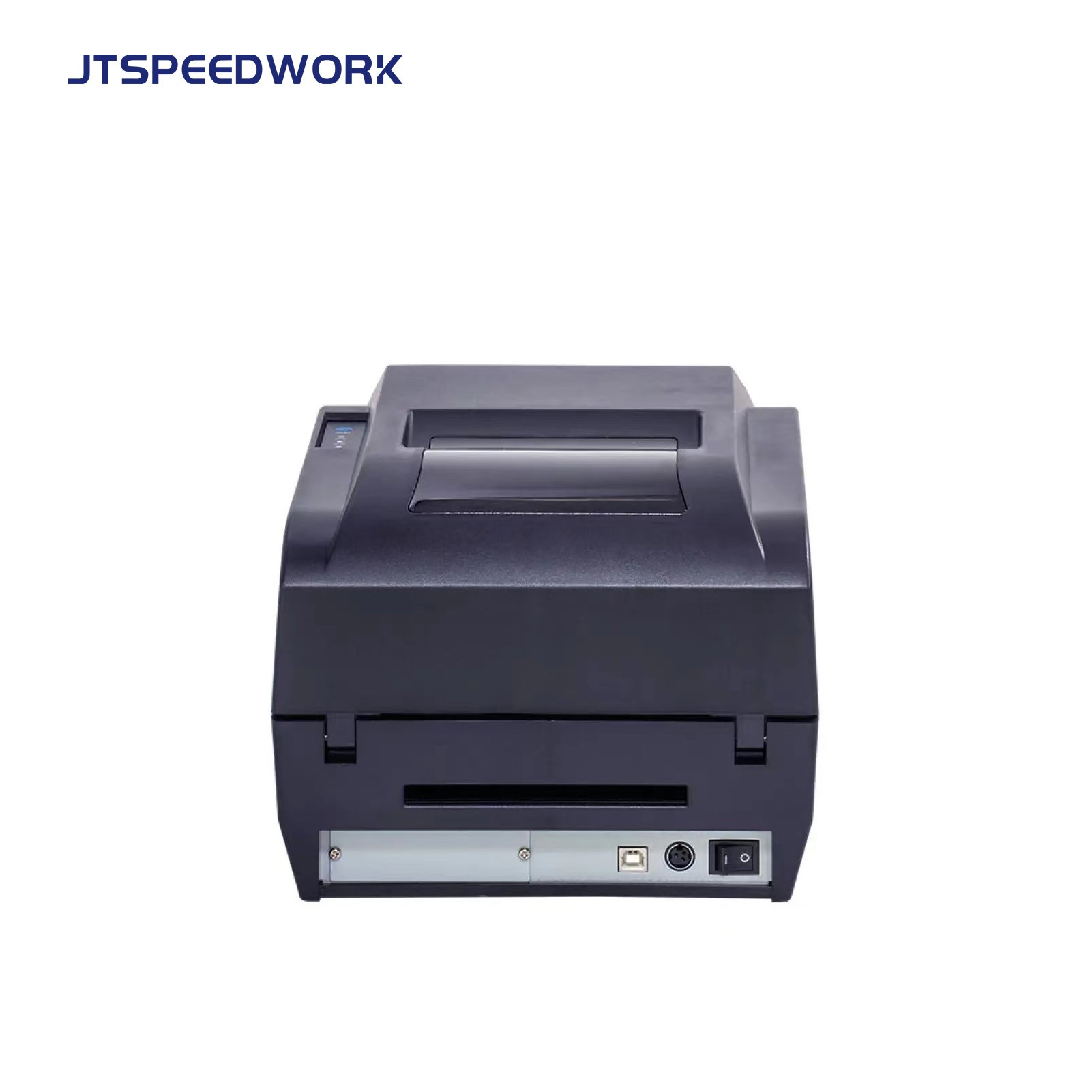

JT-DL218/630 Barcode UHF RFID Thermal Printer 203/300DPI

RFID automatic calibration
The RFID automatic calibration function can automatically drive the power of the antenna according to tags of different specifications and chips, easily set the reading and writing conditions of RFID tags, and greatly reduce the time of manual debugging of printer parameters. (Press the "Power On" button twice to automatically calibrate the RFID power)

- High Speed 300 dpi printing
- Easy and quick media loading
- Supports ZPL, EPL and TSC emulations
- Variety of interfaces available
- Optional cutter to increase productivity

Item No :
JT-DL218/630
Color :
Black
Print method :
Direct thermal or thermal transfer
Resolution :
203/300 dpi
Print width :
4 inch
Interfaces :
USB 2.0
Ribbon :
Width: 33 – 110 mm; Max length: 300 m Core diameter: 25.4 mm; Outside diameter: 68 mm

Inquire Now

Download

Item No.	JT-DL630
Print parameters		Physical properties
Printing method	Thermal/thermal transfer printer	Dimensions	230(width) ×290(Deep) ×176(high)mm
Printing width (loading paper width)	106mm	Color	Black
Printing speed	102mm/s(300dpi)	Weight	About 3kg
Thermal head	Point spacing 0.084mm	Working environment	Temperature: 5~40℃
Resolution	300DPIx300DPI	Working environment	Humidity: 20%~95%RH (no condensation)
		Storage environment	Temperature: -20~60℃
		Storage environment	Humidity: ≤95%RH (40℃, no condensation)
Barcode		RFID
1D code	ZPL:Code11; Interleaved 2 of 5; Code 39; Code 49; Planet Code;EAN-8; EAN-13; UPC-E;UPC-A; Code 93; Code 128;Industrial2 of 5; Standard 2 of 5;Codabar; MSI; Plessey	RFID tag writing method	Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc.
QR code	PDF417; CODABLOCK; Maxicode; Aztec; QR Code ; Data Matrix	Support RFID standards	920.5-924.5MHz; support ISO18000-6C, EPC Gen2
		Supported label types	*Supports ordinary self-adhesive RFID and flexible anti-metal tags below 1.25mm Special tags depend on the specific chip**
Character		Ribbon specifications
Character set	Chinese character GB18030 Chinese character library 24*24Bit map,commonly used single-byte fonts(ZPL):FontA,FontB,FontD,FontE,FontF,FontG, FontH,FontV0,FontGS,FontP,FontQ,FontR,FontS, FontT,FontU,FontV	Inner diameter	25.4mm
Character set	Custom fonts can be downloaded to FLASH, SDRAM	Outer diameter	68mm
Code page	PC850;PC1250;PC1252;PC1253;PC1254;PC1255	Length	300 meters
Zoom/Rotate	It can be enlarged in steps of 1 to 8 times both horizontally and vertically; rotation printing (0° ,90°, 180°,270° )	Width	33~110mm
Paper handling		Interface
Paper specifications	Paper thickness: 0.06~0.254mm	Standard configuration	USB interface (2.0 full speed)
	Paper width: 25~118mm	Optional	RS-232 serial port (DB25)
	Paper length: 8.9~400mm		Parallel Centronics(IEEE-1284)
	Outer diameter: 127mm(MAX)		Ethernet port:10M/100M
	Inner diameter: 25.4/38.1mm		Wi-Fi interface (802.11b/g/n)
Paper type	Roll type, folding type (continuous paper,non-continuous paper, continuous tag, wristband, ordinary paper or various bills)		Bluetooth interface: SPP
Paper separation method	Manual tearing, automatic cutting, and peeling methods
Power parameters		Detection function
Input	100~240VAC;Frequency range: 50~60Hz	Standard sensor	Black mark detection, label detection, mechanism detection, ribbon detection
Output	24VDC; 2.15A	Optional sensor	Label peel detection
Memory		Safety
SDRAM	16MB	Safety standard	GB4943.1-2011
FLASH	8MB	Radio Interference (EMC)	Class B
		Certification	3C, UL, FCC, CE, Energy Star
Software		Reliability and warranty
Driver (Windows32bit/64bit, Linux), Barcode Pass BarEasy,SDK system		Thermal head	Lifespan 150KM(Calculated based on the use of designated thermal paper and a printing rate of 12.5%)
Graphics		Emulation language
Graphics processing	Graphics processing monochrome PCX BMP Image data can be downloaded to SDRAM	Simulated zebra,Simulate EPSON	ZPL,EPL,TSPL
Options		Control Panel
Cutter, stripper		Button	One key (paper feed)
		Indicator light	Three lights (power, fault, status (no paper/ribbon))
