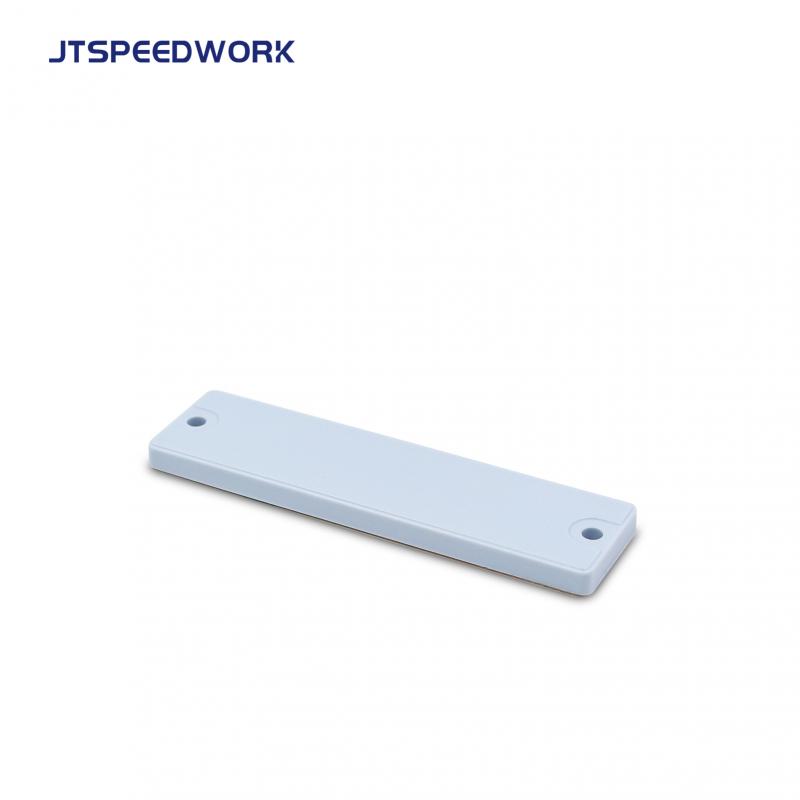

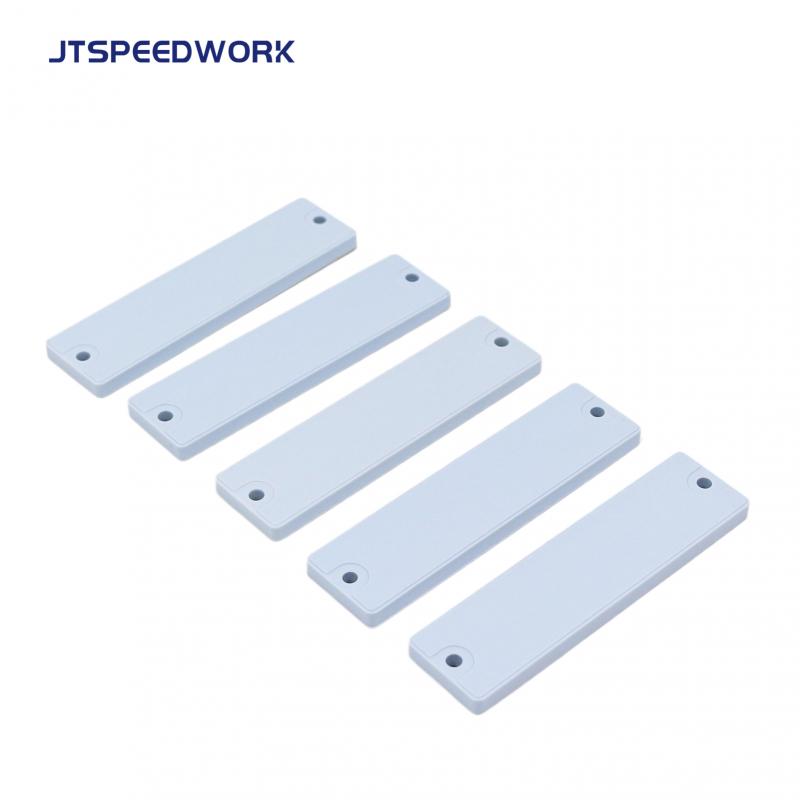

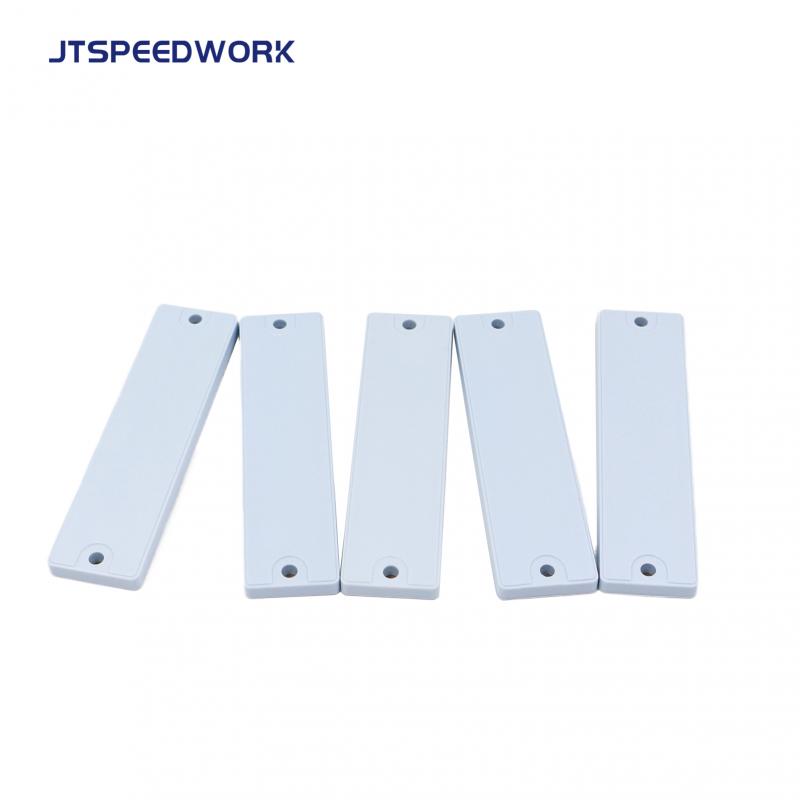

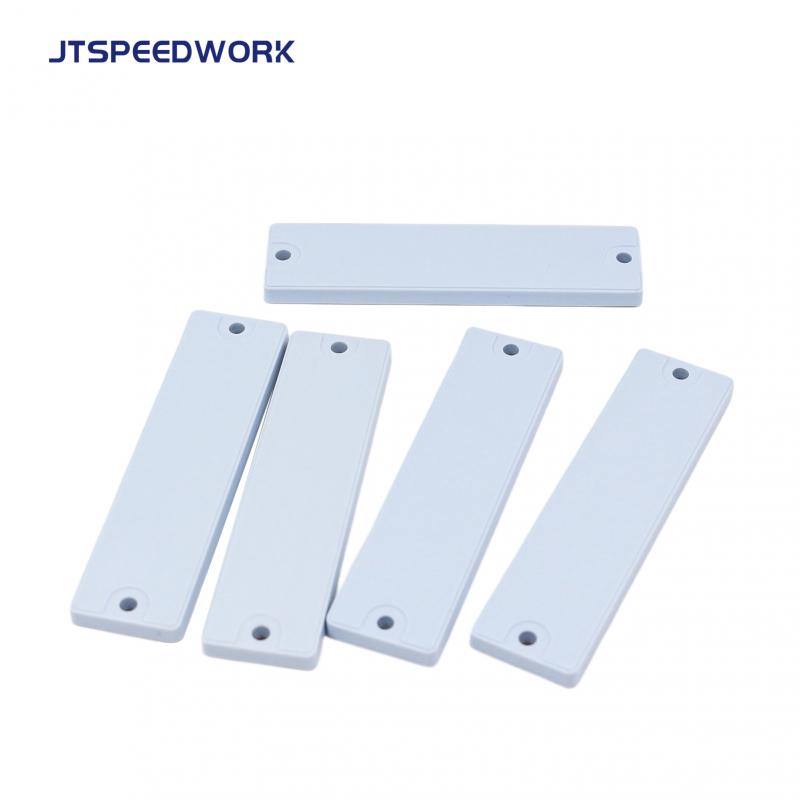

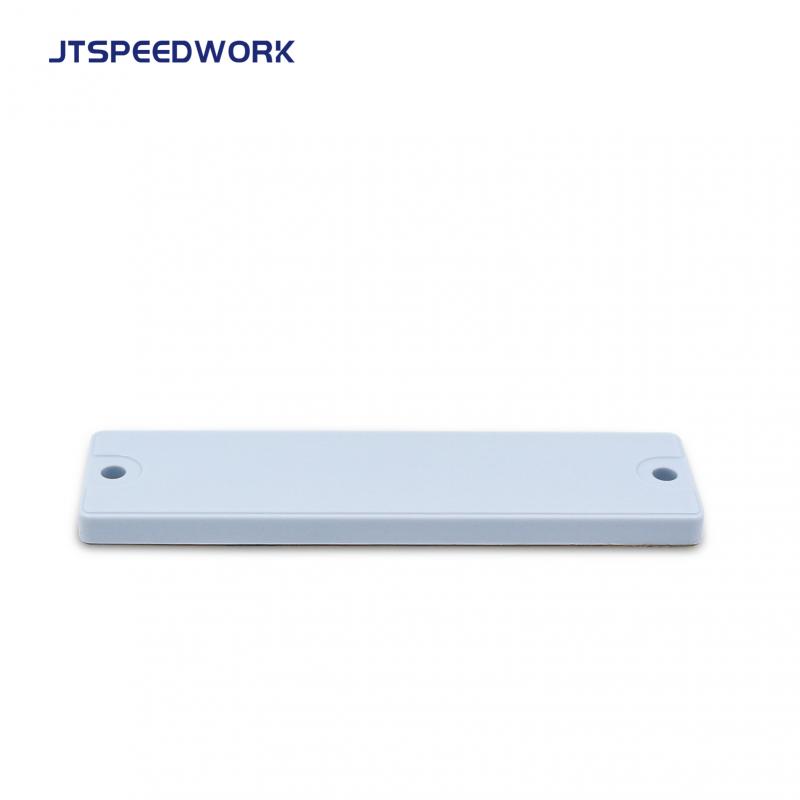

UHF RFID metal tag JT-K9525, it is disgined for metal object.It is widely used in livestock management; origin traceability management, etc.,
◆Working frequency 860~960MHz
◆ Good performance using for metal surface
Brand:
JTSPEEDWORKItem NO.:
JT-K9525Working frequency:
860-960MHzProtocol:
ISO18000-6C
Applications:
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Working Frequency |
902-928MHz or 865-868MHz |
|
Chip |
NXP UCODE 8/Impinj M730/R6P |
|
Chip memory |
EPC 128bits/96bits |
| Performance |
Read/write |
|
Data storage |
50 years |
| Material |
ABS |
|
Surface color |
light blue |
|
Size |
95mm *25mm* 5mm |
|
Positioning hole size |
The diameter of the positioning hole for product fixing is 3.6mm, and the center spacing of the positioning hole is 88mm |
|
Working temp. |
-25~ +80℃ |
|
Storage temp. |
-30~ +80℃ |
|
Storage humidity |
5%～95% |
|
Install method |
Screws, rivets, super glue (not standard), 3M300LSE double-sided adhesive (standard) |
|
Weight |
18g/pcs |
| Package |
Carton |
|
Drop test |
Passed 200 drop tests from 1 meter height |
|
Alcohol test |
95% alcohol test passed |
|
Gasoline test |
92 gasoline wipe through |
|
High and low temperature alternating test |
-30℃～+80℃ 7 times of high and low temperature alternating cycles, a total of 2 consecutive days passed the test |
|
RoHS |
Passed, the material is certified by SGS |
|
IP |
IP67 |
|
Fixed reader (on metal) |
> 8 meters (using JT-928 fixed reader, if other readers, the reading distance may be different) |
|
Handheld reader (on metal) |
> 5.0 meters (the reading distance of JT-973 handheld reader in outdoor open space, if other handhelds are used, the reading distance may be different) |
|
Polarization mode |
Linear polarization |
|
RF Performance Consistency Testing |
100% tested and passed (tested by European Finnish Voyantic Tagformace tester) |
|
Optional |
Laser coding, surface LOGO screen printing, pre-writing, surface pattern processing, surface variable one-dimensional code or two-dimensional code processing |
