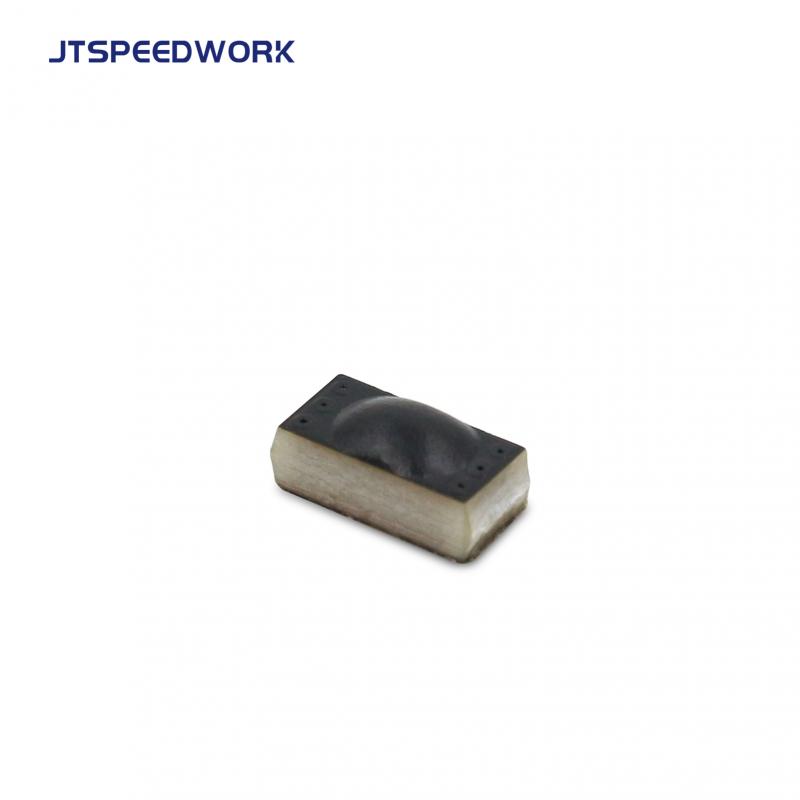

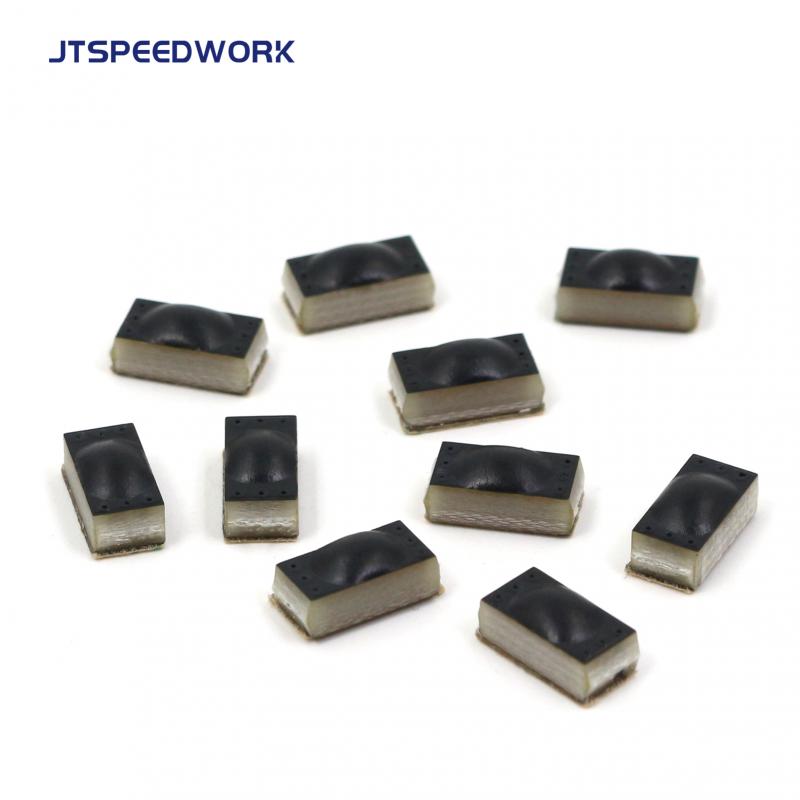

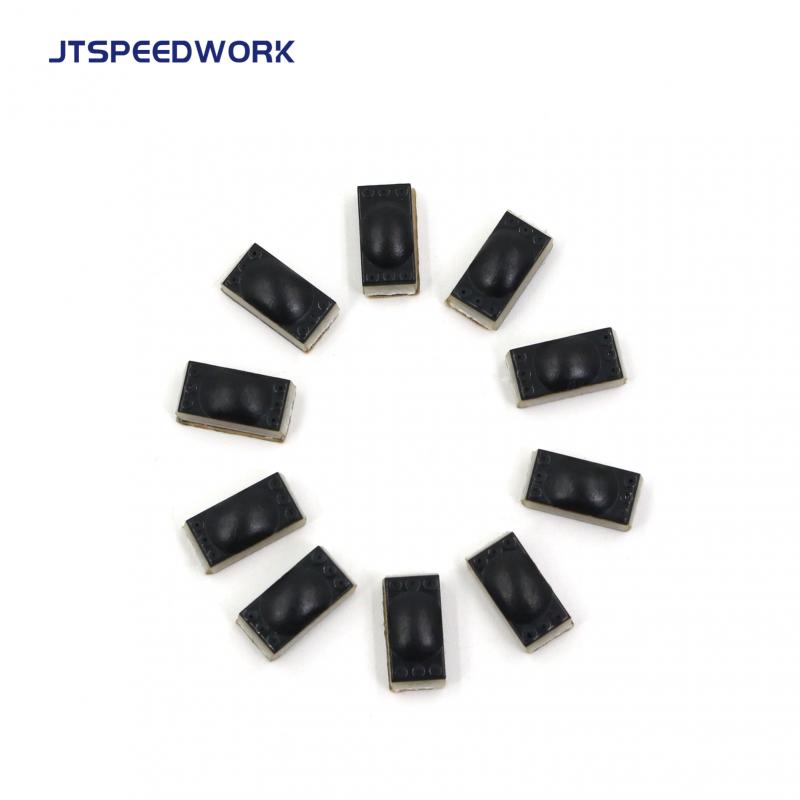

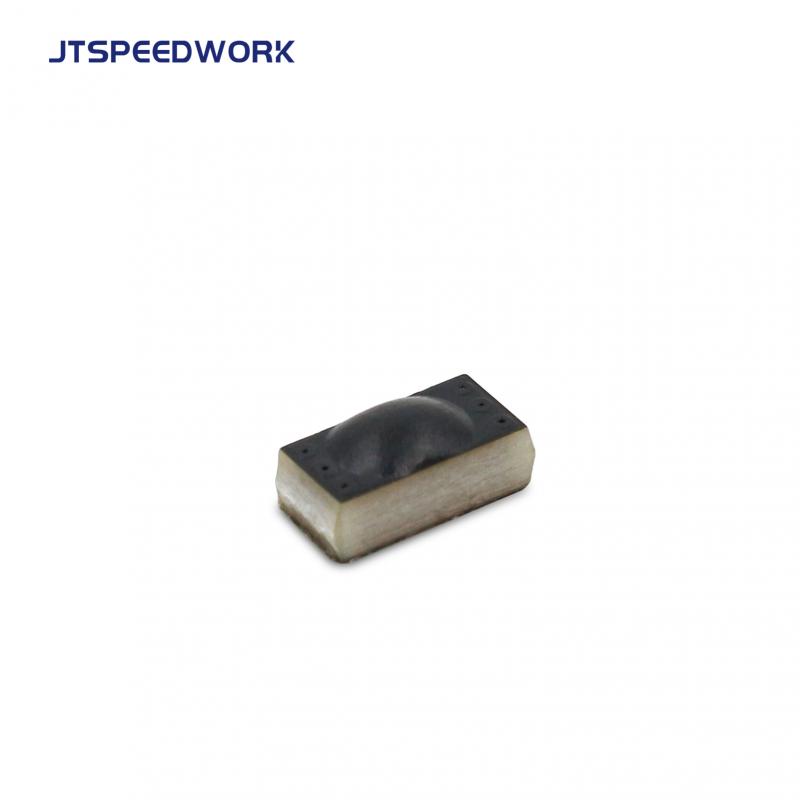

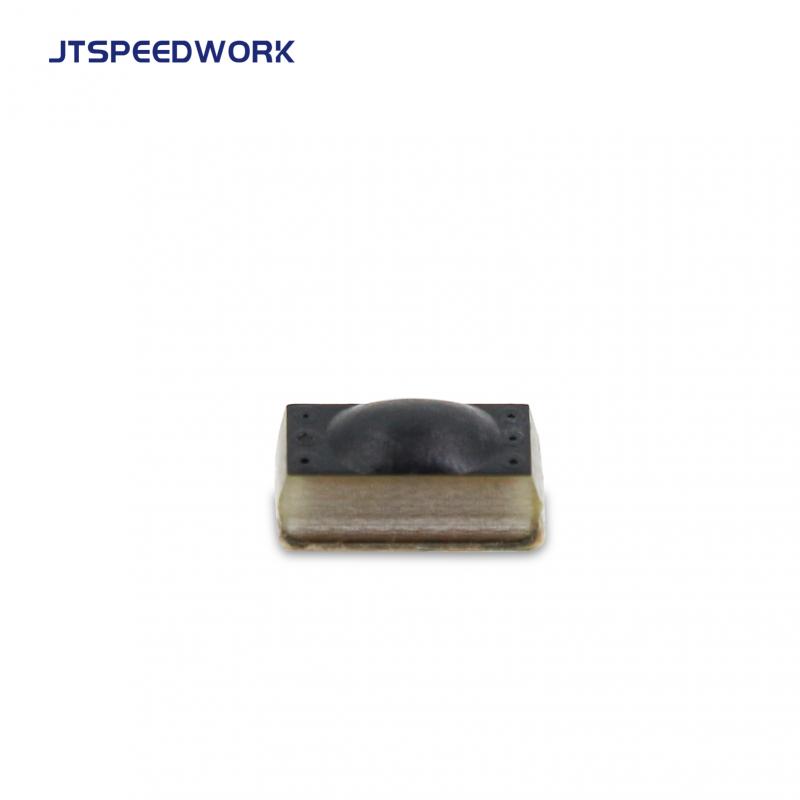

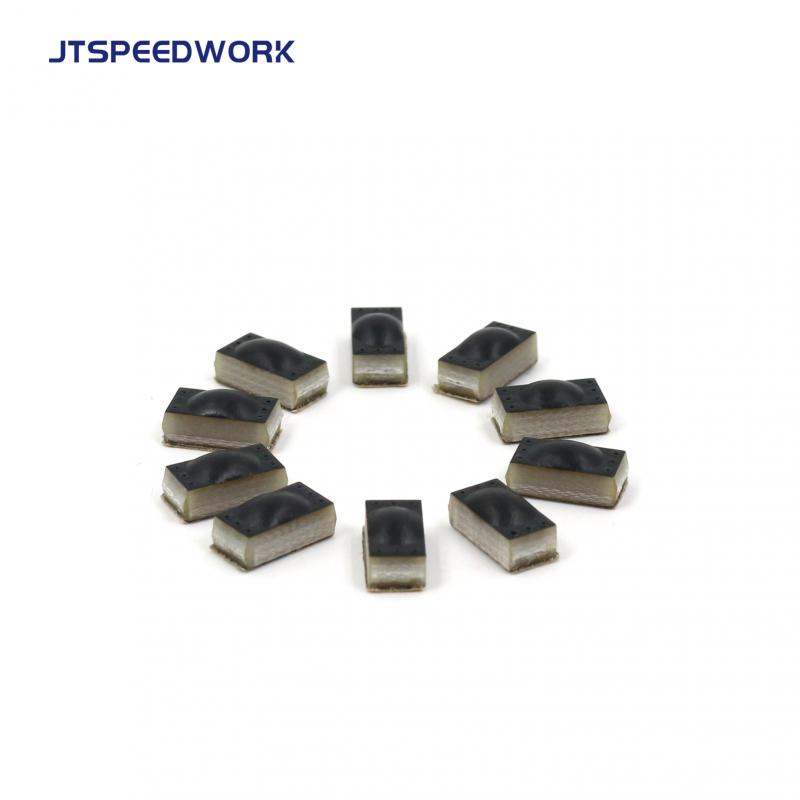

This PCB tag is supplied with an Alien Higgs 3 chip, which makes it quite durable even in environments where exposure to high temperature is involved. The tag is versatile in nature and is designed to work well in a variety of environmental conditions. This tag can be affixed onto the metal asset using a high-performance permanent adhesive tape provided with the tag as an option or mounted using a screw.
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management.
Brand:
JTSPEEDWORKItem NO.:
JT-K1005Working frequency:
860-960MHzProtocol:
ISO18000-6CAdvantage:
Mounted on a metal surface for stable operation;
100% tested by the European Union's label compliance test system;
100% passed the memory write test;
Material and design are tested for reliability;
Widely verified and used by well-known domestic and international customers
|
ISO |
EPC Class1 Gen2; ISO18000-6C |
|
frequency |
860-960MHz |
|
Chip |
NXP UCODE 8 |
|
memory |
EPC 128bits |
|
writable |
yes rewritable |
|
memory lead time |
fifty years |
|
Warranty |
1year |
|
Material |
FR4 |
|
Color |
black |
|

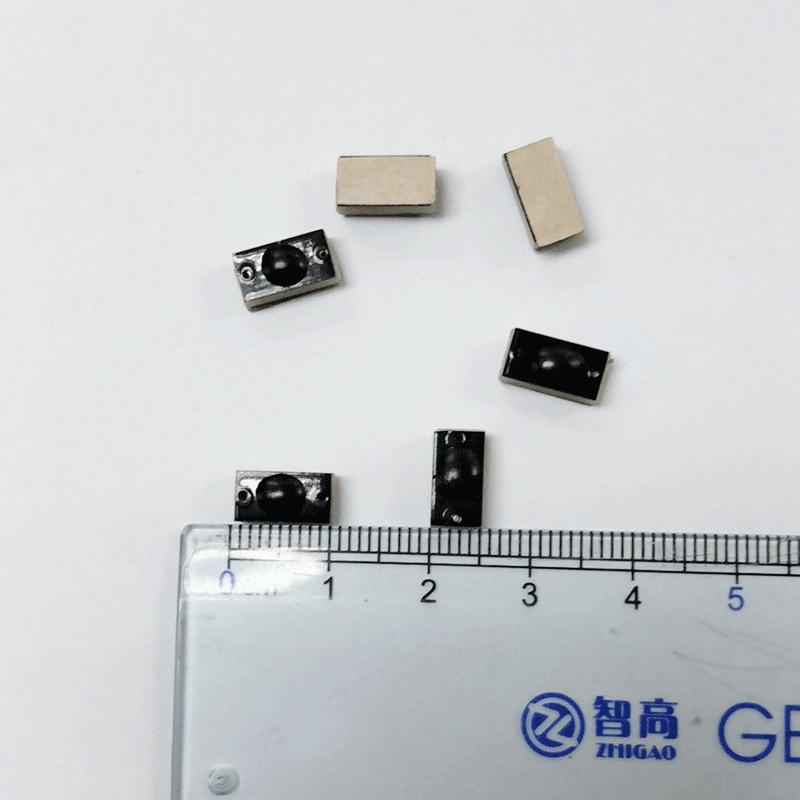

Size |
10*5 *3mm
|
| Temperature |
-25C~ +85C |
|
Storage temperature |
-30 C~ +110 C |
|
Save humidity |
5%～95% |
| Adhesive |
3M 300LSE |
|
weight |
~1g |
|
package |
500pcs/bag |
|
Drop test |
Hih 1Meter /200times |
|
Alcohol test |
95%Concentration alcohol test passed |
|
Gasoline test |
No92 test passed |
|
High and low temperature alternating test |
-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test |
|
RoHS |
yes |
|
IP degree |
IP65 |
| Fixed RFID reader on metal surface |
1.5Meter |
|
Handheld reader on metal surface3 |
30CM |
|
Polarization direction |
Linear Polarization |
|
Text |
100% tested it before we send out |
Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
