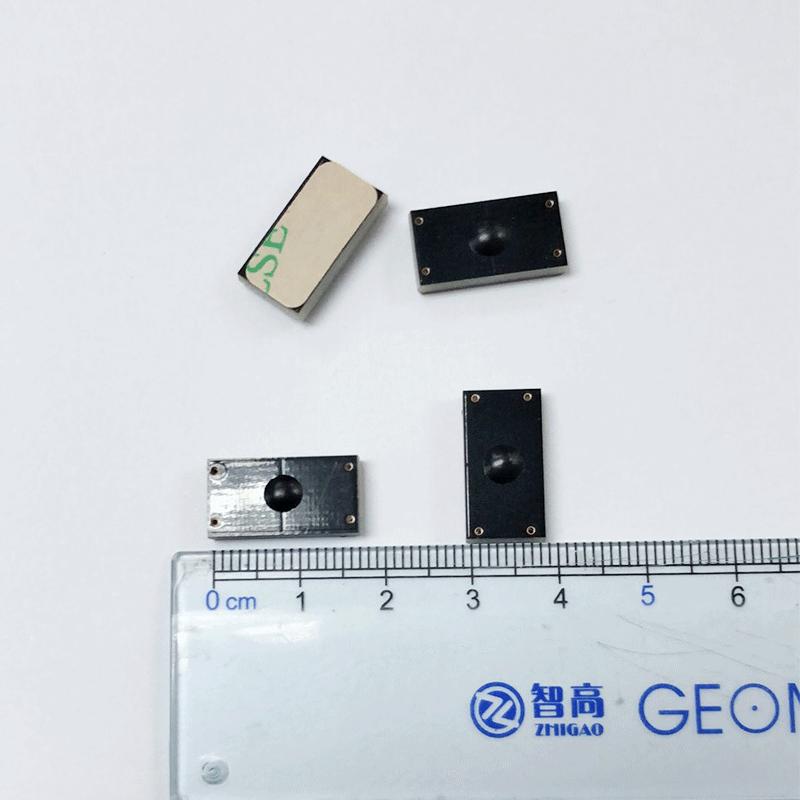

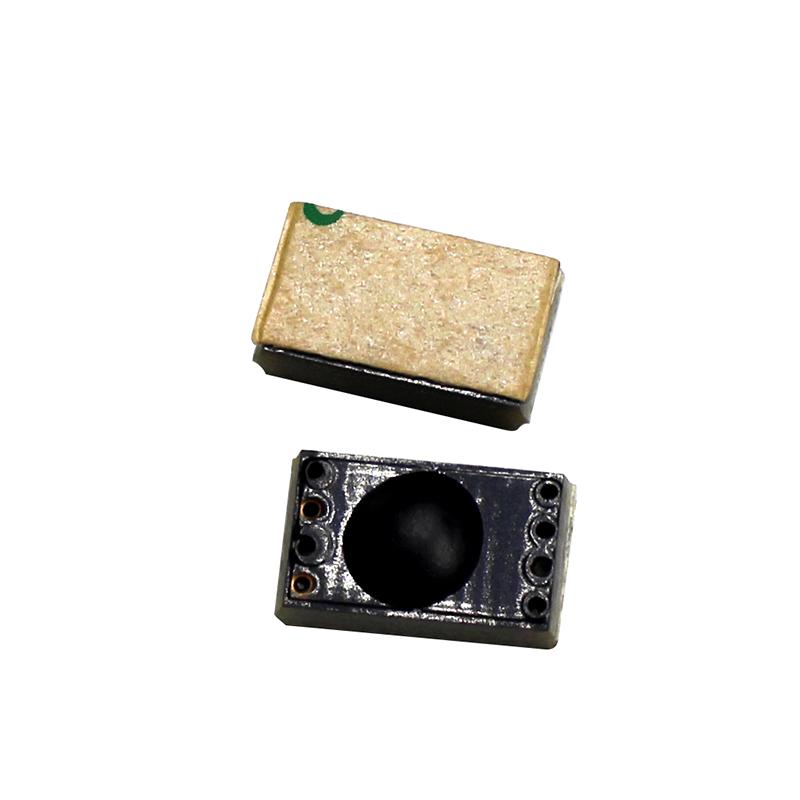

JT-K1809 18*9mm ISO18000-6C Gen2 RFID Anti-metal PCB Tag

This product is widely used in indoor asset management, inspection management, and tool management. It is small in size, easy to install, and stable and reliable in product performance.

Brand:
JTSPEEDWORK
Item NO.:
JT-K1809
Working frequency:
860-960MHz
Protocol:
ISO18000-6C

product details

Advantage:

Mounted on a metal surface for stable operation;
100% tested by the European Union's label compliance test system;
100% passed the memory write test;
Material and design are tested for reliability;
Widely verified and used by well-known domestic and international customers

ISO	EPC Class1 Gen2; ISO18000-6C
frequency	860-960MHz
Chip	NXP UCODE 8
memory	EPC 128bits
writable	yes rewritable
memory lead time	fifty years
Warranty	1year
Material	FR4
Color	black
Size	1893mm
Temperature	-25C~ +85C
Storage temperature	-30 C~ +110 C
Save humidity	5%～95%
Adhesive	3M 300LSE
weight	~1g
package	500pcs/bag
Drop test	Hih 1Meter /200times
Alcohol test	95%Concentration alcohol test passed
Gasoline test	No92 test passed
High and low temperature alternating test	-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test
RoHS	yes
IP degree	IP65
Fixed RFID reader on metal surface	2 Meter
Handheld reader on metal surface	90CM
Polarization direction	Linear Polarization
Text	100% tested it before we send out

Application:

Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
