This UHF Anti-metal Tag is widely used in indoor asset management, inspection management, and tool management.Passive RFID tags are designed and produced by special technology and process, for indoor and outdoor usage in harsh industrial environment.
Brand:
JTSPEEDWORKItem NO.:
JT-K13042Working frequency:
860-960MHzProtocol:
ISO18000-6C
Logistics warehousing management like information management, tracking, and counting.
|
ISO |
EPC Class1 Gen2; ISO18000-6C |
|
Frequency |
902-928Mhz /865-868Mhz |
|
Chip |
Alien H9/Ucode 9 or other chips |
|
memory |
EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
|
writable |
yes rewritable |
|
memory lead time |
fifty years |
|
Warranty |
1year |
|
Material |
PC |
|
Color |
Black or Custmized Color |
|

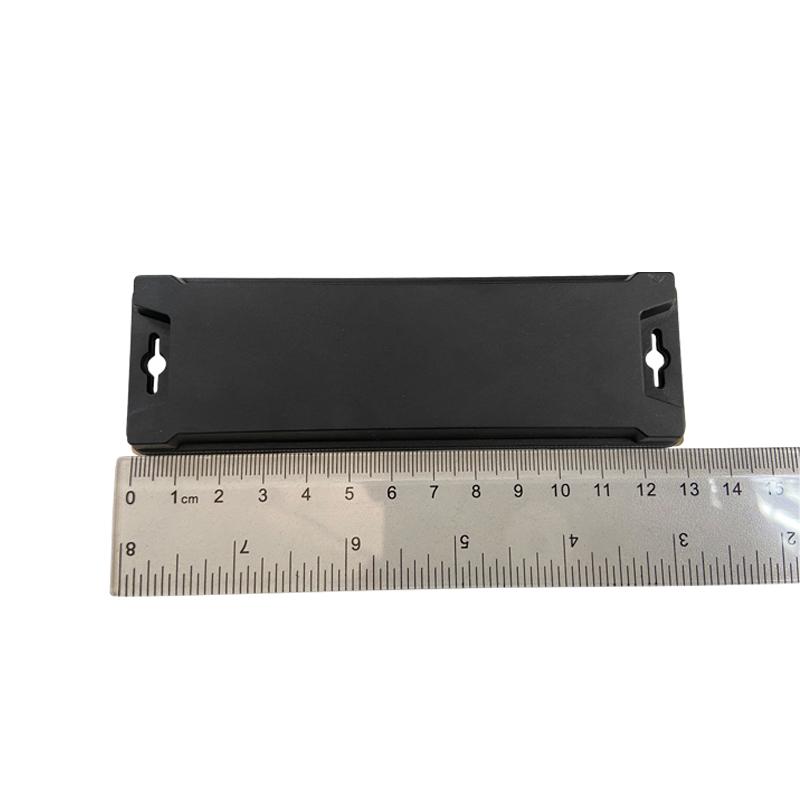

Size |
130*42*10.5mm |
| Temperature |
-30C~ +85C |
|
Storage temperature |
-40 C~ +110 C |
|
Save humidity |
5%～95% |
| Adhesive |
Adhesive, Screw |
|
weight |
~1g |
|
package |
100pcs/bag |
|
Drop test |
Hih 1Meter /200times |
|
Alcohol test |
95%Concentration alcohol test passed |
|
Gasoline test |
NO. 92 test passed |
|
High and low temperature alternating test |
-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test |
|
Applicable Surface: |
Metal surface |
|
IP degree |
IP68 |
| Read Range :Fixed RFID reader(JT-8290) |
30M - (US) 902-928MHz, 28M - (EU) 865-868MHz, On Metal |
|
Read Range : |
22M - (US) 902-928MHz, 22M - (EU) 865-868MHz, On Metal 11M - (US) 902-928MHz, 11M - (EU) 865-868MHz, Off Metal |
|
Weight |
40g |
|
Test |
100% tested it before we send out |
