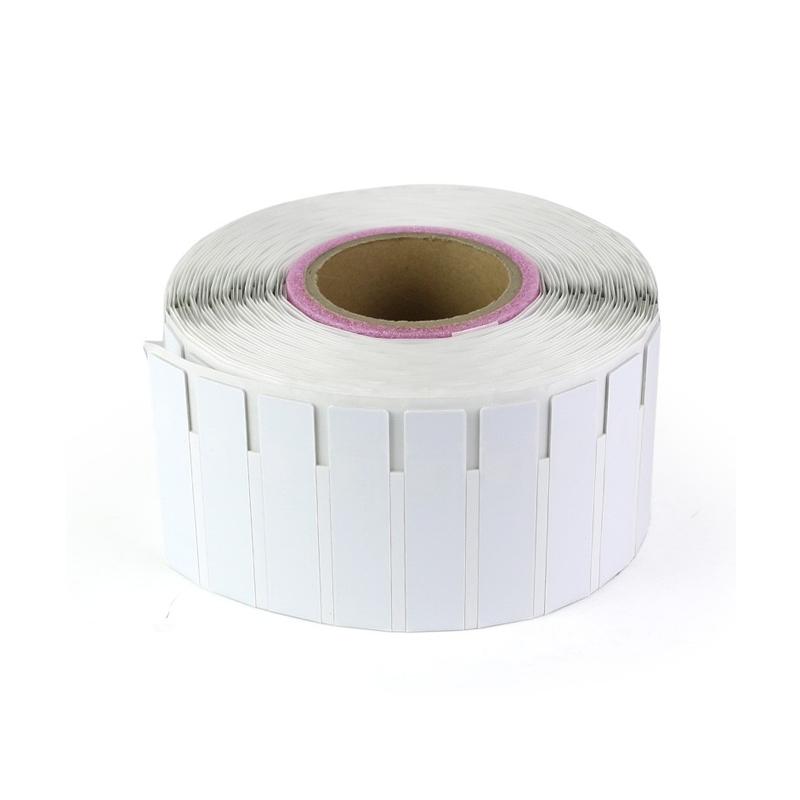

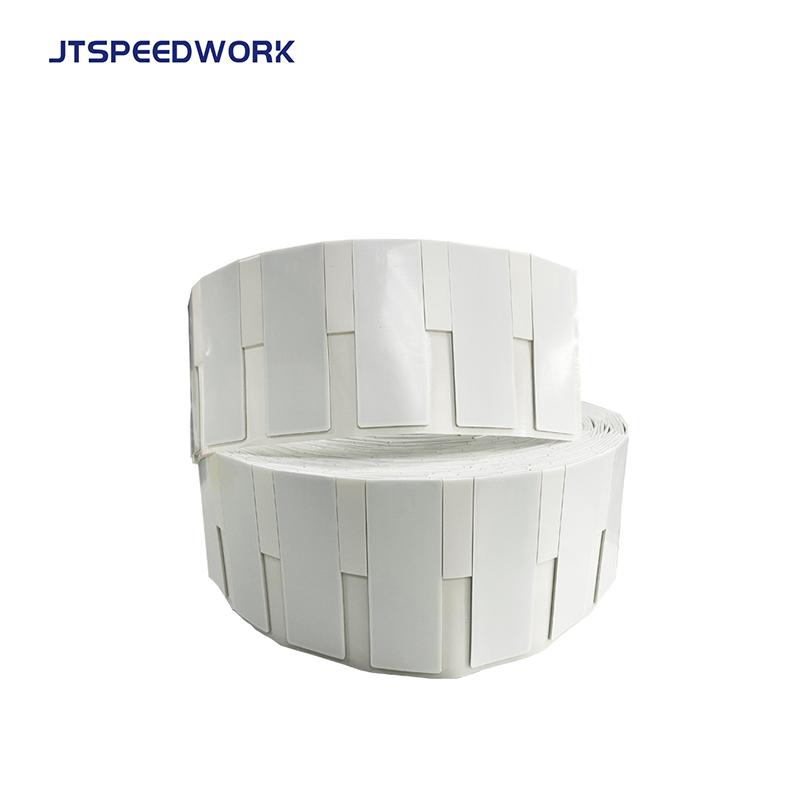

Size: 80*25*1.26mm; Chip: Impinj Monza R6; Flexible UHF RFID On-metal tag; Printable
Brand:
JTSPEEDWORKItem NO.:
JT-K8025Working frequency:
860-960MHzProtocol:
ISO18000-6C
|
JT-K8025 Flex Metal Tag |
|
|
Protocol |
EPC Class 1 Gen 2 (ISO 18000-6C) |
|
Working frequency |
902-928MHz |
|
Chip |
Impinj Monza R6-P |
|
Memory |
32-bits User |
|
48-bitsTID |
|
|
128-bits EPC |
|
|
Storage Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Working Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Weight（roll） |
0.71 kg (500 pcs) |
|
Dimensions(mm) |
80(+/- 1) x25(+/- 0.8) x1.26(+/- 0.1) |
|
Width of Liner |
83(+/- 1)mm |
|
Inlay Pitch |
30(+/- 0.8)mm |
|
Gap |
25(+/- 0.1)mm |
|
R Angle |
1.5(+/- 0.2)mm |
|
Print Performance |
Excellent |
|
Read Rangeon metal |
0-6M by JT-972 handheld reader |
|
Read Range onon metal |
0-10M by JT-8288 Middle range Fixed Reader |
|
Read Range onon metal |
0-15M by JT-8290 Long range Fixed Reader |
|
Surface Material |
White PET |
|
Adhesive |
PSA |
|
Standard Packing |
500pcs/roll |
|
I.D. |
3 in (76.2 mm) |
|
O.D. |
8 in (203 mm) |
|
Printer |
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
Other options
| Model | Size | Chip | Memory | Feature |
| JT-K4025 | 40*25*1mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | |
| JT-K5015 | 50*15*1.26mm | NXP Ucode 8 | 128-bit EPC,48-bit TID,0-bit User | |
| JT-K6025 | 60*25*1.26mm | Impinj Monza R6 | 0-bit User, 48-bit TID, 96-bit EPC | |
| JT-K8025 | 80*25*1.26mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | |
| JT-K6505 | 65*5*1.26mm | NXP Ucode 8 | 128-bit EPC,48-bit TID,0-bit User | |
| JT-K2020 | 20*20*1mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | tamper-proof |
| JT-K7025 | 70*25*1.26mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | tamper-proof |
