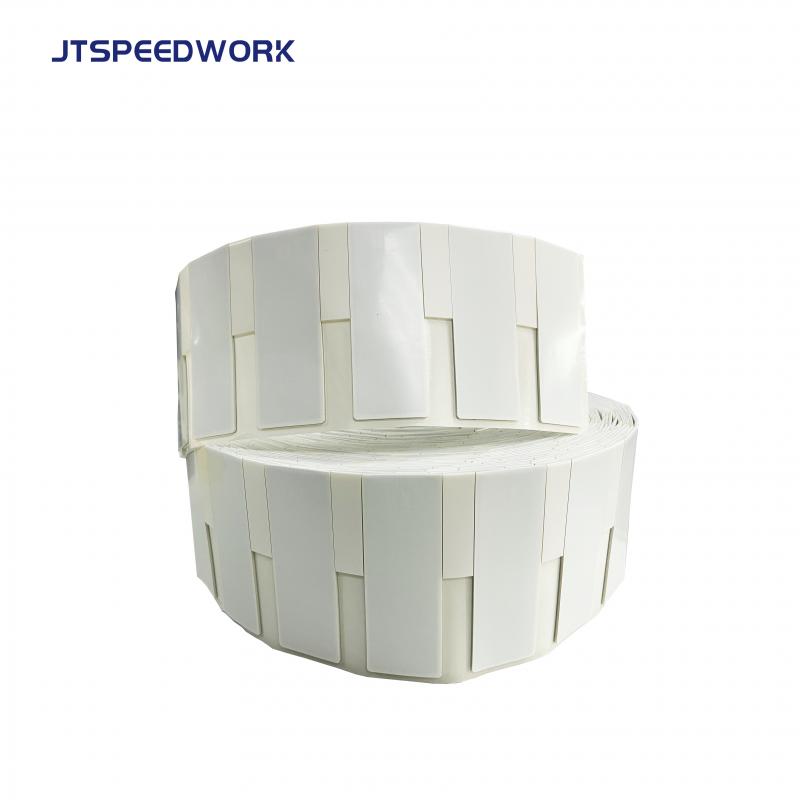

Size: 70*25*1.26mm; Chip: Impinj Monza R6; Tamper-proof; Flexible; Printable
Tampering RFID label should result in following actions:
Destroy Damage the AntennaBrand:
JTSPEEDWORKItem NO.:
JT-K7025Working frequency:
860-960MHzProtocol:
ISO18000-6C
|
JT-7025 Flex Metal Tag |
|
|
Protocol |
EPC Class 1 Gen 2 (ISO 18000-6C) |
|
Working frequency |
902-928MHz |
|
Chip |
Impinj Monza R6-P |
|
Memory |
32-bits User |
|
48-bitsTID |
|
|
128-bits EPC |
|
|
Storage Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Working Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Weight（roll） |
0.71 kg (500 pcs) |
|
Dimensions(mm) |
70(+/- 1) x25(+/- 0.8) x1.26(+/- 0.1) |
|
Width of Liner |
83(+/- 1)mm |
|
Inlay Pitch |
30(+/- 0.8)mm |
|
Gap |
25(+/- 0.1)mm |
|
R Angle |
1.5(+/- 0.2)mm |
|
Print Performance |
Excellent |
|
Read Rangeon metal |
0-6M by JT-H500 5dbi handheld reader |
|
Read Range onon metal |
0-8M by JT-8288 Middle range Fixed Reader |
|
Read Range onon metal |
0-12M by JT-8290 Long range Fixed Reader |
|
Surface Material |
White PET |
|
Adhesive |
PSA |
|
Standard Packing |
500pcs/roll |
|
I.D. |
3 in (76.2 mm) |
|
O.D. |
8 in (203 mm) |
|
Printer |
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
Previous:
JT-K5015 50*15*1.26mm 860-960Mhz UHF Flexible Printable On metal RFID LabelNext:
JT-K8025 80*25*1.26mm 860-960Mhz UHF Flexible Printable On metal RFID Label Impinj Monza R6-PIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
