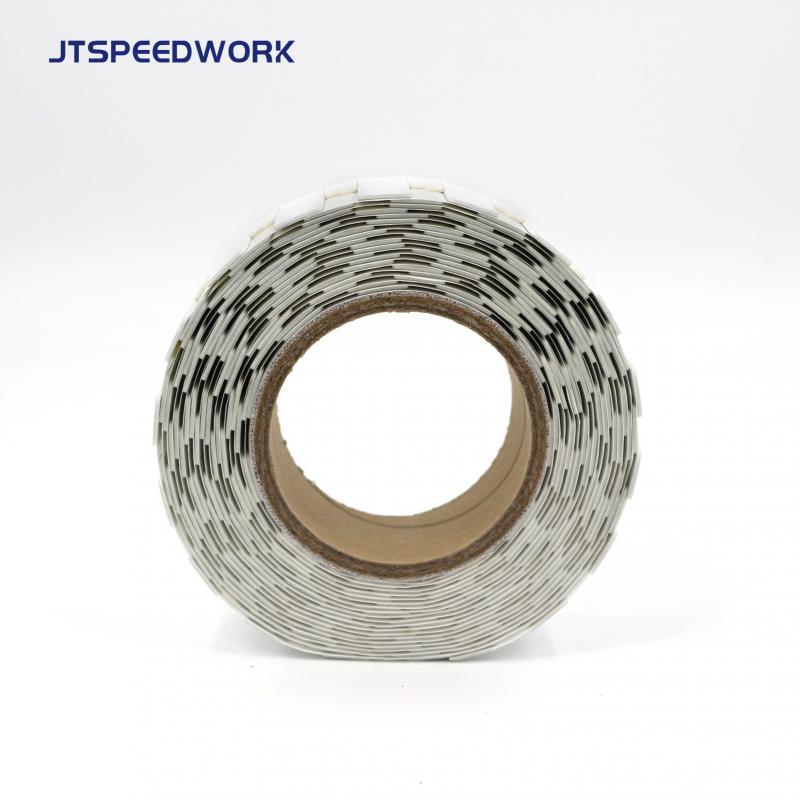

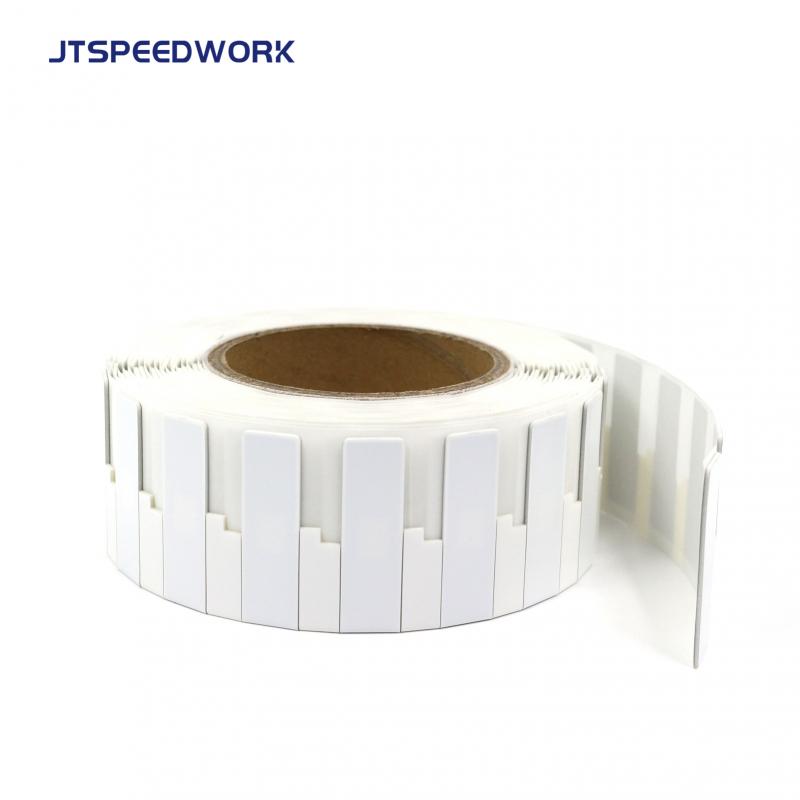

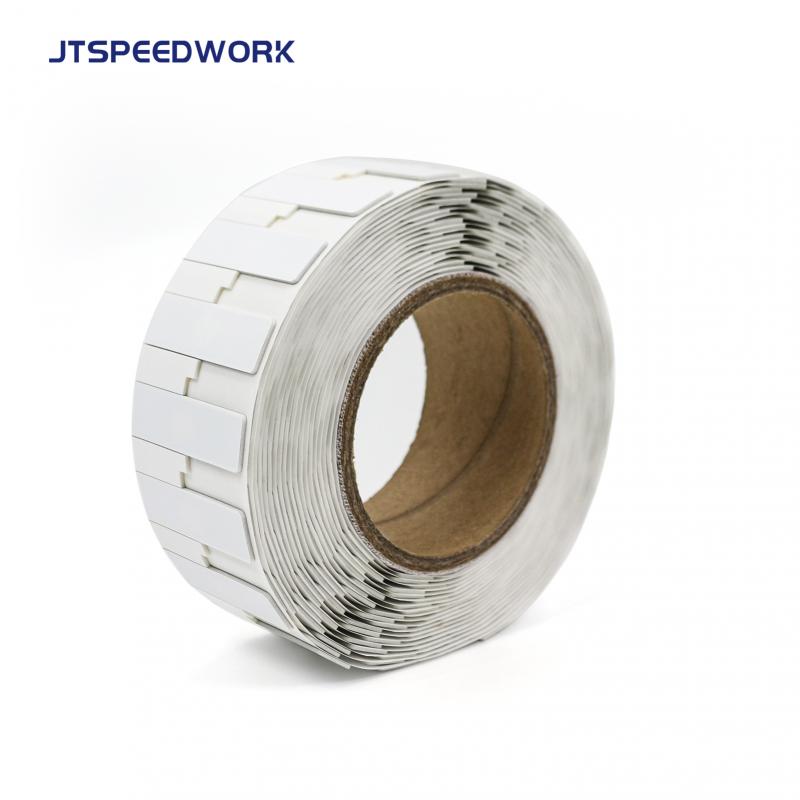

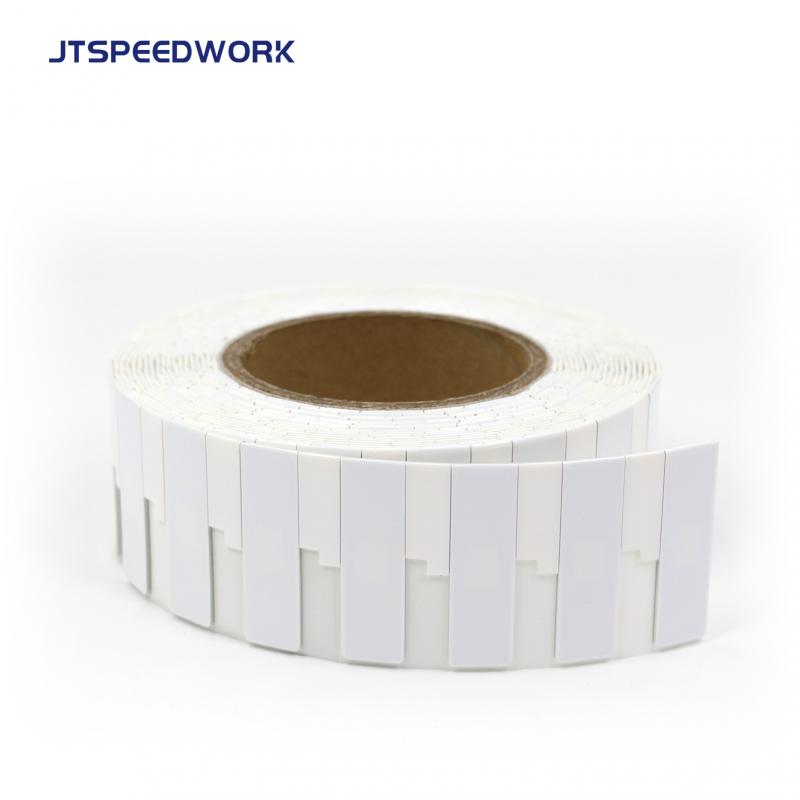

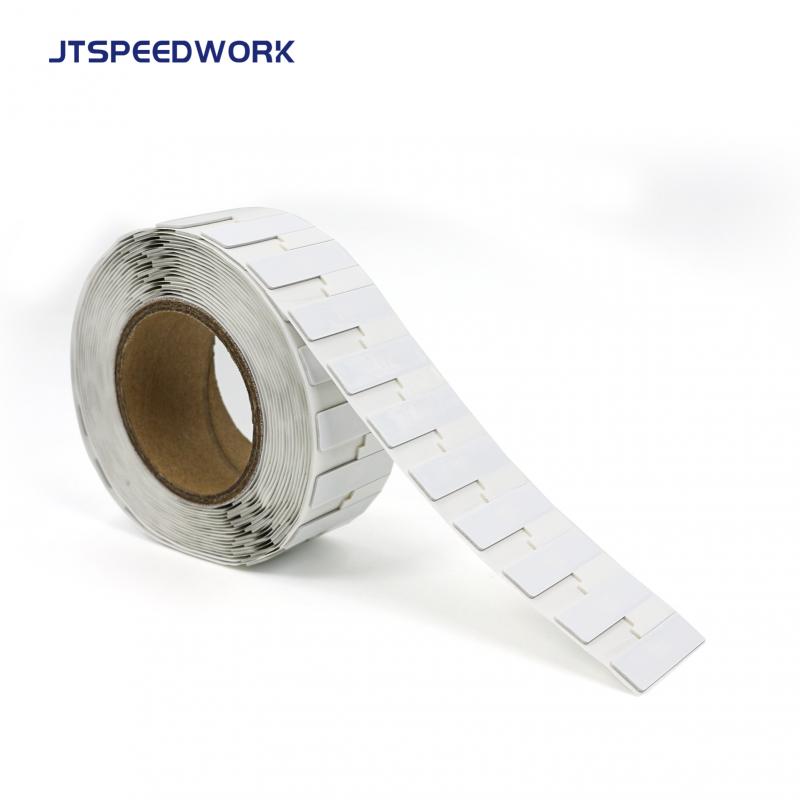

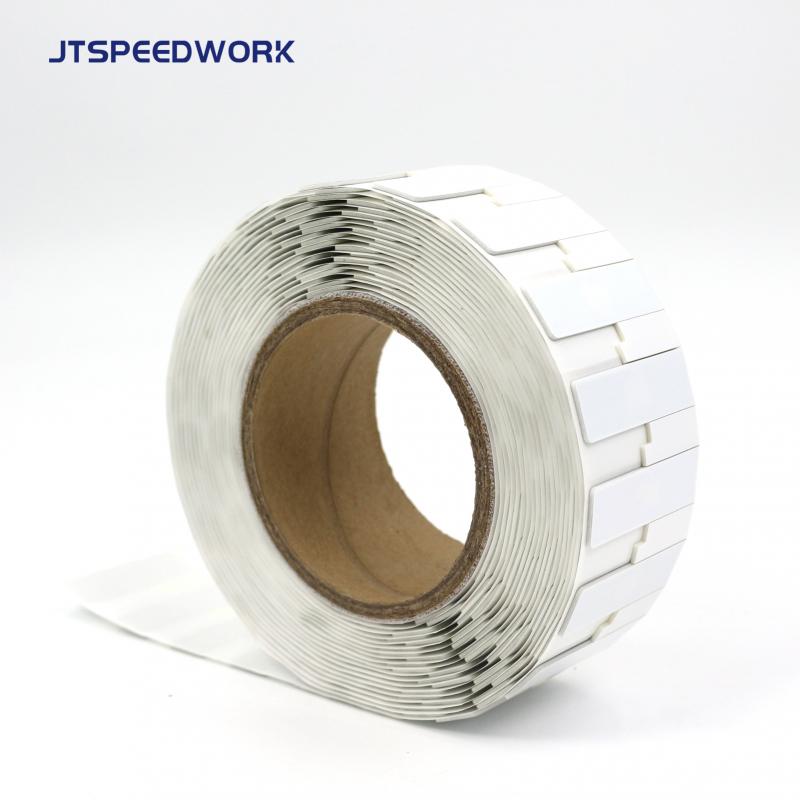

Size: 50*15*1.26mm; NXP Ucode 8 chip; Flexible UHF RFID On-metal Tag.
Brand:
JTSPEEDWORKItem NO.:
JT-K5015Working frequency:
860-960MHzProtocol:
ISO18000-6C

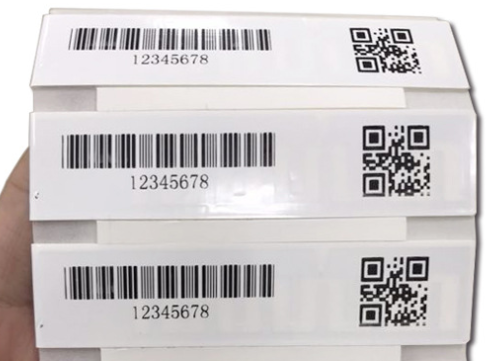

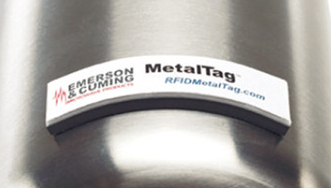

This flexible printable anti-metal label is compatible with EPC, C1G2 and ISO18000-6C standards. Suitable for use in environments rich in metals and liquids, it can be packaged for any kind of printed labels, barcodes or graphic labels. Its light and thin paper shape makes it easy to stick on curved objects, such as cylinders, pipes, and metal containers. And fixed assets. It is widely used in the fields of product certification, asset tracking, logistics tracking, valuables anti-counterfeiting and medical asset management, improving operational efficiency and inventory management for manufacturers and retailers
|
JT-K5015 Flexible On-metal Tag |
|
|
Protocol |
EPC Class 1 Gen 2 (ISO 18000-6C) |
|
Working frequency |
860-960MHz |
|
Chip |
NXP Ucode 8 |
|
Memory |
0-bit User |
|
48-bitsTID |
|
|
128-bits EPC |
|
|
Storage Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Working Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Weight（roll） |
0.71 kg (500 pcs) |
|
Dimensions(mm) |
50(+/- 1) x15(+/- 0.8) x1.26(+/- 0.1) |
|
Width of Liner |
53(+/- 1)mm |
|
Inlay Pitch |
15(+/- 0.8)mm |
|
Gap |
10(+/- 0.1)mm |
|
R Angle |
1.5(+/- 0.2)mm |
|
Print Performance |
Excellent |
|
Read Rangeon metal |
0-6M by JT-973 handheld reader |
|
Read Range onon metal |
0-10M by JT-8288 Middle range Fixed Reader |
|
Read Range onon metal |
0-15M by JT-8290 Long range Fixed Reader |
|
Surface Material |
White PET |
|
Adhesive |
High strength adhesive |
|
Standard Packing |
500pcs/roll |
|
I.D. |
3 in (76.2 mm) |
|
O.D. |
8 in (203 mm) |
|
Printer |
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
Other options
| Model | Size | Chip | Memory | Feature |
| JT-K4025 | 40*25*1mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | |
| JT-K5015 | 50*15*1.26mm | NXP Ucode 8 | 128-bit EPC,48-bit TID,0-bit User | |
| JT-K6025 | 60*25*1.26mm | Impinj Monza R6 | 0-bit User, 48-bit TID, 96-bit EPC | |
| JT-K8025 | 80*25*1.26mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | |
| JT-K6505 | 65*5*1.26mm | NXP Ucode 8 | 128-bit EPC,48-bit TID,0-bit User | |
| JT-K2020 | 20*20*1mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | tamper-proof |
| JT-K7025 | 70*25*1.26mm | Impinj Monza R6-P | 32-bit User, 48-bit TID, 128-bit EPC | tamper-proof |
