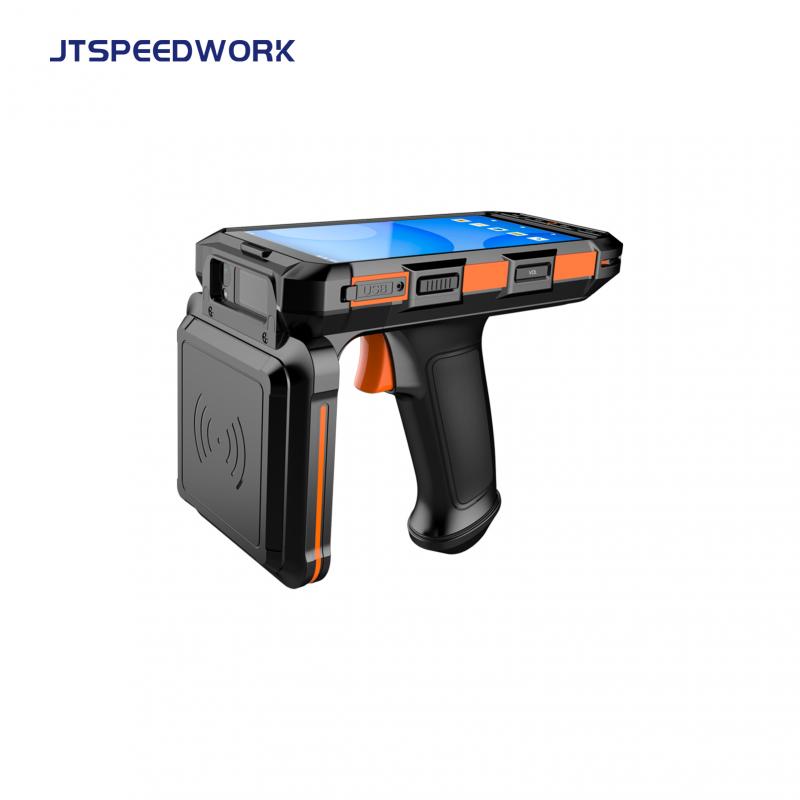

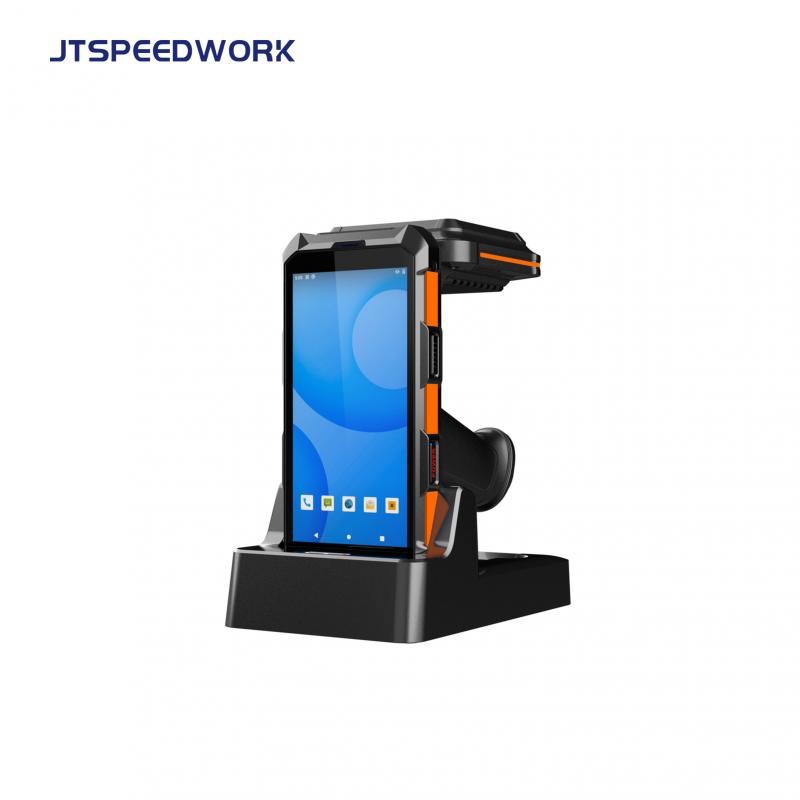

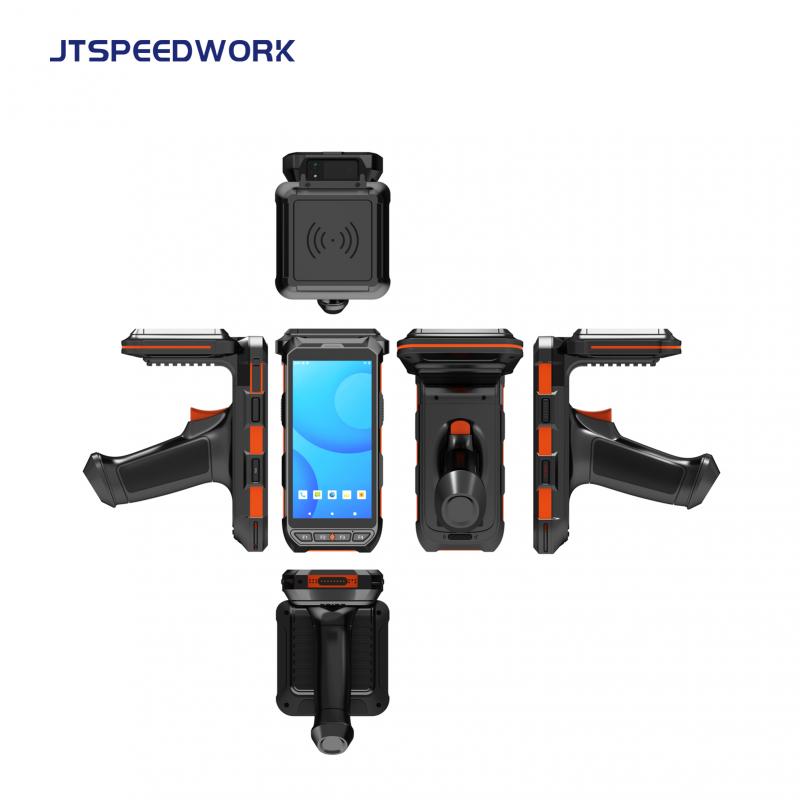

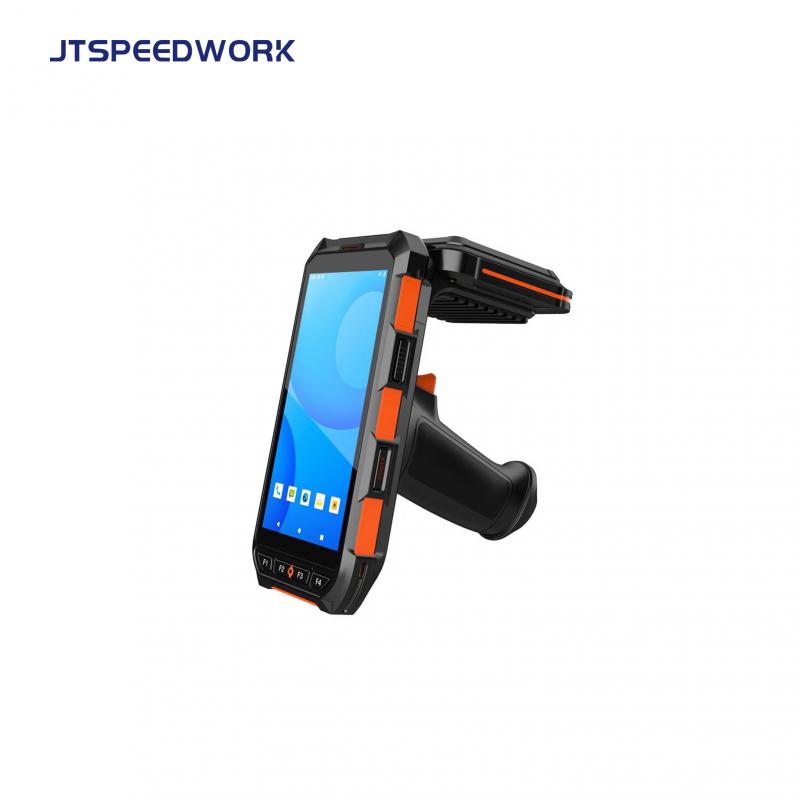

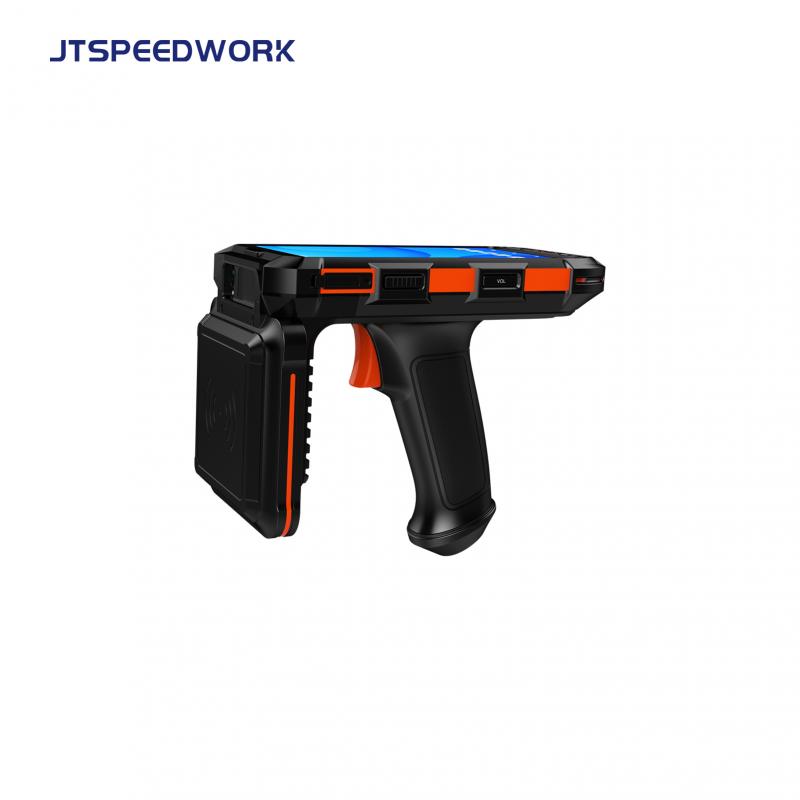

JT-974 UHF RFID Android 13.0 4+64GB Handheld Mobile Terminal with Impinj E710 Chip

JT-974 UHF RFID Android 13.0 4+64GB Handheld Mobile Terminal with Impinj E710 Chip



  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-974
  • Operating system

    Android 10.0
  • Working frequency:

    860-960MHz
  • Protocol:

    ISO18000-6C
  • RF chip:

    Impinj E710
product details

PHYSICAL CHARACTERISTICS BARCODE READER(OPTIONAL)
Dimension 170mm(H)x80mm(W)x28mm(D)±2 mm (without the pistol grip and UHF shield) 2D Barcode 2D CMOS Imager
Weight Net Weight :600g(including battery&wrist strap) Honeywell N5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1
Display Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight Symbologies
Backlight LED backlight PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
Expansions 2 PSAM, 2 SIM, 1 TF,
Battery Rechargeable li-ion polymer, 3.8V,7200mAh RFID READER(OPTIONAL)
PERFORMANCE CHARACTERSTICS RFID NFC Frequency 13.56MHz
CPU Cortex A73 2.0GHz octa-core Protocol
Operating System Android 13 ISO 14443A&15693, NFC-IP1, NFC-IP2
Storage 4GB RAM/64GB ROM, R/W Range 2cm to 5cm
MicroSD(max 256GB expansion) RFID UHF Frequency
DATA COMMUNICATION 865~868MHz or 920~925MHz
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Protocol
WWAN Band 1, 2, 3, 4, 5,7,8,12, 17, 20;WCDMA (850/1900/2100MHz);GSM/GPRS/Edge (850/900/1800/1900MHz); EPC C1 GEN2/ISO 18000-6C
WLAN 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac Antenna Gain
WPAN Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2 Circular antenna(4dBi)
GPS GPS(embedded A-GPS), accuracy of 5 R/W Range
20m(tags and environment dependent)



JTSPEEDWORK Maintenance Plans.

JTSPEEDWORK Maintenance Plans.

Protect your JTSPEEDWORK devices for constant peak performance with these recommended maintenance plans. Device uptime, confidence, and savings — that's what you get with JTSPEEDWORK maintenance plans. You protect business-critical devices and eliminate disruptions and unplanned repair expenses.
