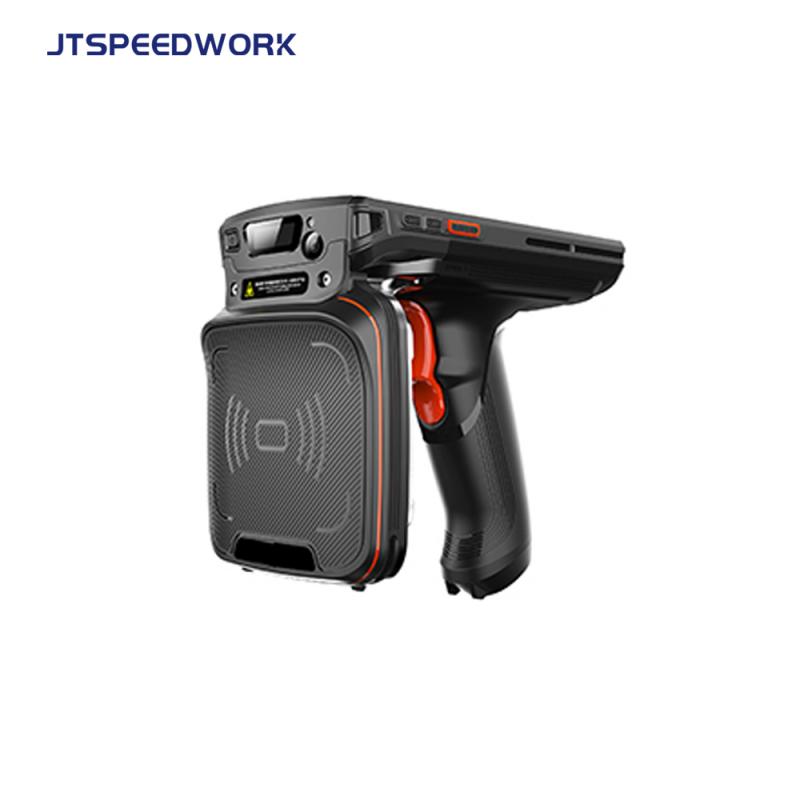

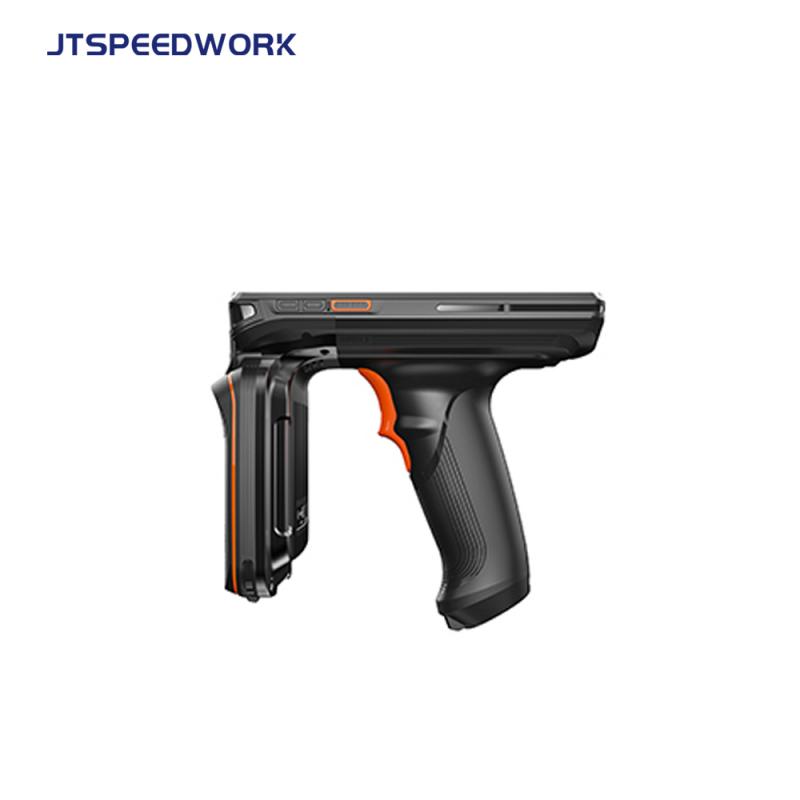

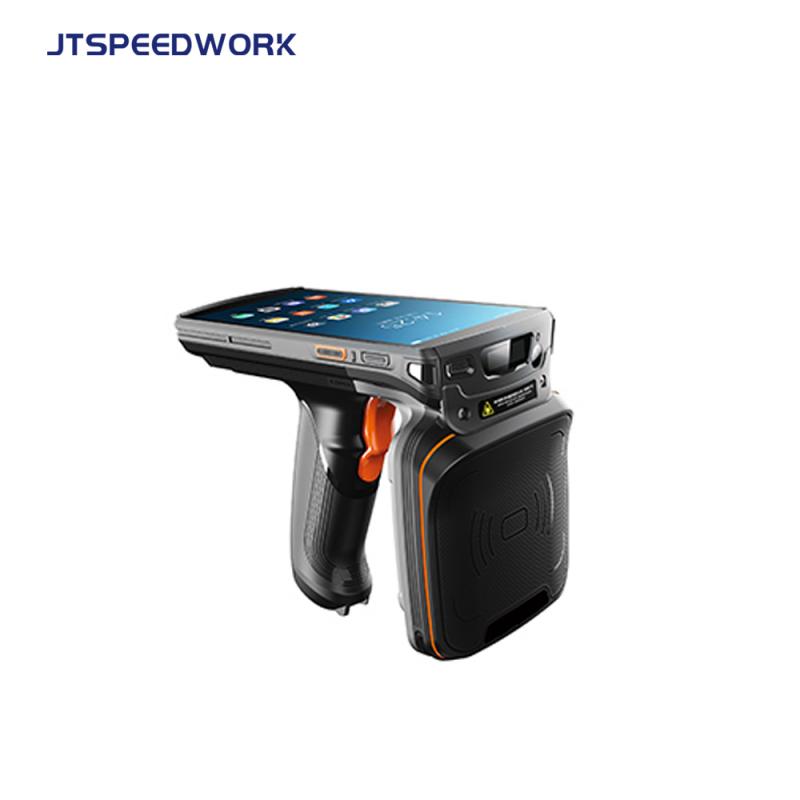

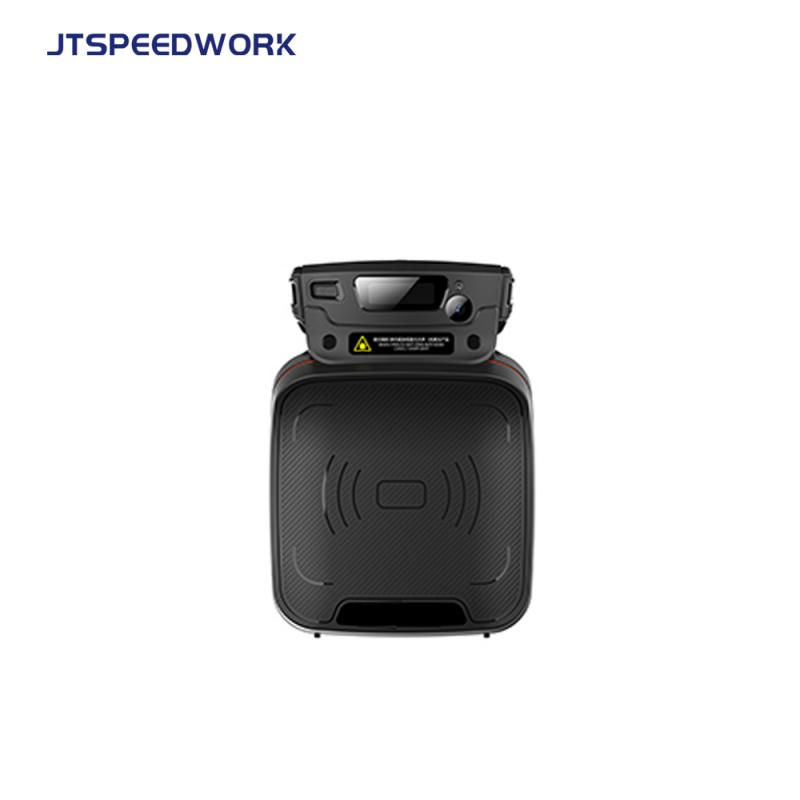

JT-DT50U UHF RFID Handheld Reader with Impinj R2000 and AndroidOS

JT-DT50U UHF RFID Handheld Reader with Impinj R2000 and AndroidOS



  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-DT50U
  • Operating system

    Android 9.0
  • Working frequency:

    860-960MHz
  • Protocol:

    ISO18000-6C
  • RF chip:

    Impinj R2000
product details

Performance Parameters Data Communication
Model JT-DT50U Wireless WAN Dual SIM Dual Standby 4G, 3G, 2G all network
Operating system Android 9.0 Bluetooth BT5.0 + BR/EDR + BLE
Processor Octa-core 64-bit, 1.8 GHz WIFI 2.4G/5G dual-band, IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w protocols
Memory RAM+ROM: 3 GB+ 32 GB Fast roaming: 802.11r/OKC/PMKID caching
Expanded Memory Micro SD card, up to 256GB Position Support GPS, A-GPS, Beidou, GLONASS, Galileo
Basic Specifications Usage Environment
Dimensions 143.3mmx169mm×90.5mm Operating temperature -20 ~ +60℃
Machine weight 678g Storage temperature -40 ~ +70℃
Display 5. 5- inch full color screen (720×1440) Humidity 5%RH~95%RH (no condensation)
Touch screen Support multi-touch, glove touch, water operation and passive pen signature Shock proof height after falling to the ground Can withstand multiple drops from a height of 1.2 meters onto a smooth concrete floor
Main battery 3.85V 9000mAh rechargeable lithium battery Protection level IP67
Charging time No more than 7 hours Electrostatic protection Air discharge ±15KV, contact discharge ±8KV
Audio 1.5W speaker, two microphones (supports noise reduction), earpiece
Button Physical buttons: volume +, - buttons, power button, 1 custom button , 2 scan buttons
Camera Front camera 500W pixels
Top mounted 1600W camera, supports flash
Sensor Distance, light sensitivity, acceleration, geomagnetism , gyroscope
Scanning Professional scanning head, supports scanning mainstream one-dimensional and two-dimensional codes, supports screen scanning
Card slot type Nano-SIM x 2, Micro SD x 1, supports up to 256GB expansion
