Android 9.0 / 11.0 UHF RFID Handheld Reader

Android 9.0 / 11.0 UHF RFID Handheld Reader

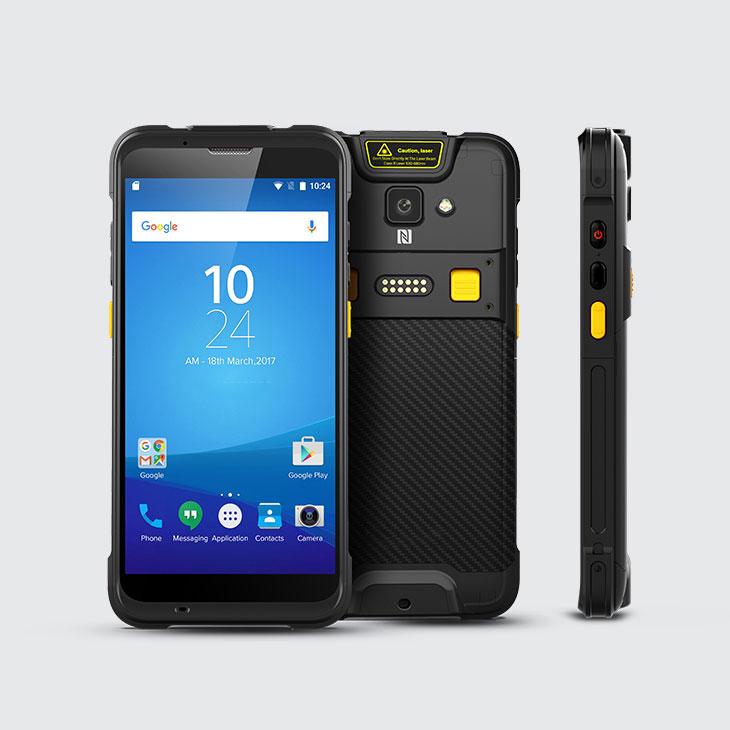

JT-966 is a newly-developed rugged handheld computer with large screen and strong extensibility. Based on Android 9.0 / 11.0 OS, it is equipped with Qualcomm octa-core processor for high-speed processing. With 5.5-inch highdefinition display, it is integrated with barcode scanning, NFC and other functions. The data collection device supports quick charge and UHF sled for good extensibility, besides, device with Android 11.0 OS offers different optional functions such as built-in UHF, fingerprint recognition and volume measurement that can meet the needs in logistics, warehouse, manufacturing, retail, asset tracking, power patrol inspection,etc.

  • Brand:

    SPEEDWORK
  • Item NO.:

    JT-966
  • Product Origin:

    China
  • Lead Time:

    Within 3-7 Days
product details


Physical Characteristics

Dimensions

160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in

Weight

287 g / 10.12 oz. (device with battery)

Display

5.2'' IPS FHD 1920 x 1080

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power


Main battery: Li-ion, rechargeable, 5000 mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)


Expansion Slot

1 slot for SIM card, 1 slot for SIM or TF card

Interfaces

Android 9.0: USB Type-C, USB 3.0, OTG, extended thimble; Android 11.0: USB Type-C, USB 3.1, OTG, extended thimble;

Keypad

4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

Developing Environment

Operating System

Android 9.0; GMS, 90-day security updates, Android Enterprise, ZeroTouch, FOTA, Soti MobiControl, SafeUEM supported Android 11.0; GMS, built-in support for a future upgrade through Android 12 which complies with GMS and Android Enterprise Recommended

SDK/tool

Java/Eclipse / Android Studio

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

Wan

WWAN (China):
2G: 900/1800MHz
3G: WCDMA: B1,B8
       CDMA2000 EVDO: BC0
       TD-SCDMA: B34,B39
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN (Europe):
2G: 850/900/1800/1900 MHz
3G: B1/B2/B4/B5/B8
4G: B1/B3/B5/B7/B8/B20/B40
WWAN(America):
2G: 850/900/1800/1900 MHz
3G: B1/B2/B4/B5/B8
4G: B2/B4/B7/B12/B17/B25/B66
Android 11.0:
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA:B1/B2/B4/B5/B8
       CDMA2000 EVDO: BC0
       TD-SCDMA:A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
       B28B/B34/B38/B39/B40/B41

Communication

Bluetooth


Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
Android 11.0: Bluetooth 5.0


GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Performance

CPU

Cortex-A53 2.5 / 2.3 GHz Octa-core

RAM+ROM


3GB + 32GB
4GB + 64GB (optional)


Expansion

Supports up to 128 GB Micro SD card

UHF RFID  (This function is optional)

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C

 Antenna
Circular polarization (1 dBi)
 R/W ranges
Up to 3m (depend on tags and environment)
 2D Imager Scanner
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603

1D Linear Scanner

Zebra: SE965; Honeywell: N4313

 1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
  NFC/HF ( This function is optional)
Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm
