UHF RFID Tag

On-metal UHF RFID Tag

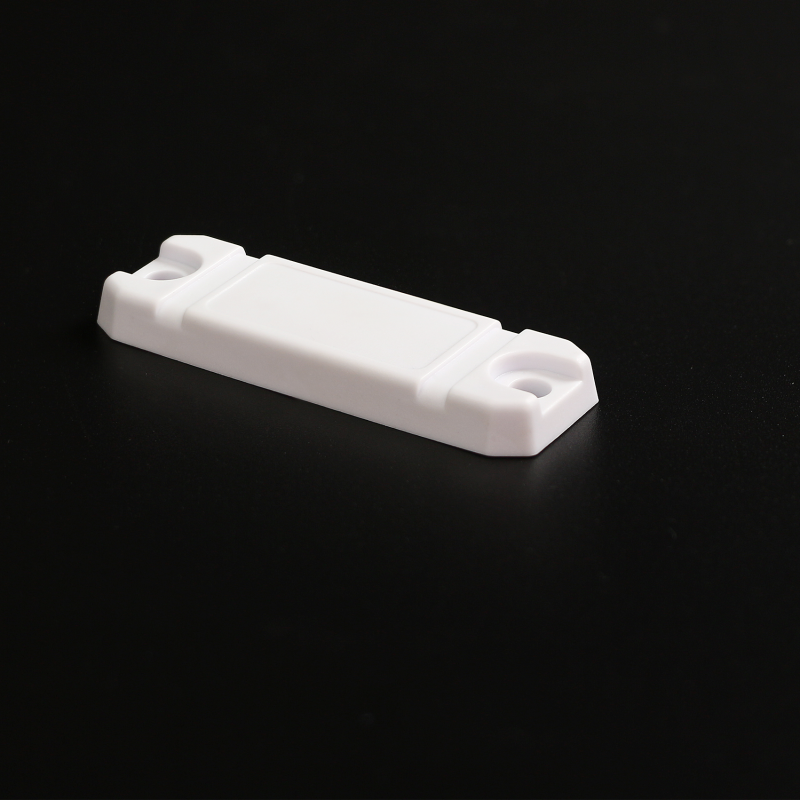

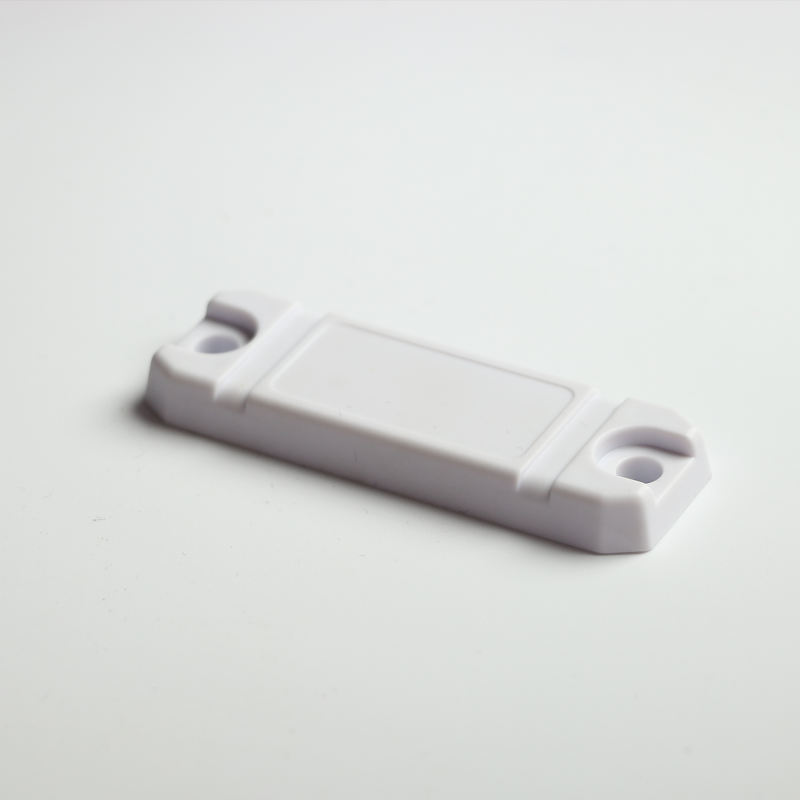

UHF RFID ABS Anti-metal RFID Tag For Warehouse Pallet

UHF RFID ABS Anti-metal RFID Tag For Warehouse Pallet

This product is widely used in indoor asset management, inspection management, and tool management. 10M Long Range Passive RFID On metal Sticker Tag For Warehouse Management System( depend on the reader you order)

  • Brand:

    SPEEDWORK
  • Item NO.:

    JT-K6923
  • Product Origin:

    China
  • Lead Time:

    Within 3-7 Days
product details

Advantage:

  • Mounted on a metal surface for stable operation;
  • 100% tested by the European Union's label compliance test system;
  • 100% passed the memory write test;
  • Material and design are tested for reliability;
  • Widely verified and used by well-known domestic and international customers


Model

JT-K6923

Protocol

EPC Class1 Gen2; ISO18000-6C

frequency

860-960MHz

Chip

Ucode 8

memory

NXP UCODE 8   EPC 128bits , USER 0bits, TID 96bits


Work

Read and Writer

memory lead time

50 years

Warranty

1year

Material

ABS

Color

White

Size

69x23MM (hole :5.2mmx2)

Temperature

-25℃~ +85℃

Storage temperature

-30℃~ +110℃

Save humidity

5%~95%

Adhesive

3M 300LSE

weight

1g

package

500pcs/bag

Alcohol test

95%Concentration alcohol test passed

High and low temperature alternating test

-40℃ to +150℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test

RoHS

yes

IP degree

IP68

Handheld reader on metal surface (JT-972)

0-10M

Fixed RFID Treader (JT-8290)  0-15meter

Polarization direction

Linear Polarization

Text

100% tested it before we send out


Application:

  • Tool management;
  • IT facility chassis management;
  • Metal container management;
  • Management of office equipment and facilities with metal casings indoors and outdoors;
  • Personnel inspection management;
  • Fixed asset management
