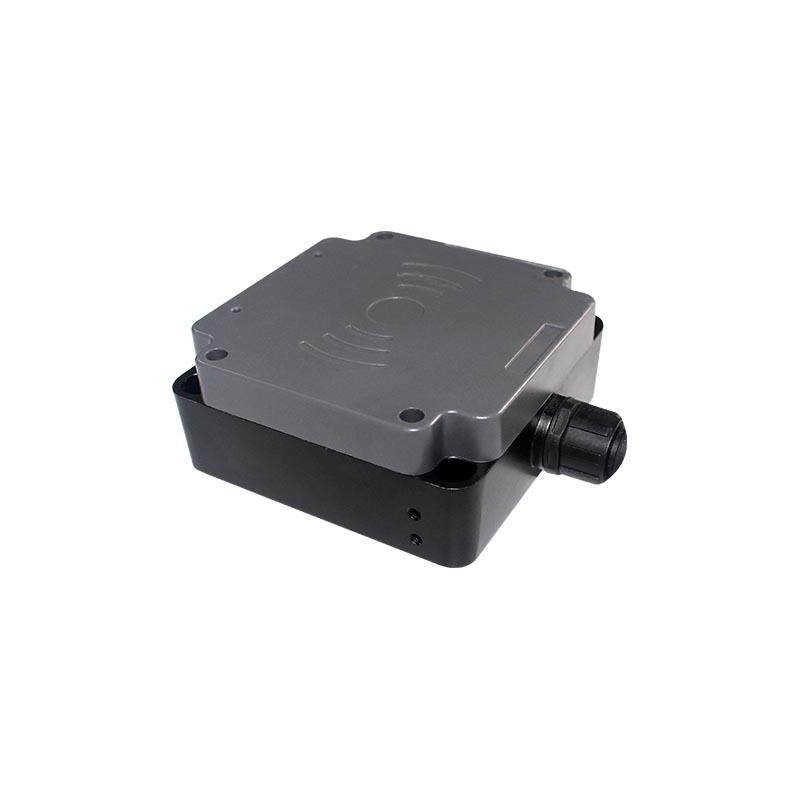

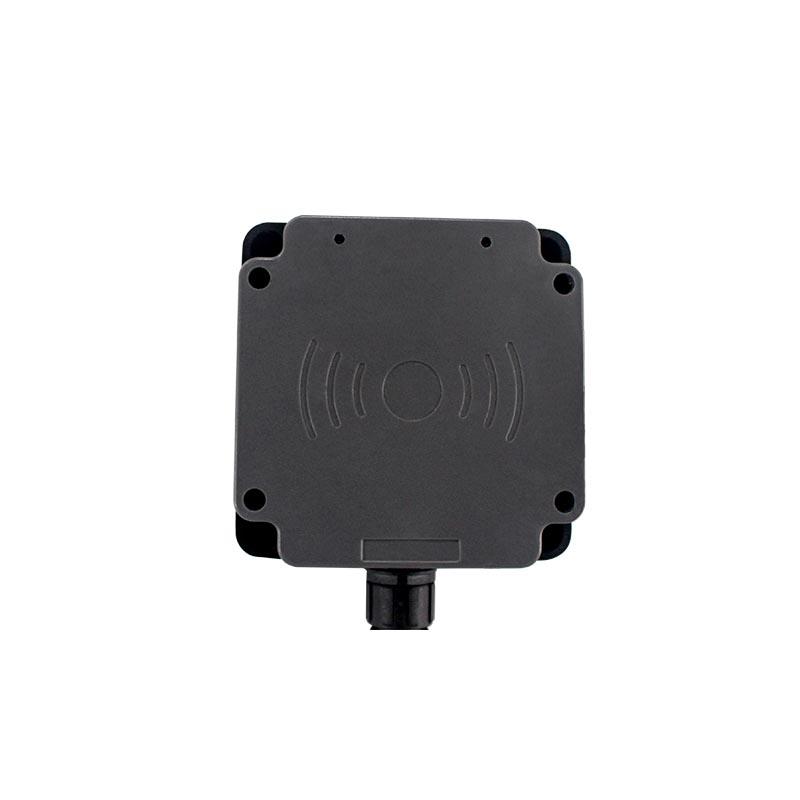

0-3meter IP67 UHF RFID Industrial RFID Reader

0-3meter IP67 UHF RFID Industrial RFID Reader

JT-7100 is industrial design, sturdy and durable, in line with the harsh industrial production lineenvironment, the protection level reaches IP66. RFuses proprietary intellectual property research and development chips with high-performance label recognition algorithm

Software intelligent monitoring of the working state, 24 hours X 365 days of operation does not crash.

The bottom cover is designed to install iron pieces, which is convenient for industrial production line environment installation and reader installation.Small size and light weight, easy to integrate industrial production line equipment. Support  EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C RFID tag.


  • Brand:

    JTSPEEDWORK
  • Item NO.:

    JT-7100
  • Product Origin:

    China
  • Lead Time:

    Within 3-7 Days
product details


Technical Parameters

Frequency

902-928MHz or 865-868Mhz

Frequency modulation method

Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings

RF output

20-26dBm adjustable50 ohm load

Built-in antenna

Dual feed  40x40 ceramic antenna

Antenna

3dBi

Communication port

RS232or RS485

Communication rate

Rate 9600115200bps

Reliable firmware upgrade

Scalable upgrade mechanism

SDK

C#,Java,Android

Working status display mode

LED indicator (blue, red), buzzer

Rewrite and Read

Read distance

0-3M

Write distance

0-30CM

Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Maxreceiving sensitivity

-65 dBm

Performance

Size

95*95*40mm

Equipment power supply

Industrial grade wide voltage design, 9-36V DC

LED indicator

Blue: card reading indicator; red: power indicator

Weight

450g

Protection level

IP67

Connector form

Round waterproof M5 pin socket connector

Connector pin definition

1GND;  2TXD;  3RXD

4DC;   5GND

Operating temperature

-20ºC 60ºC

storage temperature

-20 ºC85 ºC

Working humidity

5%95%RH, Non-condensing
