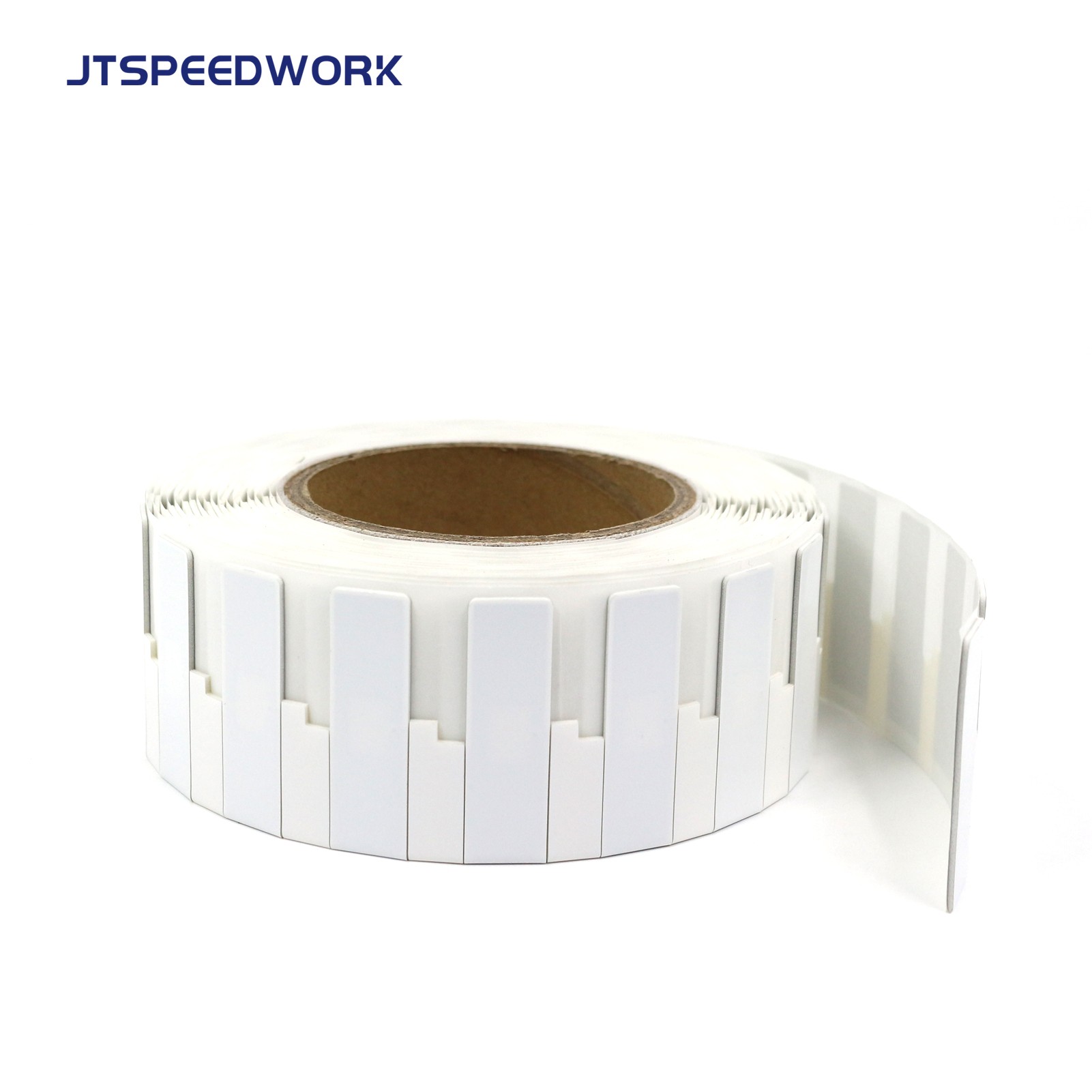

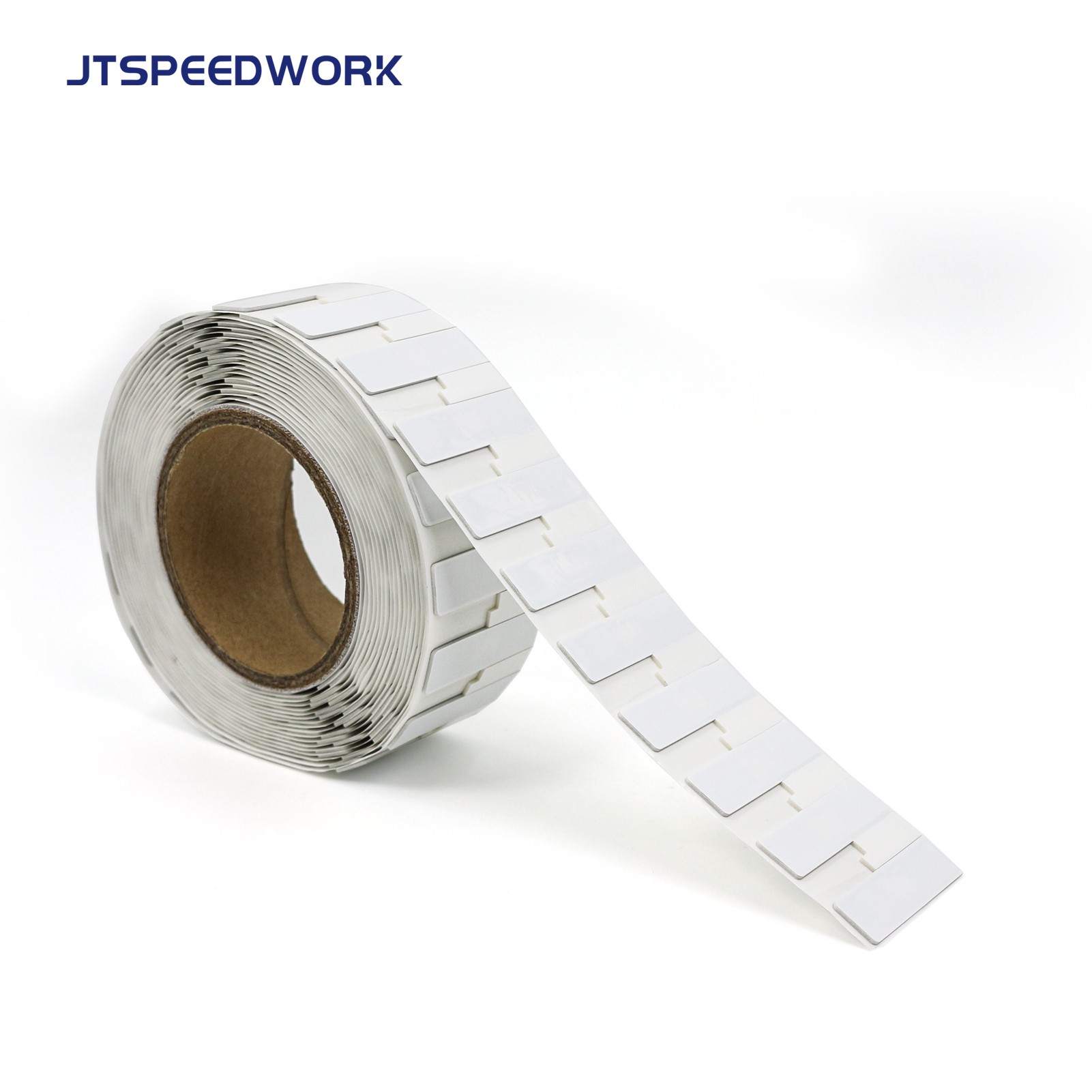

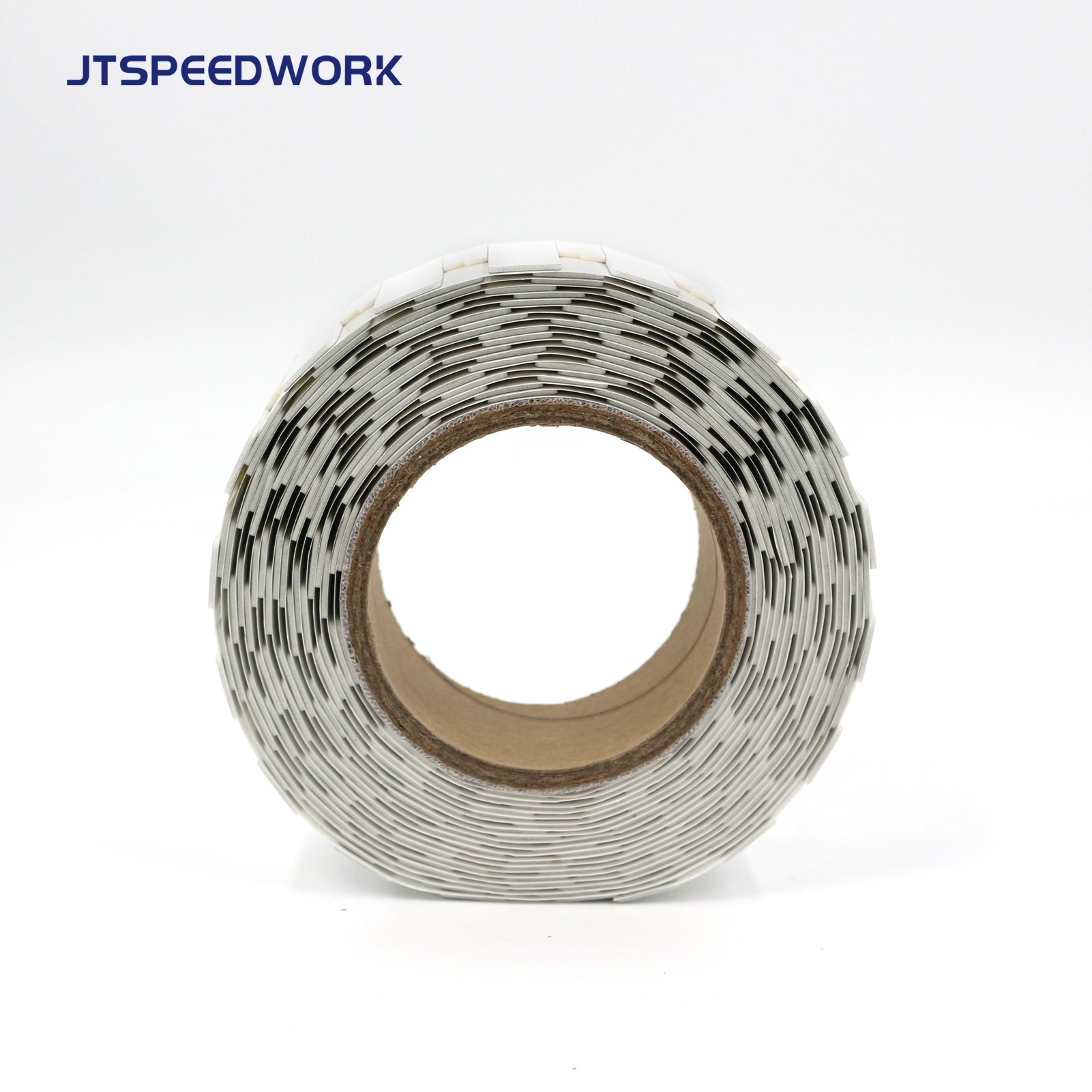

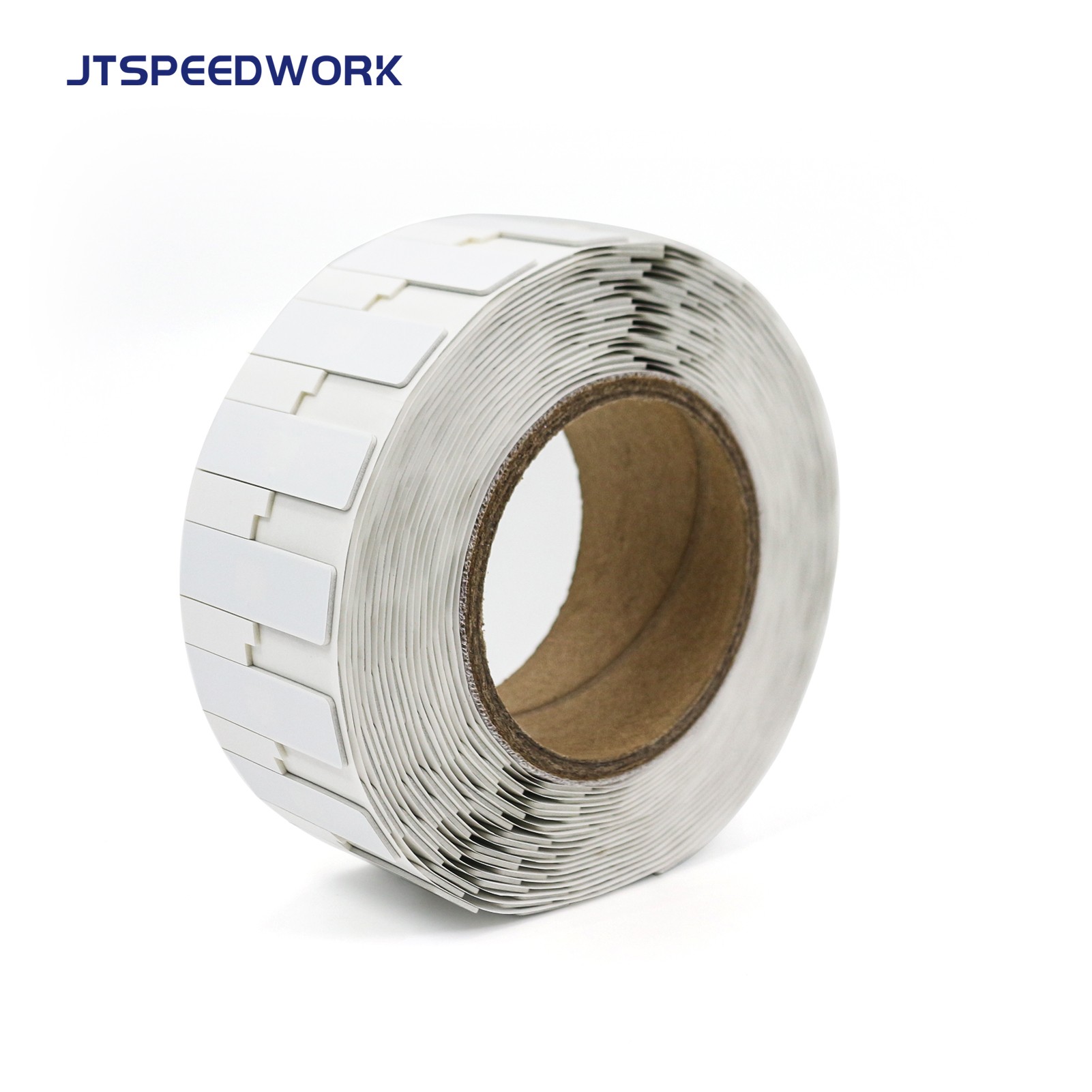

JT-K5015 50*15*1.26mm 860-960Mhz UHF Flexible Printable On metal RFID Label
JT-K5015 is a flexible printable UHF RFID on-metal label (50×15×1.26mm, 860–960MHz) with NXP Ucode 8 chip, compliant with EPC C1G2 & ISO 18000-6C. It works reliably on metal/liquid environments, fits curved surfaces, supports thermal printing, and is ideal for asset tracking, logistics, and industrial management.
Item No :
JT-K5015Color :
WhiteSize :
50x15x1.26mmWorking frequency :
860-960MHzRF chip :
NXP Ucode 8|
Product model |
JT-K5015 |
|
|
|
|
Protocol |
EPC Class 1 Gen 2 (ISO 18000-6C) |
|
Print Performance |
Excellent |
|
Working frequency |
860-960MHz |
|
Read Range on metal |
0-6M by JT-973 handheld reader |
|
Chip |
NXP Ucode 8 |
|
Read Range on metal |
0-10M by JT-8288 Middle range Fixed Reader |
|
Memory |
0-bit User |
|
Read Range on metal |
0-15M by JT-8290 Long range Fixed Reader |
|
48-bitsTID |
|
Surface Material |
White PET |
|
|
128-bits EPC |
|
Adhesive |
High strength adhesive |
|
|
Storage Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
Standard Packing |
500-1000pcs/roll |
|
Working Temp |
-40°F to +185°F (-40°C to + 85°C) |
|
I.D. |
3 in (76.2 mm) |
|
Weight（roll） |
0.71 kg (500 pcs) |
|
O.D. |
8 in (203 mm) |
|
Dimensions(mm) |
50(+/- 1) x15(+/- 0.8) x1.26(+/- 0.1) |
|
Printer |
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
|
Width of Liner |
53(+/- 1)mm |
|
|
|
|
Inlay Pitch |
15(+/- 0.8)mm |
|
|
|
|
Gap |
10(+/- 0.1)mm |
|
|
|
|
R Angle |
1.5(+/- 0.2)mm |
|
|
|
