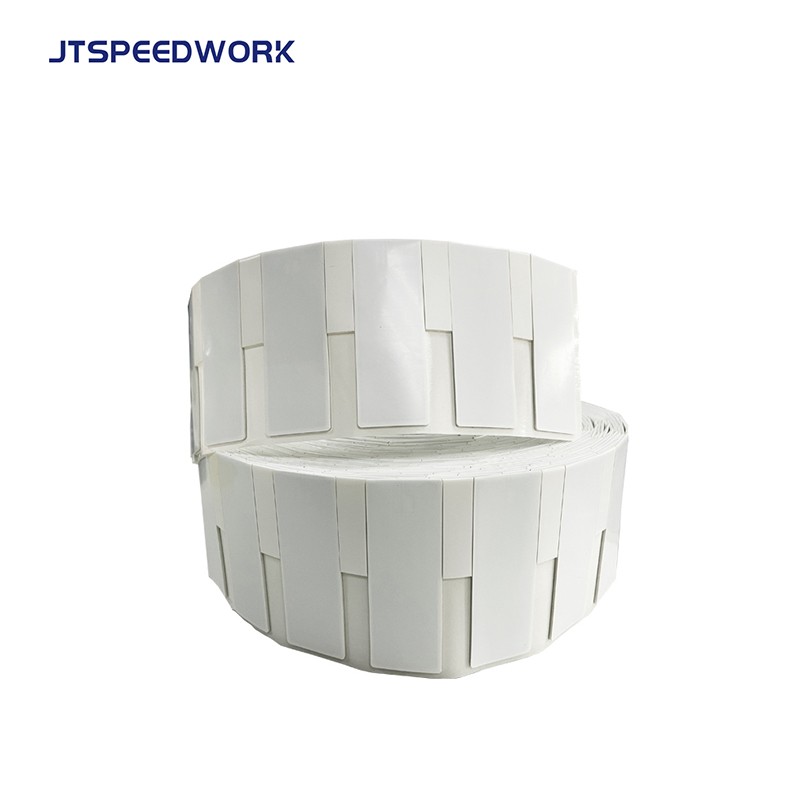

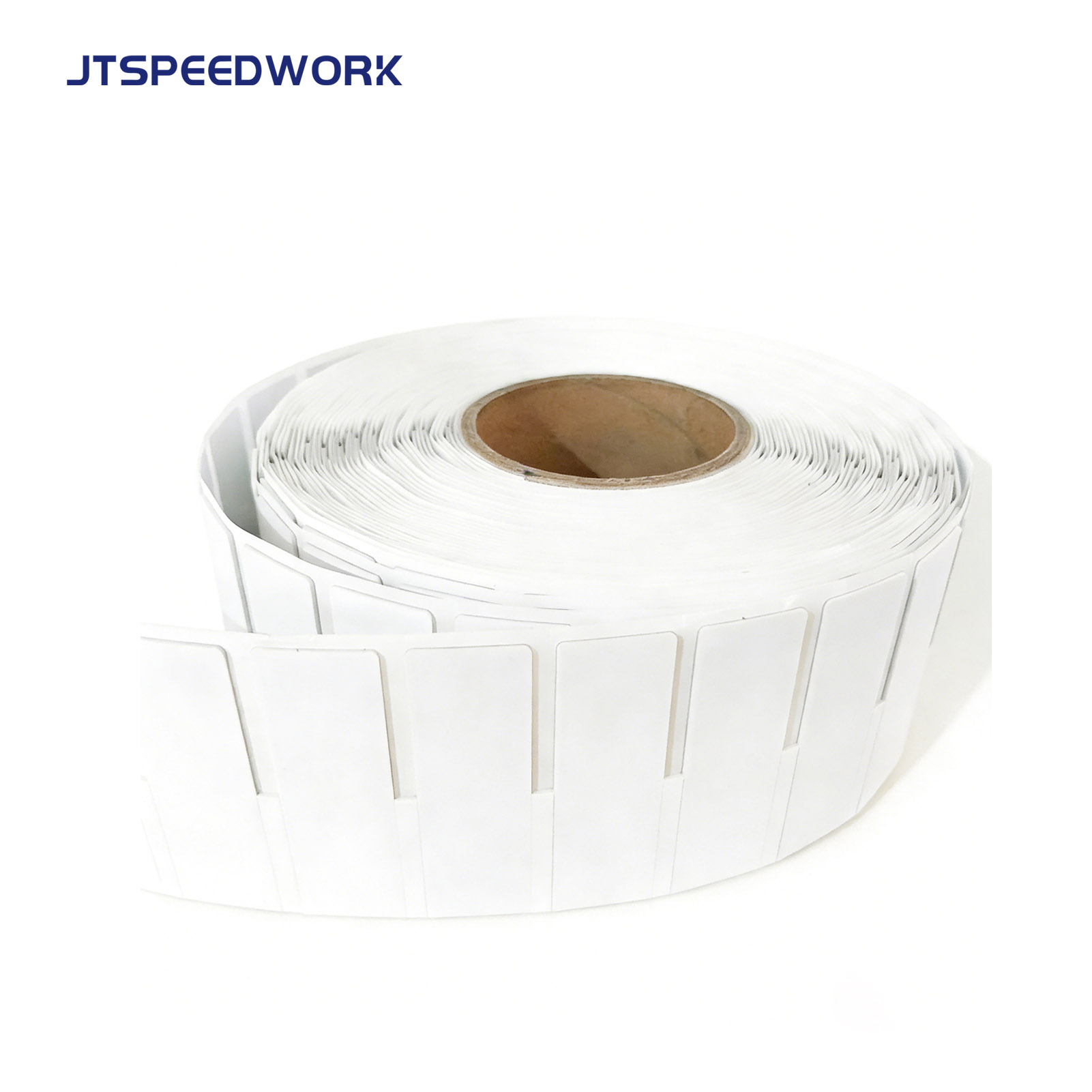

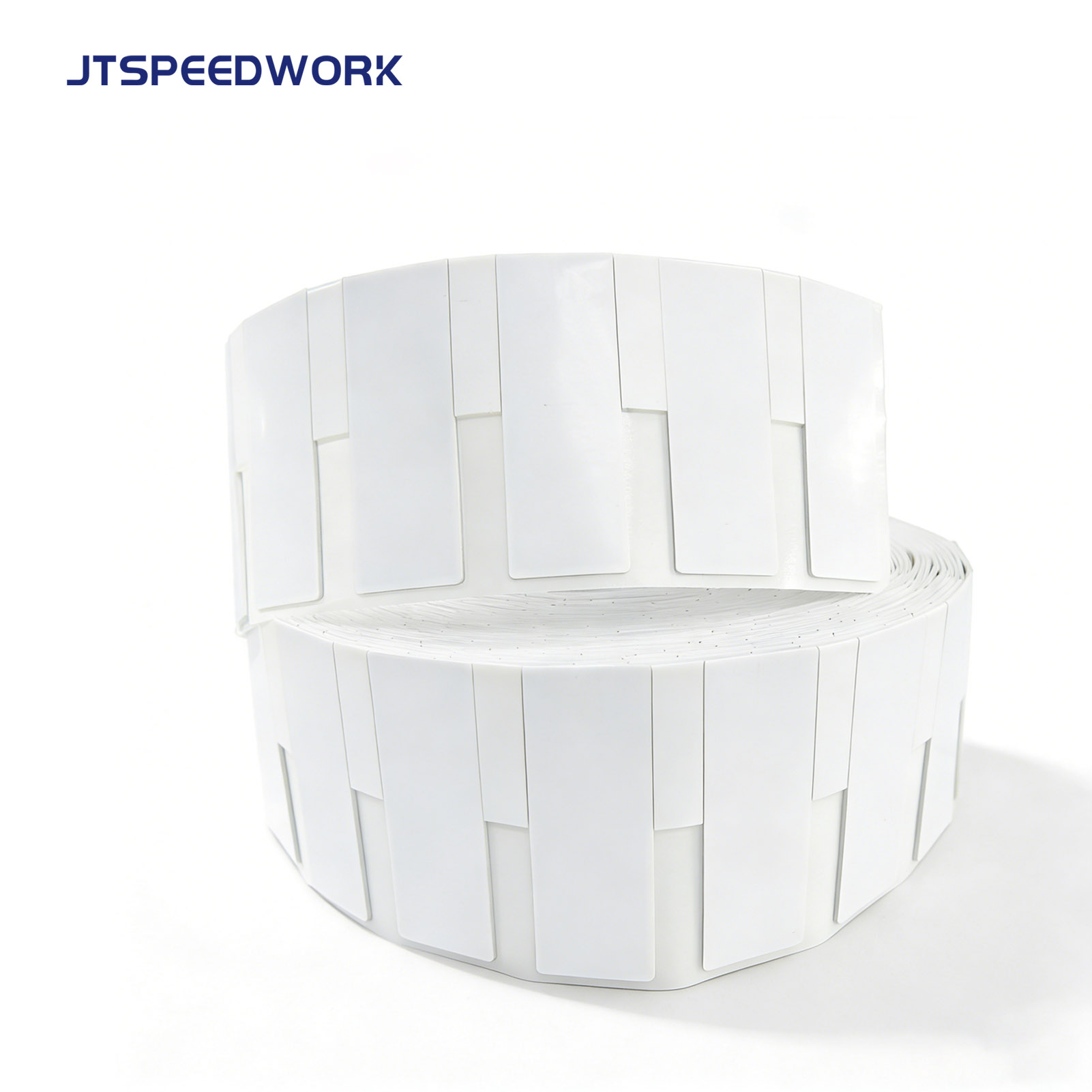

JT-K8025 80x25x1.26mm 860-960Mhz UHF Flexible Printable On metal RFID Label Impinj Monza R6-P
JT-K8025 is a flexible printable UHF RFID on‑metal label (80x25x1.26mm, 902–928MHz) with Impinj Monza R6‑P chip, compliant with EPC C1G2 & ISO 18000‑6C. It features 128‑bit EPC, 48‑bit TID, 32‑bit user memory, white PET surface, strong adhesion, wide temperature resistance, and excellent printability, ideal for asset tracking, logistics, and industrial management.
Item No :
JT-K8025Color :
WhiteSize :
80x25x1.26mmWorking frequency :
902-928MHzRF chip :
Impinj Monza R6-P|
Protocol |
EPC Class 1 Gen 2 (ISO 18000-6C) |
Read Range on metal |
0-6m by JT-973 4dbi handheld reader |
|
Working frequency |
902-928MHz |
Read Range on metal |
0-8m by JT-8288 Middle range Fixed Reader |
|
Chip |
Impinj Monza R6-P |
Read Range on metal |
0-12m by JT-8290 Long range Fixed Reader |
|
Memory |
32-bits User |
Surface Material |
White PET |
|
48-bits TID |
Adhesive |
PSA |
|
|
128-bits EPC |
Standard Packing |
500pcs/roll |
|
|
Storage Temp |
-40°F to +185°F (-40°C to + 85°C) |
I.D. |
3 in (76.2 mm) |
|
Working Temp |
-40°F to +185°F (-40°C to + 85°C) |
O.D. |
8 in (203 mm) |
|
Weight（roll） |
0.71 kg (500 pcs) |
Printer |
Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
|
Dimensions |
80x25x1.26mm |
Print Performance |
Excellent |
|
Width of Liner |
83(+/- 1)mm |
|
|
|
Inlay Pitch |
30(+/- 0.8)mm |
|
|
|
Gap |
25(+/- 0.1)mm |
|
|
|
R Angle |
1.5(+/- 0.2)mm |
|
|
