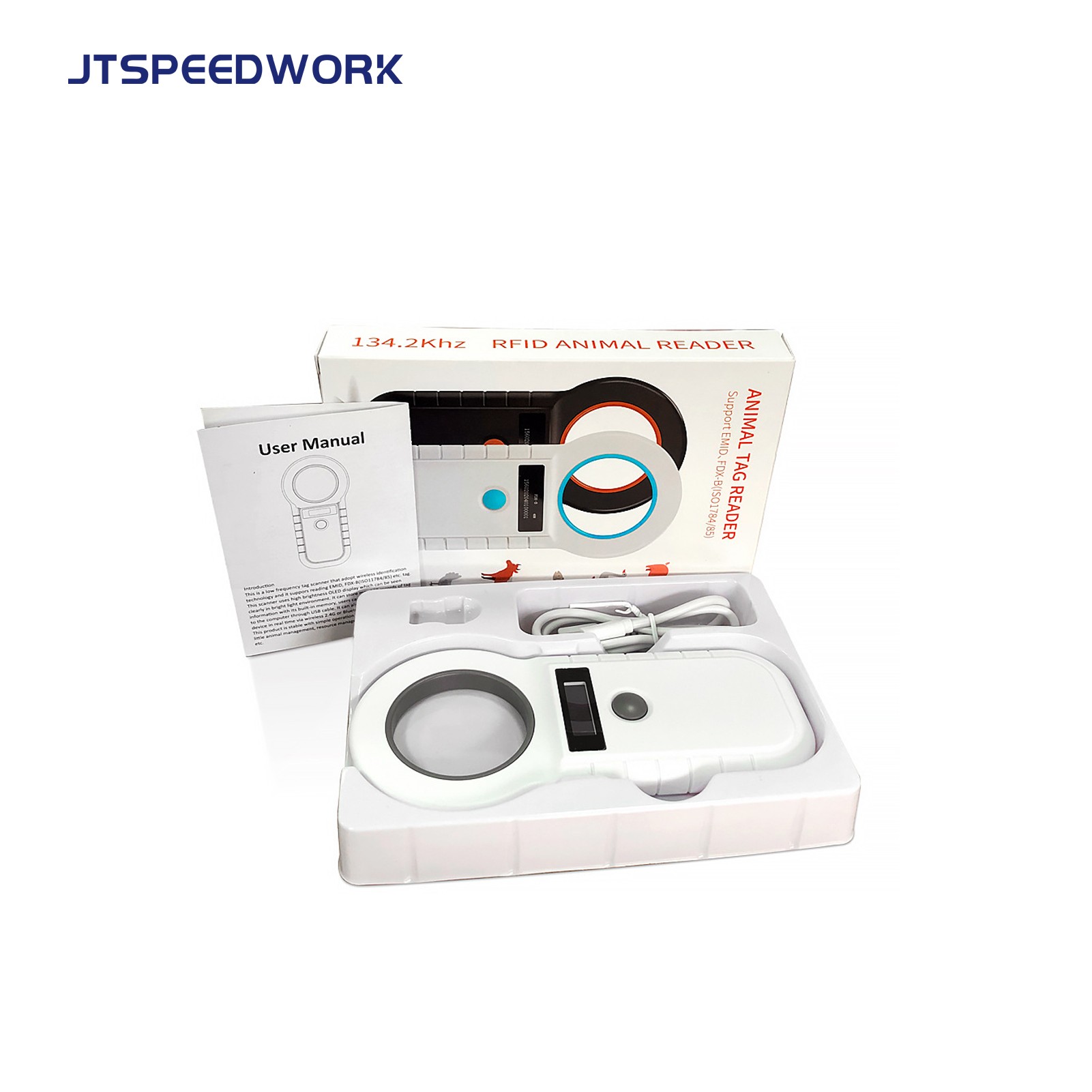

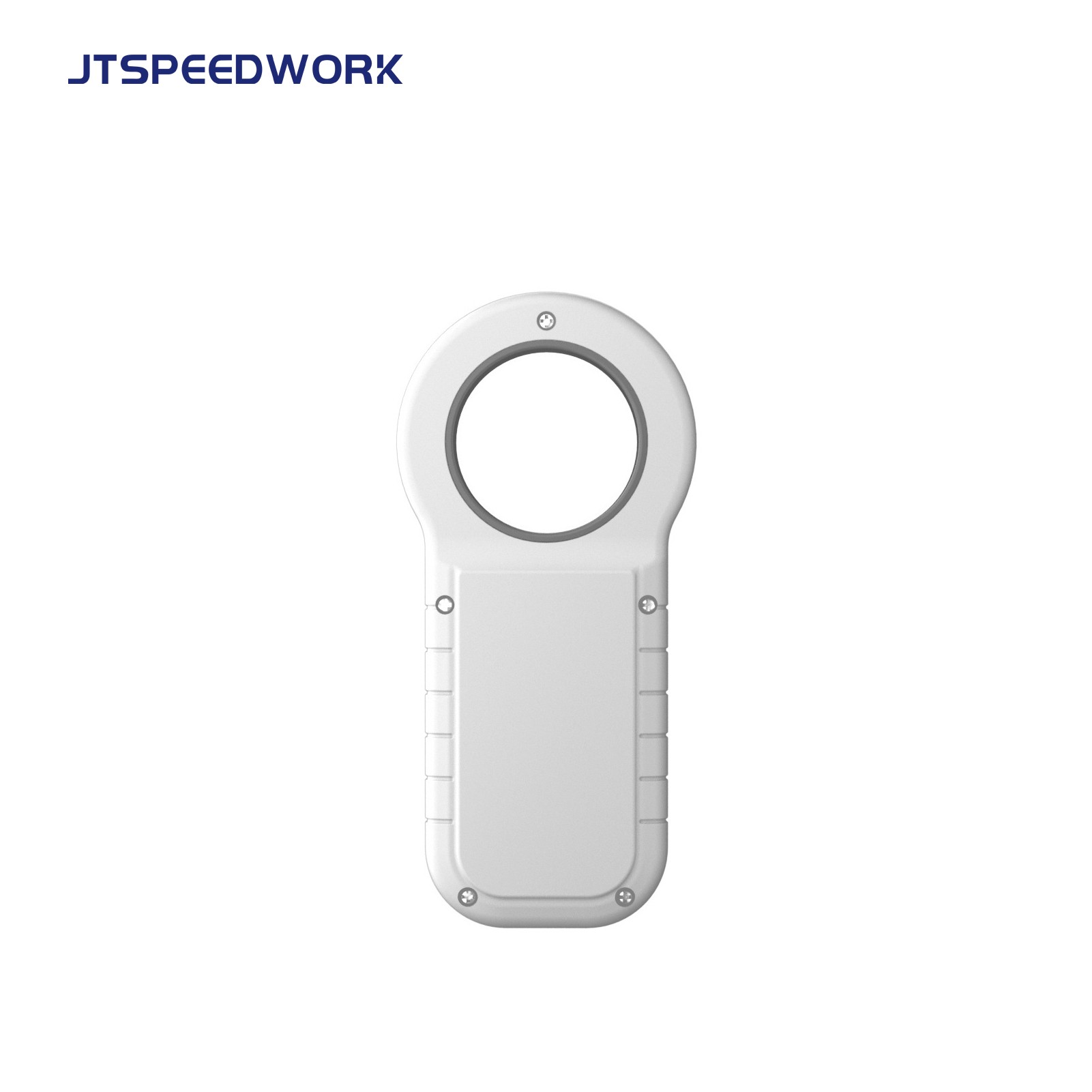

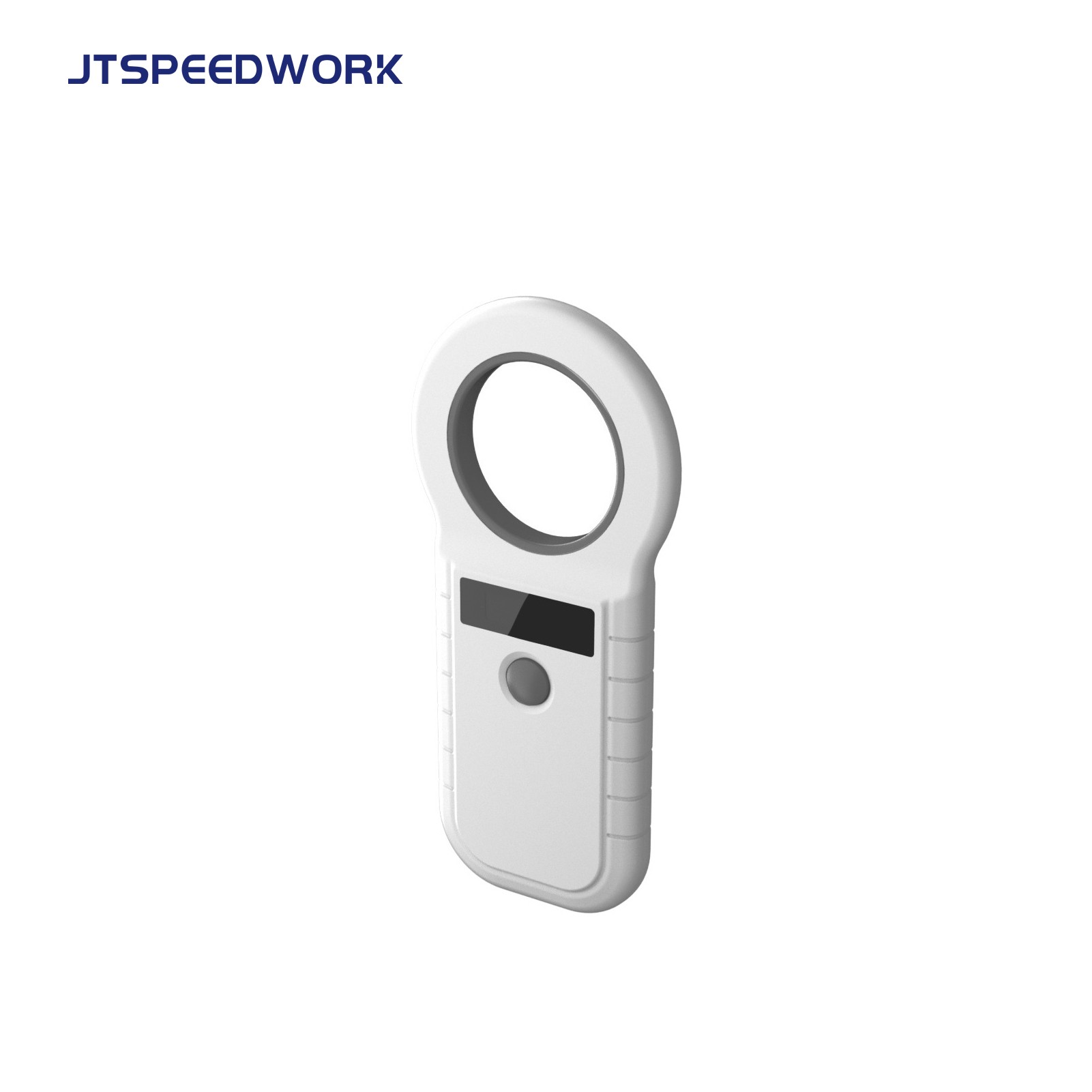

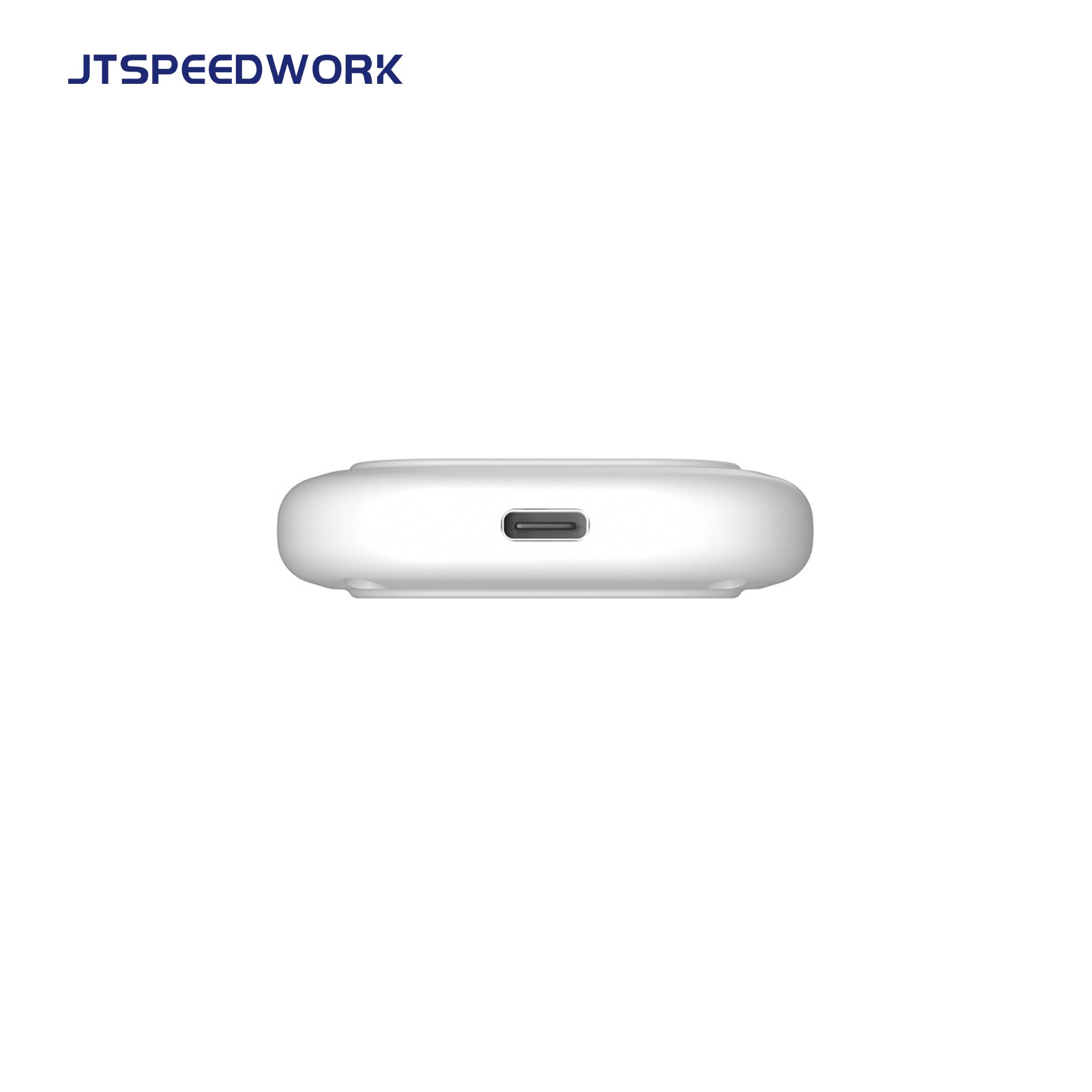

JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader

JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader
JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader
JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader
JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader
JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader

JT-H02 Dual Frequency 134.2KHz/125KHz Animal Identification Handheld Reader

JT-H02 animal chip handheld reader is used in the field of animal identification and can identify animal chips that meet the ISO11784/85 standard. The product uses advanced radio frequency transmitting/receiving circuits and embedded microcontrollers, combined with strict decoding algorithms to receive, verify and read the data of IS011784/85 compatible electronic signs. It has the characteristics of high receiving sensitivity, small operating current, easy to carry, and high cost performance. Data is displayed on the LCD screen in real time. This product is a low-frequency 134.2KHz and 125KHz dual-frequency reader, OLED display, USB charging, product performance is stable, safe and reliable.



  • Item No :

    JT-H02
  • Color :

    White
  • Communication Interface :

    USB
  • Protocol :

    ISO11784/85/EMID/FDX-B
  • Working frequency :

    134.2KHz;125KHz



Item No. JT-H02
Physical Parameters   Power supply
Color White/Black   Charging voltage 5V
Dimensions 167(L)*116(W)*27(H)mm   Battery voltage 7.4V
Net weight 71g   USB 2.0;Built-in rechargeable battery
Please charge it for 2 hours for first time use
Material ABS   Continuously working
      4 hours
RFID parameters   Buzzer
Air Protocol   Built-in
EMID,ISO11784/85 protocol, FDX-B   Data Storage
Working frequency   Can store 128 pieces of data
134.2KHz;125KHz   User Environment
Reading range   Operating Temp. -20  to 65
0-30cm(relate to animal chip size)   Storage Temp. -30  to 70
Screen display   Humidity 5-90% non-condensing (+25° C )
0.9-inch OLED display
