JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant

JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant
JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant
JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant
JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant
JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant

JT-A001 EM4305 Glass Animal Microchip Tag ISO11784/85 Compliant

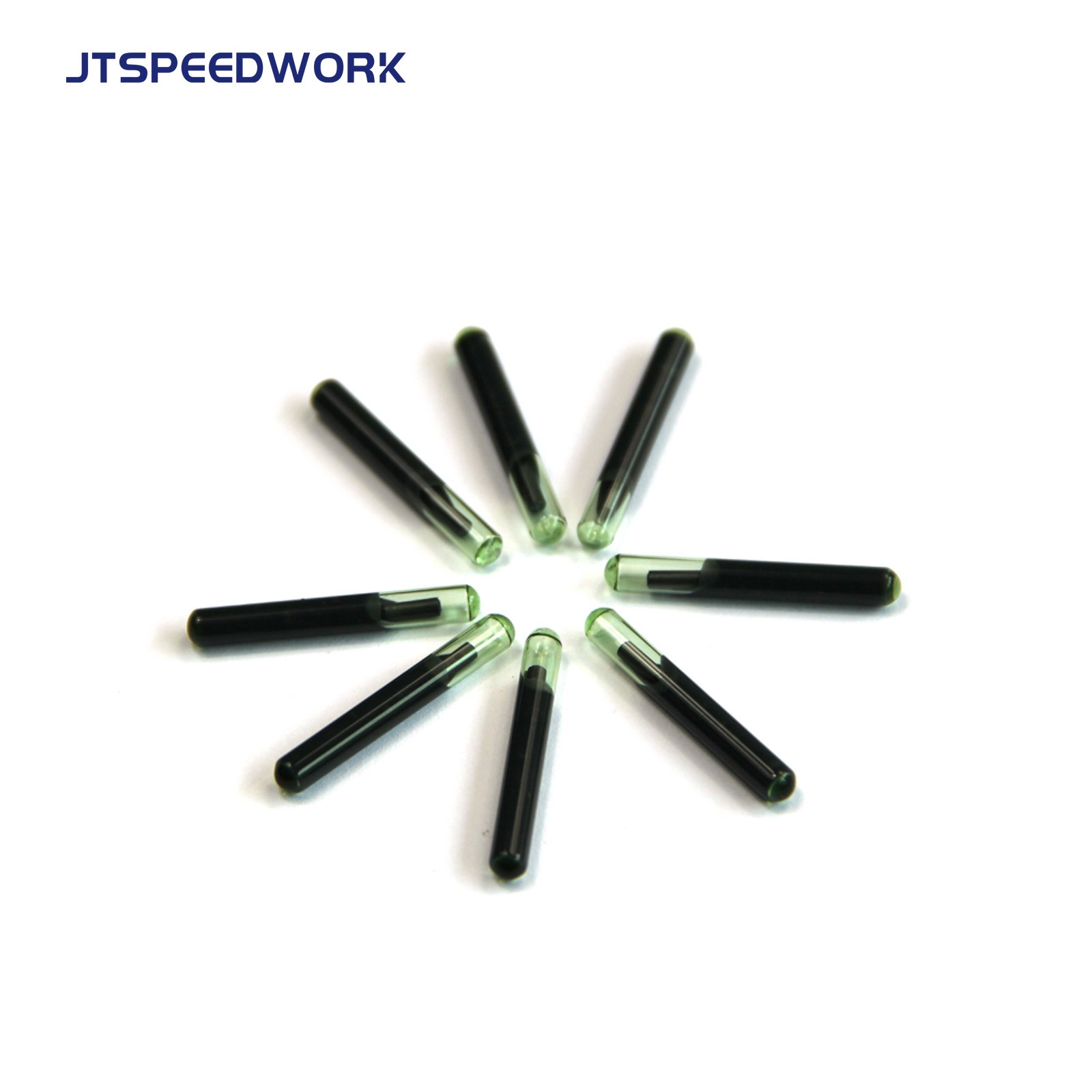

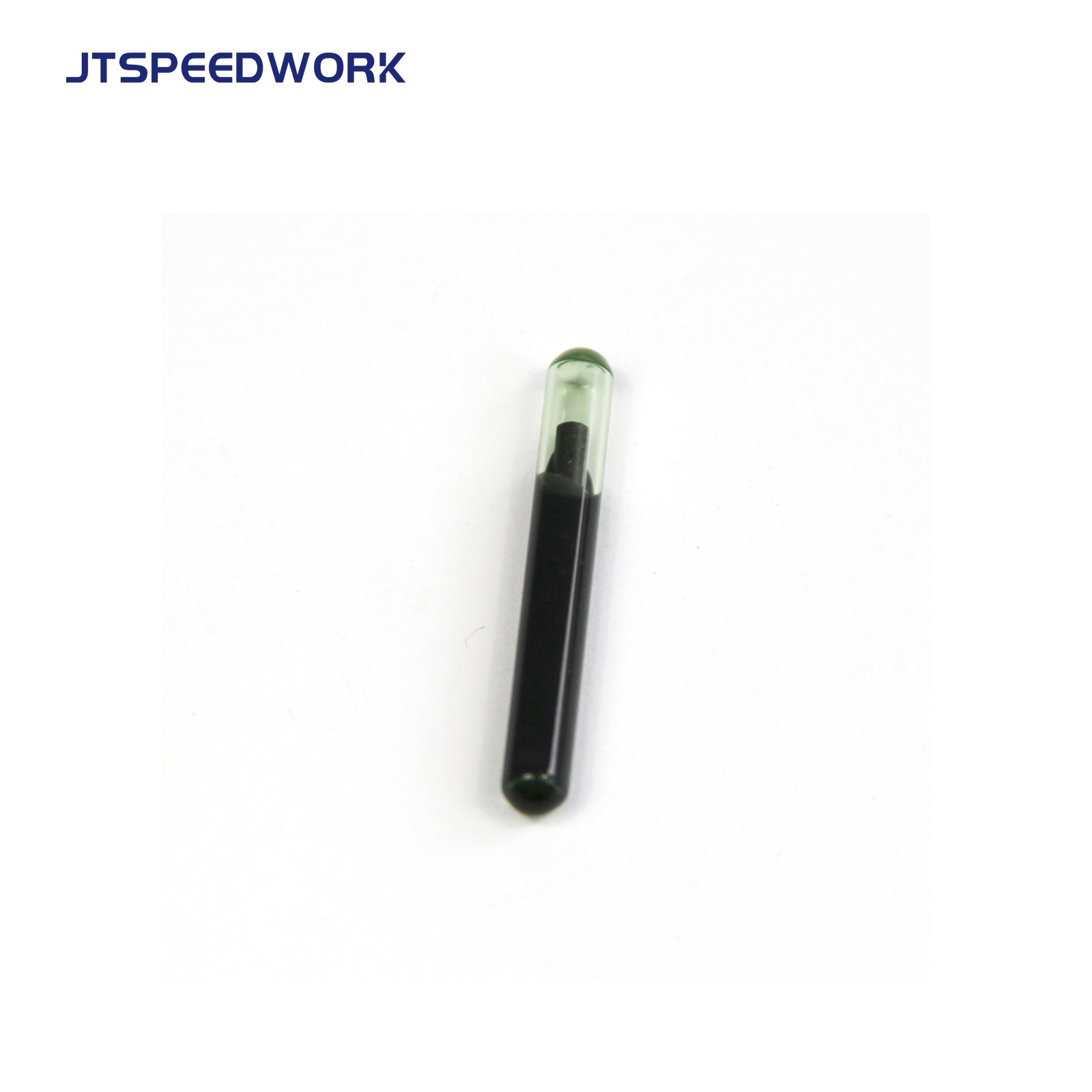

This is the JT-A001 LF RFID implanted animal chip tag operating at 134.2KHz and compliant with ISO11784/85 FDX-B protocol. Equipped with high-performance EM4305 RF chip, this glass tag is made of lead-free, non-toxic raw materials with professional biological coating, safe for animal implantation. It comes in six different specifications with sizes ranging from φ1.25x7mm to φ4x32mm, featuring variable reading distances from 1cm to 30cm to meet diverse usage demands. Each tag has a unique ID number, built with data integrity check and encrypted authentication functions to ensure data security. With compact size, light weight (about 0.1g), anti-slip surface and long service life, the tag works steadily within -20℃ to +70℃ and can be stored at -40℃ to +85℃. Widely applied in pet management, livestock tracking, animal breeding, rare animal protection and animal data statistics.

  • Item No :

    JT-A001
  • Size :

    φ1.25mm*7mm;φ1.4mm*8mm;φ2.12mm*12mm;φ3mm*13mm;φ3mm*15mm;φ4mm*32mm
  • Working frequency :

    134.2KHz
  • RF chip :

    EM4305
Item No. JT-A001
RFID  Parameter   Physical Parameter
Chip EM4305   Type Implanted animal tags
Working frequency 134.2KHz   Material Glass(Lead-free and non-toxic materials inside, plus glass and bio-coating.)
Protocol ISO11785/85(FDX-B)   Color Transparent
      Weight About 0.1g
Different dimensions and reading range   Environment Parameter
φ1.25mm*7mm 1-12cm   Working temp. -20~+70(no freezing)
φ1.4mm*8mm 1-15cm   Storage temp. -40~+85 (no freezing)
φ2.12mm*12mm 1-20cm
φ3mm*13mm 1-25cm
φ3mm*15mm 1-28cm
φ4mm*32mm 1-30cm
Features
Flexible solution, unique ID number, advanced security features (data integrity check, encrypted identity authentication), easy to use, small size, long service life and surface with anti-slip material.
Application
Animal tracking and identification management, animal data statistics, automatic animal breeding, animal behavior management, pet management, rare animal tracking.
